P0441: Evaporative Emission System Incorrect Purge Flow

Code P0441 is a diagnostic trouble code (DTC) that points to a problem in the car’s evaporative emission control (EVAP) system. The EVAP prevents harmful fuel vapors from escaping into the atmosphere.

This guide discusses everything you need to know about this code, including symptoms, causes, and possible solutions.

What Does Code P0441 Mean?

The P0441 code stands for Evaporative Emission System Incorrect Purge Flow. When the engine control module (ECM) detects too much or too little fuel vapor being purged from the EVAP canister to the engine, it activates the check engine light and stores this code.

It should be noted that the P0441 code only appears in vehicles fitted with a purge flow sensor or a leak detection pump, so not all vehicles will list this code.

Only a few EVAP systems have purge flow sensors due to cost and complexity. Some purge flow sensors (like the one shown) simply have a thermistor. Others measure hydrocarbon content in the purge flow gasses.

Adding a purge flow sensor requires extra parts, wiring, and additional algorithms. Direct purge flow measurement isn't an OBD-II requirement, and adding a purge flow sensor increases the cost of the EVAP system.

Most EVAP systems rely on other sensors and the ECM/PCM (powertrain control module) to monitor and control the purge flow effectively. These systems can detect issues through indirect measurements without needing a dedicated purge flow sensor.

What Causes Code P0441?

Code P0441 is usually caused by a fault in one of the EVAP system components or in the purge flow sensor itself. Possible causes are a damaged EVAP canister, a malfunctioning purge valve, leaks in one of the hoses connecting these components, or again, the purge sensor itself. The latter is most often the case in some platforms like the late ‘90s Ford Rangers (see CARiD part photo).

In some rare cases, a loose gas cap may also trigger the code,

There are unusual instances of a P0441 code being triggered by a malfunctioning purge flow sensor or the ECM generating an incorrect reading due to a software glitch.

• Faulty purge valve
• Leaking EVAP canister
• Damaged hoses
• Loose or open gas cap

Faulty Purge Valve

The EVAP purge valve controls the flow of fuel vapor from the canister to the engine. If the purge valve doesn’t work, there will be no purge flow and this code will be set.

Leaking EVAP Canister

Like a loose gas cap, a leaking canister can’t prevent purge flow malfunction unless the sensor is sophisticated enough to detect hydrocarbon vapors rather than just detecting a temperature change in the purge flow through the hose.

But even with the more sophisticated sensors that measure hydrocarbons, there will usually be enough vapor flowing during purge to satisfy the sensor. The EVAP canister still stores vapor and purges it through the hose even if the air is coming from cracks in the canister rather than through the vent valve or purge valve.

Damaged Hoses

Fuel vapor may also escape from cuts, cracks, or loose connections in the EVAP system's various hoses and connectors. A clog in the lines may also disrupt proper vapor flow (see the caveat on gas caps below).

Loose or Open Gas Cap

If the gas cap is not sealed properly, fuel vapors may start to escape from the fuel tank. The resulting pressure loss may trigger the code if the leak is substantial.

The caveat is that a loose or missing gas cap can’t prevent purge flow malfunction unless the sensor is sophisticated enough to detect hydrocarbon vapors and not just temperature changes in the purge flow. It depends on the algorithms in the vehicle’s ECM/PCM. Even then, as mentioned, there will still be sufficient vapors stored in the canister for the purge flow sensor to detect.

What Are the Symptoms of Code P0441?

P0441 has very few noticeable symptoms. In most cases, the check engine light is the first (and perhaps the only) sign of a problem. Reports of gas fumes and emission problems related to this code have also been reported.

If you notice any of these symptoms in your vehicle, immediate inspection is recommended for a proper diagnosis.

• Illuminated check engine light
• Fuel smell (if the gas cap is loose or leaking)
• Emissions testing issues

Illuminated Check Engine Light

The ECM automatically triggers the check engine light once it logs a P0441 code, so it is the first, and sometimes the only, sign that something is wrong with the EVAP system.

Fuel Smell

As the possible causes of this code involve a leak in the EVAP system or a loose component, one of the symptoms may be a strong fuel smell.

Increased Emissions

A substantial vapor leak can also cause the vehicle to fail an emissions test.

How to Diagnose Code P0441

Since it has multiple known triggers, diagnosing code P0441 requires a careful and methodical approach to ensure accuracy. Some of the general steps that must be taken:

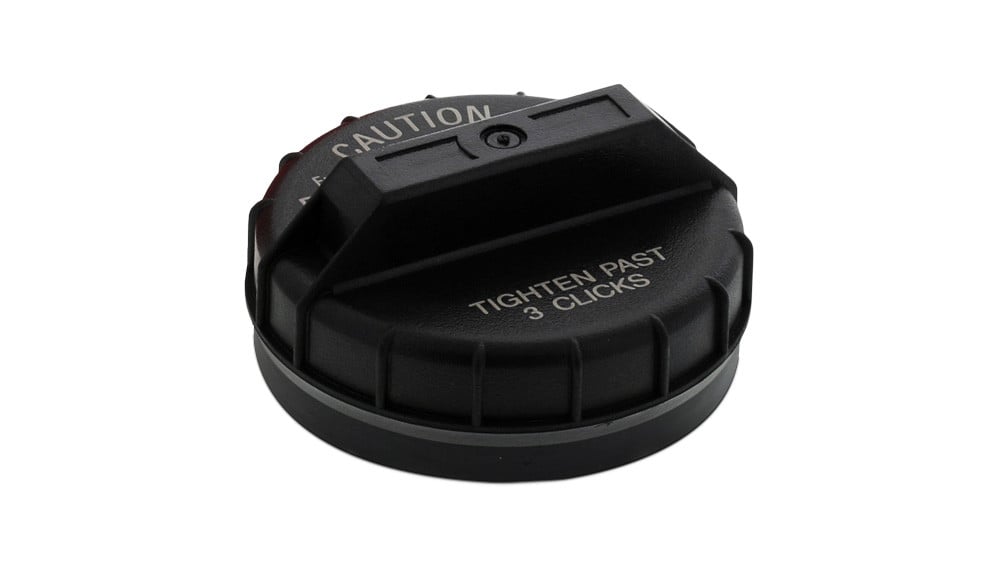

Inspect the Gas Cap

Check if the gas cap is tightened securely into the fuel filler neck. Look for any cracks, corrosion, and other signs of damage on the cap where fuel vapors could leak out.

Conduct an OBD Scan

Using an OBD-II scan tool, retrieve any stored trouble codes from the vehicle’s onboard computer aside from P0441. This might provide clues to the source of the problem.

Purge Valve Testing

Test the purge valve according to your vehicle’s service manual instructions. It generally involves applying a small amount of voltage to the valve terminals and listening for an audible click, which indicates the valve is working. But unless you can check for airflow through the valve, that click is only a partial test. The purge valve should not allow airflow unless energized but should allow airflow as soon as you hear the “click.”

Check the Vapor Canister

Look for any signs of damage, such as cracks or punctures in the canister body. Also check for a noticeable smell of fuel inside or outside the canister, which might indicate liquid fuel contamination.

Look for Leaks

Smoke machine and pressure tests can be used to identify leaks in hoses, connectors, and components of the EVAP system.

How to Fix Code P0441

Fixing issues related to code P0441 depends mainly on its exact cause and the severity of the problem. Some of the common repairs involved include:

Tighten or Replace the Gas Cap

Ensure that the gas cap is secured properly and the seal is intact. If the cap is worn or damaged, it must be replaced.

Replace the Purge Valve

If a faulty purge valve triggers code P0441, it must also be replaced. Damaged or corroded valve connectors and hoses must be removed and replaced.

Replace the EVAP Canister

A clogged or damaged EVAP canister needs replacing. Check if the vent hoses connected to the canister need replacing as well.

Clear the Code

Use the OBD-II scan tool to clear any codes stored in the onboard computer. Then, restart the vehicle and take it for a test drive to see if the code or symptoms return.

Other Codes Related to P0441

The P0441 code may appear along with codes related to the EVAP system. These include:

P0440

This code indicates a leak in the EVAP system or malfunctioning fuel vapor pressure sensors.

P0442

This code means a minor leak has been detected in the EVAP system.

P0444

This code is recorded when the ECM detects an error in the purge valve circuit.
