With the help of an idle control system, your engine maintains the standard revolutions per minute (RPM) to function optimally and stay fuel-efficient while idling. The P0506 diagnostic trouble code (DTC) alerts you of a possible issue causing your Idle Control System to produce lower RPMs than expected.
What causes this trouble code, and what can you do to fix it? Let’s learn more about the P0506 engine code in this guide.
What Does Code P0506 Mean?
Modern engine controls have several different feedback loop systems, and idle speed is one of the feedbacks used when the engine is started—but it’s only used when the throttle is fully released.
The engine control module (ECM) or powertrain control module (PCM) establishes an RPM target based on temperature, throttle angle, engine load, etc. It uses the idle air control (IAC) Motor or the electronic throttle body to control the idle speed.
The P0506 DTC stands for “Idle Control System RPM Lower Than Expected.” This engine code is set when your vehicle’s PCM detects an engine speed that is lower than the expected RPM for a certain period of time.
The standard RPM per vehicle depends on the make and model, but many modern engines idle at around 700-1,000 RPMs. This code can be set in vehicles with electronic throttle control (ETC) or with a separate IAC valve.
The Idle Air Control System adjusts the engine’s idle speed to accommodate different loads, such as air conditioning, heaters, and windshield wipers, but the feedback loop is always in play even when there are no loads applied other than the alternator or cooling fan. The PCM manages the amount of air entering the engine to raise or lower the idle speed as needed.
In earlier vehicles, the idle air stepper valve/motor controls the amount of air bypassing the throttle plate when the accelerator is released and the engine is idling. After 2000, this began to be replaced on some vehicles by the ETC or drive-by-wire system, which incorporated the idle air control into the electronic throttle body. By the mid-2000s, just about all engine platforms were equipped with the ETC.
The P0506 code is a generic trouble code, which means that vehicles equipped with On-Board Diagnostics (OBD-II) support this code. However, diagnosis and repairs differ across various makes and models. For instance, repair procedures for the P0506 code on Ford vehicles may not work on Audi vehicles. It’s important to consult your vehicle-specific repair manual for more specific information about this code.
What Causes Code P0506?
There are several possible reasons why the P0506 code is set. Here are some of the most common causes:
- Faulty IAC Valve
- ETC System Issues
- Defective IAC Motor
- Intake Manifold Vacuum Leaks
- Restricted or Collapsed Air Filter Element
- Carbon Buildup in Throttle Body Air Passages
- Defective Power Steering Pressure Switch
- Circuit Issues
- PCM Problems (Rare)
Faulty IAC Valve
The idle air control valve regulates the amount of air bypassing the throttle plate. A faulty valve can restrict the amount of air and affect the engine’s idle speed.
Defective IAC Motor
The IAC motor controls the opening and closing of the IAC valve. If this part malfunctions and the valve becomes stuck closed, only a limited amount of air can bypass the throttle plate, reducing the engine’s idle speed.
ETC System Issues
In newer vehicles, the electronic throttle control system regulates the engine’s idle speed. Problems with this system can cause the P0507 code to be set.
Intake Manifold Vacuum Leaks
Leaks in the intake manifold affect the engine’s idle vacuum and may cause unstable idling speeds.
Restricted or Collapsed Air Filter Element
The air filter prevents debris and dust from entering the engine. A clogged air filter can restrict airflow and cause erratic idling speeds.
Carbon Buildup in Throttle Body Air Passages
Extreme carbon buildup can also clog the throttle body, affecting airflow into the engine and potentially triggering the P0506 code. The PCV system draws oil steam into the intake and as this condenses into sludge and tar it can clog passages, particularly when the engine is turned off and the oil steam floats around in the intake, condensing on surfaces.
Circuit Issues

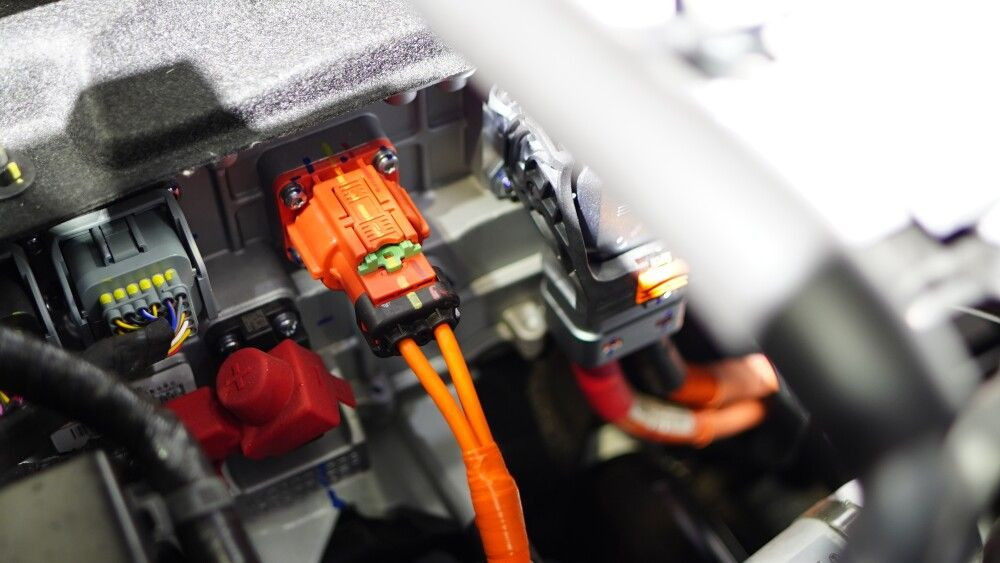

Damaged, frayed, and disconnected IAC wires and wiring harnesses can cause related components to malfunction and set off the P0506 code.
PCM Problems
While rare, PCM issues can cause the P0506 to be stored in the vehicle’s computer.
The following is a standard OEM list of possibilities that could set a code P0506:
- Intake air restriction
- Vacuum leaks
- Exhaust restriction
- Engine mechanical concern
- Sludged throttle body
- Damaged electronic throttle body (ETB)
- Damaged PCM
- IAC circuit open
- Air inlet is plugged
- B+ or VPWR to IAC solenoid open
- Damaged or incorrect IAC valve
- IAC valve stuck closed
- VPWR to IAC solenoid open
- IAC circuit shorted to PWR
What Are the Symptoms of Code P0506?
If you’re dealing with a P0506 code, you are likely to encounter some symptoms—in addition to an illuminated check engine light. Here are some things you should look out for if you suspect a P0506 engine code:
- Triggered Check Engine Light
- Low Engine Idle Speed
- Stalling or Hard Starting
- Rough Engine Idle
Triggered Check Engine Light

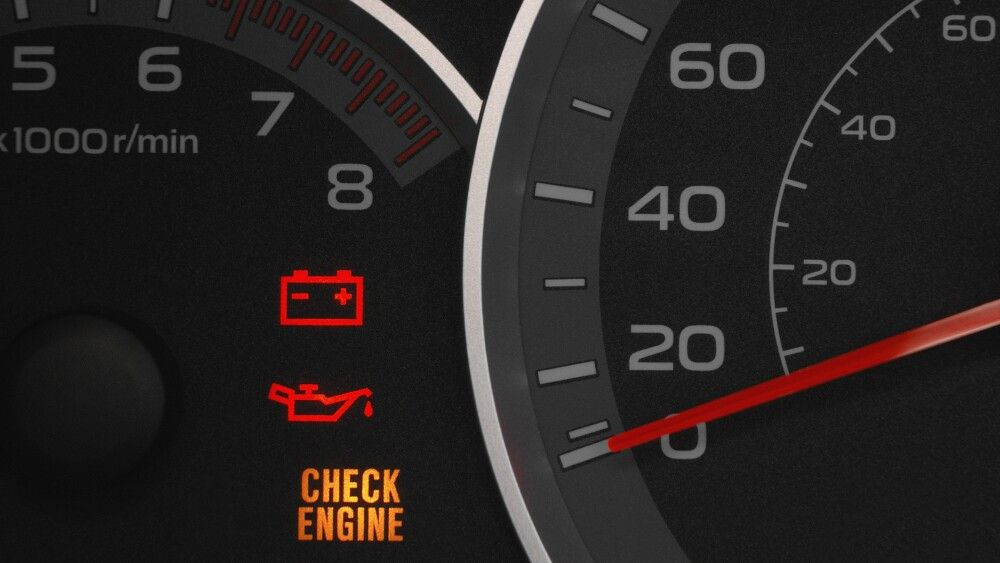

An illuminated check engine light or malfunction indicator lamp (MIL) is a common indicator of an issue with your vehicle’s engine or emission system. It’s also one of the first signs you may notice if you’re dealing with the P0506.
Low Engine Idle Speed
Another symptom of the P0506 is low engine idle speed, which can cause stalling, rough engine operation, decreased fuel efficiency, and increased wear and tear of engine parts.
Stalling or Hard Starting
Stalling occurs when your engine suddenly stops working or turning. It can be especially dangerous when you are driving on a highway. The IAC system opens for no-touch starting, and if it’s not working properly, the engine will be hard to start unless a bit of throttle is applied.
Rough Engine Idle
Rough or rolling engine idle is characterized by excessive engine vibrations, idle speed surging up and down, shaking, etc. You may also notice unusual knocking or tapping sounds.
While rough idling may indicate potential misfires, it can also be caused by problems with the Idle Control System.
How to Diagnose Code P0506
A thorough and accurate diagnosis is vital in order to fix DTCs like the P0506. Unfortunately, specific diagnosis and repair steps may differ depending on the vehicle manufacturer. Here’s a general guide to P0506 diagnosis to give you an idea of how the process goes:
Check for Other DTCs

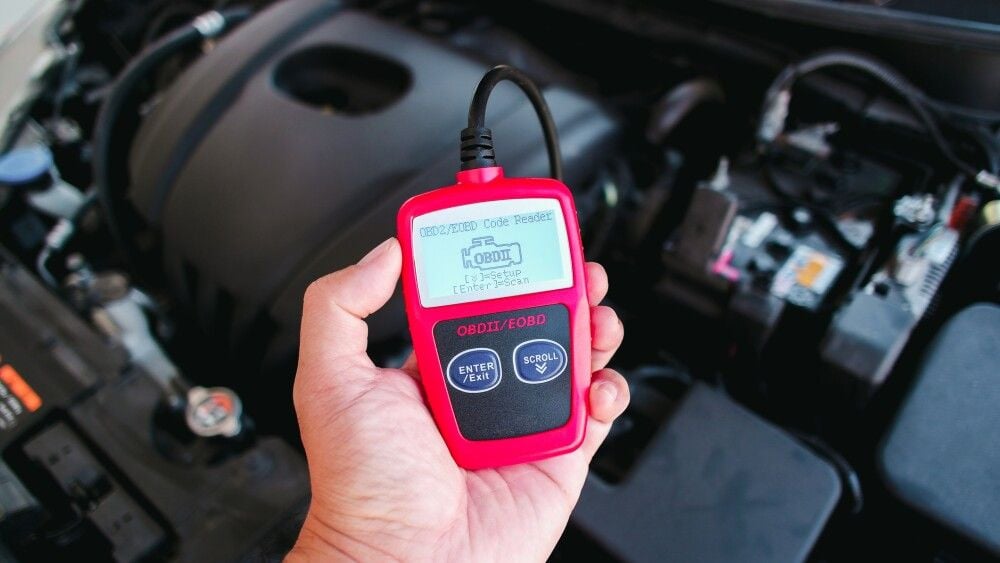

When diagnosing the P0506 or other DTCs, you first need to check for other codes stored using your scan tool. These codes can give you more information about the problem and how to diagnose it properly.
Check Freeze Frame Data
You can also use your scan tool to study and record the freeze frame data to better visualize the driving conditions when the issue first arose. After that, you can duplicate the code setting conditions and take your vehicle for a test drive. Compare the data stream—does the ideal engine RPM match the actual RPM?
Inspect Engine Air Filter Housing

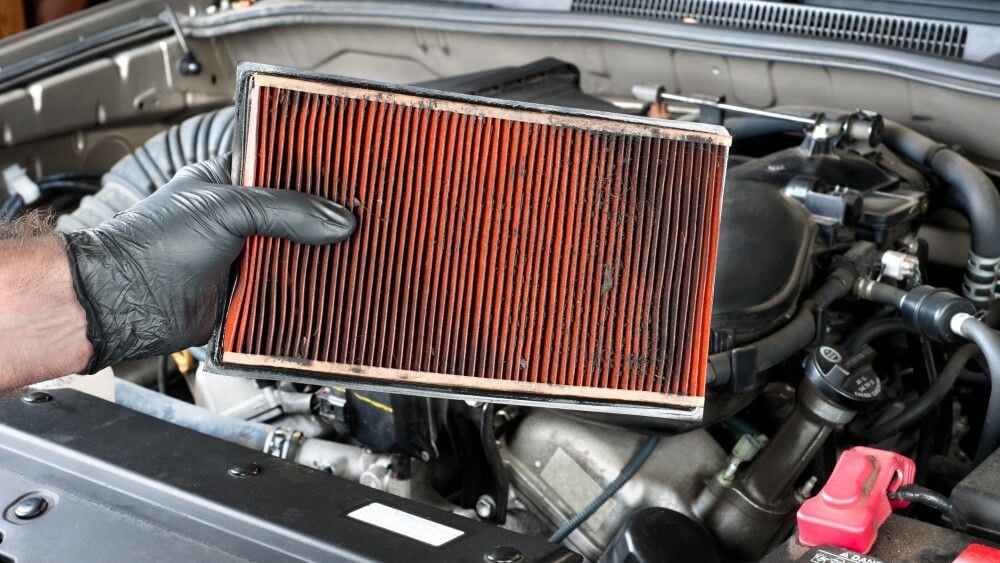

You can then visually inspect parts related to the IAC, starting with the air filter housing. Does the filter need to be replaced? Is the filter housing in good shape, or does it need to be repaired?
Disconnect the IAC Valve
To check for a stuck or damaged valve, try disconnecting the IAC valve. If there is minimal to no change in engine RPM, the valve might be the issue.
Check the Throttle Body

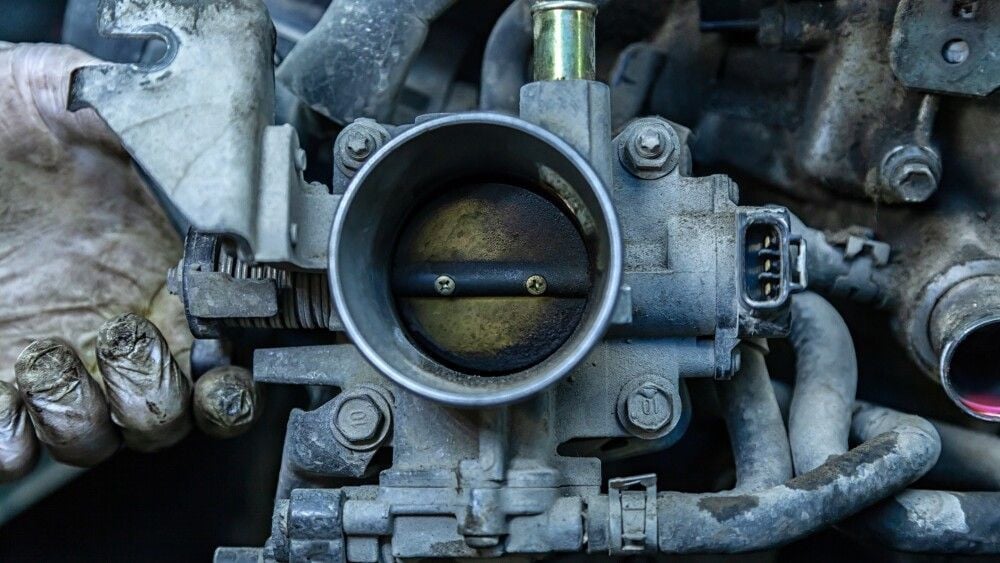

Inspect the throttle body for damage. It should be free from cracks or broken parts, as well as excessive carbon buildup.
Inspect Wiring Connections and Harness
Similarly, you need to check the throttle body wiring harness and connections for damaged, frayed, or loose wires.
Test for Vacuum Leaks
If a smoke machine is accessible to you, use it to test for vacuum leaks. To do this, you can remove the cover on top of the intake and remove the intake tube from the throttle body. Next, place the smoke machine in the vacuum hose and start the machine. Smoke should come from the exhaust gas recirculation (EGR) tube, indicating where the leak is.
How to Fix Code P0506
Before attempting to fix a trouble code like the P0506, you need to make sure that you’ve ruled out all other possible causes. Here are some of the most common repairs for the P0506:
Clear Clogs and Blockages
One of the most common causes of the P0506 code is a dirty throttle body or a restricted air filter element. Before replacing components here and there, make sure these parts are free from debris or carbon buildup. Remember to use a cleaner specifically made for the throttle body, and use the correct air filter replacement.
Address Vacuum Leaks
If the root cause of the P0506 on your car is a vacuum leak, you should repair or replace the damaged hose or pipe as soon as possible.
Repair or Replace Damaged Wiring Connections and Harnesses
Circuit issues, such as damaged wires and poor connections, can also cause the P0506 code to be set. Replace frayed or faulty wires and wire harnesses immediately and clear the code to see if it reappears.
Replace Idle Air Control Motor
If you’ve ruled out all other causes and fixes, you should consider replacing your idle air control motor. It’s important to follow a vehicle-specific repair guide for replacement instructions on how to replace this part. If you’re unsure about IAC repairs, leave it to a professional.
Other Codes Related to P0506
The P0506 code is part of a series of codes related to the Idle Control System. Here are some of the codes related to the P0506 that you might encounter as well:
P0507
DTC P0507 indicates that the engine idle speed is above a pre-determined specification for a certain amount of time. Vacuum leaks, faulty or clogged idle air control valves, or circuit and sensor problems can trigger this code. Common symptoms of the P0507 include an illuminated check engine light, stalling, and rough idling.
P0508
Engine code P0508 indicates a potential problem with the intake air control circuit. Common causes include a faulty IAC motor or valve, an engine vacuum leak, or shorted IAC control wiring or connectors. Symptoms of the P0508 code include high engine idle RPM, stalling, unusual noises from the throttle body, and other related IAC codes.
P0509
The P0509 code is similar to the P0508 in that it indicates a potential problem with the intake air control circuit. This code can be caused by a clogged air filter, faulty IAC valve, vacuum leak, or wiring issues. The P0509 code can cause the vehicle to idle at higher speeds than usual or cause the engine to stall when coming to a stop.
FAQ
Can I drive with a P0506 code?
You can technically drive with a P0506 code, but it is not advised. The code can cause rough or erratic idling, engine stalling, and other issues, which can be dangerous for you and your passengers. It’s best to diagnose and fix this trouble code as soon as possible.
