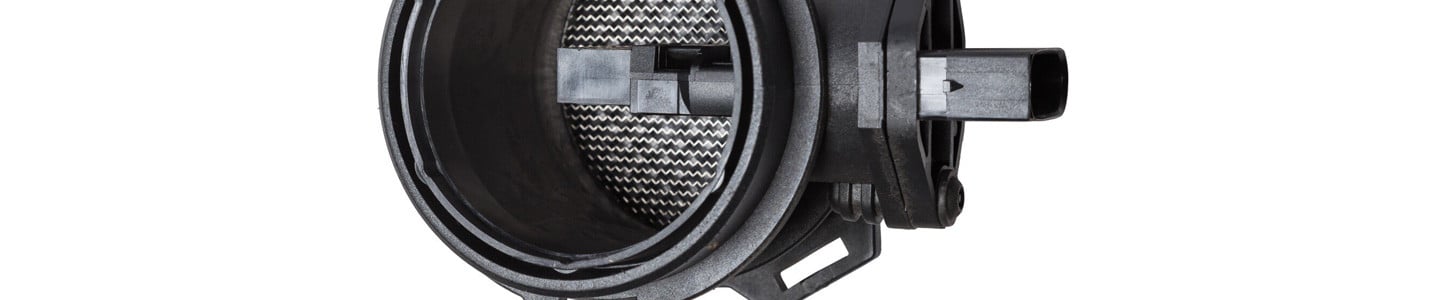

P0102 Code: Mass or Volume Air Flow "A" Circuit Low

Accurate load calculation is essential for proper fuel delivery and timing control. Speed density systems rely on the Manifold Absolute Pressure (MAP) sensor to measure the pressure inside the intake manifold, between the throttle plate and the intake valves.

In contrast, Mass Air Flow (MAF) systems use a MAF sensor, positioned between the air cleaner and throttle body, to monitor the volume and temperature of incoming air.

The engine trouble code P0102 indicates a problem with the MAF sensor’s performance. This article will discuss what the code means, what causes it, and how you can fix it.

What Does Code P0102 Mean?

The MAF sensor works by measuring the air entering the intake manifold engine and calculating the engine load based on the air that passes through the sensor elements connected to the electronics in the sensor itself.

Most sensors use both hot and cold wires. The electronics in the sensor maintain the hot wire at a fixed temperature (about 300°C) above the cold wire. The amount of current required to do this is either measured in voltage or hertz, depending on the platform.

The definition of the P0102 engine code is Mass or Volume Air Flow “A” Circuit Low. The powertrain control module (PCM) uses a “rationality” test to determine if the MAF signal responds as it should to throttle action. When the throttle opens, the MAF should mirror that throttle opening. If the airflow is less than expected, the PCM’s algorithms will set the P0102 code.

What Causes Code P0102?

This code is typically associated with MAF sensor malfunction, but there could be other reasons behind it. These include intake air leaks or wiring issues.

• Faulty MAF sensor
• Electrical or wiring issues
• Air intake leaks


Faulty MAF Sensor

The P0102 code typically appears when the MAF sensor fails, becomes dirty due to a compromised air filter allowing debris to stick to the sensor, or malfunctions internally. While this issue is a common cause for the specific code, it is also frequently misdiagnosed, as many issues can mimic a bad MAF sensor.

Electrical or Wiring Issues

The MAF sensor is hardwired to the PCM and receives 12v power from the same source as the O2 heaters on some vehicles (like GM). If there is a short or wiring problem, it may trigger this engine code.

If anything else on the 12v power circuit feeding the MAF causes the fuse to blow and the MAF doesn’t get voltage, it will throw this or a similar code. For example, if O2 sensor heaters (that are fed by the same circuit as the MAF) short out, blow the fuse, and render the MAF inoperative, the MAF might end up being replaced even when it’s not the problem.

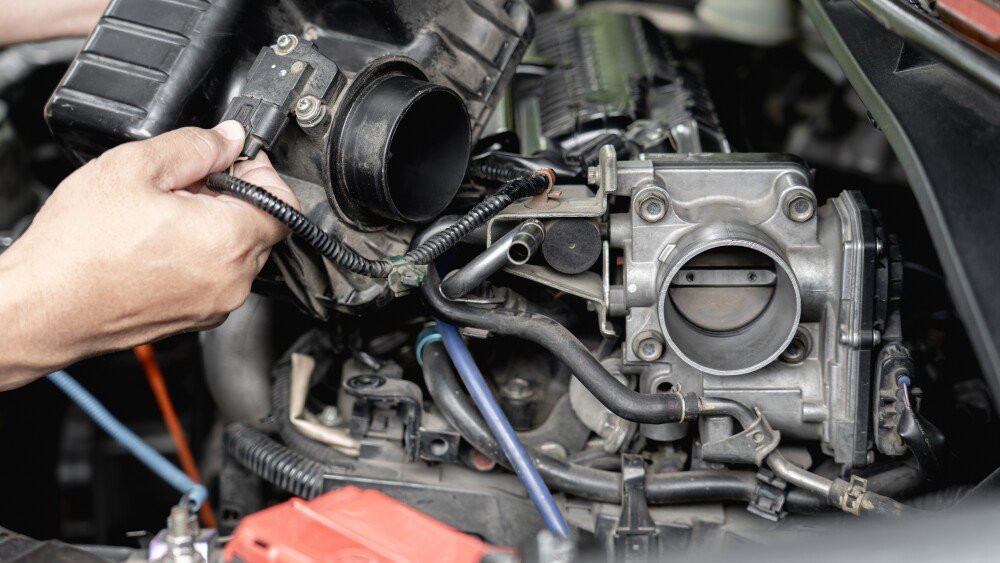

Air Intake Leaks (Unmetered Air)

The P0102 code can also come up when there is insufficient air going through the system. Leaks in the intake air tube between the MAF sensor and the throttle body can cause this code, as can other unmetered air leaks. If the oil filler cap is left off after an oil change, the PCV will draw unmetered air through the oil filler and trigger this or a similar code.

Usually, the fuel trims begin to go positive into the double-digit range (+10 or more) and that will begin to indicate a problem before the MAF sensor code appears.

What are the Symptoms of Code P0102?

For minor cases that involve the P0102 code, there are usually no noticeable symptoms apart from the check engine light coming on and the code appearing during a scan. Still, the signs may vary, including the following, on a case-to-case basis:

Engine Running Rough and Other Drivability Issues

When the engine is taking in insufficient air, its performance may suffer based on the problem’s severity. Common symptoms under these circumstances include the engine running rough and vibrating excessively (as well as hesitating and stalling) when attempting to accelerate. Typically, if the PCM has enough evidence of an airflow issue, it would stop using the MAF input and substitute other sensor inputs to maintain engine operation and emission levels that are acceptable.

Poor Mileage

Whether caused by air leaks or a bad MAF sensor, failing to address the P0102 engine code could impact the engine’s ability to burn fuel efficiently. This may lead to reduced or poor mileage, which may worsen if you drive your vehicle without fixing whatever is causing the code.

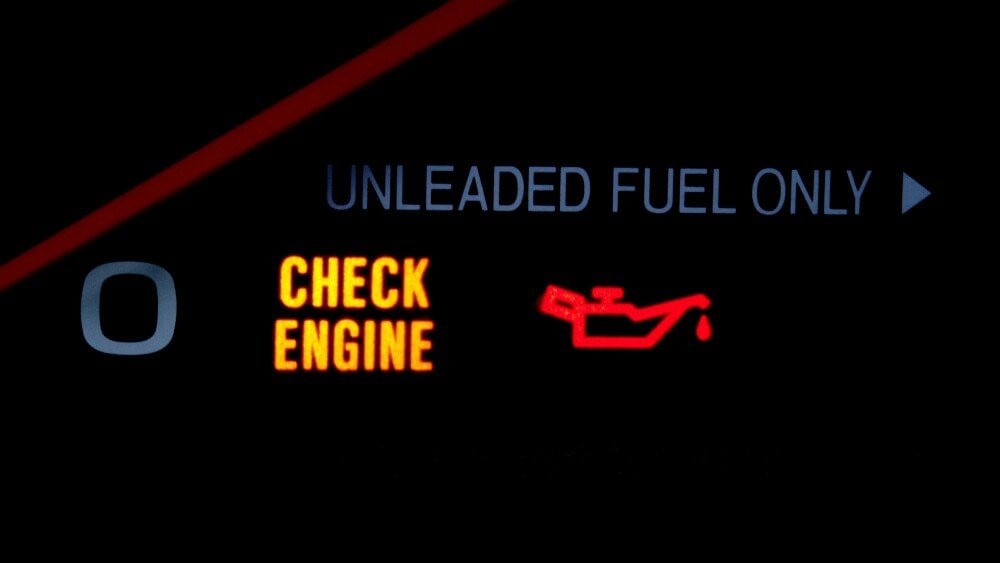

Check Engine Light is On

Without fail, the check engine light will turn on if the P0102 engine code is set. However, other engine issues could also trigger this warning so a more thorough diagnosis and inspection may be necessary.

How to Diagnose Code P0102

Diagnosing the P0102 code can be a complicated process, depending on what’s causing it. The steps to take may change, but the entire process often involves the following:

Take Down Vital Information

When P0102 or other similar engine codes appear during a scan, it’s crucial to first understand what’s happening through a test drive duplicating the scenario that is setting the code. Knowing the engine load, throttle position, RPM and other key details can help you compare the MAF sensor readings.

If your scan tool displays Freeze Frame data, record it (particularly if the code is set as a memory code), so you’ll know what the condition window was when the code was set. This would be data such as temperature, vehicle speed, throttle angle, etc. that the PCM stores when a code is first set.

Test the MAF Sensor

Using a scan tool, test your MAF sensor by plugging it in, starting the engine, and allowing it to idle. Then, check the Barometric Pressure’s air density reading if it is reporting severely inaccurate information. The sensor that reads this is part of the MAF sensor, so it could be faulty if the readings are incorrect.

But a MAF sensor reading can be off just a little bit (in-range failure), causing out-of-balance fuel trims, lean or rich codes, or even drivability issues, and it will still not set a MAF code. Sometimes, plugging in a known good part is the only true test. Always inspect the pins for corrosion and damage. If somebody shoved a probe into a terminal and spread it out so that it didn’t fit the pin properly, the connector would need replacing.

Visually Inspect the MAF Sensor

If you’ve confirmed that something is wrong with the sensor, it can also be helpful to do a visual inspection. By doing so, you can check if it’s dirty or damaged. Sometimes, cleaning it can help it work properly again, such as when the wires are covered with oil, dust, or dirt. However, it will still need replacement. These parts tend to suffer microscopic wear that cannot be resolved by cleaning solutions, so replacing them is necessary to restore your vehicle to optimum performance.

How to Fix Code P0102

The right approach when fixing this code can vary based on what’s causing it. You can take the following steps according to the situation:

Clean and Replace Parts as Needed

If a visual inspection reveals that the MAF sensor is dirty, use a MAF cleaner spray to clean it. Do this step carefully to avoid further damage. Other components can also be dirty and add to the problem, such as the air filter that might need replacing or the intake system’s mesh. Also, inspect the circuit, wires, and other electrical parts that appear damaged. You may need to replace them to address this DTC code.

Run the Scan Tool and Look for Air Intake Leaks

Afterward, use a scan too, to monitor the sensor’s readings. Also, check for air leaks that could be affecting the vacuum in the system.

Go Online and Look for Relevant Technical Service Bulletins (TSBs)

Based on your vehicle’s make and model, you may find a TSB that can provide more information on how to conduct the repair. Confirming these details can help you understand whether a defect is causing the code, potentially saving you a lot of time and effort in the long run.

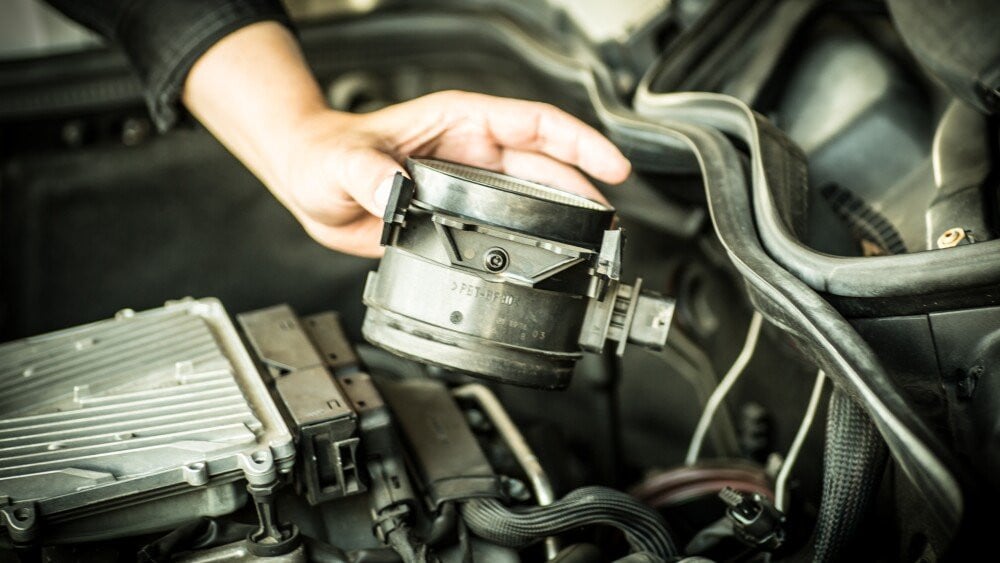

Replace the MAF Sensor

If you need to replace the MAF sensor, the level of complexity can vary according to your vehicle’s make and model. The steps can vary but often involve the following:

• Check the user’s manual to determine where it is.
• Prepare by parking your car somewhere with adequate light, ensuring the engine is cool, and disconnecting the car battery’s negative terminal.
• Locate the MAF sensor and disconnect the wiring harness using pliers. There may be nuts and screws keeping it attached, so use the proper tools to remove the sensor from the air intake duct.
• Once removed, you can take your replacement part and attach it, tightening screws and clipping the wiring harness.

The process is fairly simple and is easy to do at home, but the challenge is carrying it out without damaging any wires.

Test the MAF Sensor

After taking these steps, it is also crucial to test the MAF sensor by starting the engine and checking if it idles without issues. If the symptoms persist, another component could be malfunctioning or you didn’t replace the part correctly.

Other Codes Related to P0102

The P0102 code can appear with other codes depending on the circumstances. Related trouble codes include:

P0100

This code means Mass or Volume Air Flow “A” Circuit, signifying that the MAF sensor or its circuit is having issues. The PCM triggers this code if it detects that the sensor’s frequency signal is outside the optimal range.

P0101

This OBD code translates to Mass Air Flow Sensor Circuit Range/Performance, which means the MAF sensor’s signal does not match the calculated range. It often means that the sensor is malfunctioning.

P0103

This code is defined as Mass or Volume Air Flow (MAF) ‘A’ Circuit High. it means that the PCM noticed that the sensor is sending out a high voltage output/

P0104

The P0104 code’s definition is Mass Air Flow (MAF) “A” Circuit Intermittent/Erratic. This means that the frequency signal coming from the MAF sensor is erratic or unstable because of an underlying problem.
