Name: Wilwood® 140-13029-CB - Forged DynaPro Front Caliper Kit
Brand: Wilwood
SKU: mpn4809470202
Price: 524.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Vehicle Fitment

Make	Model	Year
Acura	Integra	1990-2001
Acura	Legend	1986-1987, 1989-1990
Honda	Accord	1988-1989
	Civic	1990-2005
	Civic Si	1994-1995, 1999-2000, 2002-2003
	Fit	2007-2013
	Prelude	1988-1991

Product Details

Forged DynaPro Front Caliper Kit (140-13029-CB) by Wilwood®. This caliper kit offers low-maintenance operation and high temperature reliability for both everyday use and high performance applications. Forged DPHA four-piston calipers generate great brake clamping force from a four of machined stainless steel pistons. No more rust, bore pitting or seal failures with Forged DPHA caliper kit by Wilwood.

Notes

These products are designed to fit OE Factory Spindles.

Specifications

Caliper Material: Aluminum

Caliper Color: Blue Powder Coat

Caliper Construction: Fixed

Caliper Mount Side: Universal

Caliper Type: Forged DynaPro (DPHA)

Driving Style: Performance / Racing

Mount Type: Lug

Pad Area: 6.36 in²

Pad Compound: BP-10

Pad Plate: 7812

Caliper Total Piston Area: 4.12 in²

Piston Material: Steel

Piston Quantity: 4-Piston

Brake Pad Volume: 2.1 in³

Series: Forged DPHA

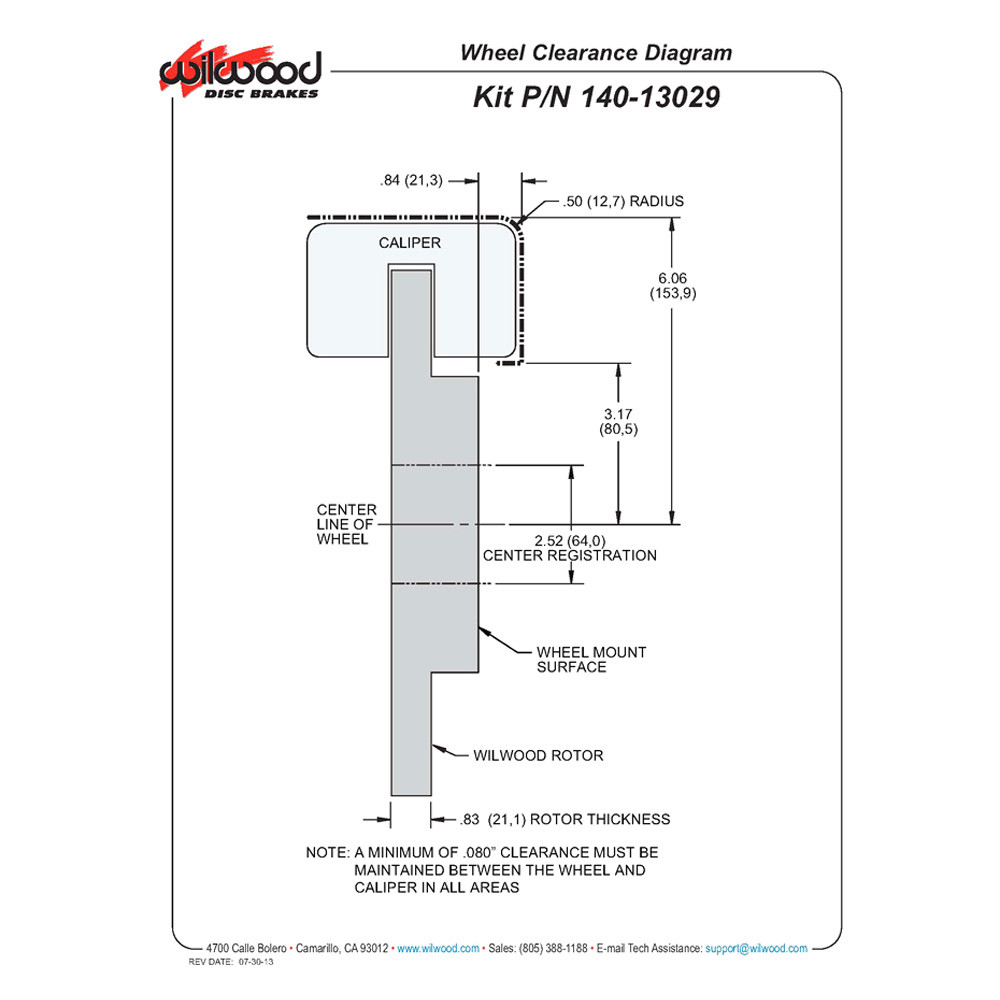

Minimum Wheel Diameter Required: 15"

Features

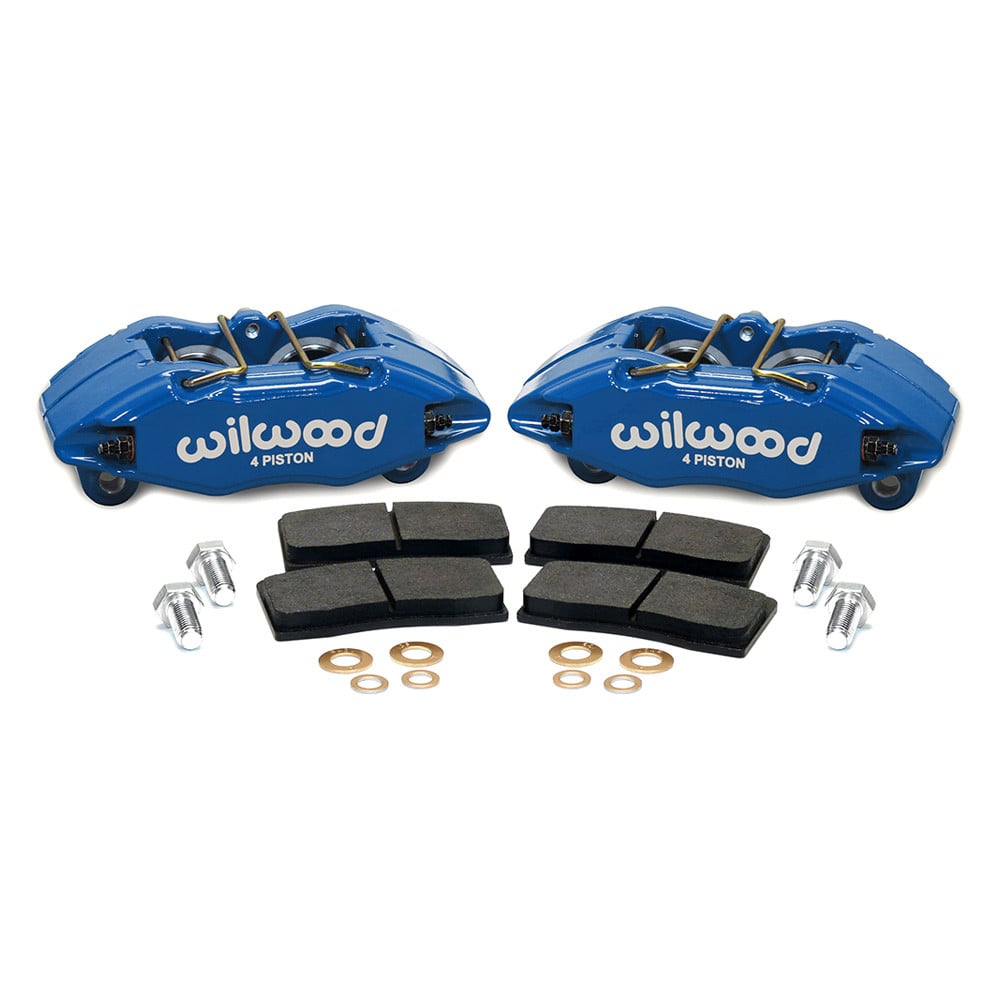

Includes Forged DPHA Calipers, hardened slide pins and BP-10 high friction pads
Lug mount construction
Bolt directly to the stock mounts on factory spindles
Calipers feature forged billet aluminum bodies for better rust and corrosion resistance
Computer designed reinforced bridges for excellent strength
Stainless steel four pistons provide great clamping power
High-temperature “seal-in-bore” design
Proudly manufactured in the United States

Benefits:

Aluminum allows for exceptional light weight
Clamping force is evenly distributed
Apply evenly more squeezing power
Solidly mounted with pistons on both sides of the disc
Pistons uniformly transfer braking force to the brake pads
Pistons are hollow to save weight
Heat-resistant coating
Ensure less brake fading

Fixed calipers by Wilwood offer unmatched stopping power. The pistons in fixed calipers are located on both sides of the disc, allowing for evenly distributed clamping force. They apply more squeezing power and apply it more evenly during braking as force is directly applied to both sides. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.

Wilwood® Engineering designs and manufactures high-performance disc brake systems. Since founding in 1977, Wilwood has developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

Brand:

Wilwood

Part Number:

140-13029-CB

UPC:

889545099072

Alternate MPN:

14013029CB

Installation

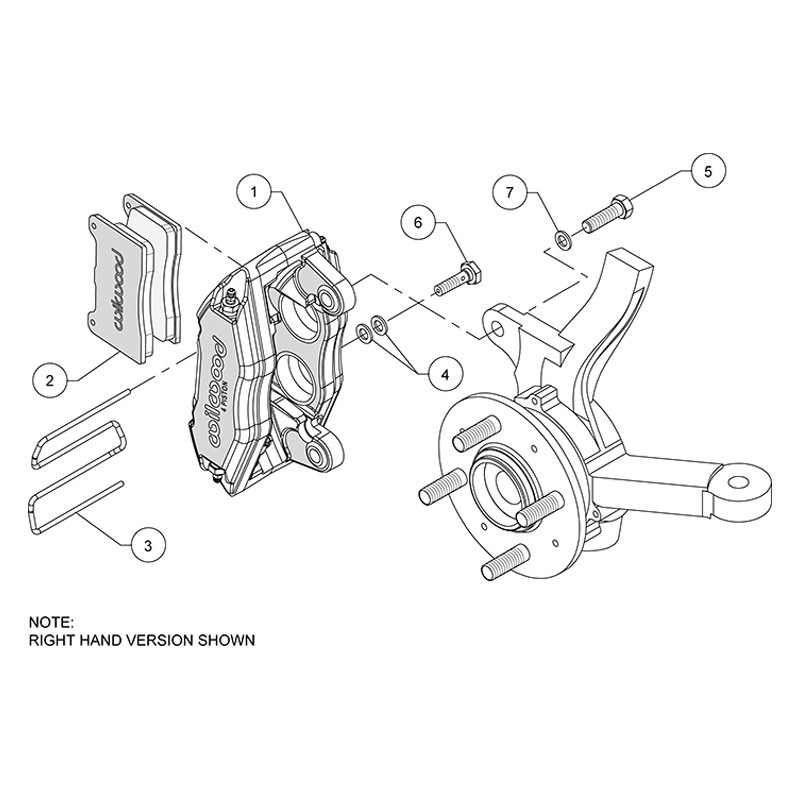

Wilwood® - Forged DynaPro Front Caliper Kit Installation Instructions

Warranty

Do not drive on untested brakes. Brakes must be tested after installation or maintenance.

Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle if pedal does not stay firm or can be pushed to the floor with normal pressure.
At very low speed (2-5 mph) apply brakes hard several times while turning steering from full left to full right, repeat several times. Remove the wheels and check that components are not touching, rubbing, or leaking.
Carefully examine all brake components, brake lines, and fittings for leaks and interference.
Make sure there is no interference with wheels or suspension components.
Drive vehicle at low speed (15-20 mph) making moderate and hard stops. Brakes should feel normal and positive. Again check for leaks and interference.
Always test vehicle in a safe place where there is no danger to (or from) other people or vehicles.
Always wear seat belts and make use of all safety equipment.

General Warnings:

RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR FATIGUE, DAMAGE, AND WEAR. DO NOT OPERATE ANY VEHICLE ON UNTESTED BRAKES! ALWAYS UTILIZE SAFETY RESTRAINT SYSTEMS AND ALL OTHER AVAILABLE SAFETY EQUIPMENT WHILE OPERATING THE VEHICLE.

Disclaimer of Warranty:

Purchasers recognize and understand that racing parts and equipment, such as disc brakes, hubs, etc. and all parts, inventory and services manufactured and/or sold by Wilwood Engineering, Inc. are exposed to many and varied conditions due to the manner in which they are installed and used. Purchasers and Wilwood Engineering, Inc. consciously desire to make their own bargain, irrespective of any court decision and purchasers agree upon good faith and in consideration for being allowed to purchase from Wilwood Engineering, Inc. said parts or services. Purchasers expressly acknowledge and understand that Wilwood Engineering, Inc. does not make any affirmation of fact or promise to purchaser, which relates to said parts, inventory, or services that becomes part of the basis of the bargain between Wilwood Engineering, Inc. and purchasers. Nor does Wilwood Engineering, Inc. make, or cause to be made to purchaser any description of the goods sold to purchaser, nor does Wilwood Engineering, Inc. make, or cause to be made, as part of the basis of the bargain with purchasers, any description or affirmation of fact concerning any sample or model of racing parts, and equipment inventory or service.

As further consideration for purchasers using Wilwood Engineering, Inc. racing parts and equipment any and all inventory and services, purchasers acknowledge that due to the differing conditions and circumstances under which all equipment and parts are installed and used, purchasers are not relying on Wilwood Engineering, Inc. skill or judgment to select or furnish the proper part or equipment. Purchasers expressly affirm they are relying upon their own skill or judgment to select and purchase suitable goods.

Wilwood Engineering, Inc. makes no warranties whatsoever, expressed or implied, oral or written, to purchasers. There is no warranty of merchantability made to purchasers. Wilwood Engineering, Inc. further excludes any implied warranty of fitness with respect to racing and equipment, any and all inventory and service.

It is expressly understood and agreed between purchasers and Wilwood Engineering, Inc. that as part of the bargain between Wilwood Engineering, Inc. and purchasers, and in consideration of doing business with each other, all purchasers take, select and purchase said racing parts, equipment, any and all inventory, or services from Wilwood Engineering, Inc. "as is" and "with all faults" and Wilwood Engineering, Inc. shall always provide purchasers with a full and complete opportunity to examine, at purchasers’ leisure and convenience, any racing parts and equipment, any and all inventory, or services when purchasing or contemplating purchasing from Wilwood Engineering, Inc.

If, and in the event that purchasers expressly or impliedly cause representations, or statements or affirmations of fact contrary to this disclaimer of all warranties, expressed or implied, then purchasers agree to indemnify and hold harmless Wilwood Engineering, Inc. in the event of any claim, demand, or legal action against Wilwood Engineering, Inc. by any purchaser.

Purchasers understand and agree that no officer, director, employee, or salesman of Wilwood Engineering, Inc. has any authority to make any statement contrary to the terms of this agreement. On the contrary, Wilwood Engineering, Inc. disavows any statement contrary to what is herein above written.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
