Vehicle Fitment

Subaru

Specifications

Core Thickness	0.63"
Core Material	Aluminum
Flow Configuration	CrossFlow
Outlet Diameter	39.5mm
Tube Width x Height	16" x 1.5"
Outlet Connection Type	Hose Clamp
Inlet Diameter	39.5mm
Inlet Connection Type	Hose Clamp
Find Wave Pitch	2
Fin Wave Height	5.8"
EOC (yes/no)	No
No. Of Rows	1
Fin Count (every 4")	78
Total Fin Row Count	48
Tank Material	Plastic
TOC (yes/no)	No
Total Tube Count	47
Tube Count (every 4")	13
Core Length	14.68"
Core Height	25.98"
Built-in Dryer	YES
Built-in Oil Cooler	YES
Configuration	Parallel Flow
Core Height (in)	15.04
Core Length (in)	23.94
Core Thickness (in)	0.63
Inlet Diameter	0.61
Inlet Fitting Design	Block
Outlet Diamter	0.40
Outlet Fitting Design	Block

Includes

Product	MPN	Brand	QTY
Engine Coolant Radiator	13748	TYC	1
A/C Condenser	30065	TYC	1

Features

OE quality at an affordable price
Direct replacement
Installs the same as factory unit
Same dimensions as OE part
Same gauge material as OE
Installation requires no modifications
Limited lifetime warranty

Product Details

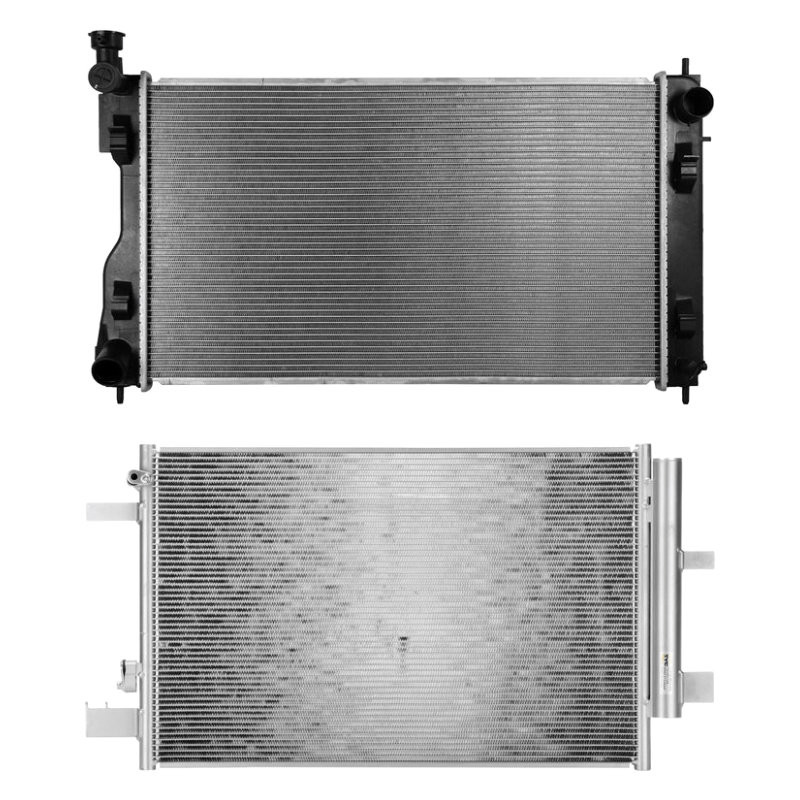

Radiator and Condenser Kit by TYC®. Condenser With Receiver Drier. When you notice that your radiator is leaking, clogged or otherwise damaged, you don't have to pay the high dealer price for a replacement any more. Designed to be identical to the factory unit from the number of fluid tubes to the placement of cooling fins, TYC radiators will give you the same quality for much less.

The cooling system of your automobile is vital to your engine's overall health and longevity. That is why it’s critical to replace leaking, malfunctioning, cracked or otherwise damaged cooling parts and components in time. Without proper cooling, your engine can crack and seize up, which can lead to engine damage. To save your energy, time and money, get the superior OEM parts we offer for your vehicle. Each product is made from high quality materials to maintain proper cooling of your engine and prevent overheating.

TYC® - Warranty TYC Authorized Dealer Catalog Video About us

Brand:

TYC

Part Number:

BNDL-475376

Alternate MPN:

BNDL475376

OE Numbers:

73210FL10A, SU3030138, SU3010664, 45111FL00B

Warranty

TYC Corporation warrants its products to be free from defects in material and workmanship for as long as they remain installed on the vehicle for which they were originally purchased. Any TYC product found to be defective shall be repaired or replaced. This warranty is non-transferable and will be voided under any of the following conditions:

Use in commercial or fleet, governmental, off-road, or racing applications.
Failure due to natural/environmental forces; either external or internal erosion, including effects of salt-air corrosion and electrolysis from internal cooling system fluids.
If TYC determines alteration, improper use, incorrect installation, or negligence.
A faulty vehicle engine temperature warning system.
Improper installation, which caused the damage to connection threads.
Removal of any stamp, label, or manufacturer’s identification.

This warranty applies only to those products that have been installed in accordance with accepted industry standards by a certified technician.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
