Vehicle Fitment

Chevy

Specifications

Rear Drop Height	0"-4.0"
Rear Coil Spring Rate	3.9 kg/mm (220 lbs/in)
Adjustable Mounting Bracket Included	No
Adjustable Valving	Yes
Body Diameter (in.)	2.000
Bushing Color	Natural
Bushing Material	Spherical bearing
Coilover Kit Position	Rear
Coilover Springs Included	Yes
Crossmember Included	No
Gas Charged	No
Hardware Included	Yes
Internal Design	Twin-tube
Number of Valving Selections	18
Quantity	Sold as a kit.
Shocks Included	Yes
Spring Finish	Gray/Silver
Spring Rate (lbs./in.)	220 lbs./in.
Suspension Height Adjustment	0.0-2.0 in. lowered
Welding Required	No
Shock Absorber Internal Design	Twin-Tube
Shock Absorber Type	Hydraulic
Shock Absorber Adjustment Type	Single Adjustment
Shock Absorber Rebound Adjustment	Yes
Shock Absorber Compression Adjustment	Yes
Shock Absorber Levels of Damping	18 Levels
Rear Shock Absorber Height Adjustment Type	Threaded Spacer
Shock Absorber Compressed Height	11.63"
Shock Absorber Extended Height	16.88"
Shock Absorber Lower Mount Type	Eyelet
Shock Absorber Upper Mount Type	Eyelet
Shock Absorber Material	Aluminum
Finish	Silver
Material	Aluminum

Includes

Single adjustable coilovers. Includes 2 springs and 2 coilover shocks with necessary hardware.

Features

Twin-Tube internal design
Made in the U.S.A.
Easy, Bolt-In Installation
Coil-Over
Ride Height Adjustable
100% Dyno Tested and Serialized

Product Details

Pro Series Rear Coilover Shock Absorber System with 0"-4" Rear Body Drop by QA1®. QA1's Rear Pro Coil Systems include specially designed USA made mounting brackets, single or double adjustable aluminum shocks, springs and all necessary hardware.

Installation

QA1® - Pro Series Rear Coilover Shock Absorber System Installation Instructions

QA1® - Pro Series Rear Coilover Shock Absorber System Instructions

QA1® - Pro Series Rear Coilover Shock Absorber System Installation Instructions QA1® - FAQ QA1® - Catalogs Made In USA QA1 Authorized Dealer Video Additional Information About us

Brand:

QA1

Part Number:

RCK52388

UPC:

806990162021

Warranty

WARRANTY / DISCLAIMER

QA1 warrants that the products will be free from defects in material and workmanship for one year from date of sale to the original purchaser. QA1 makes no other warranty of any kind, express or implied. QA1 shall have no obligation under the foregoing warranty where the defect is the result of improper or abnormal use, your negligence, vehicle accident, improper or incorrect installation or maintenance, nor when the product has been repaired or altered in any way. QA1's liability in the case of defective products subject to the foregoing warranty shall be limited to the repair or replacement, at QA1's option, of the defective products. Consequential or incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

THE BUYER UNDERSTANDS AND EXPRESSLY RECOGNIZES that racing parts, specialized street rod equipment, rod end bearings, and ALL parts and services sold by QA1 are exposed to many and varied conditions due to the manner in which they are installed and used. BUYER ACKNOWLEDGES that QA1 does not have full knowledge of the intended use of the goods, and BUYER WILL DEFEND AND INDEMIFY QA1 upon demand against all claims, actions, liability, loss and expense (including investigating expense and attorney fees incurred in litigation or because of threatened litigation) for any loss, damage or injury, either to a person or to property, resulting from the direct or indirect use of any QA1 products or inability by the buyer to determine proper use or application of QA1 products. With the exception of the limited liability warranty set forth above, QA1 SHALL NOT BE LIABLE FOR ANY CLAIMS, DEMANDS, INJURIES, DAMAGES, ACTIONS, OR CAUSES OF ACTION WHATSOEVER TO BUYER ARISING OUT OF OR CONNECTED WITH THE USE OF ANY QA1 PRODUCTS. MOTORSPORTS ARE DANGEROUS; AS SUCH, NO WARRANTY OR REPRESENTATION IS MADE AS TO THE PRODUCT'S ABILITY TO PROTECT THE USER FROM INJURY OR DEATH. THE USER ASSUMES THAT RISK.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More

Reviews

(0)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

Questions and Answers

(0)

If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

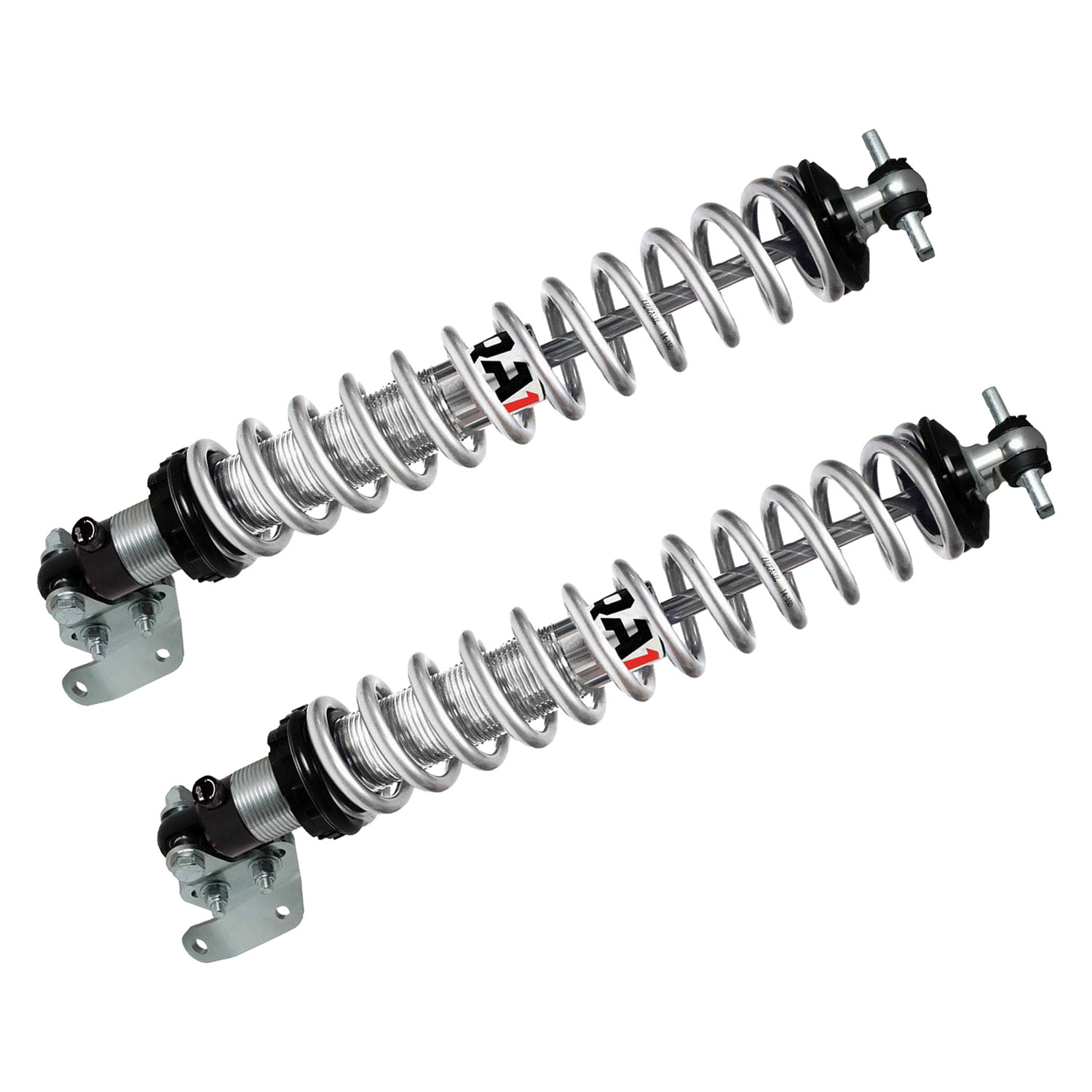

QA1® RCK52388 - 0"-4" Pro Series Rear Coilover Shock Absorber System
