Vehicle Fitment

Chevy

Specifications

Front Drop Height	0"-2.0"
Coil Spring Tall	10" (250 mm)
Front Axle Load up to	2100-2200 lbs.
Front Coil Spring Rate	9.8 kg/mm (550 lbs/in)
Adjustable Mounting Bracket Included	No
Adjustable Valving	Yes
Bushing Color	Black
Bushing Material	Polyurethane
Coilover Kit Position	Front
Coilover Springs Included	Yes
Crossmember Included	No
Gas Charged	No
Hardware Included	Yes
Internal Design	Twin-tube
Number of Valving Selections	18
Quantity	Sold as a pair.
Recommended Front-End Weight	2,101-2,200 lbs.
Shocks Included	Yes
Spring Finish	Gray/Silver
Spring Rate (lbs./in.)	550 lbs./in.
Suspension Height Adjustment	0.0-2.0 in. lowered
Threaded Adjustment Range	3.000 in.
Welding Required	No
Shock Absorber Internal Design	Twin-Tube
Shock Absorber Type	Hydraulic
Shock Absorber Adjustment Type	Single Adjustment
Shock Absorber Rebound Adjustment	Yes
Shock Absorber Compression Adjustment	Yes
Shock Absorber Levels of Damping	18 Levels
Front Shock Absorber Height Adjustment Type	Threaded Spacer
Shock Absorber Compressed Height	9.63" (244.6 mm)
Shock Absorber Extended Height	14.50" (368.3 mm)
Shock Absorber Reservoir	Without External Reservoir
Shock Absorber Lower Mount Type	T-Bar
Shock Absorber Upper Mount Type	Stud
Finish	Silver
Material	Aluminum

Includes

(2) Coilover Shock Absorbers (Part Number GS507)
(2) Linear Rate Coil Springs (Part Number 10HTBF550)
All Mounting Hardware

Features

Twin-Tube internal design
Made in the U.S.A.
Easy, Bolt-In Installation
Coil-Over
Ride Height Adjustable
100% Dyno Tested and Serialized

Product Details

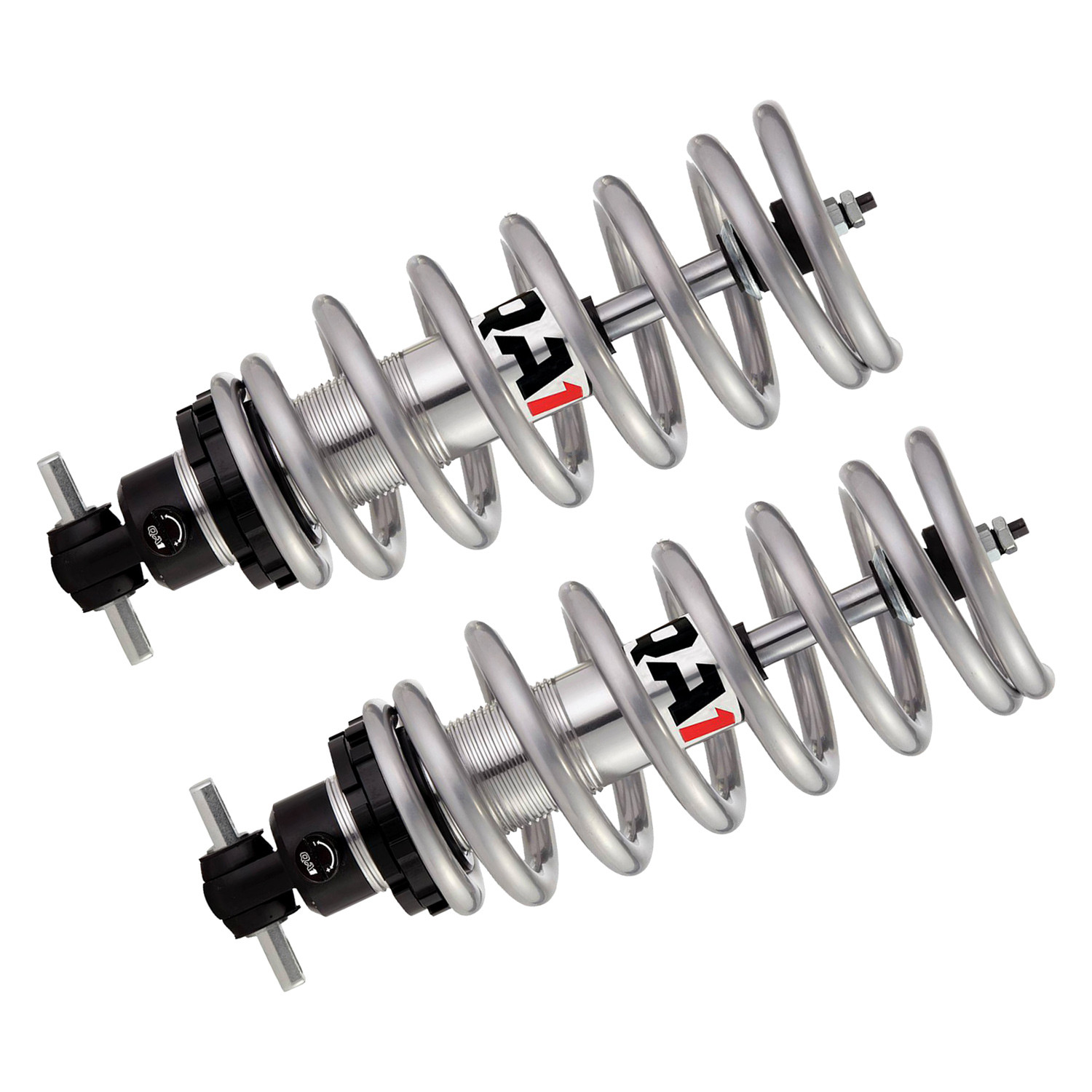

Pro Series Front Coilover Shock Absorber System with 0"-2" Front Body Drop (GS507-10550C) by QA1®. Quantity: 2 per Pack. QA1’s Pro Coil Systems are a 100% bolt-in coil-over shock conversions without the hassles. Choose from double adjustable, single adjustable, drag “R” series adjustable and steel economy non-adjustable valving options for the ride you want. Multiple spring rates are available to accommodate many applications.

Installation

QA1® - Pro Series Front Coilover Shock Absorber System Installation Instructions

QA1® - Pro Series Front Coilover Shock Absorber System Installation Instructions QA1® - Spring Rate Product Guide QA1® - FAQ QA1® - Catalogs Made In USA QA1 Authorized Dealer Video Additional Information About us

Brand:

QA1

Part Number:

GS507-10550C

UPC:

806990136824

Alternate MPN:

GS50710550C
