PPE® 128051720 - Heavy Duty Transmission Pan

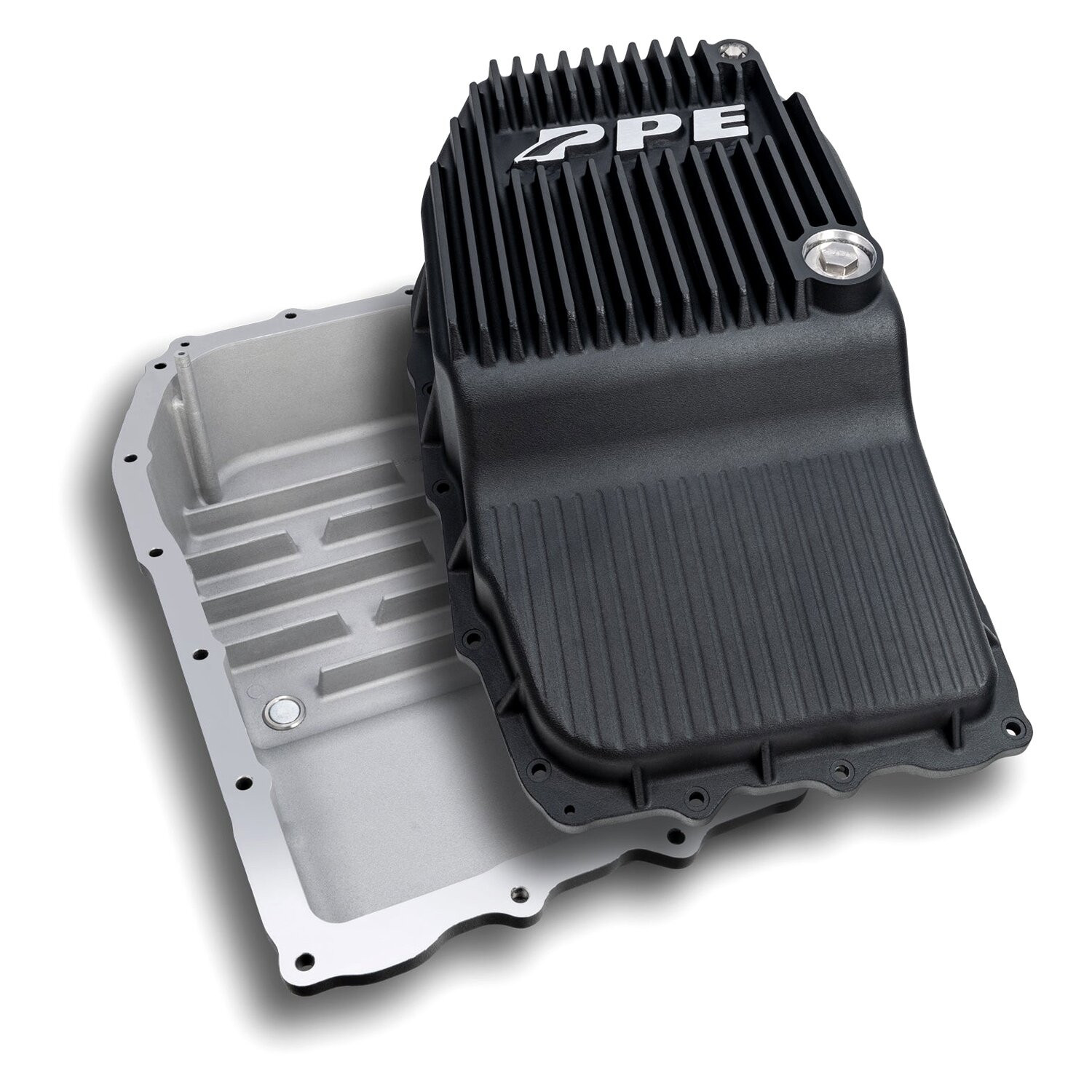

Heavy Duty Transmission Pan (128051720) by PPE®. Deep. Finish: Black. PPE’s new transmission pan for the Ram 68RFE transmission is constructed from high-quality cast aluminum made in the USA. This pan features internal heat sinks and external cooling fins. These cooling fins, coupled with the aluminum construction, allow for reduced transmission oil temperatures. Cooler oil lubricates better which will help increase transmission service life. This new pan comes with a 1-inch, Neodymium-equipped stainless steel drain plug to remove harmful ferrous metals from the oil, two NPT ports for temperature probes. Also utilizes the factory filter making future transmission service a cinch. In testing, PPE used a 2013 2500 Cummins powered Ram towing a 13,000 lb travel trailer. PPE then took the combo on an 900 mile loop through city traffic, steep hill climbs as well as wide open flat highway runs. Transmission temperatures never went over 200 degrees. After cresting the top of hills, transmission temperatures also dropped much quicker than they did with the factory-installed stamped steel pan.

Features

• Increases fluid capacity by 3.8 quarts
• 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
• 7/8-inch internal baffles further improve heat dissipation, reduce fluid sloshing
• CNC machined grooves at bottom increase effective surface area which accelerate heat radiation
• High-power Neodymium-magnet-equipped billet stainless steel plugs with Rubber O-rings
• Tapped and plugged 1/8-inch NPT port for optional temperature sensor
• Gussets provide extra support to the flange and increase robustness
• Compatible with OEM gasket

Pacific Performance Engineering, a.k.a. PPE®, is a leader and pioneer in the field of high performance diesel technologies for Dodge, Ford and Chevy. Launched as a Diesel performance facility in 1985, PPE has grown to become a global supplier of high quality power enhancements. Like its first Duramaximizer power module, most of its products deliver increased power, mileage and overall efficiency. All products are thoroughly tested at race tracks as well as on a Mustang Dynamometer to ensure exceptional performance and reliability.
