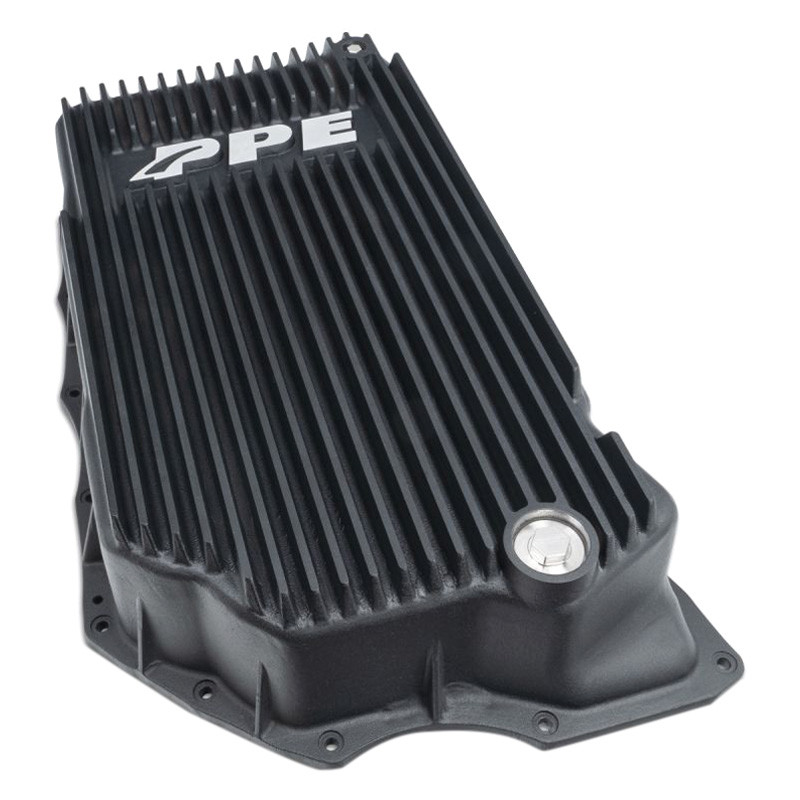

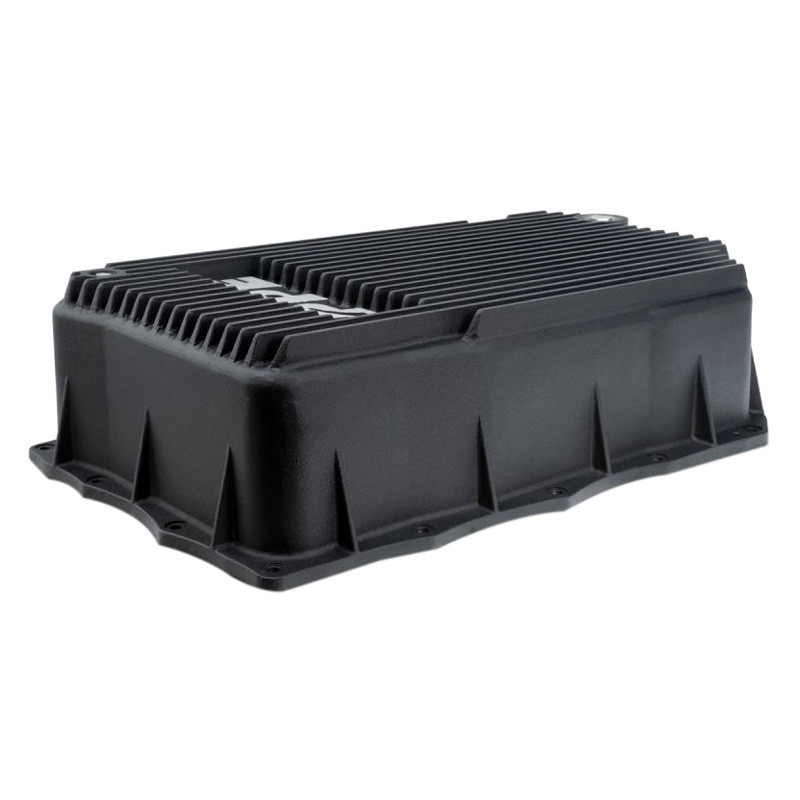

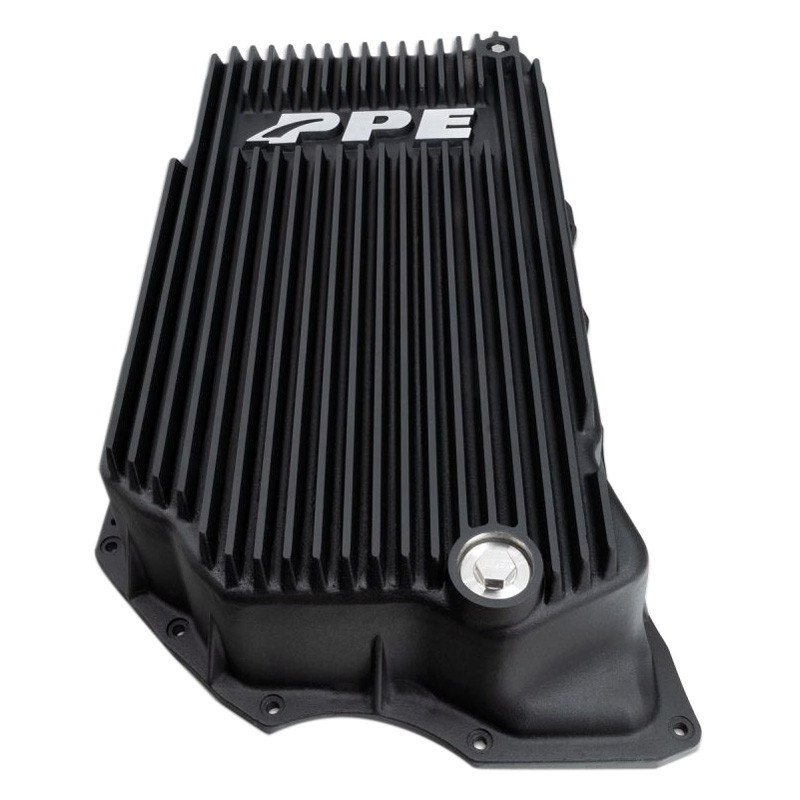

PPE® 128051420 - Heavy Duty Transmission Pan

Heavy Duty Transmission Pan (128051420) by PPE®. Deep. Finish: Black. PPE’s new transmission pan for the Ram 68RFE transmission is constructed from high-quality cast aluminum made in the USA. This pan features internal heat sinks and external cooling fins. These cooling fins, coupled with the aluminum construction, allow for reduced transmission oil temperatures. Cooler oil lubricates better which will help increase transmission service life. This new pan comes with a 1-inch, Neodymium-equipped stainless steel drain plug to remove harmful ferrous metals from the oil, two NPT ports for temperature probes. Also utilizes the factory filter making future transmission service a cinch. In testing, PPE used a 2013 2500 Cummins powered Ram towing a 13,000 lb travel trailer. PPE then took the combo on an 900 mile loop through city traffic, steep hill climbs as well as wide open flat highway runs. Transmission temperatures never went over 200 degrees. After cresting the top of hills, transmission temperatures also dropped much quicker than they did with the factory-installed stamped steel pan.

Features

• Increases fluid capacity by 4 quarts which lowers transmission fluid temperature
• 0.75" inch external fins engineered to utilize underbody air flow
• 0.75" and 1.2" internal heat sinks improve heat dissipation and reduce sloshing
• One-inch Neodymium magnet equipped 304 stainless steel drain plug with Rubber O-ring seal
• 9/16" ORB Neodymium Magnetic Plug with Rubber O-ring seals the fluid level check port
• Tapped and plugged 1/8" NPT port for optional fluid temperature monitoring sensor
• External gussets provide extra support to top flange and increase overall robustness
• Compatible with OEM gasket

Pacific Performance Engineering, a.k.a. PPE®, is a leader and pioneer in the field of high performance diesel technologies for Dodge, Ford and Chevy. Launched as a Diesel performance facility in 1985, PPE has grown to become a global supplier of high quality power enhancements. Like its first Duramaximizer power module, most of its products deliver increased power, mileage and overall efficiency. All products are thoroughly tested at race tracks as well as on a Mustang Dynamometer to ensure exceptional performance and reliability.
