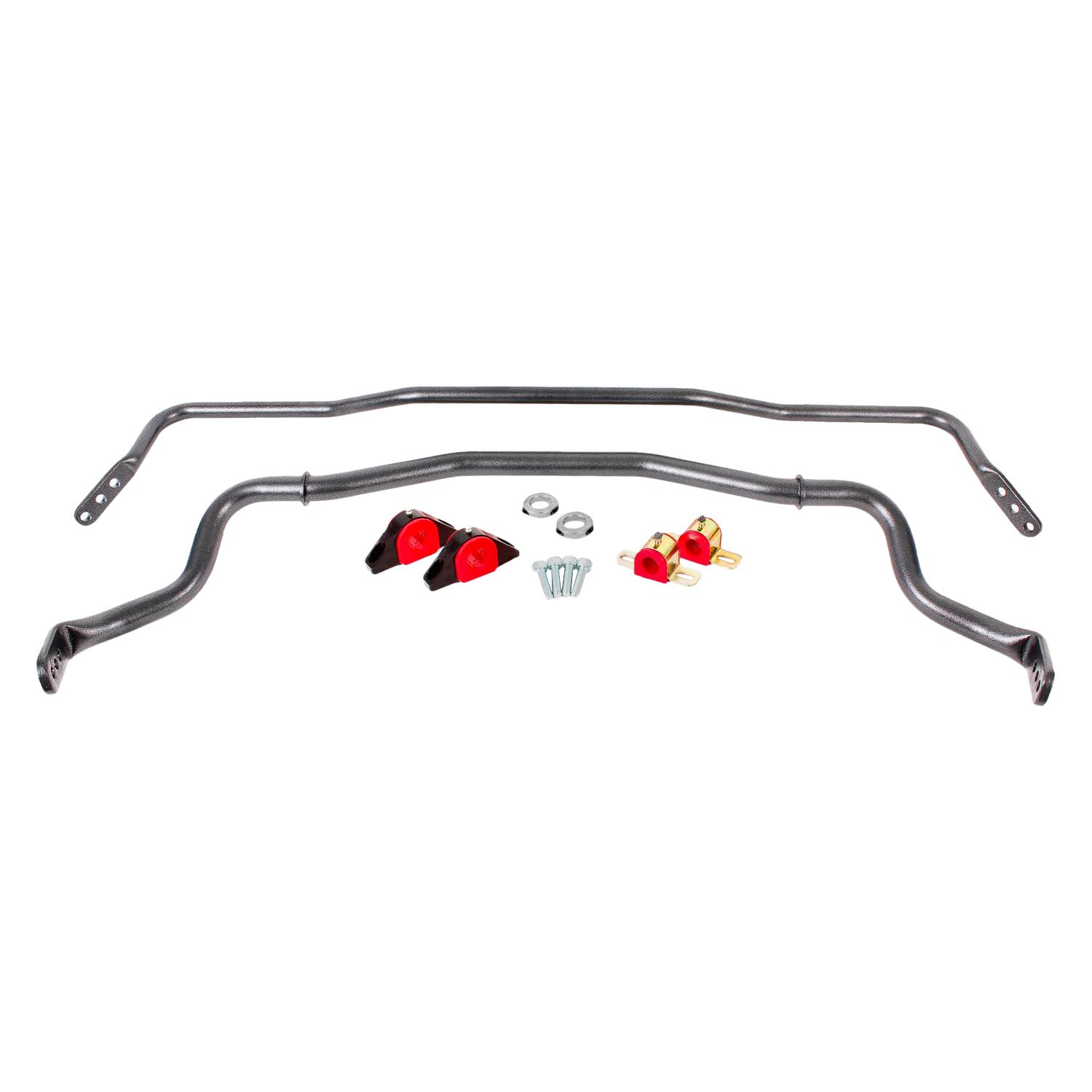

BMR Suspension® SB043H - Front and Rear Sway Bar Kit

Specifications

Features

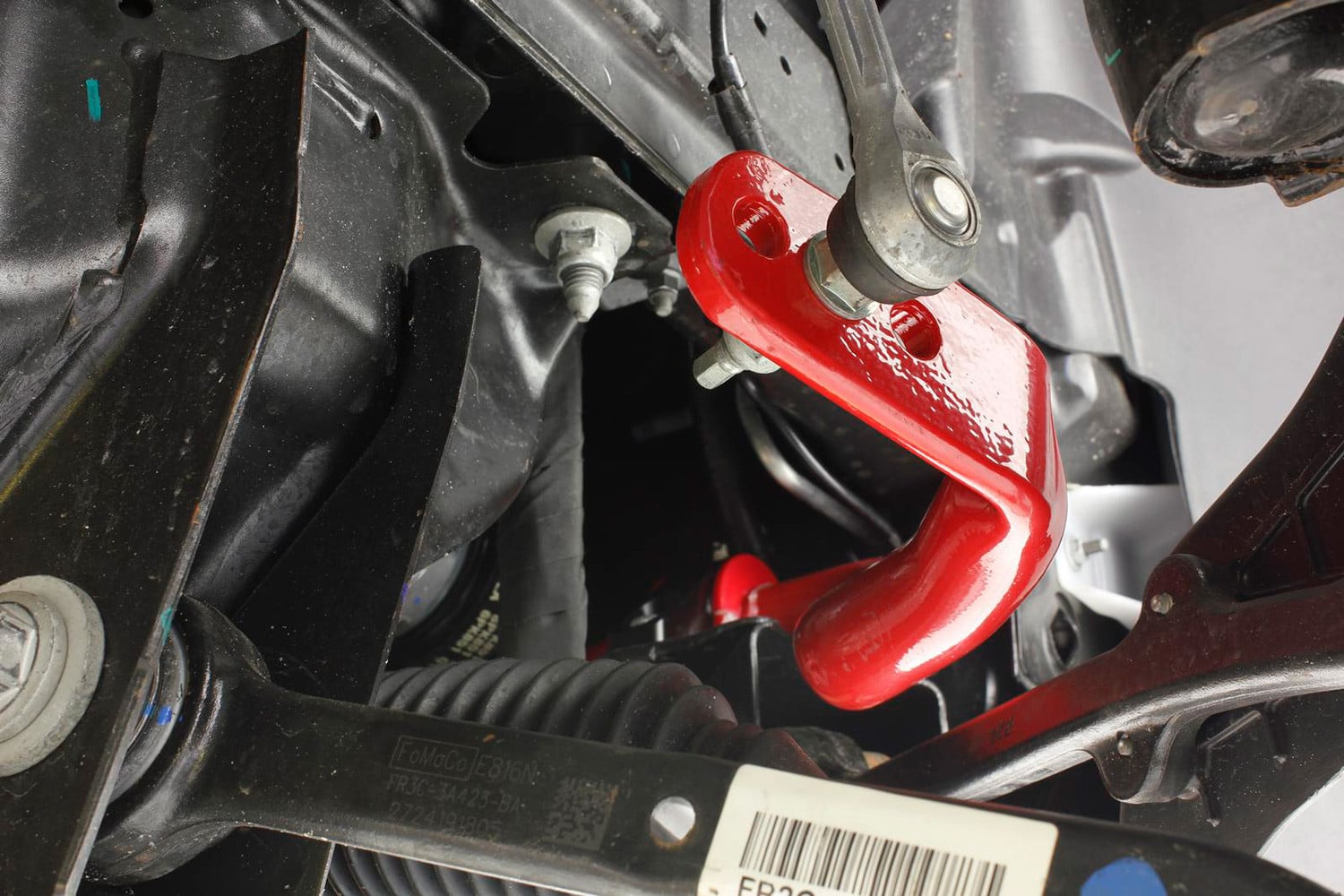

• Front Sway Bar
• Designed for street performance, autocross, and road race applications
• Dramatically reduces body roll
• 28%-70% increase in sway bar rate
• Cold formed to better resist torsional fatigue
• Manufactured from 35mm heavy-wall DOM tubing for increased strength

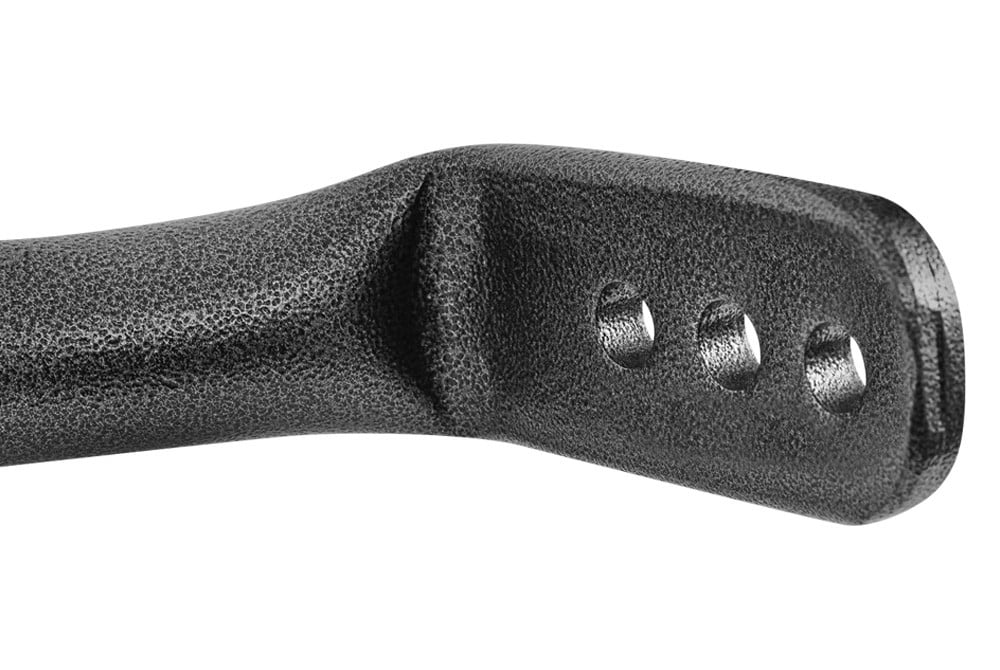

• Three-way adjustable for street and track use
• Adjustability allows for fine-tuning of suspension

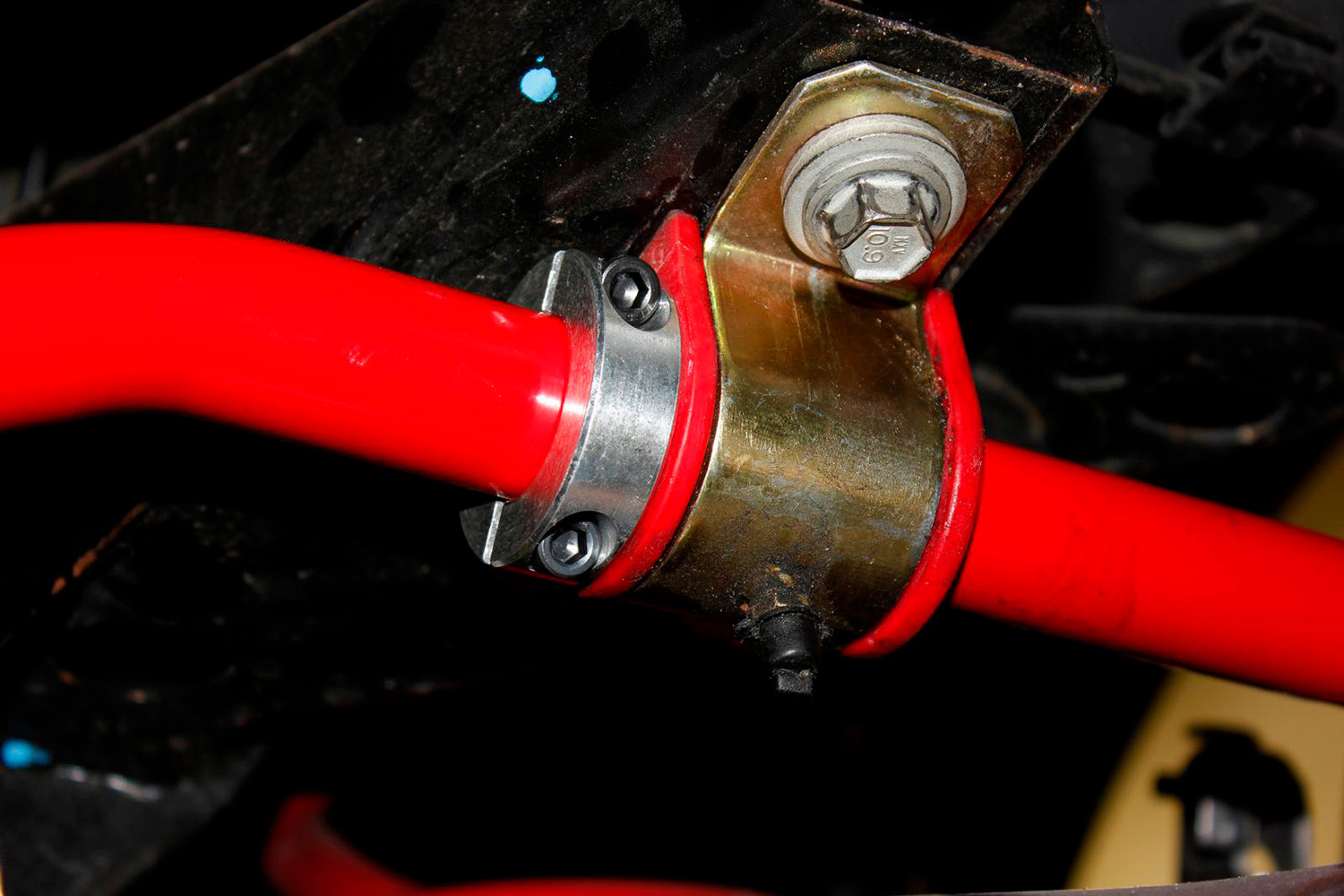

• 88-durometer, greasable polyurethane bushings
• Zinc-plated inner sleeves
• Billet aluminum, black anodized bushings saddles
• Durable powdercoat finish
• 1-hour installation time
• Proudly made in the U.S.A.

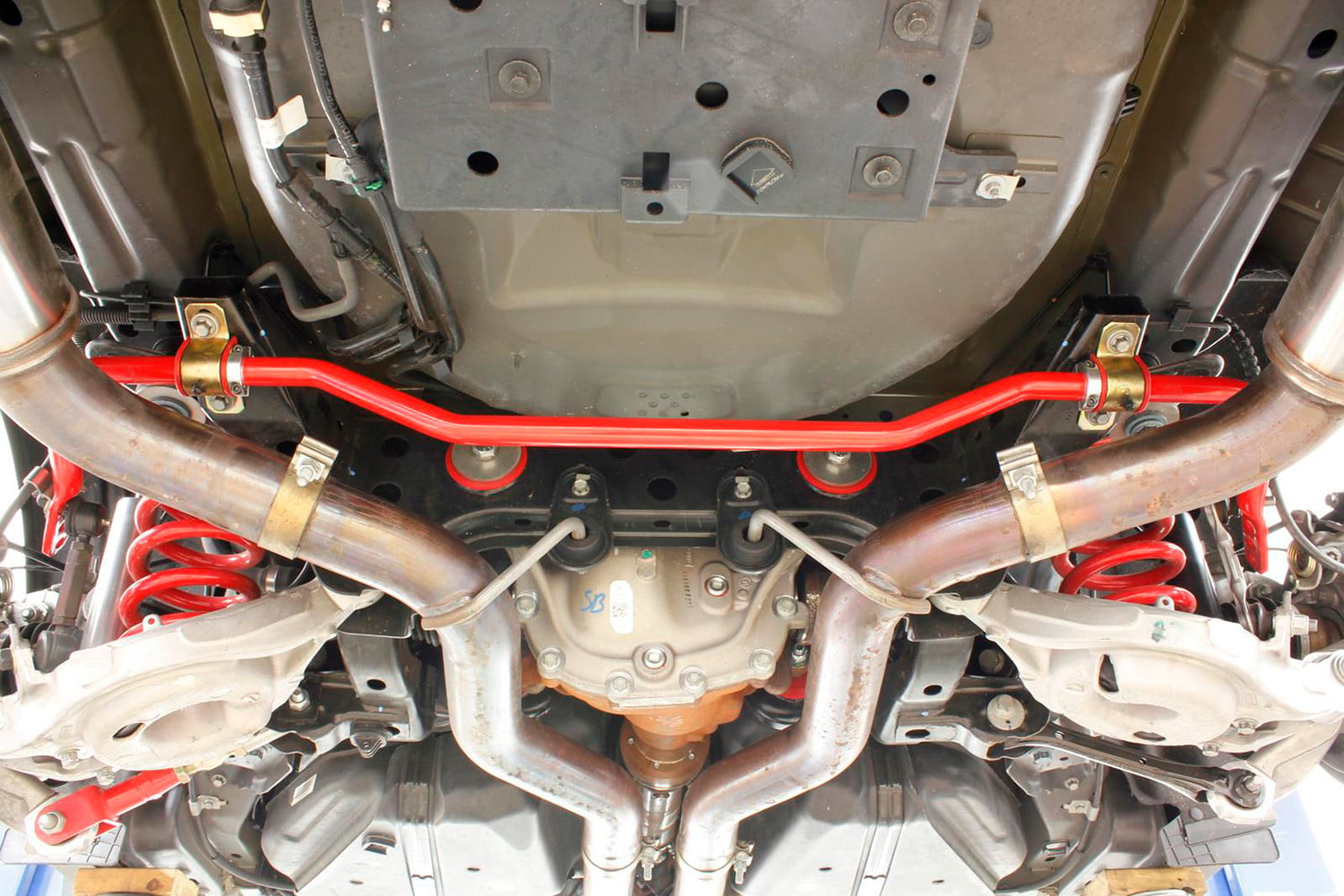

• Rear Sway Bar
• 63%-208% increase is sway bar rate over stock sway bar
• Manufactured from 25mm heavy-duty bar stock for increased strength

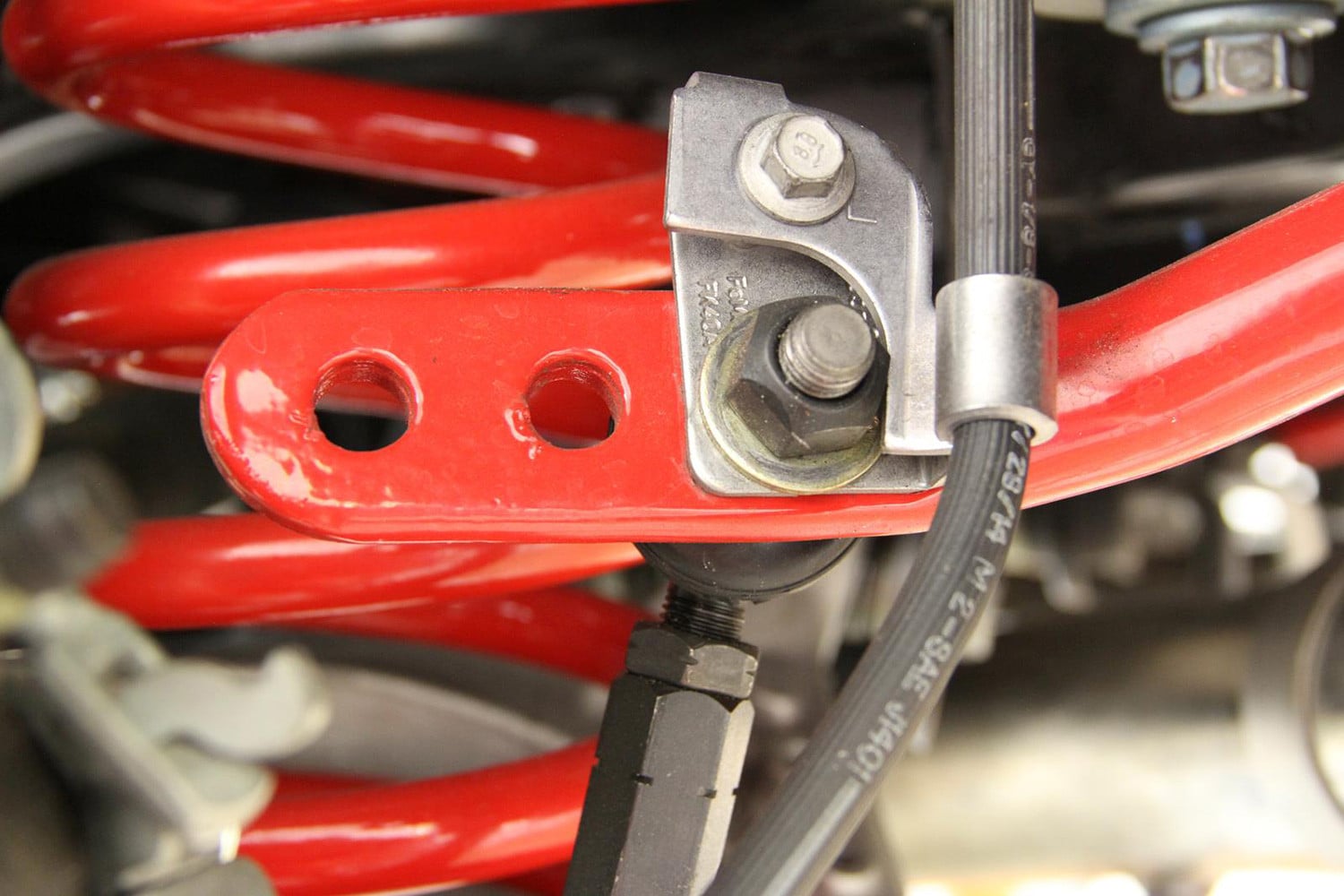

• Three-way adjustable design
• 1-2-hour installation time
• Proven to deliver superior durability and quality
• Made to push your vehicle to the next level
• Manufactured from the finest materials with quality in mind

Product Details

Front and Rear Sway Bar Kit (SB043H) by BMR Suspension®. Quantity: Sold as a Kit. The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension’s sway bars were designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall DOM tubing, the sway bars are cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. Thrust washers are welded to the bar to locate the sway bar bushing mounts. This is critical as it properly locates the sway bar and prevents lateral movement during hard cornering maneuvers.
