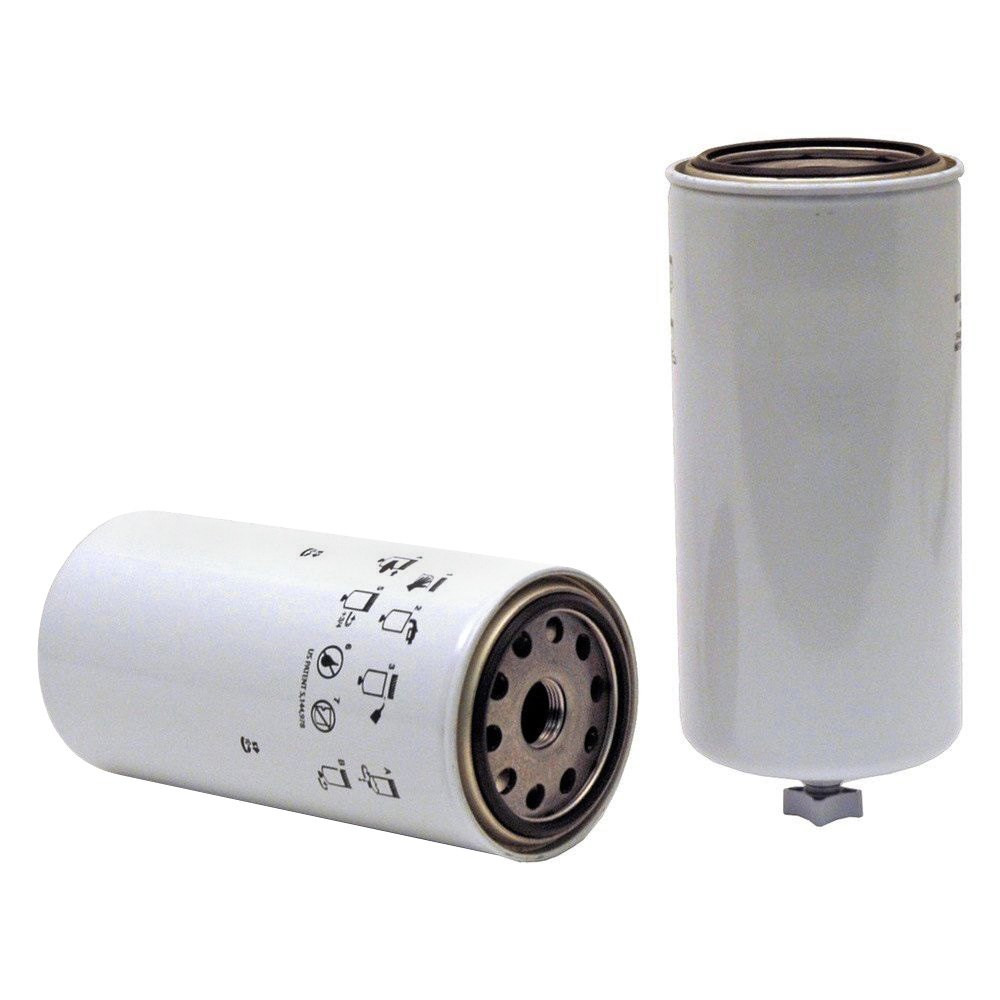

Spin-On Fuel/Water Separator Filter by WIX®. Height: 9.970". Micron Rating: 3.00. Outer Diameter: 4.281". Thread Size: 1-14. Media Type: Cellulose. Style: Spin-On Fuel/Water Separator F. Burst Pressure: 200 PSI. The fuel filter is often the forgotten filter. Yet the fuel put into diesel and off-road equipment, more often than not, contains contaminants such as dirt, rust, scale and water. These impurities can plug fuel injectors and carburetors, resulting in engine malfunction or deterioration. These contaminants often originate from dirty and rusty storage tanks, and as the vehicle ages, from corrosion within the fuel system components. All the more reason to invest in high-quality WIX fuel filters and to maintain them at recommended intervals.
|Type: Full FlowMedia: Paper|
|Height: 9.97 (253 mm)|
|Outer Diameter Top: 4.281 (109 mm)|
|Outer Diameter Bottom: Closed|
|Thread Size: 1-14|
|Beta Ratio: 2/75=3/9|
|Burst Pressure-PSI: 200|
|Nominal Micron Rating: 3|
|Filter Area: 1226|
|O.D.: 3.55 (90 mm)|
|I.D.: 3.16 (80 mm)|
|Thk.: 0.22 (6 mm)|
- Provides highly efficient and unmatched fuel cleansing performance
- Protects advanced fuel injection systems from contaminants
- Ensures long and trouble-free fuel system and engine life
- Built for the possibility of extended service intervals
- Comes with built-in gaskets and brackets where applicable
- Easy installation
The last few years' alternative fuels, such as biodiesel, have drawn considerable attention in the industry. When converting to a biodiesel blend, it’s important to remember that biodiesel has a “solvent” quality, which will result in the cleansing of the fuel system, and may subsequently clog the fuel filter. After the initial clean up of the fuel delivery system, fuel filter service intervals will return to normal under biodiesel utilization. Biodiesel also has a tendency to attract more water mixing with the fuel, increasing the need for proper fuel/water separation.
WIX® is a global manufacturer of oil, fuel, air, hydraulic, transmission, and other filters for automotive, light truck, and heavy duty applications. The company designed the spin-on oil filter that turned the filter market upside down and became a worldwide standard. It also offers revolutionary new heavy duty ecoLAST™ filters which reduce downtime, increase uptime, and prolong useful oil life 2X. WIX manufactures XP synthetic filters which provide technology for the latest improvements in extended mileage, as well as AquaChek filters that remove water from compressed air systems.
