Name: Wilwood® 120-8729 - Powerlite® Radial Mount Brake Caliper
Brand: Wilwood
SKU: mpn135593684
Price: 190.75 USD
Availability: InStock

Vehicle Fitment

This part is universal

Fits Models with 279.5mm (11") x 22mm (0.86") Brake Rotors.

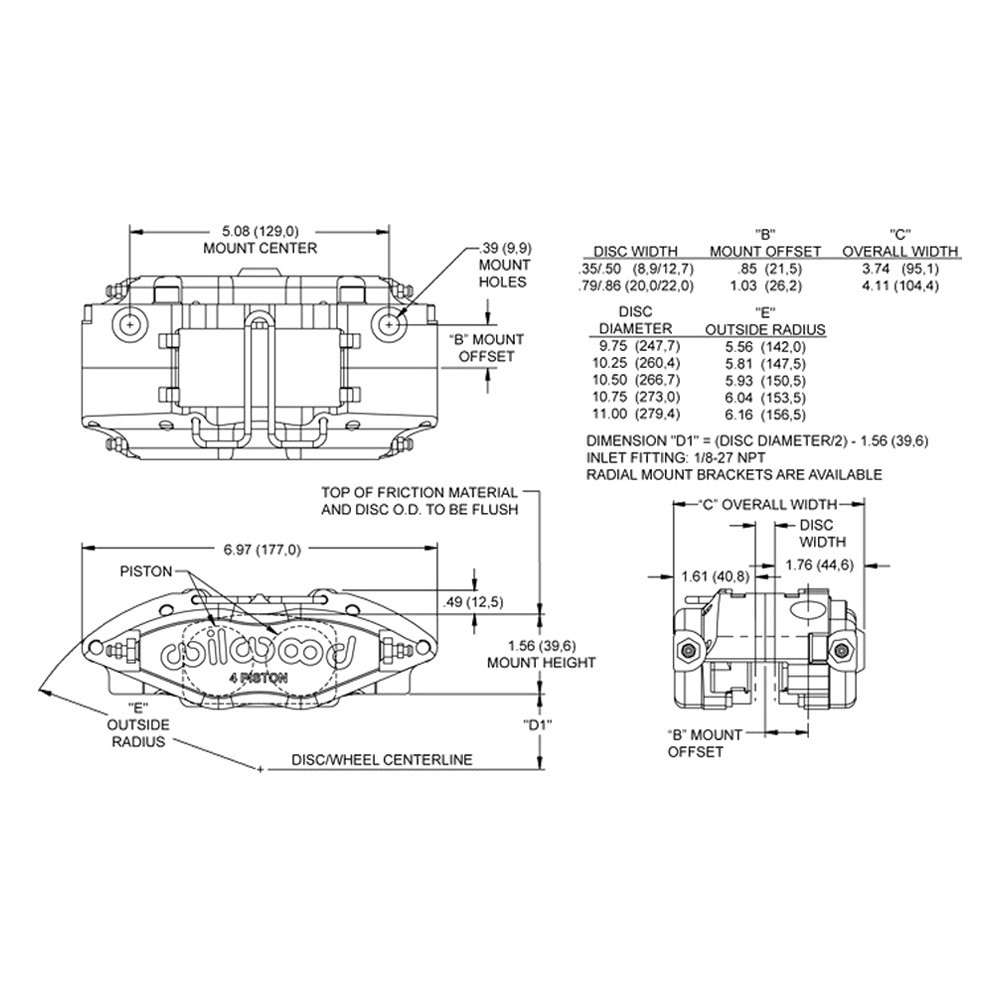

Specifications

Caliper Material	Aluminum
Caliper Finish	Gray
Caliper Construction	Fixed
Caliper Mount Side	Universal
Caliper Type	Powerlite
Driving Style	Performance / Racing
Mount Type	Radial
Pad Area	5 in²
Pad Plate	7912
Caliper Total Piston Area	3.00 in²
Piston Material	Stainless Steel
Piston Quantity	4-Piston
Piston Size	1.38"/1.38"
Brake Pad Volume	1.8 in³
Maximum Rotor Width	0.86"
Maximum Rotor Diameter	11"
Minimum Rotor Diameter	9.45"

Features

Premium grade aluminum alloy body
Stainless steel pistons for corrosion resistance
High temperature seals
Quick-clip pad retainers
Proudly manufactured in the United States

Product Details

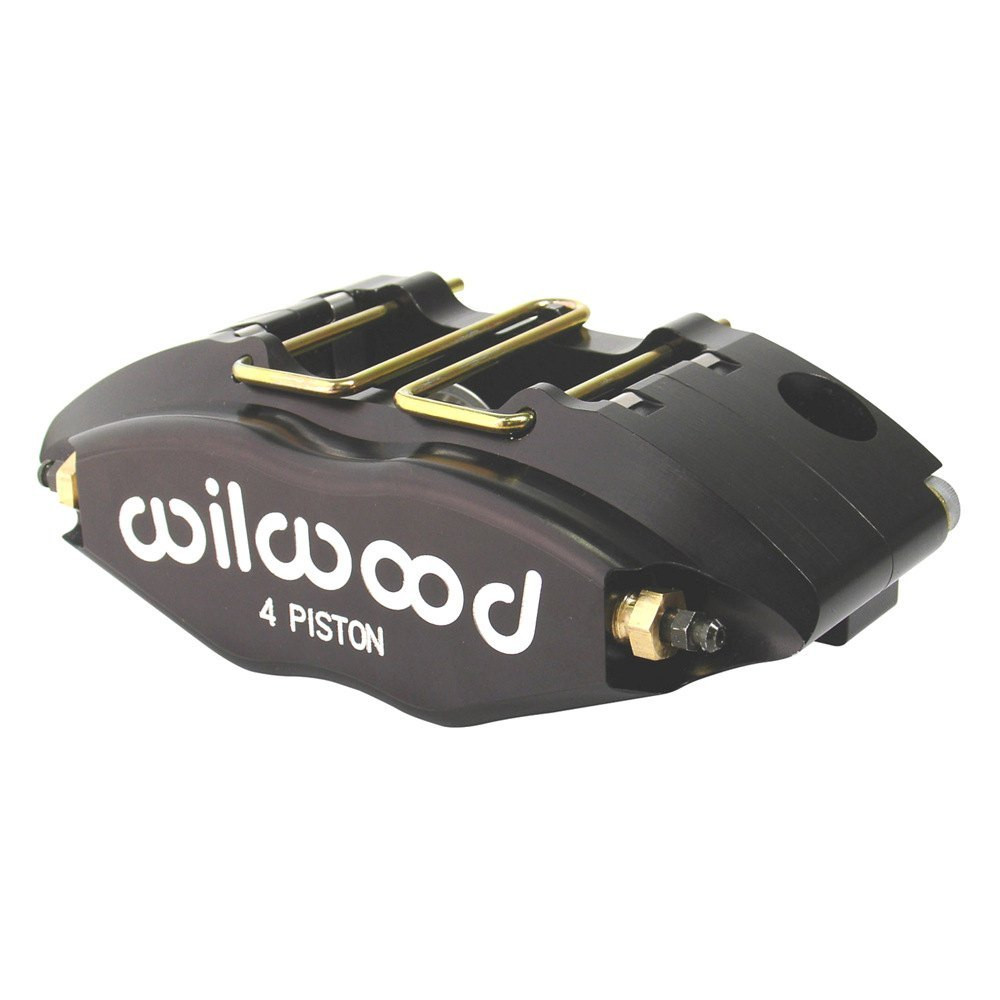

Powerlite® Radial Mount Brake Caliper (120-8729) by Wilwood®. The Powerlite four piston radial mount caliper starts at 2.26 pounds with a sleek profile, superior strength, lightweight and durable in higher temperature situations. Easily adapted to a wide range of sports, rally, and off road driving applications.

Installation

Wilwood® - Powerlite® Radial Mount Brake Caliper Installation Instructions

Strength comes from a combination of process and design. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper separation under load.

The Powerlite uses a new 7912 type brake pad that is supported from the top by Quick-clip pad retainers. This eliminates the need for a pad support step in the bottom of the caliper and adds additional clearance for mounting closer to the hub on small wheel and rotor applications. The Quick-Clips also accommodate easy pad access without caliper removal. Brake pad compounds are available for the full range of sport and competition applications.

Wilwood® - Powerlite® Radial Mount Brake Caliper Installation Instructions Wilwood® - Powerlite® Radial Mount Brake Caliper Features Wilwood® - Finishes Wilwood® - Catalog Wilwood® - Products Comparison Wilwood® - Tech Tips Guide Wilwood® - Warranty Information Made In USA Wilwood Authorized Dealer Product lines FAQ About us

Brand:

Wilwood

Part Number:

120-8729

UPC:

889545006353

Alternate MPN:

1208729

Warranty

Do not drive on untested brakes. Brakes must be tested after installation or maintenance.

Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle if pedal does not stay firm or can be pushed to the floor with normal pressure.
At very low speed (2-5 mph) apply brakes hard several times while turning steering from full left to full right, repeat several times. Remove the wheels and check that components are not touching, rubbing, or leaking.
Carefully examine all brake components, brake lines, and fittings for leaks and interference.
Make sure there is no interference with wheels or suspension components.
Drive vehicle at low speed (15-20 mph) making moderate and hard stops. Brakes should feel normal and positive. Again check for leaks and interference.
Always test vehicle in a safe place where there is no danger to (or from) other people or vehicles.
Always wear seat belts and make use of all safety equipment.

General Warnings:

RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR FATIGUE, DAMAGE, AND WEAR. DO NOT OPERATE ANY VEHICLE ON UNTESTED BRAKES! ALWAYS UTILIZE SAFETY RESTRAINT SYSTEMS AND ALL OTHER AVAILABLE SAFETY EQUIPMENT WHILE OPERATING THE VEHICLE.
