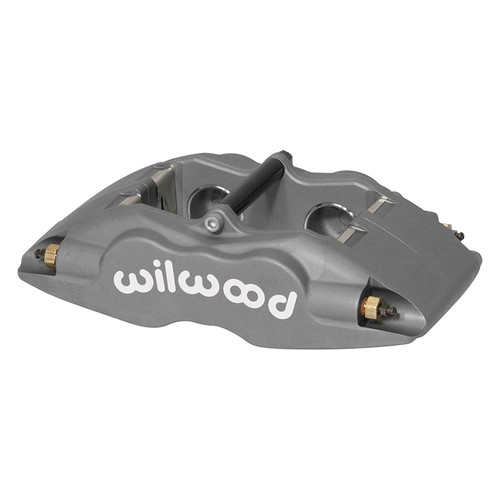

Name: Wilwood® 120-11330 - Forged Superlite® Internal Driver Side Brake Caliper
Brand: Wilwood
SKU: mpn135593233
Price: 264.90 USD
Availability: InStock

Vehicle Fitment

This part is universal

Fits Models with 331.5mm (13.06") x 32mm (1.25") Brake Rotors.

Specifications

Caliper Material	Aluminum
Caliper Finish	Gray Anodized
Caliper Construction	Fixed
Caliper Mount Side	Driver Side
Caliper Type	Forged Superlite Internal (FSLI4)
Driving Style	Performance / Racing
Mount Type	Lug
Pad Area	8.2 in²
Pad Plate	7420
Caliper Total Piston Area	5.18 in²
Piston Material	Stainless Steel
Piston Quantity	4-Piston
Piston Size	1.88"/1.75"
Brake Pad Volume	4.9 in³
Maximum Rotor Width	1.38"
Maximum Rotor Diameter	13.06"
Minimum Rotor Diameter	11.75"

Features

Strong, premium grade aluminum body
Superlite, just at 4.4 pounds
Internal fluid ports
Closed end bridges with a radial transition to the piston body housings
Stainless steel pistons for corrosion resistance
Proudly manufactured in the United States

Product Details

Forged Superlite® Internal Driver Side Brake Caliper (120-11330) by Wilwood®. Forged Superlite Internal 4 calipers provide the pad wear performance advantages of differential bore pistons. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications.

Installation

Wilwood® - Forged Superlite® Internal Driver Side Brake Caliper Installation Instructions

These new FSLI4 models use the latest innovation to the Superlite family of calipers. They have been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allow this group of right and left hand oriented differential piston bore calipers to be mounted in either a leading or trailing position.

The most noteworthy feature of all the FSLI caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL body is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet.

Wilwood® - Forged Superlite® Internal Driver Side Brake Caliper Installation Instructions Wilwood® - Forged Superlite® Internal Driver Side Brake Caliper Features Wilwood® - Finishes Wilwood® - Catalog Wilwood® - Products Comparison Wilwood® - Tech Tips Guide Wilwood® - Warranty Information Made In USA Wilwood Authorized Dealer Product lines FAQ About us

Brand:

Wilwood

Part Number:

120-11330

UPC:

889545001372

Alternate MPN:

12011330

Warranty

Do not drive on untested brakes. Brakes must be tested after installation or maintenance.

Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle if pedal does not stay firm or can be pushed to the floor with normal pressure.
At very low speed (2-5 mph) apply brakes hard several times while turning steering from full left to full right, repeat several times. Remove the wheels and check that components are not touching, rubbing, or leaking.
Carefully examine all brake components, brake lines, and fittings for leaks and interference.
Make sure there is no interference with wheels or suspension components.
Drive vehicle at low speed (15-20 mph) making moderate and hard stops. Brakes should feel normal and positive. Again check for leaks and interference.
Always test vehicle in a safe place where there is no danger to (or from) other people or vehicles.
Always wear seat belts and make use of all safety equipment.

General Warnings:

RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR FATIGUE, DAMAGE, AND WEAR. DO NOT OPERATE ANY VEHICLE ON UNTESTED BRAKES! ALWAYS UTILIZE SAFETY RESTRAINT SYSTEMS AND ALL OTHER AVAILABLE SAFETY EQUIPMENT WHILE OPERATING THE VEHICLE.

Disclaimer of Warranty:

Purchasers recognize and understand that racing parts and equipment, such as disc brakes, hubs, etc. and all parts, inventory and services manufactured and/or sold by Wilwood Engineering, Inc. are exposed to many and varied conditions due to the manner in which they are installed and used. Purchasers and Wilwood Engineering, Inc. consciously desire to make their own bargain, irrespective of any court decision and purchasers agree upon good faith and in consideration for being allowed to purchase from Wilwood Engineering, Inc. said parts or services. Purchasers expressly acknowledge and understand that Wilwood Engineering, Inc. does not make any affirmation of fact or promise to purchaser, which relates to said parts, inventory, or services that becomes part of the basis of the bargain between Wilwood Engineering, Inc. and purchasers. Nor does Wilwood Engineering, Inc. make, or cause to be made to purchaser any description of the goods sold to purchaser, nor does Wilwood Engineering, Inc. make, or cause to be made, as part of the basis of the bargain with purchasers, any description or affirmation of fact concerning any sample or model of racing parts, and equipment inventory or service.

As further consideration for purchasers using Wilwood Engineering, Inc. racing parts and equipment any and all inventory and services, purchasers acknowledge that due to the differing conditions and circumstances under which all equipment and parts are installed and used, purchasers are not relying on Wilwood Engineering, Inc. skill or judgment to select or furnish the proper part or equipment. Purchasers expressly affirm they are relying upon their own skill or judgment to select and purchase suitable goods.

Wilwood Engineering, Inc. makes no warranties whatsoever, expressed or implied, oral or written, to purchasers. There is no warranty of merchantability made to purchasers. Wilwood Engineering, Inc. further excludes any implied warranty of fitness with respect to racing and equipment, any and all inventory and service.

It is expressly understood and agreed between purchasers and Wilwood Engineering, Inc. that as part of the bargain between Wilwood Engineering, Inc. and purchasers, and in consideration of doing business with each other, all purchasers take, select and purchase said racing parts, equipment, any and all inventory, or services from Wilwood Engineering, Inc. "as is" and "with all faults" and Wilwood Engineering, Inc. shall always provide purchasers with a full and complete opportunity to examine, at purchasers’ leisure and convenience, any racing parts and equipment, any and all inventory, or services when purchasing or contemplating purchasing from Wilwood Engineering, Inc.

If, and in the event that purchasers expressly or impliedly cause representations, or statements or affirmations of fact contrary to this disclaimer of all warranties, expressed or implied, then purchasers agree to indemnify and hold harmless Wilwood Engineering, Inc. in the event of any claim, demand, or legal action against Wilwood Engineering, Inc. by any purchaser.

Purchasers understand and agree that no officer, director, employee, or salesman of Wilwood Engineering, Inc. has any authority to make any statement contrary to the terms of this agreement. On the contrary, Wilwood Engineering, Inc. disavows any statement contrary to what is herein above written.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
