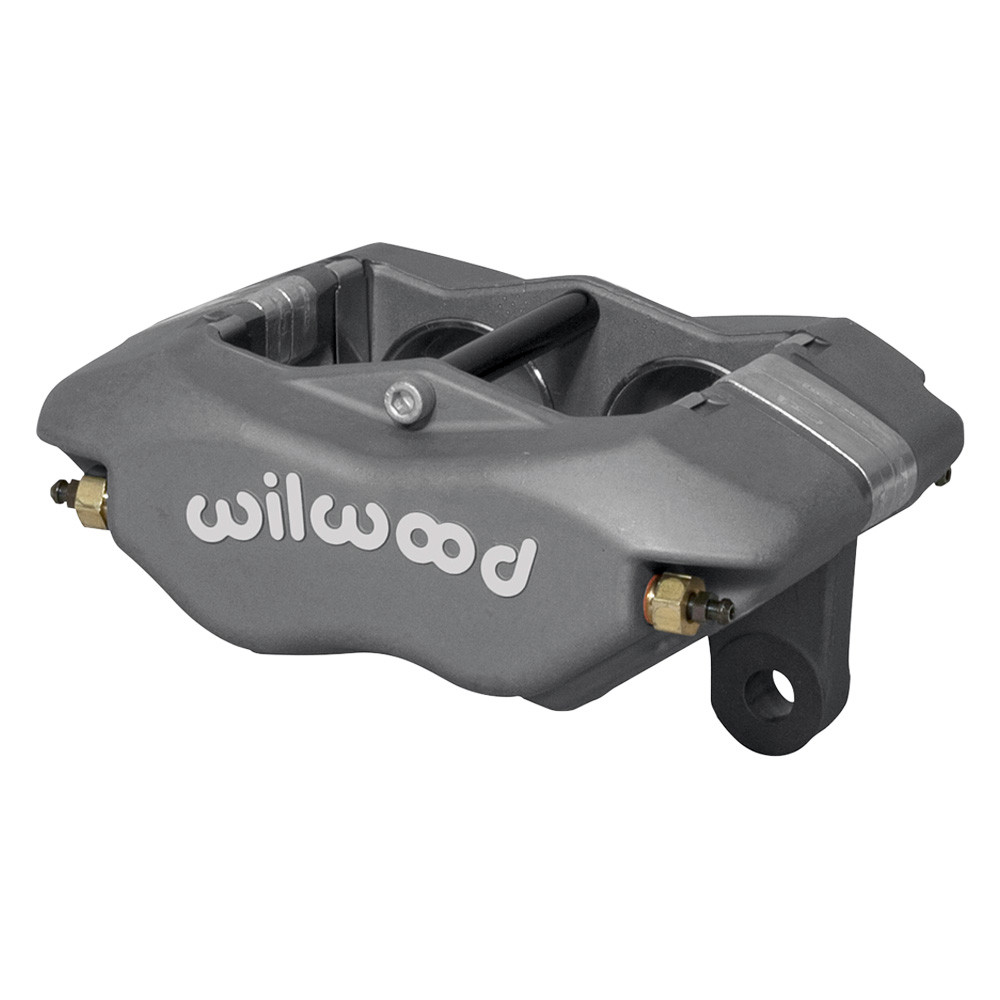

Name: Wilwood® 120-15255 - Forged Narrow Dynalite® Brake Caliper
Brand: Wilwood
SKU: mpn1706963914
Price: 184.24 USD
Availability: InStock

Vehicle Fitment

This part is universal

Fits Models with 323mm (12.72") x 25.5mm (1") Brake Rotors.

Specifications

Caliper Material	Aluminum
Caliper Finish	Gray Anodized
Caliper Construction	Fixed
Caliper Mount Side	Universal
Caliper Type	Forged Narrow Dynalite (FNDL)
Driving Style	Performance / Racing
Mount Type	Lug
Pad Area	6.36 in²
Pad Plate	7816
Caliper Total Piston Area	3.00 in²
Piston Material	Stainless Steel
Piston Quantity	4-Piston
Piston Size	1.38"/1.38"
Brake Pad Volume	3 in³
Maximum Rotor Width	1.00"
Maximum Rotor Diameter	12.72"
Minimum Rotor Diameter	11.75"

Features

Premium grade aluminum alloy body
Starting at 4.9 pounds
SRS bridge plates
Stainless steel pistons for corrosion resistance
Computer generated design and stress analysis technology
The strongest calipers in the class
Exclusive Type III Gray Anodize coating
Proudly manufactured in the United States

Product Details

Forged Narrow Dynalite® Brake Caliper (120-15255) by Wilwood®. Wilwood's new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models, modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models. Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL’s and similar competitive brands with 3.50" centered mounting tabs.

The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Narrow Mount Dynalite to outperform all existing styles of this popular caliper size.

The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right, or left position. To round out the package, Legacy FNDL calipers are finished in Wilwood's exclusive Type III Gray Anodize coating.

Wilwood® - Finishes Wilwood® - Catalog Wilwood® - Products Comparison Wilwood® - Tech Tips Guide Wilwood® - Warranty Information Made In USA Wilwood Authorized Dealer Product lines FAQ About us

Brand:

Wilwood

Part Number:

120-15255

UPC:

889545076332

Alternate MPN:

12015255

Warranty

Do not drive on untested brakes. Brakes must be tested after installation or maintenance.

Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle if pedal does not stay firm or can be pushed to the floor with normal pressure.
At very low speed (2-5 mph) apply brakes hard several times while turning steering from full left to full right, repeat several times. Remove the wheels and check that components are not touching, rubbing, or leaking.
Carefully examine all brake components, brake lines, and fittings for leaks and interference.
Make sure there is no interference with wheels or suspension components.
Drive vehicle at low speed (15-20 mph) making moderate and hard stops. Brakes should feel normal and positive. Again check for leaks and interference.
Always test vehicle in a safe place where there is no danger to (or from) other people or vehicles.
Always wear seat belts and make use of all safety equipment.
