Name: Wilwood® 120-9687 - DynaPro® Single Brake Caliper
Brand: Wilwood
SKU: mpn135593694
Price: 148.15 USD
Availability: InStock

Vehicle Fitment

This part is universal

Fits Models with 330mm (13") x 9.5mm (0.38") Brake Rotors.

Specifications

Caliper Material	Aluminum
Caliper Finish	Gray Anodized
Caliper Construction	Fixed
Caliper Mount Side	Universal
Caliper Type	DynaPro Single (DPS)
Driving Style	Performance / Racing
Mount Type	Lug
Pad Area	3 in²
Pad Plate	6812
Caliper Total Piston Area	2.40 in²
Piston Material	Stainless Steel
Piston Quantity	2-Piston
Piston Size	1.75"/1.75"
Brake Pad Volume	1.1 in³

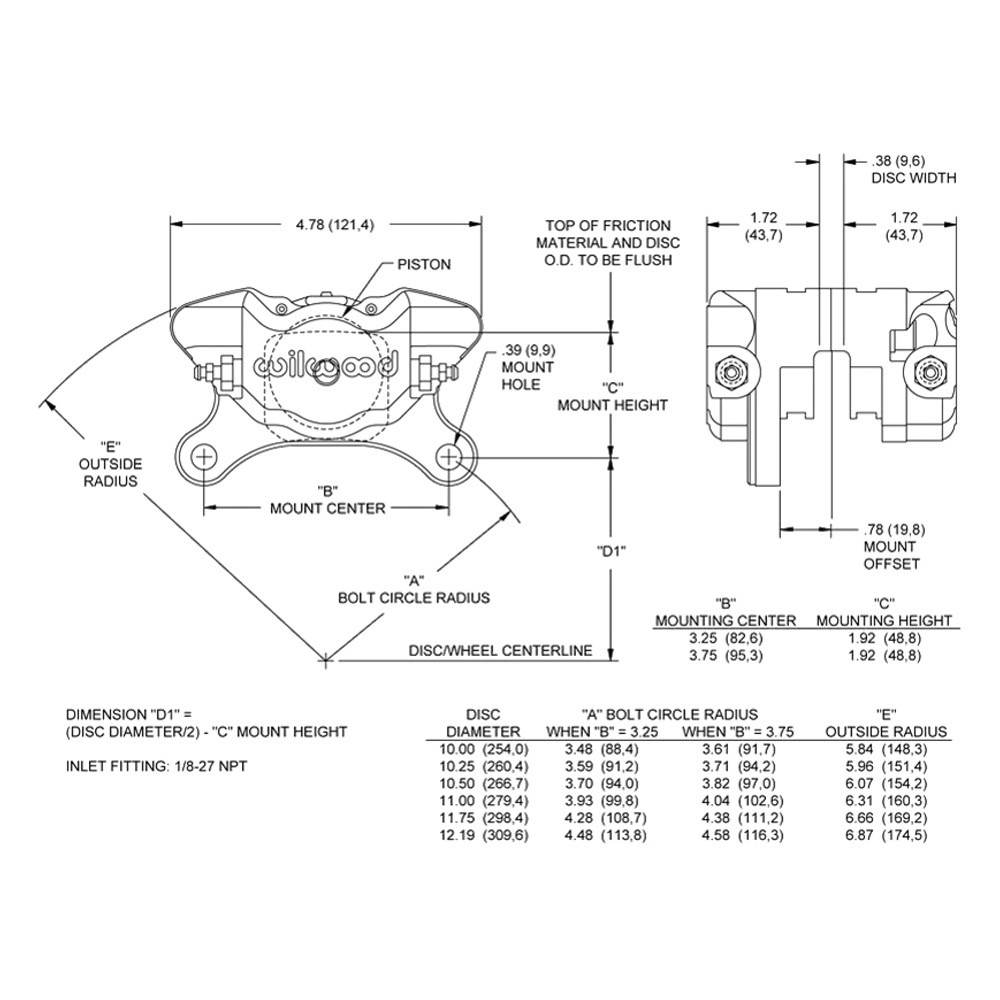

Size	3.25" Mount Center
Maximum Rotor Width	0.38"
Maximum Rotor Diameter	13"
Caliper Weight (Lbs)	2.3
Minimum Rotor Diameter	6"

Features

Fully CNC machined from premium grade alloy billet
Stainless steel pistons for corrosion resistance
The DPS is loaded with exclusive Wilwood performance enhancements
Quick-E-Clip pad retainers
Fast pad service without caliper removal
Proudly manufactured in the United States

Product Details

DynaPro® Single Brake Caliper (120-9687) by Wilwood®. The DynaPro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever.

Installation

Wilwood® - DynaPro® Single Brake Caliper Installation Instructions

Calipers are fully CNC machined from premium grade alloy billet. The FEA generated body design incorporates a fortified transition between the piston housings and the bridges. Strengthening this critical area has substantially increased its resistance to deflection and body separation under load. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel.

The DPS is loaded with exclusive Wilwood performance enhancements. The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top. In addition to fast pad service without caliper removal, this feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models.

Wilwood® - DynaPro® Single Brake Caliper Installation Instructions Wilwood® - DynaPro® Single Brake Caliper Features Wilwood® - DynaPro® Single Brake Caliper Product Information Wilwood® - Finishes Wilwood® - Catalog Wilwood® - Products Comparison Wilwood® - Tech Tips Guide Wilwood® - Warranty Information Made In USA Wilwood Authorized Dealer Product lines FAQ About us

Brand:

Wilwood

Part Number:

120-9687

UPC:

889545007053

Alternate MPN:

1209687

Warranty

Do not drive on untested brakes. Brakes must be tested after installation or maintenance.

Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle if pedal does not stay firm or can be pushed to the floor with normal pressure.
At very low speed (2-5 mph) apply brakes hard several times while turning steering from full left to full right, repeat several times. Remove the wheels and check that components are not touching, rubbing, or leaking.
Carefully examine all brake components, brake lines, and fittings for leaks and interference.
Make sure there is no interference with wheels or suspension components.
Drive vehicle at low speed (15-20 mph) making moderate and hard stops. Brakes should feel normal and positive. Again check for leaks and interference.
Always test vehicle in a safe place where there is no danger to (or from) other people or vehicles.
Always wear seat belts and make use of all safety equipment.

General Warnings:

RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR FATIGUE, DAMAGE, AND WEAR. DO NOT OPERATE ANY VEHICLE ON UNTESTED BRAKES! ALWAYS UTILIZE SAFETY RESTRAINT SYSTEMS AND ALL OTHER AVAILABLE SAFETY EQUIPMENT WHILE OPERATING THE VEHICLE.
