Walker® BNDL-916096 - 9-Pc Ultra Catalytic Converter and Pipe Assembly Kit

82 reviews|Item # mpn5209040923
Vehicle Specific
    Select Vehicle
    Replaces Original (OE) Part #:44620AB43A, 44620AC07A, 44620AA740, 32010446, 44620AB44A, 44620AB400, 44620AA76A, 44620AB350, 44620AC750, 44620AC12A, 44620AA78A
    Authorized Dealer
    $986.43
    In Stock - Ships within 24 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Subaru

    Specifications

    Catalytic Series
    Ultra™
    Converter Configuration
    Direct Fit
    Position
    Front
    Converter Body Material
    Stainless Steel
    Catalytic Converter Substrate Material
    Ceramic
    Catalytic Converter Body Shape
    Round
    Inlet Connection Type
    3 Bolt Welded Flange
    Outlet Connection Type
    3 Bolt Welded Flange
    Inlet Quantity
    2
    Outlet Quantity
    1
    Catalytic Converter Body Height
    4"
    Catalytic Converter Width
    4"
    Catalytic Converter Body Length
    4"
    Catalytic Converter Overall Length
    27"
    Air Tube
    No
    O2 Sensor Port
    Yes
    Catalytic Converter Oxygen Sensor Location
    Pre and Post Catalytic Converter
    Mounting Hardware Included
    No
    Position
    Rear
    Outlet Connection Type
    2 Bolt Welded Flange
    Inlet Quantity
    1
    Catalytic Converter Body Height
    4.125"
    Catalytic Converter Width
    4.125"
    Catalytic Converter Body Length
    9"
    Catalytic Converter Overall Length
    58"
    O2 Sensor Port
    No
    Muffler Series
    Quiet-Flow™
    Inlet - Outlet Configuration
    Offset Inlet - Offset Outlet
    Muffler Body Material
    Stainless Steel
    Muffler Body Finish
    Aluminized
    Muffler Outlet Diameter
    2.25"
    Muffler Body Height
    5.5"
    Inlet Connection Type
    2 Bolt Welded Flange
    Outlet Connection Type
    Pipe Connection
    Muffler Body Width
    11"
    Muffler Body Shape
    Oval
    Muffler Body Length
    22"
    Muffler Overall Length
    42.5"
    Muffler Reversible
    No
    Muffler Type
    Reflection
    Inlet Quantity
    1 Inlet
    Outlet Quantity
    1 Outlet
    Outlet Diameter Designation
    Outside Diameter
    Automotive Item Grade
    Standard Replacement
    Resonator Body Height
    3.25"
    Resonator Body Width
    7.75"
    Resonator Body Length
    22"
    Resonator Overall Length
    77.625"
    Resonator Body Material
    Aluminized Steel
    Resonator Body Shape
    Oval
    Connection Type
    2 Bolt Welded Flange
    Material
    Perforated Metal and Fiber Laminate
    Thickness
    0.058"
    Bolt Hole Diameter
    0.45"
    Bolt Hole Center to Center Distance
    2.8"
    Bolt Hole Center to Center Distance 2
    2.8"
    Port 1 Length
    2"
    Port 1 Width
    2"
    Class
    A
    Packaging
    Carton
    Packaging
    Poly Bag
    Material
    Graphoil Composite
    Outer Diameter
    3.03"
    Thickness
    0.56"
    Port 1 Length
    2.39"
    Port 1 Width
    2.39"
    Class
    B
    Bolt Hole Diameter
    0.5"
    Bolt Hole Center to Center Distance
    3.34"
    Material
    Perforated Metal with Fiber Core and Metal Fire Ring
    Thickness
    0.09"
    Bolt Hole Center to Center Distance 1
    4.41"
    Bolt Hole Center to Center Distance 2
    2.59"
    Bolt Hole Diameter
    0.41"
    Port 1 Length
    1.84"
    Port 1 Width
    1.84"

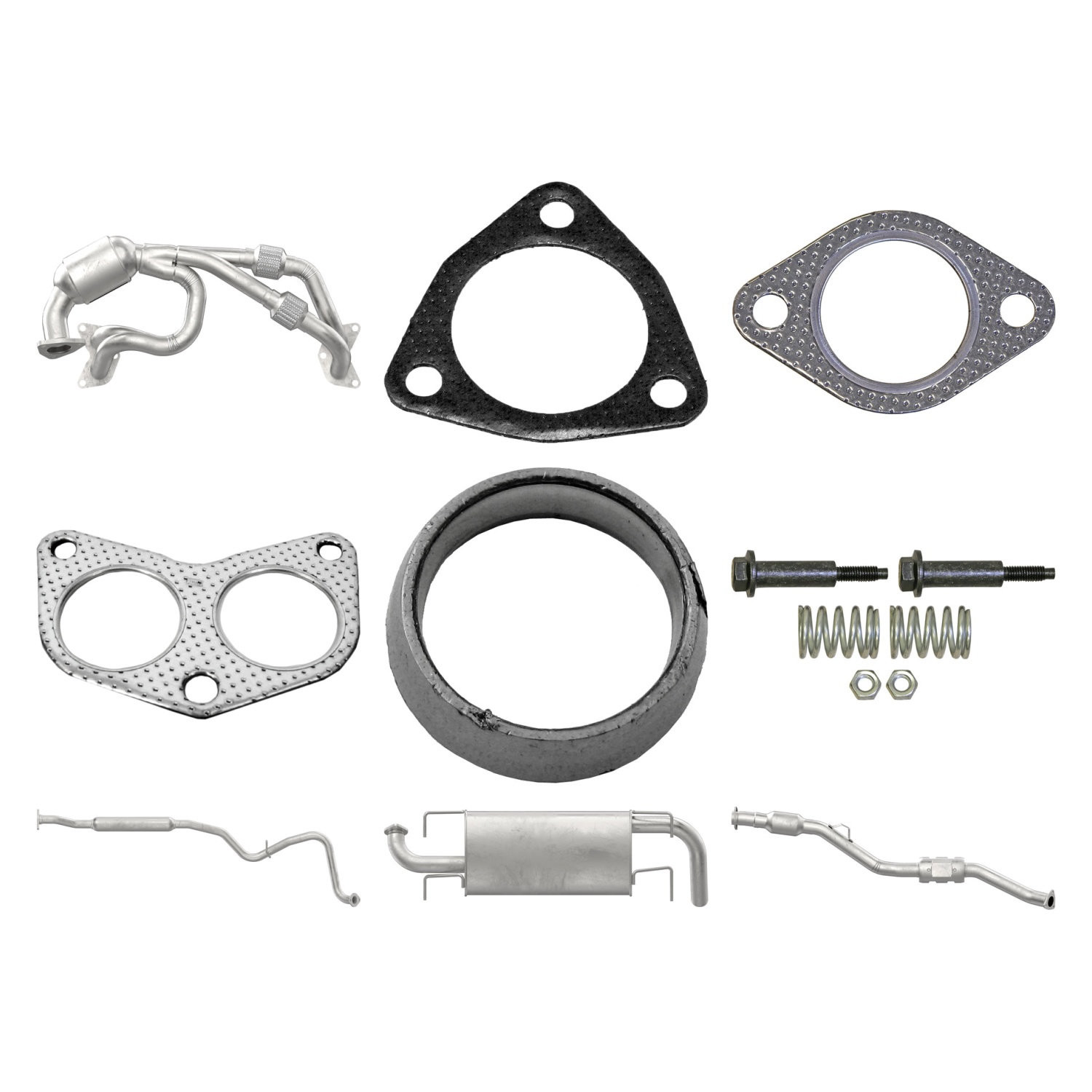

    Includes

    Product MPN Brand QTY
    Ultra™ Direct Fit Round Body Catalytic Converter and Pipe Assembly 16564 Walker 1
    Ultra™ Direct Fit Round Body Catalytic Converter and Pipe Assembly 55585 Walker 1
    Quiet-Flow™ Stainless Steel Oval Aluminized Exhaust Muffler and Pipe Assembly 54811 Walker 1
    Stainless Steel Oval Aluminized Resonator Assembly 47844 Walker 1
    Perforated Metal and Fiber Laminate 3-Bolt Exhaust Pipe Flange Gasket 31383 Walker 1
    Steel Natural Exhaust Spring Bolt Kit 35129 Walker 1
    Graphoil Composite Donut Exhaust Manifold Flange Gasket 31639 Walker 1
    Perforated Metal with Fiber Core and Fire Ring 2-Bolt Exhaust Pipe Flange Gasket 31388 Walker 1
    Perforated Metal with Fiber Core and Metal Fire Ring 3-Bolt Exhaust Manifold Flange Gasket 31613 Walker 1

    Product Details

    9-Pc Ultra Catalytic Converter and Pipe Assembly Kit by Walker®. This vehicle essentials bundle includes top-rated automotive products selected based on real customer preferences. Ideal for car care and maintenance, each item is chosen to enhance your driving experience and keep your vehicle in peak condition.

    Walker Authorized Dealer
    Brand:
    Walker
    Part Number:
    BNDL-916096
    Alternate MPN:
    BNDL916096
    OE Numbers:
    44620AB43A, 44620AC07A, 44620AA740, 32010446, 44620AB44A, 44620AB400, 44620AA76A, 44620AB350, 44620AC750, 44620AC12A, 44620AA78A

    Reviews

    (82)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-10 of 82 Reviews
    5 of 5
    Perfect Fit
    Fairly easy install. I put the front end up on jacks and removed the passenger tire for ease of movement. Make sure to loosen the exhaust line at the mid-frame. Don't chance it, use new gaskets and use plenty of break-free before loosening the bolts. Take your time. You'll do better with narrow sockets. Snapped right into place with no issues. I have that weird All Wheel Drive model, so I was a bit nervous about the fit. Worked like a charm.
    Posted by Victor (Vacaville, CA) / October 21, 20252007 Subaru Forester
    5 of 5
    Catalytic Converters
    Perfect fit and passed smog right away!
    Posted by Ian / May 18, 20252003 Honda CR-V
    5 of 5
    Works Great, Fair Price
    Bolted right in and my check engine light went off. Passed the emissions test with no issues. Great product, especially for the price ! way better than what the dealer was charging!
    Posted by Tim (Miami, FL) / September 15, 20242013 Volvo XC90
    5 of 5
    Acceleration Back
    Made the 97 a new truck, accelerated better than ever. Bolt on part but didn’t match perfectly so had to increase bends to fit but the end result was worth it.
    Posted by Chris (Front Royal, VA) / April 28, 20241997 Dodge Ram
    3 of 5
    100k Miles
    Lasted 100k miles.
    Posted by James (Concord, NC) / August 22, 20212005 Scion xB
    5 of 5
    Perfect Fit
    Half the price than anyone else.Bolted right up.Saved over500.00dollars.
    Posted by Customer / June 17, 20212006 Jeep Commander
    5 of 5
    Converters
    Enjoyed dealing with your company. Very professional and fast delivery of items ordered. Good pricing. You should advertise more.
    Posted by Alan (Springfield, MO) / April 23, 20212004 GMC Savana
    4 of 5
    No Box?
    Part is fine but not sure if it was dented when shipped or got dented on the way to us. But it wasn't in a box so it was dented. Got 2 parts both not in box and both dented.
    Posted by courtney (Benton Harbor, MI) / March 11, 20212010 Chrysler Town and Country
    5 of 5
    Quiet as a Mouse
    It didn't look exactly like the picture and part I pulled, but fit like a glove and the install was pretty easy and straightforward. My only wish was that it came with new hardware, after 20+ years something's bound to get rusted and locked. All in all I'm very pleased with the outcome. The car no longer sounds like exhaust is blowing through a crumbled can.
    Posted by Rushanda (Lancaster, CA) / November 29, 20201996 Toyota Camry
    5 of 5
    Fantastic!
    I was skeptical ordering online. But I did, and I was so suprised I received my order overnight and I didn't plan on it so fast. I only did standard shipping and next day voila, it was here. Called my garage and they put me in the next day. Perfect fit! Thank you for fast service and will do business with you again for sure.
    Posted by Customer / September 25, 20202015 Kia Soul
