Walker® BNDL-903379 - 5-Pc Exhaust Y-Pipe Kit

109 reviews|Item # mpn5209042147
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $218.02
    In Stock - Ships within 24 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Mazda

    Specifications

    Class
    N
    Main Piping Diameter
    2.25"
    Material
    Aluminized Steel
    Inlet Diameter
    2.25"
    Outlet Diameter
    2"
    Thickness
    0.05"
    Bend Radius
    4"
    Length
    45.55"
    Inlet Quantity
    1
    Outlet Quantity
    2
    Inlet Connection Type
    Pipe Connection
    Outlet Connection Type
    2 Bolt Welded Flange
    Inlet Diameter Designation
    Inside Diameter
    Outlet Diameter Designation
    Outside Diameter
    Mandrel Bent
    N
    Resonator Body Finish
    Aluminized
    Resonator Body Height
    4.25"
    Resonator Body Width
    9.75"
    Resonator Body Shape
    Oval
    Resonator Body Length
    14"
    Class
    W
    Material
    High Temperature Graphite with Wire Mesh Core
    Diameter
    2.78"
    Thickness
    0.53"
    Outlet Diameter
    2.78"
    Port Dimensions
    2" Length x 2" Width
    Packaging
    Poly Bag
    Class
    A
    Material
    Fiber and Metal Laminate
    Thickness
    0.058"
    Bolt Hole Diameter
    0.5"
    Port Dimensions
    2.38" Length x 2.38" Width
    Bolt Hole Center to Center Distance
    4.31"
    Material
    Steel
    Diameter
    2"
    Nut Type
    Hex
    U-Bolt Diameter
    0.375"
    Saddle Hole Type
    Round
    Saddle Gauge
    11
    Finish
    Natural

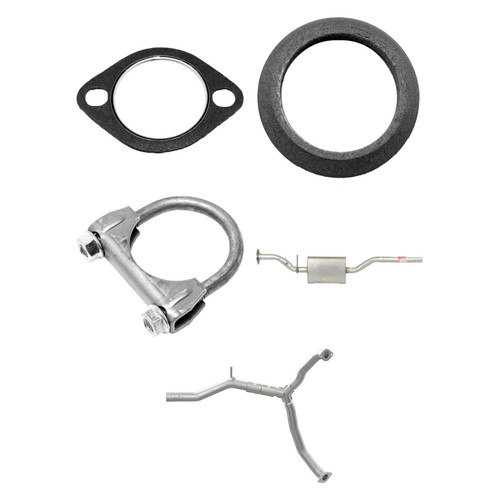

    Includes

    Product MPN Brand QTY
    Aluminized Steel Exhaust Y-Pipe 70402 Walker 1
    Aluminized Steel Oval Resonator Assembly 55725 Walker 1
    High Temperature Graphite with Wire Mesh Core Donut Exhaust Manifold Flange Gasket 31709 Walker 1
    Fiber and Metal Laminate 2-Bolt Exhaust Pipe Flange Gasket 31532 Walker 1
    Heavy Duty Steel Natural U-Bolt Clamp 35335 Walker 1

    Product Details

    5-Pc Exhaust Y-Pipe Kit by Walker®. This vehicle essentials bundle includes top-rated automotive products selected based on real customer preferences. Ideal for car care and maintenance, each item is chosen to enhance your driving experience and keep your vehicle in peak condition.

    Walker Authorized Dealer
    Brand:
    Walker
    Part Number:
    BNDL-903379
    Alternate MPN:
    BNDL903379
