Walker® BNDL-929296 - 11-Pc Ultra Direct Fit Catalytic Converter Kit

82 reviews|Item # mpn5209041988
Vehicle SpecificCannot Confirm Fitment
  • We need more information
Select Vehicle
Confirm Fitment
Replaces Original (OE) Part #:20906951, 15903508
Authorized Dealer
$614.18
In Stock - Ships in 24 to 48 hrs
See similar products
Have a Question? Ask a Specialist
888-577-6964Live Chat

Vehicle Fitment

Buick
Chevy
GMC

Specifications

Catalytic Series
Ultra™
Converter Configuration
Direct Fit
Converter Position
Underbody
Converter Body Material
Stainless Steel
Catalytic Converter Substrate Material
Ceramic
Catalytic Converter Body Shape
Standard Oval
Inlet Connection Type
2 Bolt Welded Flange
Outlet Connection Type
2 Bolt Welded Flange
Inlet Quantity
1
Outlet Quantity
1
Catalytic Inlet Diameter A
2.5"
Inlet Diameter Designation
Outside Diameter
Catalytic Outlet Diameter A
2.5"
Outlet Diameter Designation
Outside Diameter
Catalytic Converter Body Height
4"
Catalytic Converter Width
5.5"
Catalytic Converter Body Length
10"
Catalytic Converter Overall Length
21.5"
O2 Sensor Port
No
Material
Aluminized Steel
Pipe Inlet Diameter
2"
Pipe Outlet Diameter
2.5"
Main Piping Diameter
2"
Overall Length
45.5"
Thickness
0.05"
Inlet Quantity
2
Mandrel Bent
N
Muffler Series
Quiet-Flow™
Muffler Body Height
6"
Muffler Body Width
11.5"
Muffler Body Length
20"
Muffler Overall Length
24"
Muffler Body Material
Stainless Steel
Muffler Body Finish
Bare
Muffler Body Shape
Oval
Muffler Inlet-Outlet Configuration
Offset - Offset
Muffler Inlet Diameter
2.5"
Muffler Outlet Diameter
2.25"
Muffler Reversibility
No
Muffler Type
Reflection
Connection Type
Pipe Connection
Inlet Diameter Designation
Inside Diameter
Outlet Diameter Designation
Inside Diameter
Pipe Inlet Diameter
2.25"
Pipe Outlet Diameter
2"
Main Piping Diameter
2.25"
Overall Length
38.75"
Connection Type
Pipe
Inlet Connection Type
Pipe Connection
Outlet Connection Type
Pipe Connection
Outlet Quantity
2
Pipe Inlet Diameter
2.5"
Main Piping Diameter
2.5"
Overall Length
32"
Class
W
Material
Perforated Metal with Fiber Core and Metal Fire Ring
Thickness
0.07"
Bolt Hole Diameter
0.5" x 0.75"
Port Dimensions
2.6" Length x 2.6" Width
Bolt Hole Center to Center Distance
4.67"
Packaging
Poly Bag
Class
A
Material
Rubber
Length
3.125"
Finish
Black
Item Grade
Standard Replacement
Attachment Method
OEM Style
Material
Perforated Metal and Fiber Laminate
Thickness
0.082"
Bolt Hole Diameter
0.47"
Port Dimensions
2.46" Length x 2.46" Width
Bolt Hole Center to Center Distance
3.9"
Material
Steel
Diameter
2.5"
Nut Type
Hex
U-Bolt Diameter
0.375"
Saddle Hole Type
Round
Saddle Gauge
11
Finish
Natural
Series
Heavy Duty
Diameter
2.25"
Saddle Gauge
11 Gauge
Catalytic Series
Heavy Duty
Diameter
2"
Grade Type
Regular

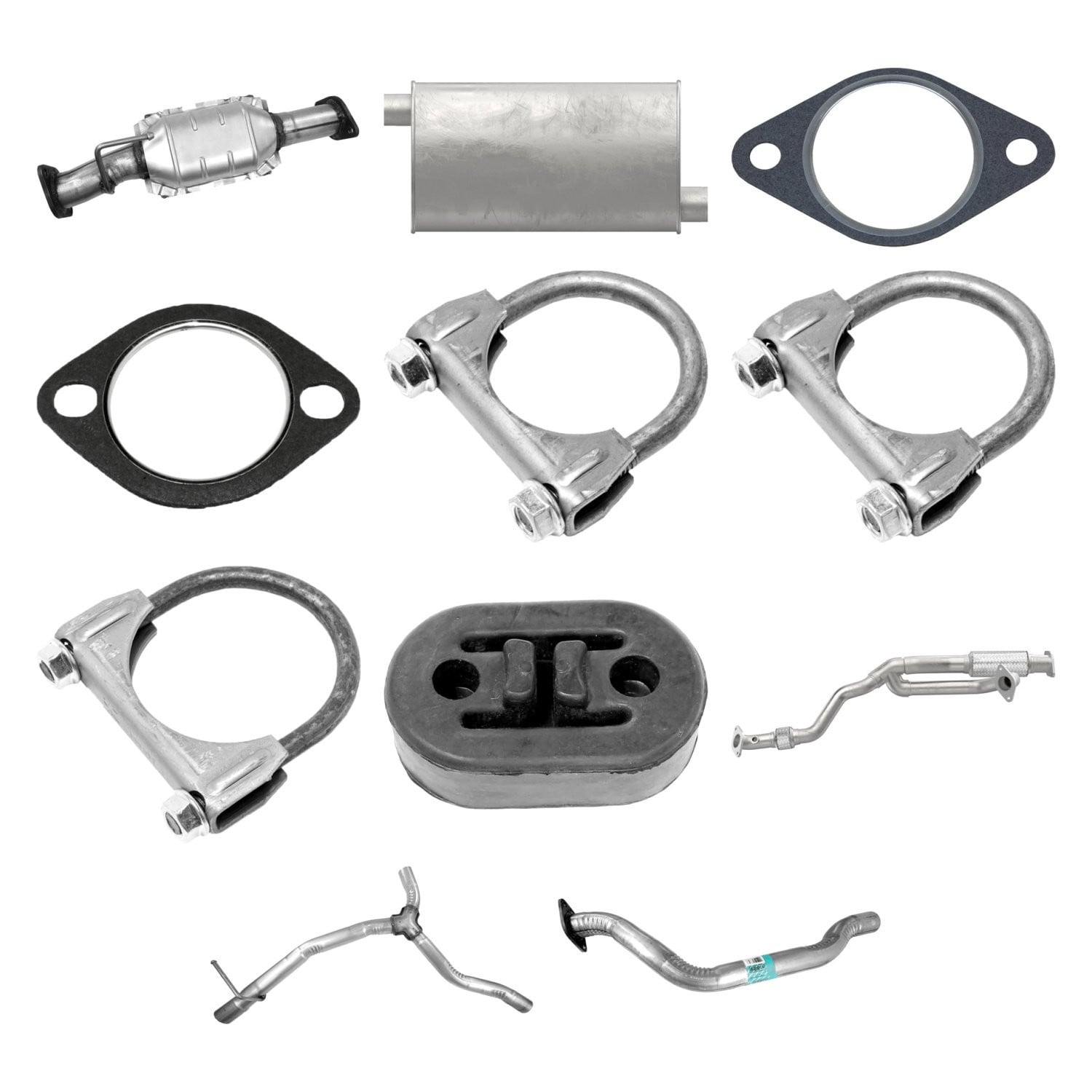

Includes

Product MPN Brand QTY
Ultra™ Direct Fit Standard Oval Body Catalytic Converter 16574 Walker 1
Aluminized Steel Exhaust Y-Pipe 50484 Walker 1
Quiet-Flow™ Stainless Steel Oval Bare Exhaust Muffler 21683 Walker 1
Aluminized Steel Exhaust Y-Pipe 50485 Walker 1
Aluminized Steel Exhaust Intermediate Pipe 53889 Walker 1
Perforated Metal with Fiber Core and Metal Fire Ring 2-Bolt Exhaust Pipe Flange Gasket 31652 Walker 1
Rubber Black Exhaust Insulator 35460 Walker 1
Perforated Metal and Fiber Laminate 2-Bolt Exhaust Pipe Flange Gasket 31311 Walker 1
Heavy Duty Steel Natural U-Bolt Clamp 35337 Walker 1
Heavy Duty Steel Natural U-Bolt Clamp 35336 Walker 1
Heavy Duty Steel Natural U-Bolt Clamp 35335 Walker 1
