Name: UAC® KT5434 - A/C Compressor Kit
Brand: Universal Air Conditioner
SKU: mpn4738079104
Price: 326.46 USD
Availability: InStock
Rating: 4.4 (16 reviews)

Vehicle Fitment

Dodge

Ram

Specifications

Bag Diameter (mm)	20
Bag Length (mm)	235
Bag Weight (g)	52
Bottle (Oz)	8
Color	clear
Color	Silver
Compressor Type	10S17C
Contains Leak Detection Dye	No
Control Valve (Y/ N)	N
Desiccant Replaceable	Yes
Diameter (mm)	35
Drier Port Gender	Male
Fluid Qty	8 oz
Grooves	8
Hoses Included	No
Inlet Fitting Thread Diameter	M25 X 1.5
ISO Viscosity Grade	46
Length (mm)	225
Length (mm)	86
Liquid Inlet Fitting Gender	Female
Liquid Inlet Fitting Thread Diameter	8.6
Liquid Outlet Fitting Gender	Female
Liquid Outlet Fitting Thread Diameter	15.5
Material Type	Aluminum
Moisture Indicator Window	No
Mounting Bracket Included	No
Mounting Hardware Included	No
Mounting Hole Diameter	5.7
Mounting Hole Quantity	2
Pulley Diameter (mm)	120
Refrigerant	R-134a or R1234yf
Refrigerant Type	R134A
Suction Inlet Fitting Gender	Female
Suction Inlet Fitting Thread Diameter	18.3
Suction Outlet Fitting Gender	Female
Suction Outlet Fitting Thread Diameter	17.7
Suction Port Diameter (mm)	18
Thread Size	M25 X 1.5
Type	Block
Type	Polyalkylene
Viscosity	46
Voltage	12
Width (mm)	30
Width (mm)	32

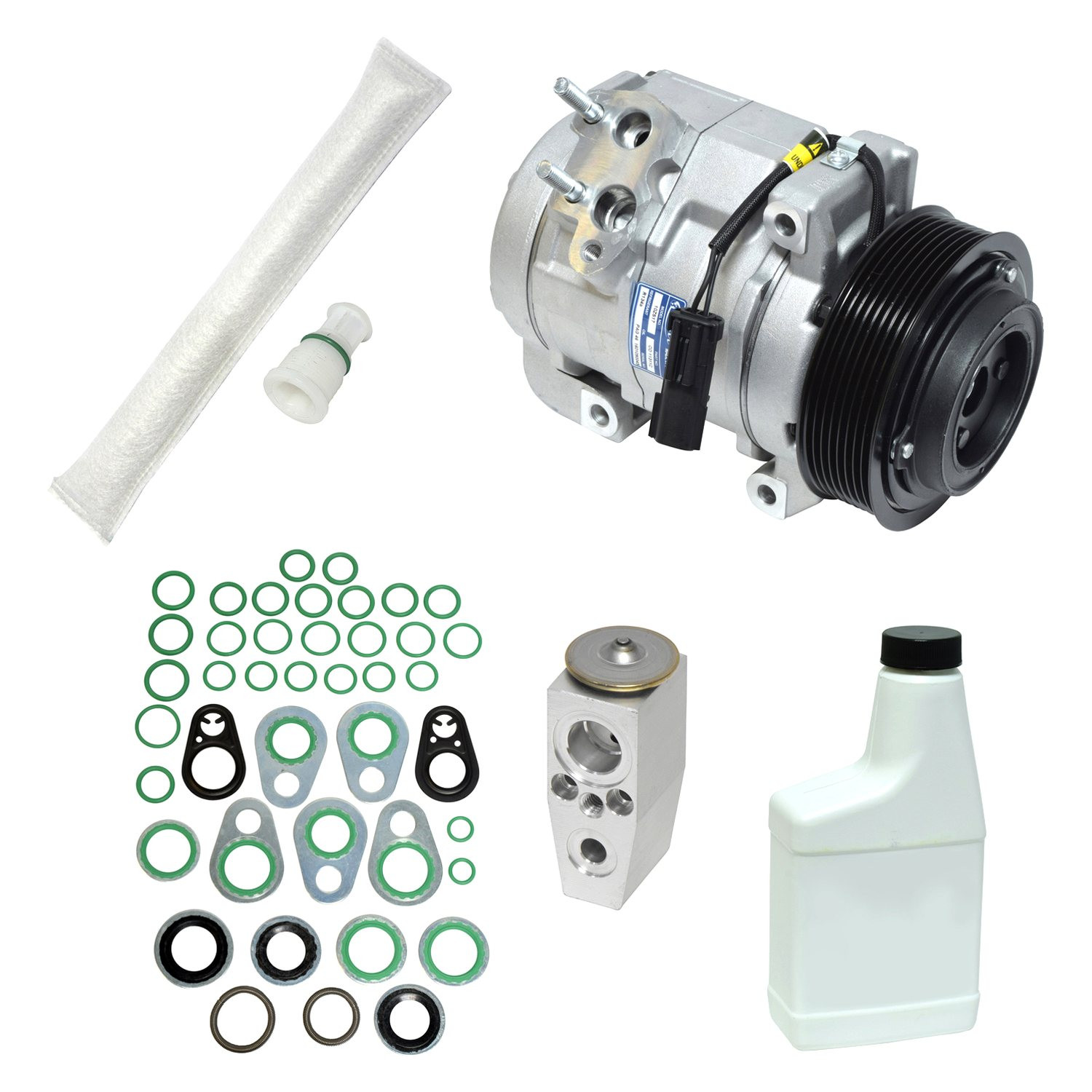

Includes

ACCUMULATORS/DRIERS (RD 10898KTC)
CHEMICALS/OILS (RO 0900B)
COMPRESSORS (CO 11311C)
EXP VALVES/ORIF TUBE (EX 9740C)
RAPID SEAL KITS (RS 2515)

Features

Helps maintain a desired temperature inside your car
Made of durable materials
Ensures reliable performance
Guarantees high efficiency
Provides long lasting service life

Product Details

A/C Compressor Kit (KT5434) by UAC®. Compressors are the heart of the A/C system, with a heavy responsibility to pump A/C refrigerant throughout the automobile’s A/C system. That’s why UAC take the upmost care when developing new compressors. UAC branded compressors meet exact OE specifications, and that they are manufactured at a tier 1 facility. When you purchase a new compressor from UAC, you are receiving a high quality product at price that is very affordable.

The products by Universal Air Conditioner provide comfortable driving for you and your passengers all year round maintaining the desired temperature inside the cabin of your car, truck or SUV. These products deliver a superior combination of perfect fit, high efficiency, and long lasting service life. UAC products are made of durable materials which guarantee their reliable performance and excellent durability.

Universal Air Conditioner® - Information Universal Air Conditioner Authorized Dealer Product lines Warranty About us

Brand:

Universal Air Conditioner

Part Number:

KT5434

UPC:

711307504510

Warranty

Universal Air Conditioner, Inc (UAC) products made in Asia that fail because of defect in material or workmanship, within a period of 1 year from day of purchase from UAC, will be replaced to the original purchaser at no charge. All other products will be subject to that manufacturer's warranty. There are no other warranties expressed, implied or intended other than the 1 year from day of purchase warranty.

This warranty is subject to the following conditions and exclusions:

1. Valid Proof of Purchase. Warranty requests are only accepted with valid proof of purchase from UAC.

2. Proper Installation. Proper installation in accordance with furnished instructions and/or acceptable industry installations methods, as stated in service manuals must be followed by installation personnel. Install the clutch on Compressors purchased without a clutch and set the clutch air gap per OEM specifications. Check clutch electrical circuit for proper voltage per OEM specifications. After compressor installation, turn the compressor shaft a minimum of 10 revolutions to remove excess lubricant from the compressor. Evacuate entire A/C system for a minimum of 45 minutes. Recharge with the proper refrigerants: R134a or R12. When replacing scroll compressors, it is common that debris from the original compressor gets lodged in the condenser and causes the replacement compressor to experience a catastrophic failure. This can be identified by holes and large cracks in the body of the fitted replacement compressor. To avoid a warranty from being denied by UAC, the installer must flush the evaporator and replace the following: Compressor with clutch, Multi-pass, parallel flow condensers (Parallel Flow Condensers cannot be flushed), Drier or Accumulator, Expansion Valve or Orifice Tube, Seals, and O-rings. The work order submitted to UAC as part of the warranty request must indicate that all of these parts were replaced.

3. Exclusions. The following conditions automatically void the warranty obligations: abuse, improper use, shipping damage, damage from dropping, dead batteries, cosmetic damage, failure to service at recommended intervals and failure to follow printed instructions. Clogged or broken expansion valves and/or orifice tubes, malfunctioning fuses, relays, switches, and electrical components are excluded from warranty coverage. Compressor warranty is void unless the drier/accumulator, orifice tube and/or expansion valve is replaced upon installation and system is flushed using generally accepted methods. If the condenser is a parallel-flow type, it must be changed. The proper lubricant must be used. Units returned without lubricant and not properly capped are excluded from warranty coverage. UAC does not accept products for Stock Adjustment.

4. Service Tools and Equipment. Warrantied products will be repaired and returned to the customer. This includes vacuum pumps, leak detectors, manifold gauge sets and recovery, recycle and recharge equipment.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
