UMI Performance® - Tunnel Mounted Torque Arm Kit

UMI Performance® 2198-B - Tunnel Mounted Torque Arm Kit

Name: UMI Performance® 2198-B - Tunnel Mounted Torque Arm Kit
Brand: UMI Performance
SKU: mpn4749245107
Price: 329.99 USD
Availability: InStock

0 reviews|Item # mpn4749245107

Vehicle Specific

Notes:

Constructed of 1.250" x 0.120" DOM seamless steel tubing
TIG welded 4140 chrome moly tube adaptors
On-car adjuster built using 4140 chrome moly steel and heat treated for maximum strength
All polyurethane bushings are grease-able to prolong bushing life
Rear mounting plates use 0.375" thick mild steel and are designed to fit stock as well as 12- bolt and 9" rear-end housings
Rear mounts feature solid 3/4" rod eyes and are attached using grade 8 hardware

Authorized Dealer

$329.99

In Stock (1) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-577-6964Live Chat

Vehicle Fitment

Chevy

Pontiac

Specifications

Finish	Black Powder Coated

Features

3-pt subframe connectors reinforce chassis and prevent quarter panel buckling
Shorter than stock, tunnel mounted torque arm improves forward traction
Complete kit braces entire underside of car to reduce chassis flex
NHRA approved driveshaft loop (removable and replaceable)
Race proven
100% Made In USA

Product Details

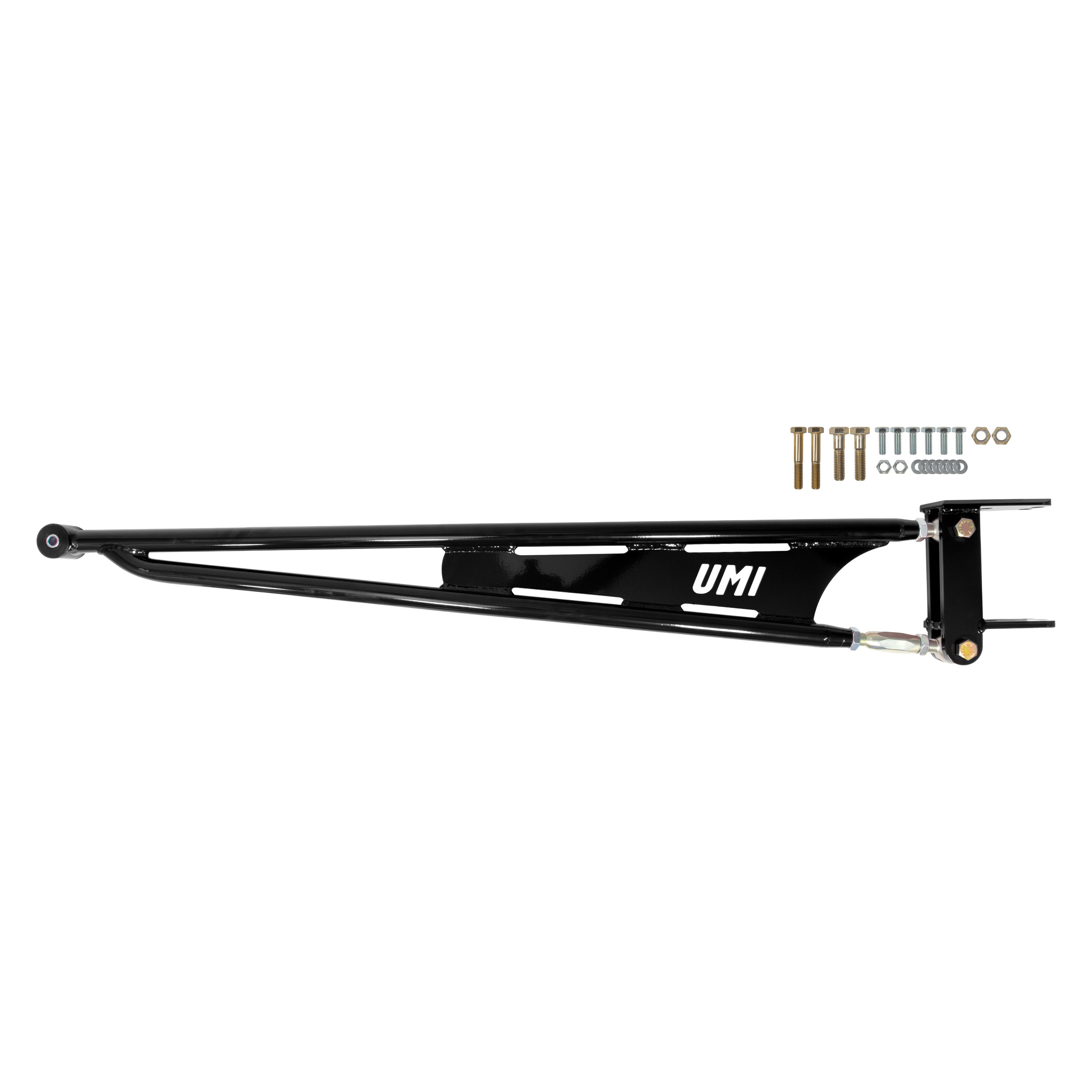

Tunnel Mounted Torque Arm Kit (2198-B) by UMI Performance®. Tunnel mounted torque arm and subframe connector kit provides an easy bolt-on drag race solution for 1993-2002 GM F-Bodies. 2070 subframe connectors reinforce the chassis and prevent quarter panel wrinkling from hard launches. 2201 tunnel mounted torque arm is the proven solution to reduce 60 ft times. Shortened torque arm improves instant center location. As a result, forward traction is improved. Includes removable and replaceable NHRA approved driveshaft loop. Using both parts together dramatically reduces chassis flex. Race proven. 100% Made In USA.

Made In USA UMI Performance Authorized Dealer

Brand:

UMI Performance

Part Number:

2198-B

Alternate MPN:

2198B
