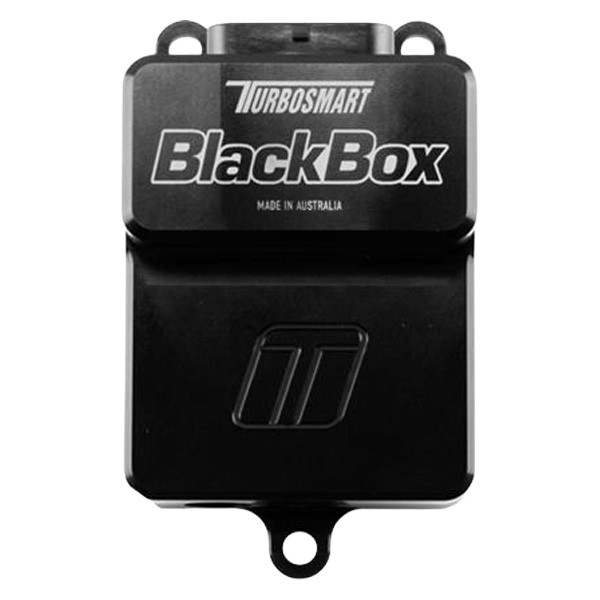

Turbosmart® TS-0305-1001 - BlackBox Electronic Wastegate Controller

Features

• Dual Channel High Current H-Bridge Outputs
• 2 x Wastegate Valve Position Inputs (0-5v)
• 2 x Wastegate Temperature Inputs (0-5v)
• 2 x Frequency Inputs (Advanced Wastegate Position Encoder)
• PWM Target Position Input
• CAN Bus Position Demand Target
• Factory Loaded PID Calibration for all Turbosmart eGates
• Internal Over-Current Protection
• Internal Over-Temp Protection
• Auto Position Calibration
• Anodized Aluminium Housing
• 34 Pin Superseal Connector

Product Details

BlackBox Electronic Wastegate Controller by Turbosmart®. BlackBox by Turbosmart is a dedicated electronic wastegate controller with various factory, aftermarket, and Motorsport ECUs. The BlackBox protects from the current demands and translation of basic and more advanced boost control strategies into a gate position and can be used on single or twin electronic wastegate systems for the ultimate boost control. The BlackBox is a Dual Channel, current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50, as well as our Electronic poppet style gates, including CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates. The BlackBox is capable of multiple strategies and will accept PWM (Pulse Width Modulation) inputs as used for traditional boost control solenoids, 0-5v position target, CAN position target and CAN bus override for more advanced ECUs where control strategy can be developed natively.
