Sniper® 19-477 - Fuel Tank System

1 review|Item # mpn5189243142
Vehicle Specific
    Select Vehicle
    Notes:
    • This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME.
    Authorized Dealer
    $1,126.95
    In Stock (6) - Ships in 24 to 48 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Chevy

    Specifications

    Attached Sump
    Yes
    Baffled Sump
    Yes
    Color
    Silver
    Drain Plug
    No
    Emission Code
    4
    Filler Neck Attached
    No
    Finish
    Powdercoated
    Free Flow LPH
    400
    Fuel Sending Unit Ohms
    0-90 Ohms
    Fuel System Compatibility
    Electronic Fuel Injection
    Fuel System Type
    Gasoline
    Fuel Tank Coating
    Powder Coated
    Gallon Capacity
    20
    Lock Ring Included
    Yes
    Material
    Steel
    Maximum Flow Rating
    400 LPH
    Mounting Straps Included
    Yes
    New Straps Included
    Yes
    O Ring Included
    Yes
    Resistance Ohms Empty
    0 82
    Resistance Ohms Full
    90 82
    Sending Unit Included
    Yes
    Tank Capacity
    20 gal
    Tank Color
    Gray
    Tank Material
    Steel

    Features

    • Tanks are galvanized steel then powder coated silver for total corrosion protection

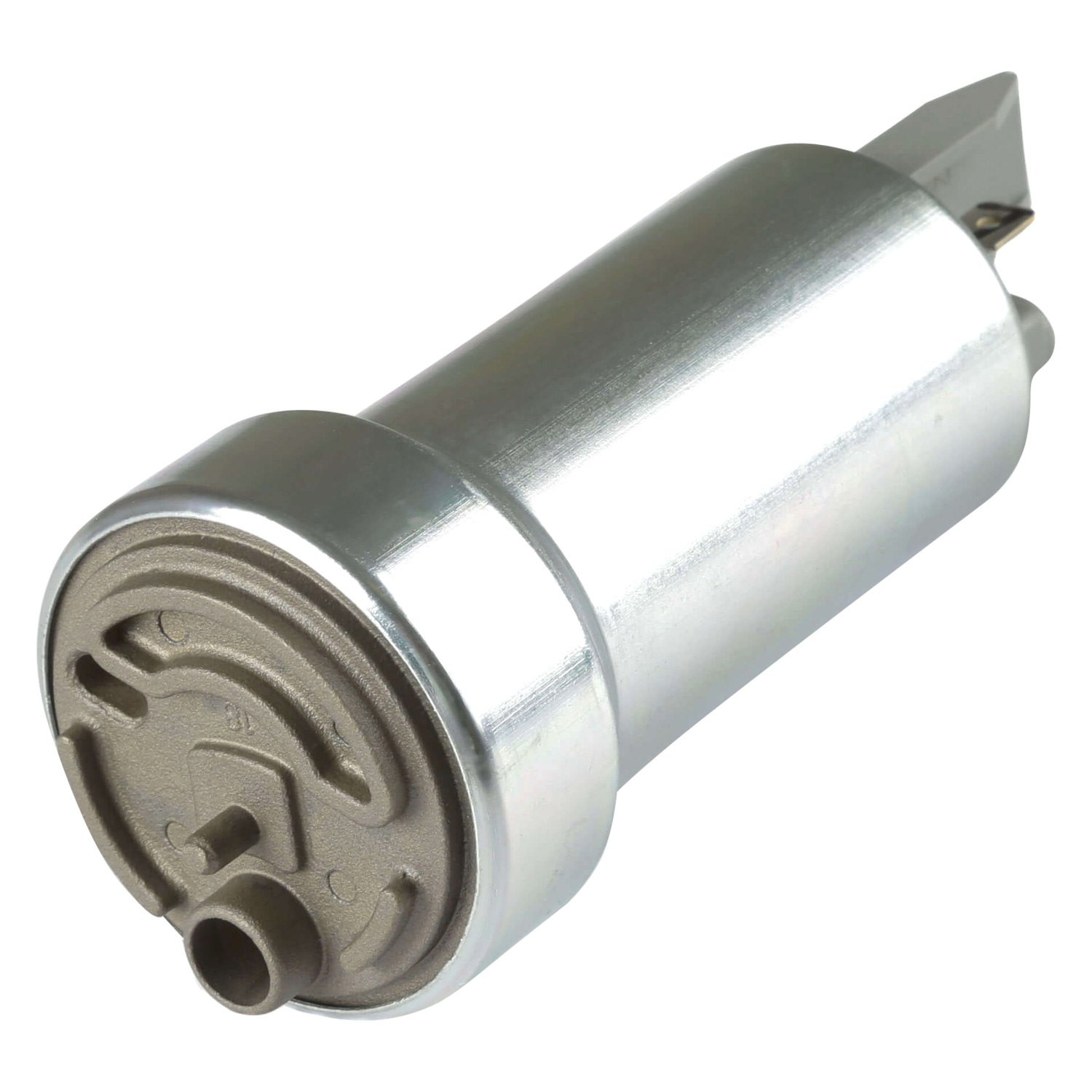

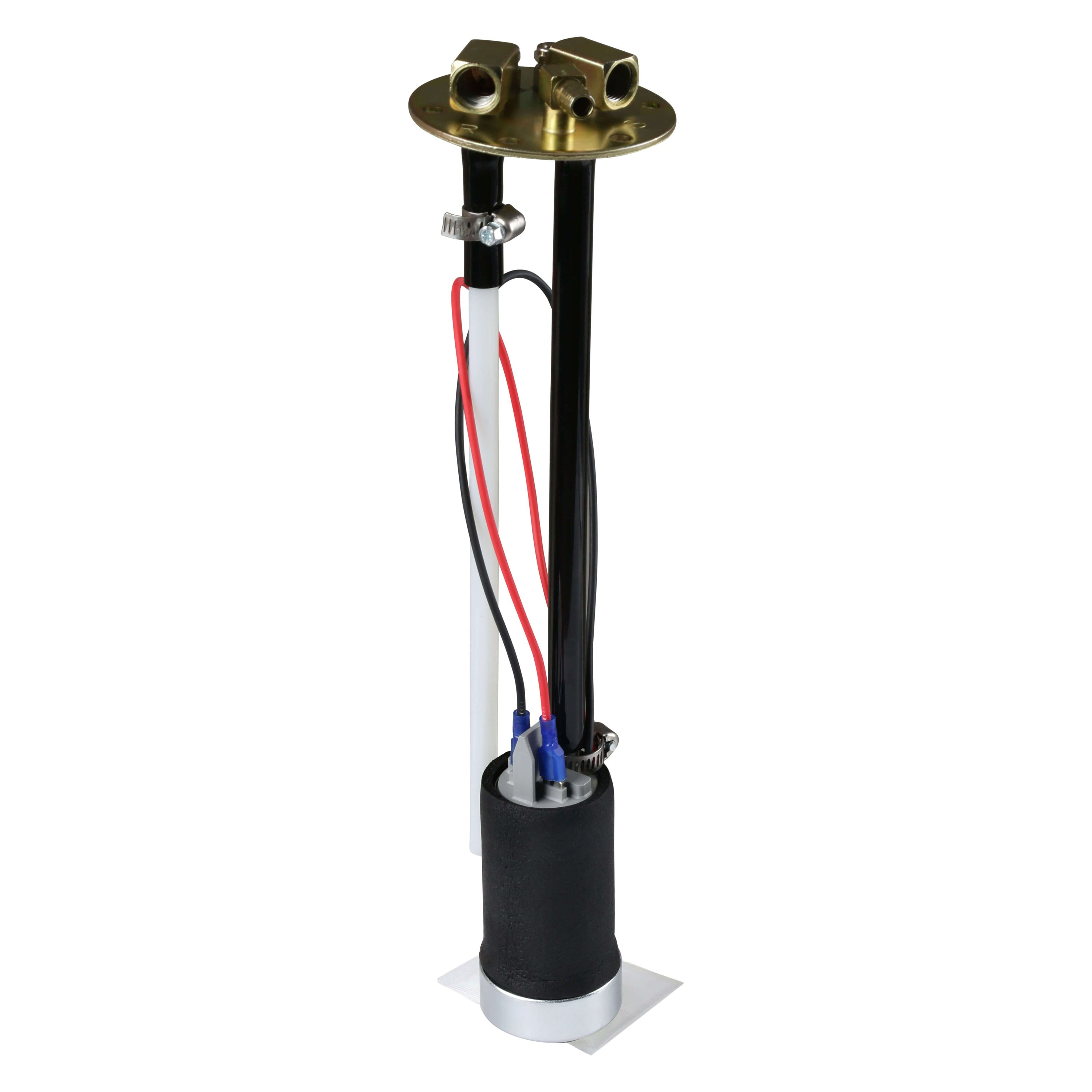

    • 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

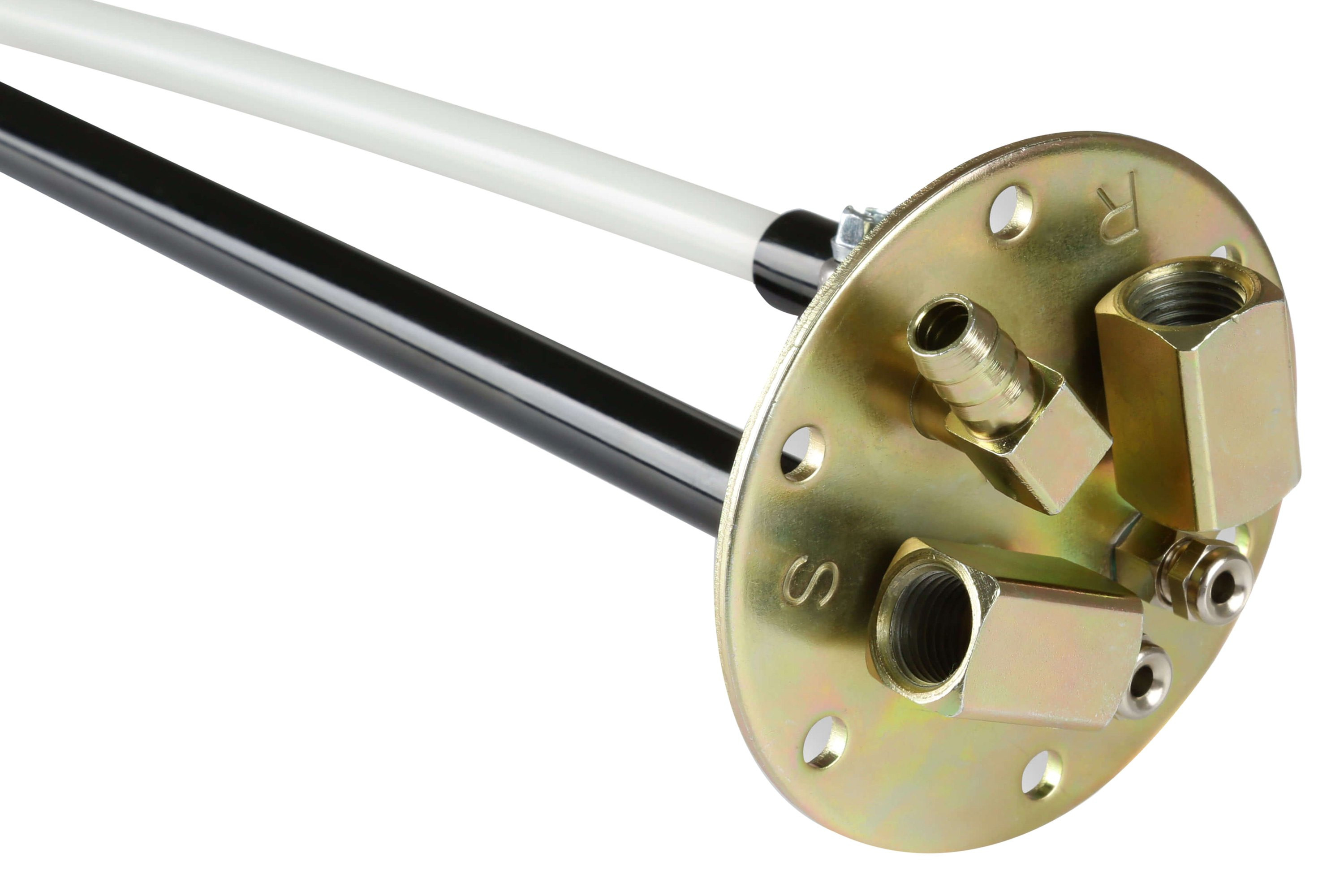

    • Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
    • Fuel level sender included with the correct Ohm range for your factory gauges
    • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
    • Internal tank baffling includes a large 4.8 liter internal fuel tray to prevent fuel pump starvation

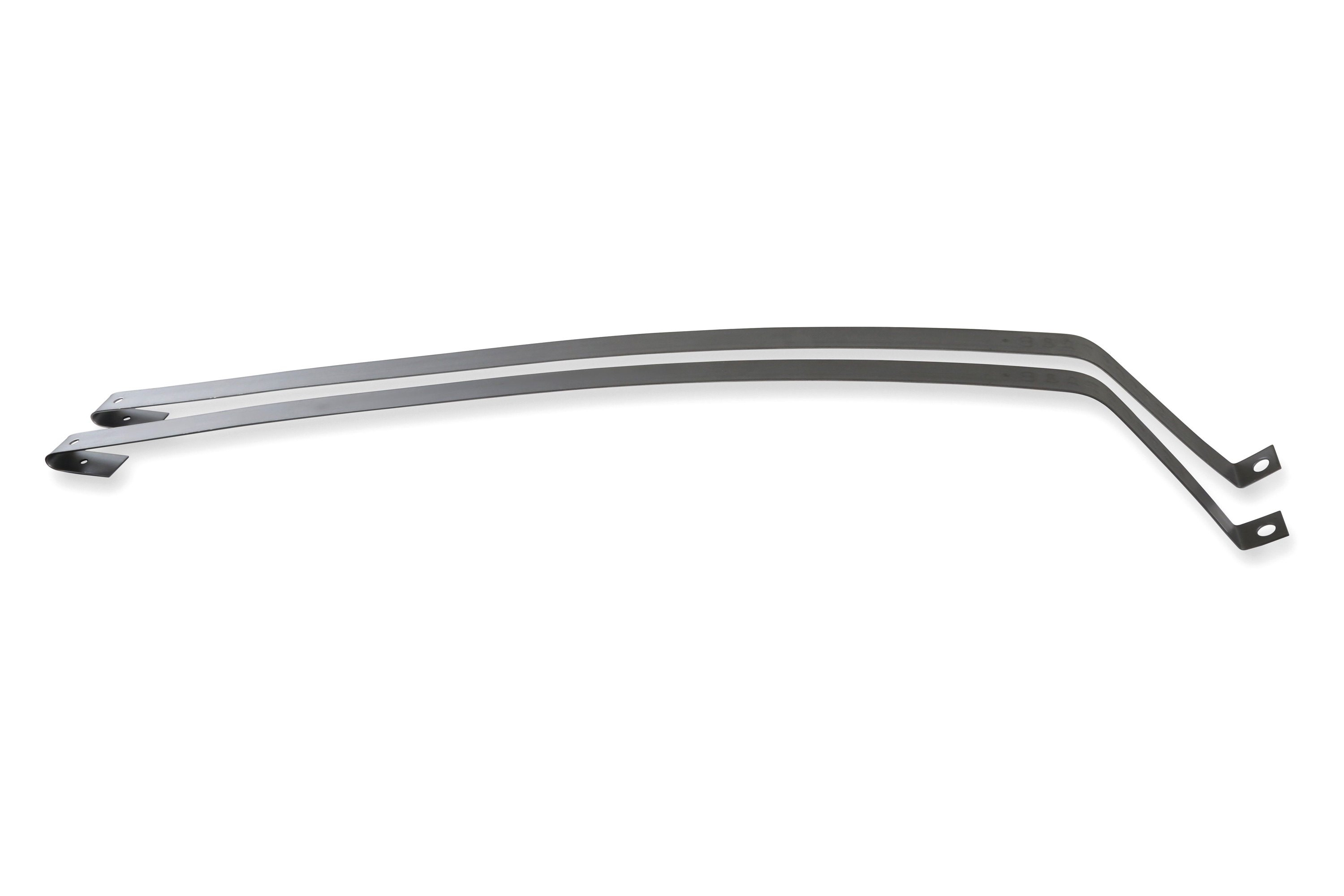

    • Fits and looks like an OE tank when installed. New tank straps included.
    • Notched front corners for additional tire and exhaust clearance.
    • Complete bolt in solution for your EFI conversion

    Product Details

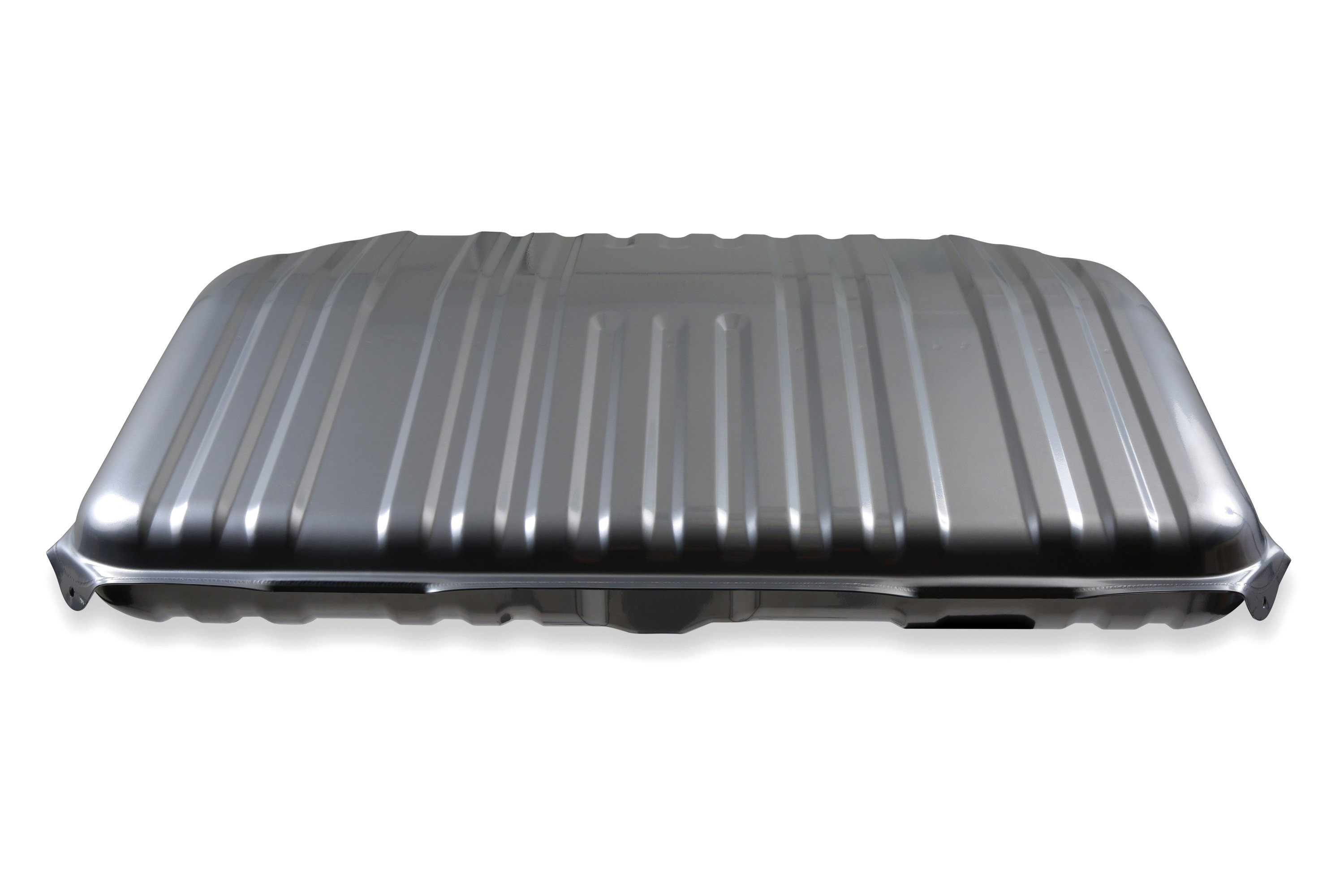

    Fuel Tank System by Sniper®. Fuel tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 400 lph fuel pump, fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. This notched corner tank is perfect for mini-tub applications. Both corners are notched 7" in and 7" back for better tire and exhaust clearance. The rear of the tank is the stock depth while the front of the tank is 1" deeper than stock. The 255 LPH fuel pump supports up to 750 EFI

    Sniper® - InformationSniper® - FAQSniper Authorized DealerProduct linesVideoAbout us
    Brand:
    Sniper
    Part Number:
    19-477
    UPC:
    090127117125
    Alternate MPN:
    19477

    Reviews

    (1)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-1 of 1 Reviews
    5 of 5
    Sniper
    Seems to be a very well made product at such a good price. Fitment was good. Happy with this tank and service.
    Posted by Graham (Bellflower, CA) / November 15, 20161970 Chevy Camaro
