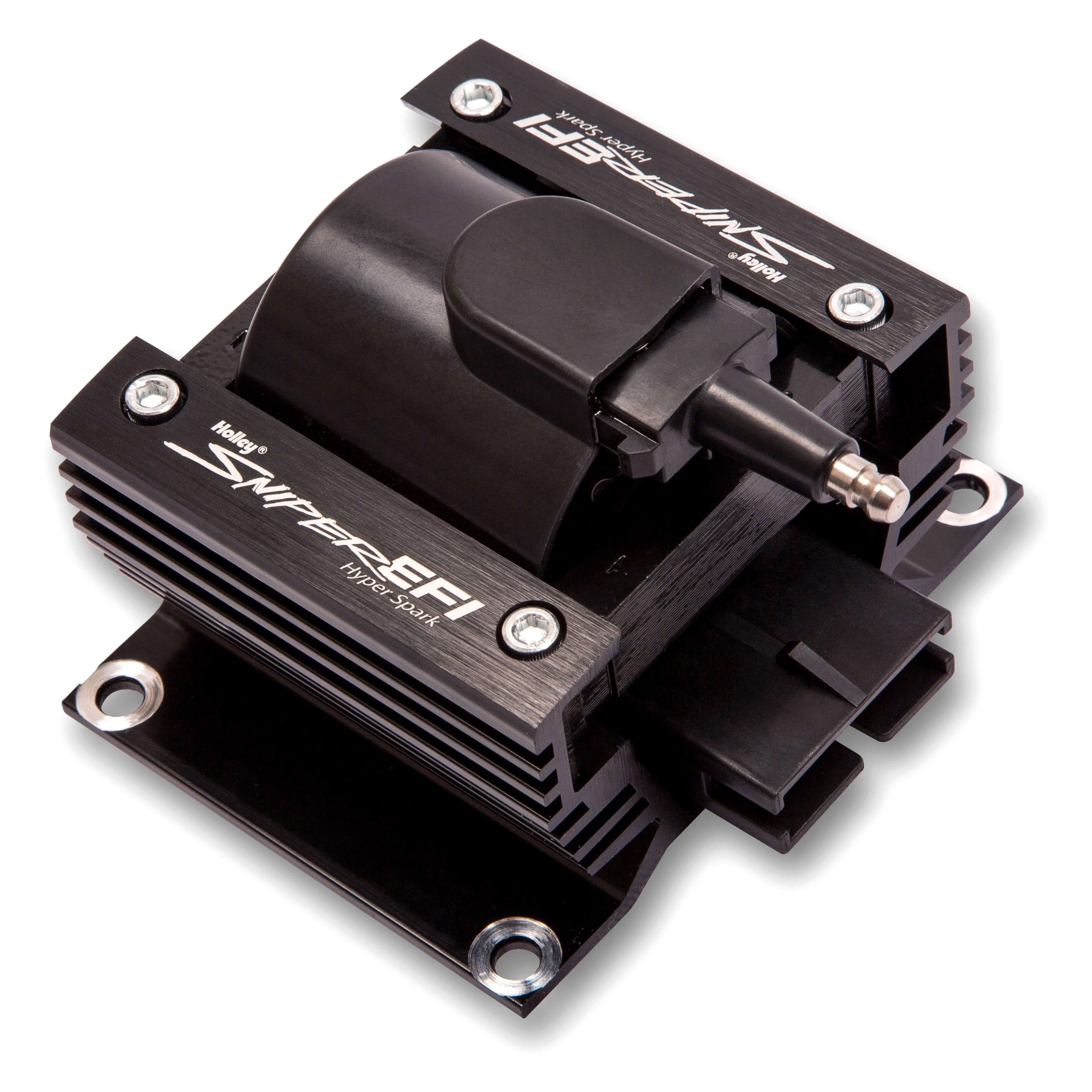

Name: Sniper® 556-152 - EFI HyperSpark Ignition Coil
Brand: Sniper
SKU: mpn5240697606
Price: 62.75 USD
Availability: InStock

Vehicle Fitment

Information is not available

Specifications

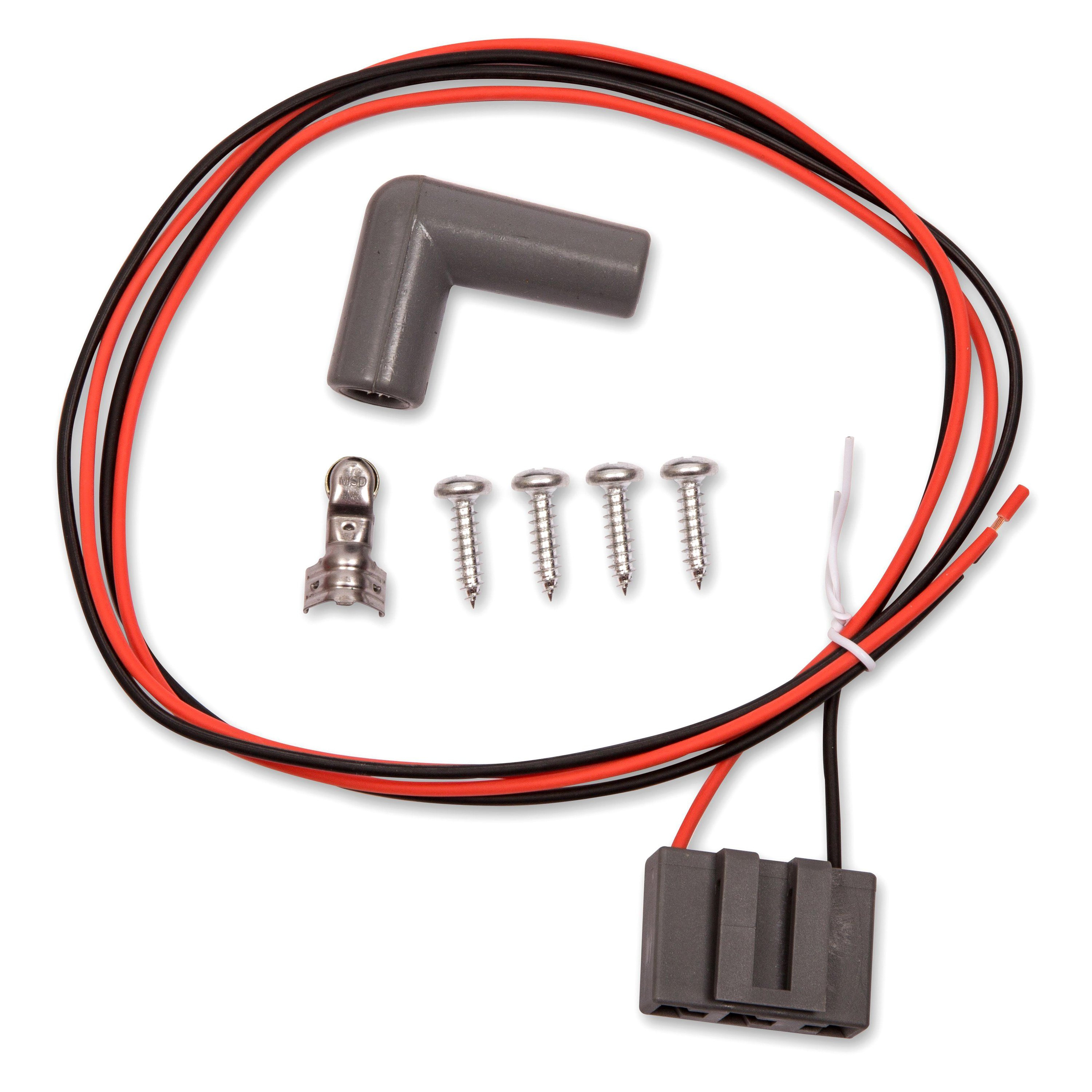

Brackets Included	Yes
Coil Shape	Square
Coil Wire Included	No
Color	Black
Connector Gender	Female
Emission Code	3
Finish	Black
Grade Type	Performance
Hardware Included	Yes
Ignition Type	Electronic
Mounting Bracket Included	Yes
Mounting Hardware Included	Yes
Mounting Hole Quantity	4
Oil Filled	No
Peak Current	300 mA
Primary Resistance	0.441 Ohms
Requires External Resistor	No
Secondary Resistance	4.6K Ohms
Secondary Voltage	43,000 Volts
Spark Duration	335 uS
Terminal Gender	Male
Terminal Quantity	1
Terminal Type	Blade

Features

Plug and play main harness replaces the standard Sniper 1 EFI harness with battery+, battery-, switched 12V, and fuel pump power for a clean installation
HyperSpark ignition coil delivers 135mJ of spark energy during engine combustion
Single Hall Effect sensor provides noise-free RPM signal interference and precise timing control
ECU timing control or non-timing control options (Additional harnesses may be needed, refer to installation manual)
CNC billet aluminum distributor housing provides strength and protection
CNC billet machined distributor shutter wheel delivering accurate cylinder timing and accuracy at high speeds
Distributor shutter wheel is pinned and welded to the shaft for reliable accuracy
Cast distributor gear construction
Patented clear installation cap eliminating confusion and error during distributor install
Integrated ignition coil bracket simplifies mounting the Ignition coil
External LED on HyperSpark ignition box helps verify 12V, cranking RPM, and low battery voltage
Wire retainer for securing spark plug wires
Lucas Racing Performance Gear Break-In Lubricant for protection
Includes distributor, ignition box (565-151), ignition coil (565-152), and harness (558-328)

Product Details

EFI HyperSpark Ignition Coil by Sniper®. HyperSpark kits were designed to make upgrading your ignition on a Sniper 1 EFI equipped engine simple. When installed along with a Sniper 1 EFI system, the combination creates the easiest conversion to install on the market, with only four connections required. Our harness only requires one connection to a switched 12V, battery+, battery-, and fuel pump power. The pre-terminated connectors and a built-in 40A relay provide power to all of the components within the system. With the main harness included, you no longer need to run multiple wires to provide switched 12V for each individual component. Route the harness and pre-terminated connectors to your HyperSpark coil, distributor, and ignition box and plug them in.
