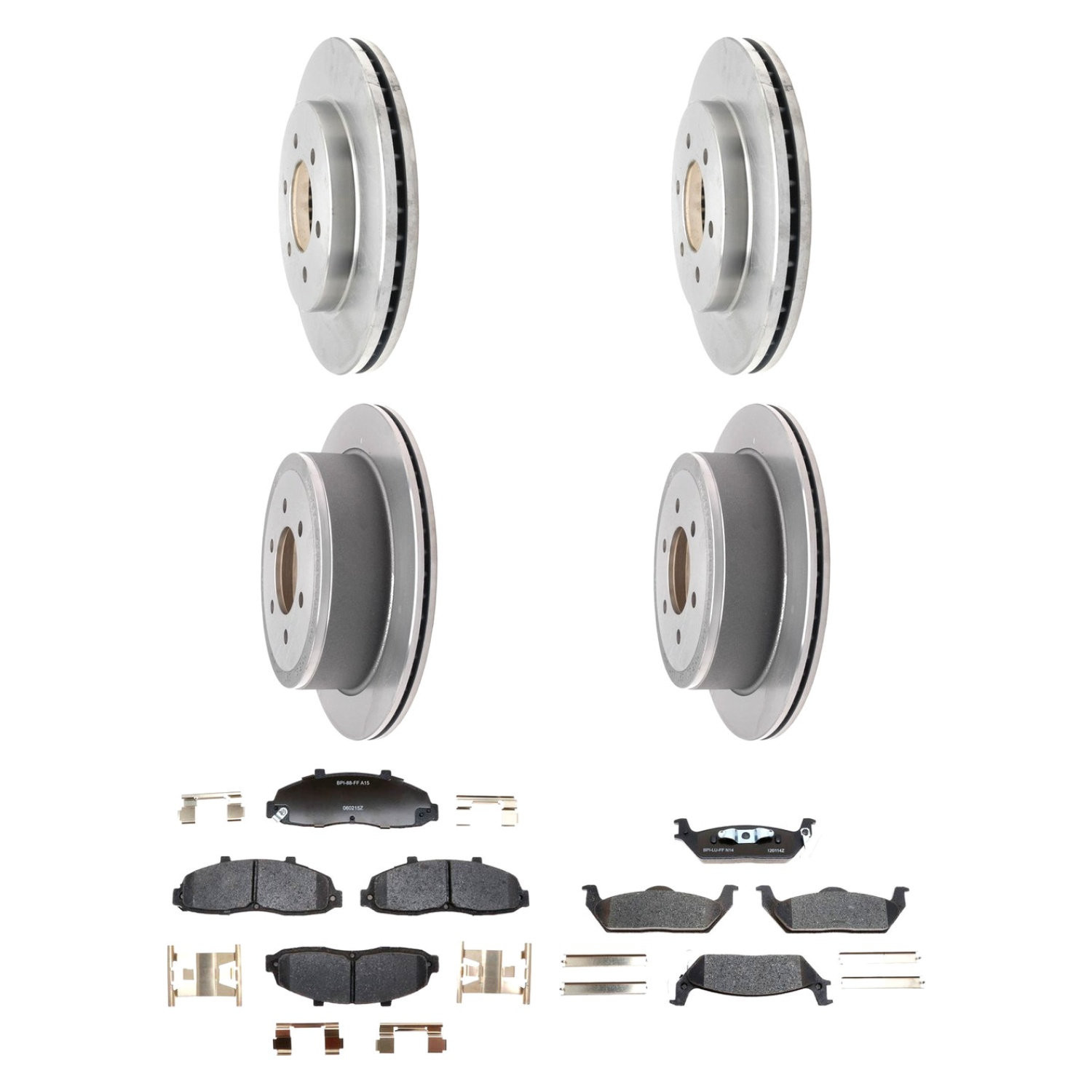

Raybestos® BNDL-1269-31022630 - R-Line™ Plain Front and Rear Brake Kit with Ceramic Pads

0 reviews|Item # mpn5241989858
Vehicle Specific
  • We need more information
Confirm Fitment
Replaces Original (OE) Part #:4L3Z1125AA, 4U2Z1V125CA, 5L3Z1125AA, 4L3Z2200AB, 6L3Z2200AB, 6L3Z2200CD, 8L3Z2200A, AL3Z2200A, 4L3Z2C026AB, 5L3Z2C026AA, 9L3Z2C026A, 4U2Z1V125CB, 4U2Z1V125DB, BL3Z2C026A, BL3Z2C026C, F65Z2001AA, F85Z2001AA
Authorized Dealer
$306.28
In Stock - Ships in 24 to 48 hrs
Have a Question? Ask a Specialist
888-577-6964Live Chat

Vehicle Fitment

Ford

Specifications

Rotor Height
Front: 54.102mm (2.13"), Rear: 86.11mm (3.39")
Outside Diameter
Front: 330mm (12.99"), Rear: 348mm (13.7")
Lug Quantity
Front: 6, Rear: 6
Pads Material
Ceramic
Minimum Thickness
Front: 28.5mm (1.122"), Rear: 18.49mm (0.73")
Nominal Thickness
Front: 29.97mm (1.18"), Rear: 19.99mm (0.79")
Rotor Construction
Front: 1-Piece, Rear: 1-Piece
Rotor Design
Front: Rotors Only, Rear: Rotors Only
Rotor Material
Cast Iron
Dust Rating
Front: Low, Rear: Low
Rotor Type
Vented
Rotor Style
Rear: Plain
Pad Inner Width
Front: 57.15mm (2.25"), Rear: 49.784mm (1.96")
Pad Outer Width
Front: 57.15mm (2.25"), Rear: 49.784mm (1.96")
ABS Sensor Ring
Front: Not Included, Rear: Not Included
Center Hole Diameter
Front: 90.1mm (3.55"), Rear: 90.17mm (3.55")
FMSI
Front: D679-7558, Rear: D1012
Hardware Option
Front: Included, Rear: Included
Lug Holes Size
Front: 15.35mm (0.6"), Rear: 15.34mm (0.604")
Pad Inner Thickness
Front: 16.002mm (0.63"), Rear: 17.653mm (0.695")
Pad Outer Thickness
Front: 16.002mm (0.63"), Rear: 17.653mm (0.695")
Series
R-Line™
Shims Option
Front: Included, Rear: Included
Wear Sensor Option
Front: Not Included, Rear: Not Included
Pad Inner Length
Front: 166.116mm (6.54"), Rear: 147.218mm (5.796")
Pad Outer Length
Front: 166.116mm (6.54"), Rear: 147.218mm (5.796")
Intended for Street Use
Rear: Yes
For Use with Stock Calipers
Rear: Yes

Includes

Product MPN Brand QTY
R-Line™ Vented Front Brake Rotor 680180R Raybestos 2
R-Line™ Plain Vented Rear Brake Rotor 680182R Raybestos 2
R-Line™ Ceramic Front Disc Brake Pads MGD679CH Raybestos 1
R-Line™ Ceramic Rear Disc Brake Pads MGD1012CH Raybestos 1

Features

  • Made of high durable material
  • Made with new tools for a precise fit
  • Manufactured to meet or exceed strict quality requirements
  • Easy to install

Product Details

R-Line™ Plain Front and Rear Brake Kit with Ceramic Pads (BNDL-1269-31022630) by Raybestos®. Upgrade your braking system with Raybestos® R-Line Rotors paired with ceramic brake pads. The rotors are precision-engineered for consistent thickness and smooth operation, reducing noise, vibration, and harshness. Ceramic pads provide quiet, responsive braking with minimal dust, while multi-layer steel shims enhance noise damping. This combination ensures reliable, clean, and long-lasting performance for everyday driving.

Installation

Brand:
Part Number:
BNDL-1269-31022630
Alternate MPN:
BNDL126931022630, MGD1012CH, MGD679CH, 680182R, 680180R
OE Numbers:
4L3Z1125AA, 4U2Z1V125CA, 5L3Z1125AA, 4L3Z2200AB, 6L3Z2200AB, 6L3Z2200CD, 8L3Z2200A, AL3Z2200A, 4L3Z2C026AB, 5L3Z2C026AA, 9L3Z2C026A, 4U2Z1V125CB, 4U2Z1V125DB, BL3Z2C026A, BL3Z2C026C, F65Z2001AA, F85Z2001AA
