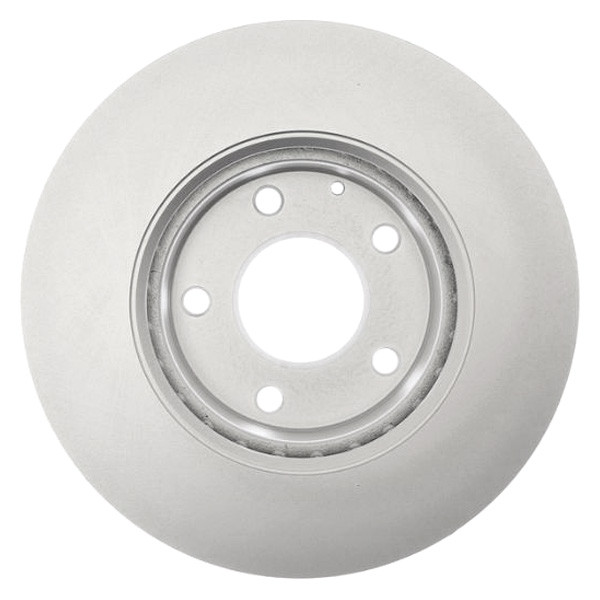

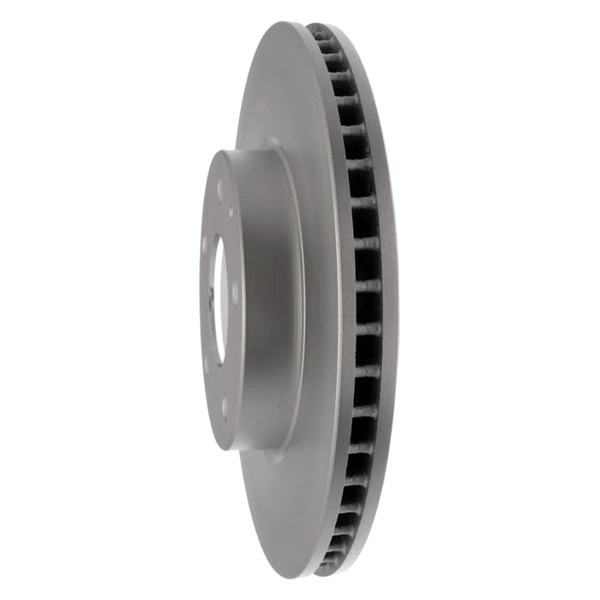

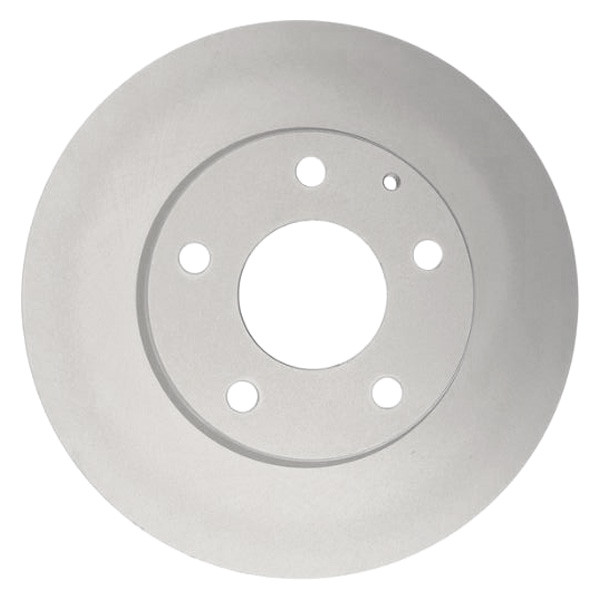

Name: Raybestos® 981503FZN - Element3™ Plain Vented Front Brake Rotor
Brand: Raybestos
SKU: mpn4641933563
Price: 69.90 USD
Availability: InStock
Rating: 5 (1 reviews)

Vehicle Fitment

Mazda

Specifications

Rotor Design	Rotors Only
Rotor Construction	1-Piece
Rotor Material	Cast Iron
Rotor Finish	Coated
Rotor Type	Vented
Rotor Diameter	279.8mm (11.02")
Rotor Height	51.5mm (2.03")
Nominal Thickness	25mm (0.98")
Minimum Thickness	23mm (0.91")
Lug Holes Quantity	5
Lug Holes Size	13.8mm (0.54")
Bolt Circle	114.3mm (4.5")
Center Hole Diameter	68mm (2.68")
For Use with Stock Calipers	Yes
Intended for Street Use	Yes
Quantity	1 Per Pack

Features

Vehicle Specific Designs: Match OE form, fit and function; ultimate strength
Mill Balanced: 100% validation ensures proper balance; minimizes vibration
Application Specific Iron: Suppresses noise; keeps brakes running cool, quiet and vibration free
Rotors meet SAE Standard for tensile strength: OE-matched; G3000 qualified material for structural integrity and maximum service life
Turned Finish: Installation ready; minimizes noise and improves responsiveness
Tightest Lateral Runout: 0.002" or less for less pedal pulsation and brake noise; extended pad life
Minimal Thickness Variation: Thickness variation less than 0.0004" less pedal pulsation and brake noise

Product Details

Element3™ Plain Vented Front Brake Rotor (981503FZN) by Raybestos®. Quantity: 1 Per Pack. Open-wheel designs on modern vehicles leave brake parts, particularly rotors, more exposed to the elements. If a rotor is uncoated, corrosion and red rust begin to form immediately. Raybestos® Element3 coated rotors use a propriety finishing technology to coat each rotor’s entire surface, including the cooling vanes. The full Grey Fusion 4.0™ coating helps resist corrosion and significantly delays rust-induced performance issues.

Installation

Raybestos® - Brake Bleeding Installation Instructions

Raybestos® - Brake Pads Burnishing Instruction Sheet

Design and Material: Raybestos RPT Rust Prevention Technology™ rotors are developed from OE samples and made with G3000-qualified material, guaranteeing form, fit and function for a dependable performance.

Coating: Raybestos coated rotors are coated on their entire surface with a proprietary full Grey Fusion 4.0™ coating. The rotors are put through 300 plus hours of salt spray testing, which:

Exceeds the OE requirement for car and truck rotors
Certifies the coating prevents rust and corrosion

SAE Standard for Tensile Strength: Raybestos rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.

Finish: A non-directional ground finish provides a product that is ready to install right out of the box

Lateral Runout & Thickness Variation: Raybestos coated rotors come with a lateral runout of 0.0004" or less and a thickness variation of less than 0.0005”, ensuring:

Less pedal pulsation
Less brake noise
An extended pad life

Mill Balanced Edges: Raybestos coated rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to:

Proper balance
Minimized vibration
Quieter and smoother stopping

Raybestos® - Brake Pads Features Raybestos® - Brake Bleeding Installation Instructions Raybestos® - Brake Pads Burnishing Instruction Sheet Raybestos® - Guide Raybestos® - Products Information Raybestos® - FAQ Raybestos® - Warranty Raybestos Authorized Dealer

Brand:

Raybestos

Part Number:

981503FZN

UPC:

887213236866

OE Numbers:

B45A33251A, BJS733251A, BPY133251

Warranty

RAYBESTOS® BRAKE PRODUCTS LIMITED WARRANTY

Limited Warranty (for purchases made on or after April 30, 2018)

Brake Parts Inc LLC (BPI) warrants to the original purchaser that all Raybestos® Brake Products (other than Calipers, which are covered under the Raybestos® Caliper Limited Warranty) will be free from non-conformities in materials and workmanship. The “original purchaser” is the person who purchases the product from an authorized installer or retailer in North America. If the Raybestos® brake product is found to have non-conformities in material or workmanship, BPI will repair or replace the non-conforming product, at its sole discretion.

The original purchaser is the only warranty holder. This Limited Warranty is not transferable. This Limited Warranty does not include labor or towing costs. BPI will not be responsible for any costs incurred in the removal, replacement, installation or reinstallation of the non-conforming Raybestos® brake product or of any other parts or components necessary for such removal, replacement, installation or reinstallation required for restoring the vehicle to its intended operating condition.

This Limited Warranty does not cover any product when loss is due to misuse, alteration, accident, damage, abuse, neglect, improper installation of the product, improper application, use for a vehicle or purpose not designed for, or modification/customization from its original manufactured state. Normal wear is not a non-conformity in material or workmanship. This Limited Warranty only applies to Raybestos® brake products (other than calipers) installed on passenger cars, vans and non-commercial light trucks and commercial vehicles, including, fleet, security, municipal / public service vehicles that have a G.V.W.R. up to14,000 lbs. This Limited Warranty does not apply to products installed on vehicles or equipment used for the following: towing, racing, competition, off-highway recreational, off-highway competition, off-highway equipment; or vehicles of any kind with a G.V.W.R. in excess of 14,000 lbs.; or aircraft/aviation, marine, agriculture or industrial applications.

RAYBESTOS® CALIPER LIMITED WARRANTY

Raybestos® Caliper Limited Warranty (for purchases made on or after May 1, 2017)

Brake Parts Inc LLC (BPI) warrants to the original purchaser for the lesser of the duration listed in the applicable category of the Warranty Duration chart, that all Raybestos® Calipers, will be free from non-conformities in materials and workmanship. The “original purchaser” is the person who purchases the product from an authorized installer or retailer in North America. If the Raybestos® Caliper product is found to have non-conformities in material or workmanship, BPI will repair or replace the non-conforming product, at its sole discretion.

Element3™ (Friction Ready Caliper) - Limited Lifetime Warranty (Passenger cars, vans and non-commercial light trucks up to 14,000 lbs. G.V.W.R.)
R-Line Plated (Friction Ready Caliper / RC (a loaded caliper, which includes a friction pad)) - 3 years / 36,000 miles / 58,000 kilometers (Passenger cars, vans and non-commercial light trucks up to 14,000 lbs. G.V.W.R.)
R-Line NonPlated (Friction Ready Caliper / RC (a loaded caliper, which includes a friction pad)) - 18 months / 18,000 miles / 29,000 kilometers (Passenger cars, vans and non-commercial light trucks up to 14,000 lbs. G.V.W.R.)
Element3™ (Friction Ready Caliper) - 2 years / 24,000 miles / 39,000 kilometers (Commercial up to 14,000 lbs. G.V.W.R., example only (not all inclusive): Fleet, municipal / public service)
R-Line Plated (Friction Ready Caliper / RC (a loaded caliper, which includes a friction pad)) - 1 year / 12,000 miles / 19,000 kilometers (Commercial up to 14,000 lbs. G.V.W.R., example only (not all inclusive): Fleet, municipal / public service)
R-Line NonPlated (Friction Ready Caliper / RC (a loaded caliper, which includes a friction pad)) - 1 year / 12,000 miles / 19,000 kilometers (Commercial up to 14,000 lbs. G.V.W.R., example only (not all inclusive): Fleet, municipal / public service)
Element3™, R-Line Plated, R-Line NonPlated are excluded from this warranty if used for Commercial or passenger vehicles that exceed 14,000 lbs. G.V.W.R., example only (not all inclusive): Towing, off-highway, racing, competition, industrial, modified/customized

The original purchaser is the only warranty holder. This Limited Warranty is not transferable. This Limited Warranty does not include labor or towing costs. BPI will not be responsible for any costs incurred in the removal, replacement, installation or reinstallation of the non-conforming Raybestos® Caliper product or of any other parts or components necessary for such removal, replacement, installation or reinstallation required for restoring the vehicle to its intended operating condition.

This Limited Warranty does not cover any product when loss is due to misuse, alteration, accident, damage, abuse, neglect, improper installation of the product, improper application, use for a vehicle or purpose not designed for, or modification/customization from its original manufactured state. Normal wear is not a non-conformity in material or workmanship. This Limited Warranty only applies to Raybestos® Caliper products installed on passenger cars, vans and non-commercial light trucks and commercial vehicles, including, fleet, security, municipal / public service vehicles that have a G.V.W.R. up to14,000 lbs. This Limited Warranty does not apply to products installed on vehicles or equipment used for the following: towing, racing, competition, off-highway recreational, off-highway competition, off-highway equipment; or vehicles of any kind with a G.V.W.R. in excess of 14,000 lbs.; or aircraft/aviation, marine, agriculture or industrial applications.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
