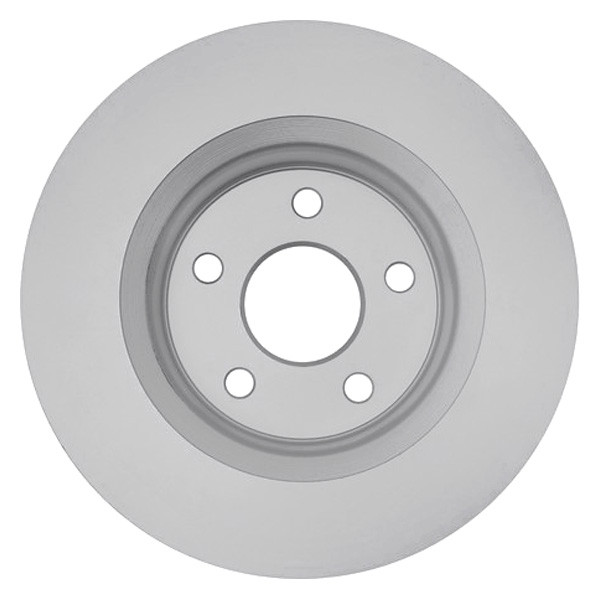

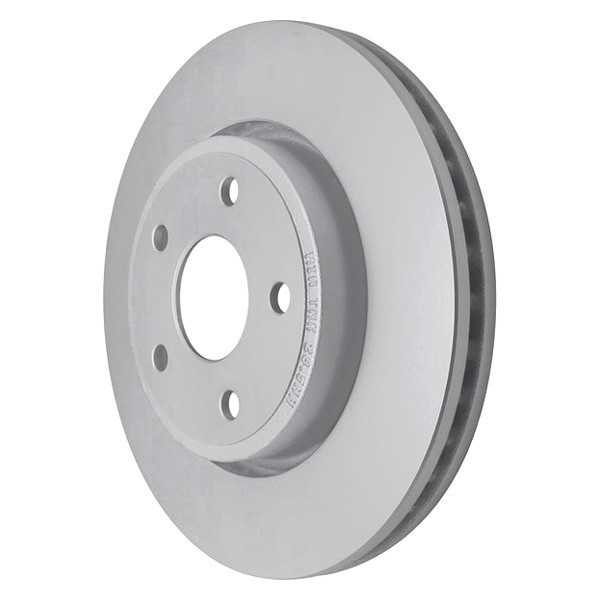

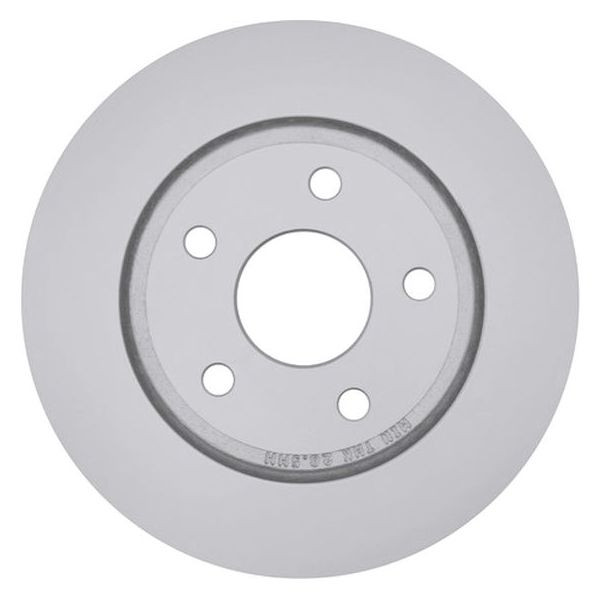

Name: Raybestos® 780289FZN - Element3™ Plain Vented Front Brake Rotor
Brand: Raybestos
SKU: mpn4565767341
Price: 61.27 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Vehicle Fitment

Jeep

Specifications

Rotor Design	Rotors Only
Rotor Construction	1-Piece
Rotor Material	Cast Iron
Rotor Finish	Coated
Rotor Type	Vented
Rotor Diameter	327.914mm (12.91'')
Nominal Thickness	29.972mm (1.18'')
Minimum Thickness	28.448mm (1.12'')
Lug Holes Quantity	5
Bolt Circle	127mm (5'')
For Use with Stock Calipers	Yes
Intended for Street Use	Yes
Quantity	1 Per Pack

Features

Vehicle Specific Designs: Match OE form, fit and function; ultimate strength
Mill Balanced: 100% validation ensures proper balance; minimizes vibration
Application Specific Iron: Suppresses noise; keeps brakes running cool, quiet and vibration free
Rotors meet SAE Standard for tensile strength: OE-matched; G3000 qualified material for structural integrity and maximum service life
Turned Finish: Installation ready; minimizes noise and improves responsiveness
Tightest Lateral Runout: 0.002" or less for less pedal pulsation and brake noise; extended pad life
Minimal Thickness Variation: Thickness variation less than 0.0004" less pedal pulsation and brake noise

Product Details

Element3™ Plain Vented Front Brake Rotor (780289FZN) by Raybestos®. Quantity: 1 Per Pack. Open-wheel designs on modern vehicles leave brake parts, particularly rotors, more exposed to the elements. If a rotor is uncoated, corrosion and red rust begin to form immediately. Raybestos® Element3 coated rotors use a propriety finishing technology to coat each rotor’s entire surface, including the cooling vanes. The full Grey Fusion 4.0™ coating helps resist corrosion and significantly delays rust-induced performance issues.

Installation

Raybestos® - Brake Bleeding Installation Instructions

Raybestos® - Brake Pads Burnishing Instruction Sheet

Design and Material: Raybestos RPT Rust Prevention Technology™ rotors are developed from OE samples and made with G3000-qualified material, guaranteeing form, fit and function for a dependable performance.

Coating: Raybestos coated rotors are coated on their entire surface with a proprietary full Grey Fusion 4.0™ coating. The rotors are put through 300 plus hours of salt spray testing, which:

Exceeds the OE requirement for car and truck rotors
Certifies the coating prevents rust and corrosion

SAE Standard for Tensile Strength: Raybestos rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.

Finish: A non-directional ground finish provides a product that is ready to install right out of the box

Lateral Runout & Thickness Variation: Raybestos coated rotors come with a lateral runout of 0.0004" or less and a thickness variation of less than 0.0005”, ensuring:

Less pedal pulsation
Less brake noise
An extended pad life

Mill Balanced Edges: Raybestos coated rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to:

Proper balance
Minimized vibration
Quieter and smoother stopping

Raybestos® - Brake Pads Features Raybestos® - Brake Bleeding Installation Instructions Raybestos® - Brake Pads Burnishing Instruction Sheet Raybestos® - Guide Raybestos® - Products Information Raybestos® - FAQ Raybestos® - Warranty Raybestos Authorized Dealer

Brand:

Raybestos

Part Number:

780289FZN

UPC:

887213091625

OE Numbers:

52089269AB
