Radium® 20-0070-02 - Fuel Rail Kit

Features

• Billet aluminum construction
• Anodized surface finish for corrosion resistance

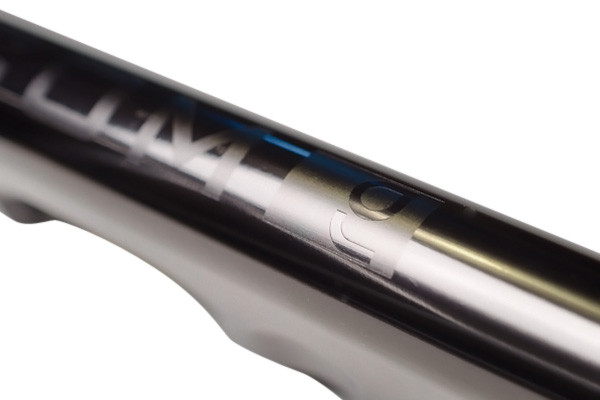

• Stealth laser etched logos pre anodizing
• End Ports: 3/4-16 Female Thread (-8AN)
• Works with factory and aftermarket injectors
• Easily converted to a pressure regulated return system

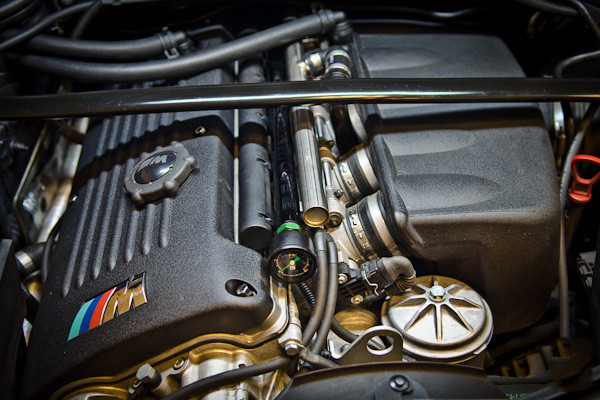

• Fits under the factory fuel rail cover
• Supercharged Lotus intercooler boss remains functional

Product Details

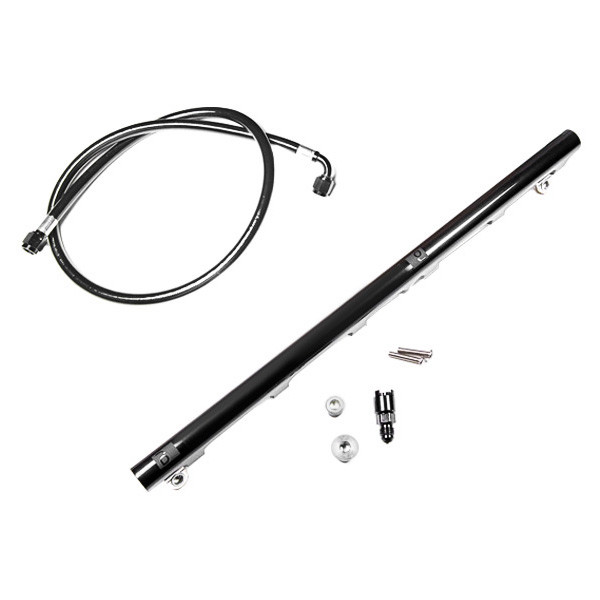

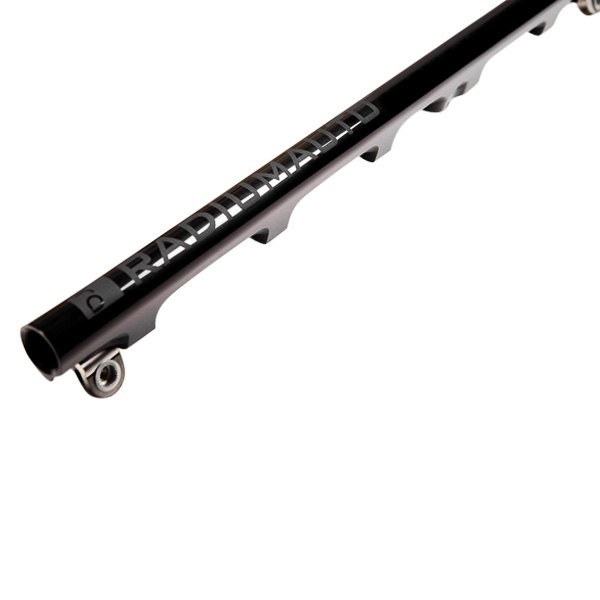

Fuel Rail Kit by Radium®. This is ideal when plumbing a custom high flow fuel system using an aftermarket regulator and custom fuel lines. Fittings and adapters are available separately. This big bore fuel rail is machined, polished, laser etched and then anodized for a stealth surface finish. It is compatible with OEM and aftermarket direct fitment fuel injectors. It features a large 0.65" internal bore with -8AN ORB (3/4-16 O-ring) threaded ports at each end and 3/8" NPT female center port to accept a variety of adapter fittings for custom high flow fuel system builds. It is compatible with all fuel types including popular alcohol mixtures such as E85. This all new design was specifically designed to clear the intercooler mounting boss. Both ends of the rail are tapped to a common 3/4-16 (-8AN) female thread. Both ports use positive o-ring seals instead of tapered pipe threads which commonly damage aluminum threads and lead to fuel leaks. Using the appropriate fitting, it is easily adaptable to a -6AN, -8AN, -10AN or -12AN fuel lines (-6AN adapter included).
