Name: Radium® 17-0031 - DIY Fuel Pump Wiring Kit
Brand: Radium
SKU: mpn458000451
Price: 75.95 USD
Availability: InStock

Vehicle Fitment

This part is universal

Features

High quality at an affordable price
Expertly made from premium materials
Built to match your exact requirements

Product Details

DIY Fuel Pump Wiring Kit by Radium®. This Do-It-Yourself wiring kit includes the necessary parts to construct a power wiring harness for one fuel pump. It uses the highest quality components to ensure proper operation in all conditions. The relay and fuse holder are sealed to allow installation in weather exposed areas if necessary. Aircraft grade TXL wiring is resistant to all chemicals and elevated temperatures. Raychem crimpless solder-based butt connectors make reliable wire connections easy and clean. Necessary ring terminals are included for connecting to an external Bosch 044 fuel pump as well.

Installation

Radium® - DIY Fuel Pump Wiring Kit Installation Instructions

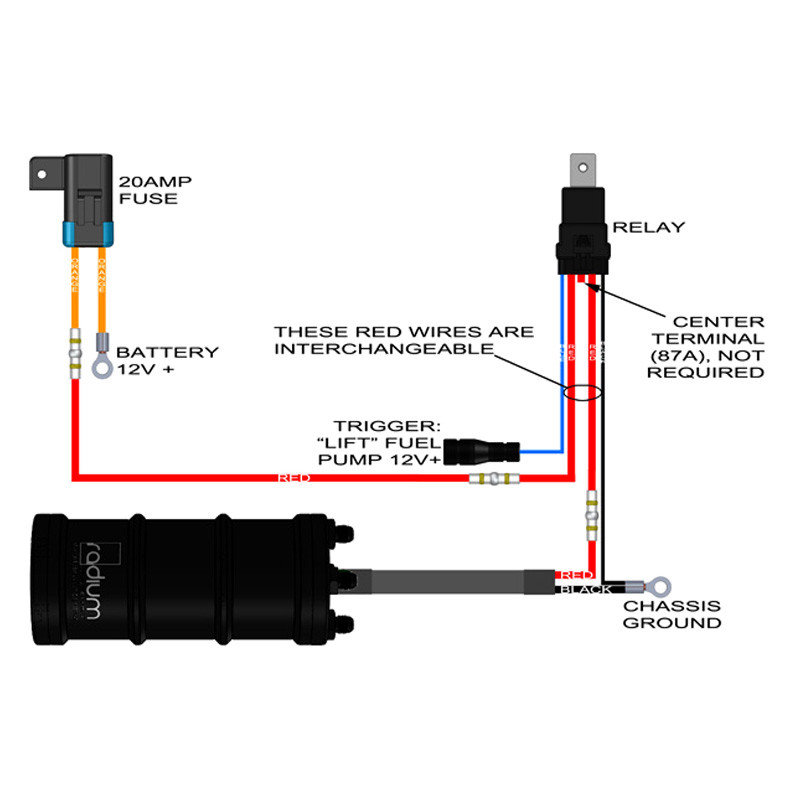

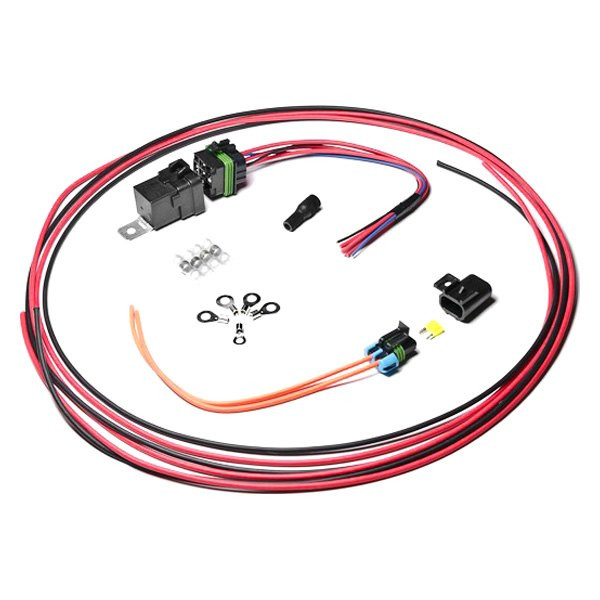

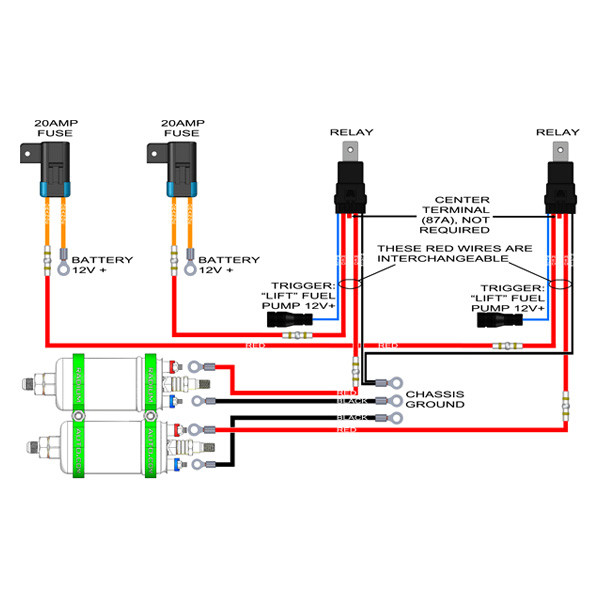

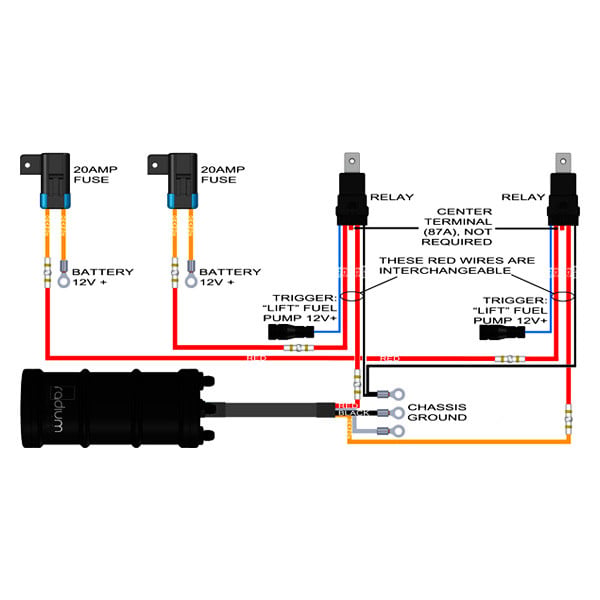

Radium recommends a dedicated fuse and relay for each fuel surge tank pump. For this reason, order a wiring kit for EACH fuel pump. Examples:-If a Radium Single Internal Pump FST was purchased, select "Quantity: 1".-If a Radium Dual Vertical Bosch 044 FST was purchased, select "Quantity: 2".-If a Radium Triple Pump MPFST was purchased, select "Quantity: 3". -If a Radium Subaru Dual Pump Hanger was purchased, select "Quantity: 2". Includes:Weatherproof SPDT 12V/40A Relay with Mounting Tab (x1)Weatherproof Relay Flying 12" Lead Connector (x1)Weatherproof Mini Fuse Holder with Mounting Tab (x1)Weatherproof Mini Fuse Flying Lead Connector (x1)Quick-Connect Posi-Tap "TRIGGER" Connector (x1)Raychem Crimpless Solder Heat Shrink Butt Splices (x4)10AWG 6mm Stud Ring Terminals (x4)10AWG 5mm Stud Ring Terminal (x1)10AWG Black TXL Wire (10ft)10AWG Red TXL Wire (10ft)20A LED Blade Mini Fuse (x1) Installation instructions including wiring diagrams

Radium® - DIY Fuel Pump Wiring Kit Installation Instructions Radium® - Warranty Made In USA Radium Authorized Dealer

Brand:

Radium

Part Number:

17-0031

Alternate MPN:

170031

Warranty

All Radium brand products are subject to a 1 Year Limited Warranty from the date of original purchase. If a product fails, it will be repaired or replaced at Radium option when it has been determined by Radium to have failed due to defects in materials or workmanship. Warranty claims must be made by the original purchaser.

This warranty is limited to repair or replacement of the merchandise only and shall not, in no event, exceed the original purchase price. Radium will not be held responsible for secondary or consequential damages or costs (including labor, towing, etc.) incurred due to failure of this product

This warranty applies to the original purchaser only and is non-transferrable. Improper use, installation, modification, abuse, or unauthorized repairs or alterations voids this warranty. Credit for defective products will be issued pending inspection by Radium. This warranty does not extend to third party products often used in Radium Engineering products, such as fuel pumps, turbochargers, or any other non-Radium brand products.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
