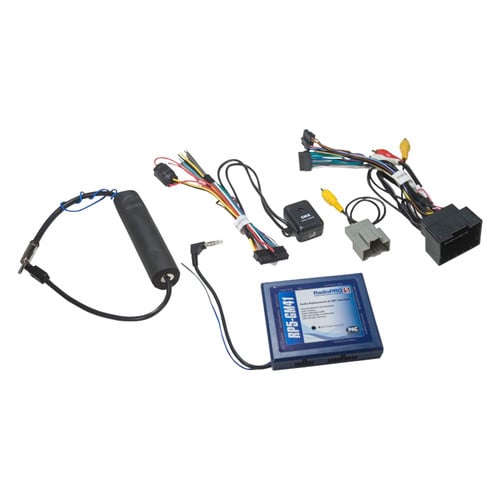

PAC® RP5-GM41 - RadioPRO Radio Replacement Interface

1 review|Item # mpn4704741034
Vehicle Specific
    Select Vehicle
    Notes:
    • It is very important that the second from last digit of the revision number on your module matches the second from last digit of the new firmware file revision number.
    Authorized Dealer
    $250.09 + Free Shipping
    In Stock (4) - Ships in 24 to 48 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-584-4732Live Chat

    Vehicle Fitment

    Buick
    Chevy
    GMC

    Features

    • Retains OnStar™ when the factory radio is replaced
    • Retains steering wheel controls (pre-programmed)
    • Retains all warning chimes (chime module included)
    • Retains factory reverse camera
    • Chime volume adjustment (factory buttons)
    • Retained accessory power output (RAP)
    • Reverse wire output
    • VSS (Vehicle Speed Sense) output
    • Illumination output and parking brake output
    • Includes antenna adapter
    • Patent # 8,014,540 & 8,184,825

    Product Details

    RadioPRO Radio Replacement Interface by PAC®. Radio replacement interface with Built-in OnStar Retention, Steering Wheel Control Retention and Navigation Outputs. An all in one radio replacement and SWC interface, the innovative RadioPRO5 comes pre-loaded with OnStar retention, amplifier retention, SWC software, navigation based output signals and other features that save time and money during installation.

    Installation

    PAC® - Installation Instructions

    Installation Instructions

    It is VERY important that you use the latest version of Interface Updater. Not doing so may damage the interfaces software.

    Detailed Instructions

    If this is the first time, download and install "PAC-UP Interface Updater". This will install the necessary software to update the firmware on the RP Interface. This can be found at in the "Download" tab at the very bottom of the firmware list on this page.
    Download the firmware file to a location on your computer that you can easily find.
    Open the Interface Updater Program by going to Start > All Programs > AAMPof America > Interface Updater.
    Connect thePAC-UP to the computer using suppliedUSBcable. Connect thePAC-UP to the RP Interface.
    Click the "Connect" button to establish connection between thePAC-UP and the computer. The "Connected" check box will be checked if successful. If unsuccessful, disconnect the PAC-UP from the computer, restart the software, then reconnect thePAC-UP and try again.
    Select your RP Interface from the "Interface select" pull down menu.
    Click "Update firmware". The new firmware can be found where you saved it before beginning.
    Once the files are chosen the update will begin. When successful it will show the text "End Update".

    PAC® - Installation InstructionsPAC® - GuidePAC® - WarrantyPAC® - CatalogPAC Authorized Dealer
    Brand:
    PAC
    Part Number:
    RP5-GM41
    UPC:
    606523109314
    Alternate MPN:
    RP5GM41
