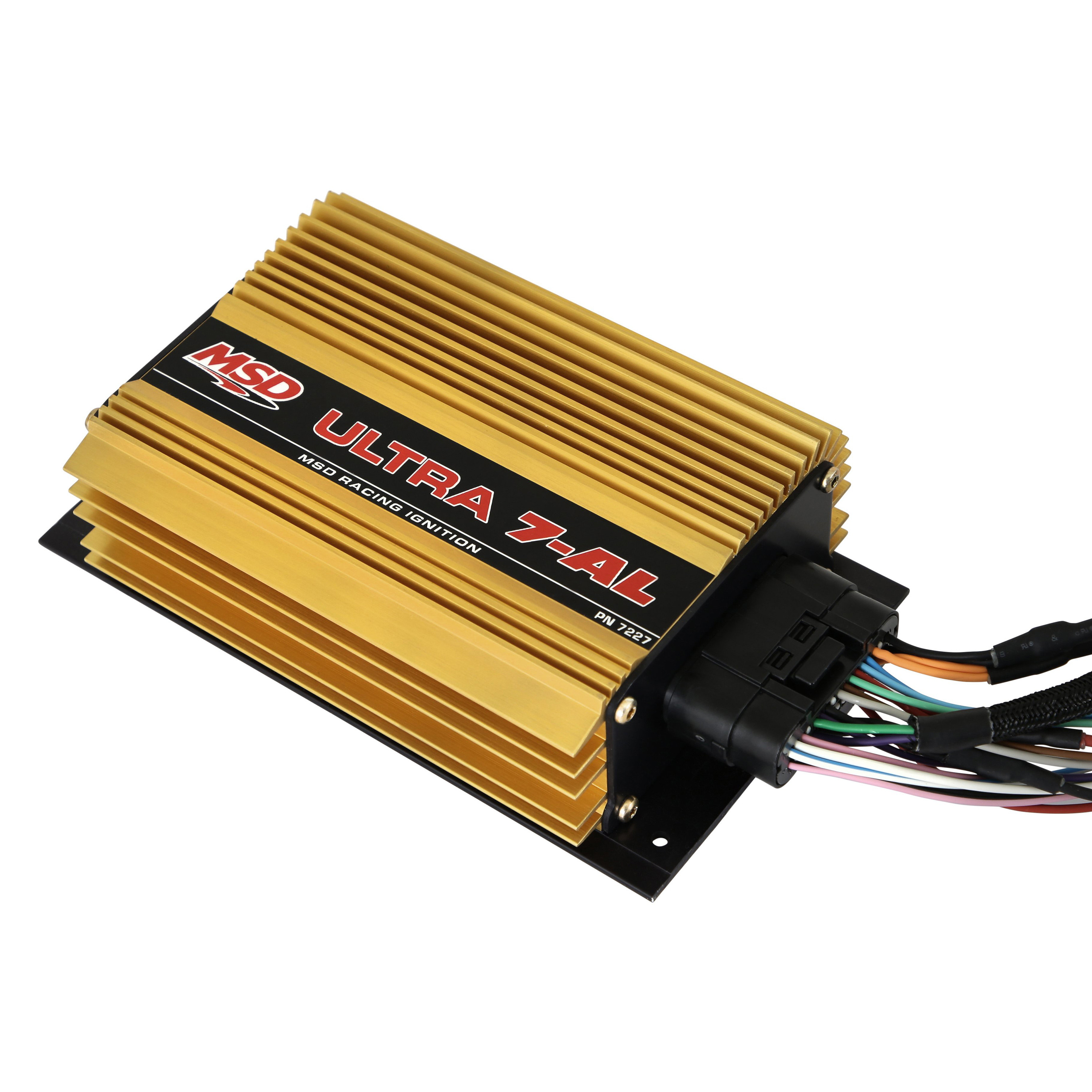

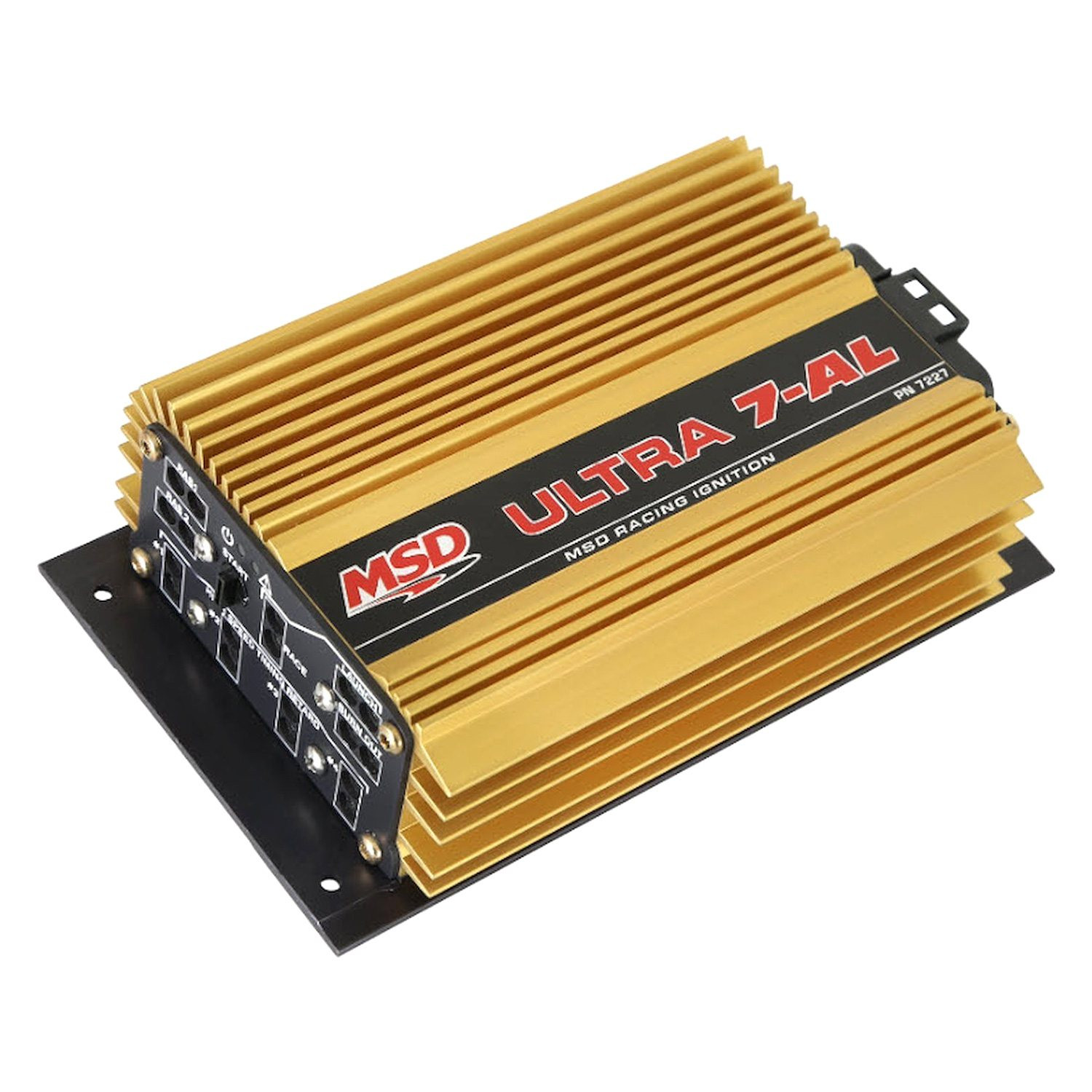

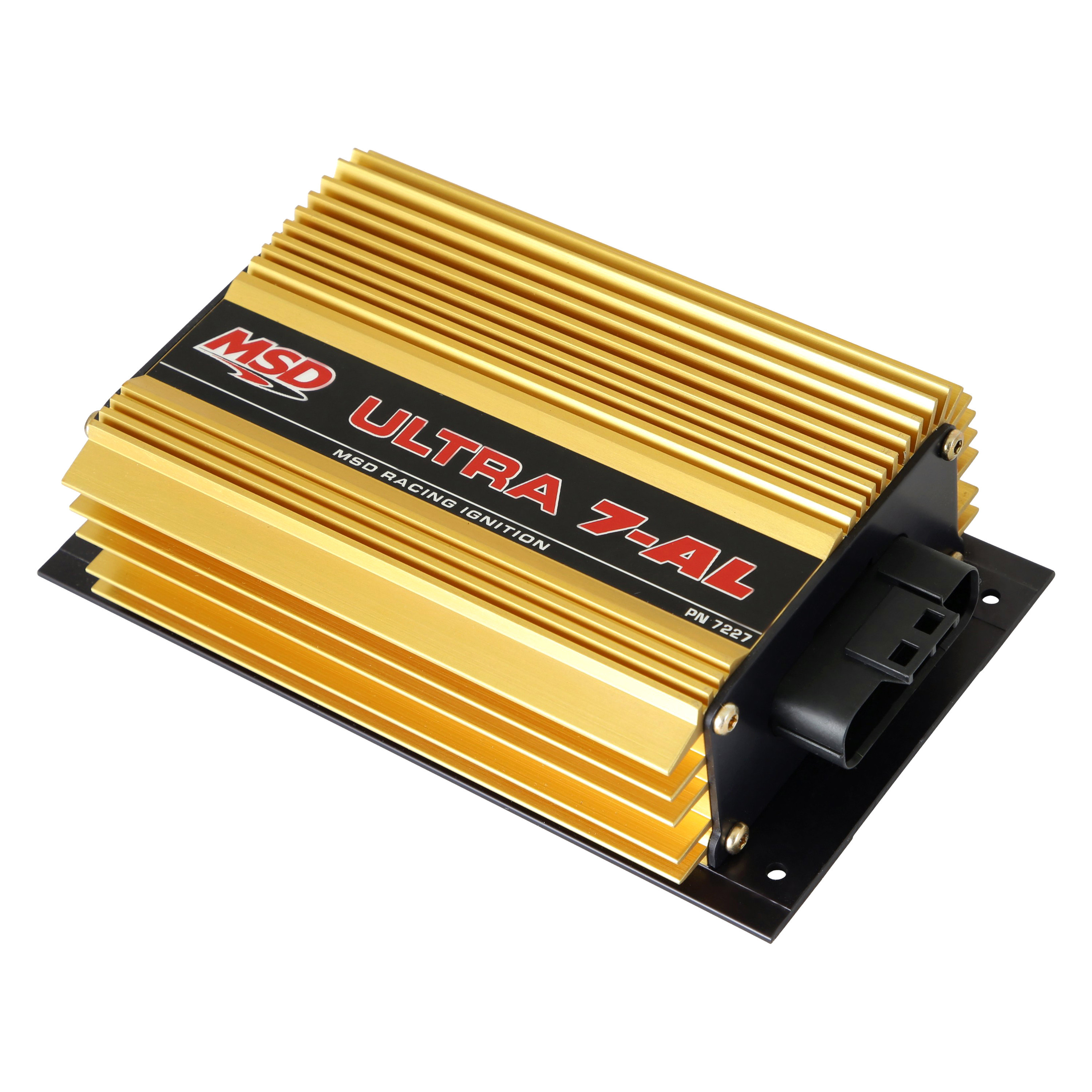

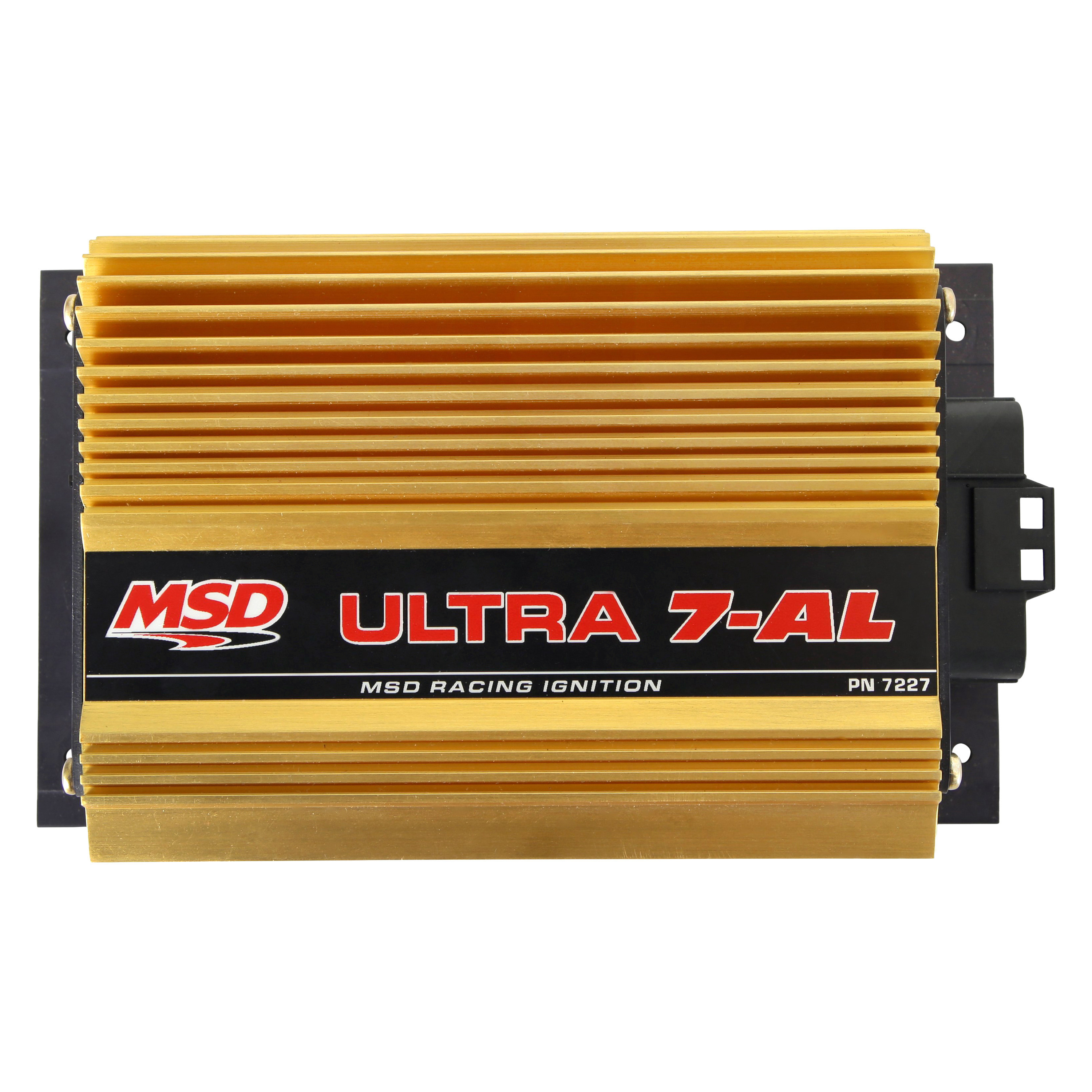

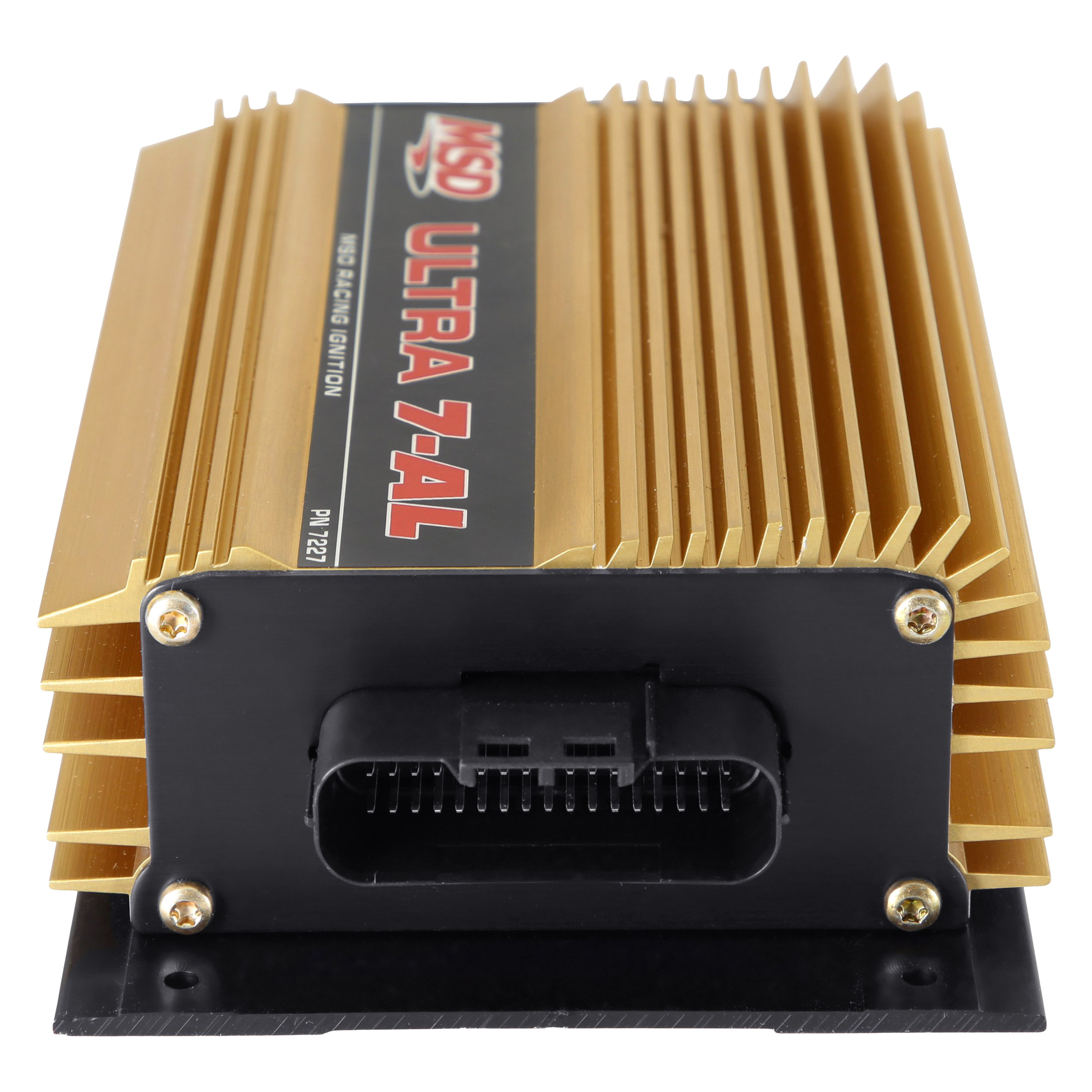

MSD® 7227 - Ultra 7AL Ignition

Specifications

Features

• Launch Rev Limit
• Industry Leading Spark Energy & Efficiency
• On the Fly Power Output Selection

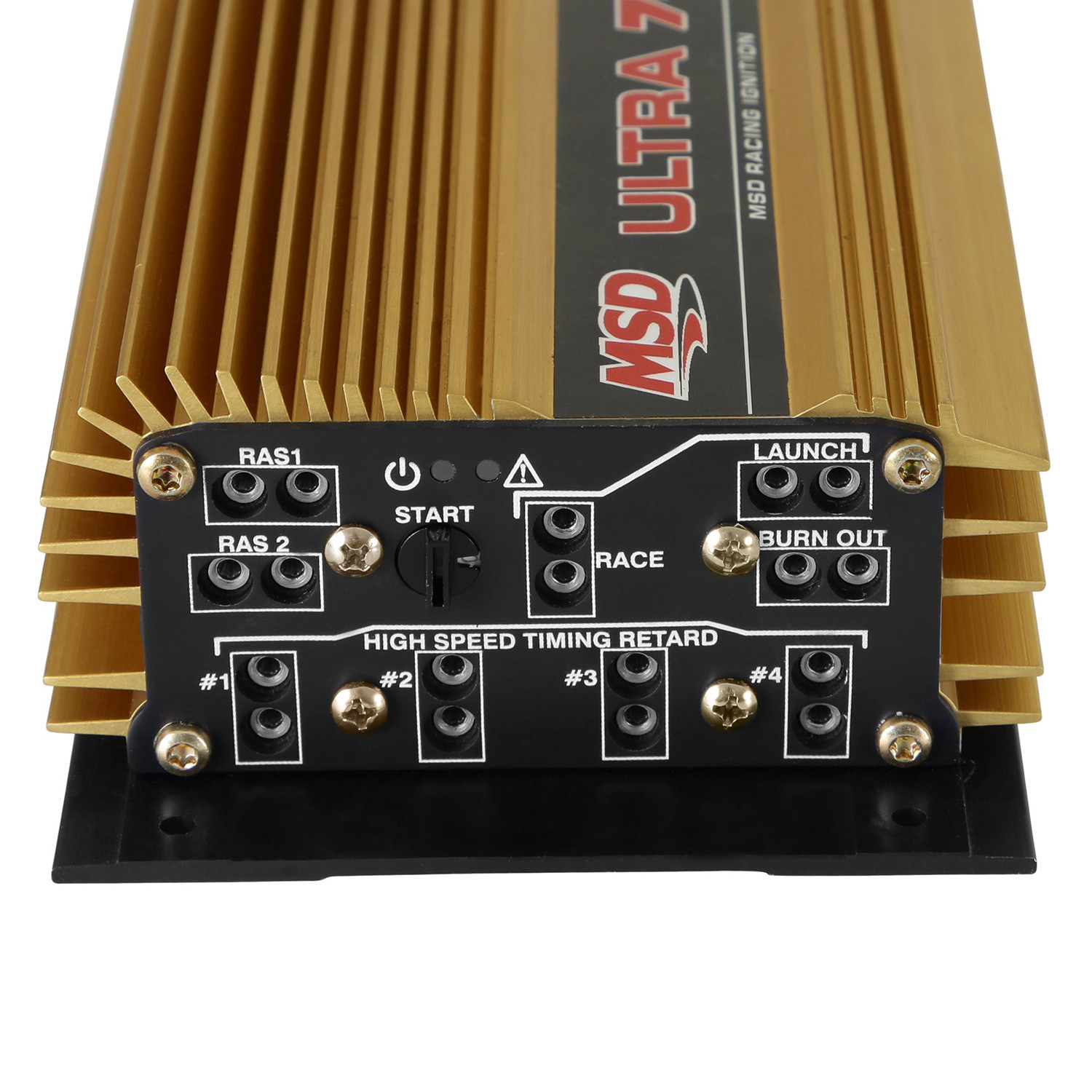

• Uses familiar Pills for Rev Limit and Timing Retard Adjustments
• Quickens Throttle Response
• Increases Overall Performance and Power
• Adjustable start retard improves engine start-up, especially in high-compression engines
• The Ultra 7AL is 56% lighter, and over 50% smaller than the 7AL-3
• The Ultra 7AL has over twice the spark output of the 7AL-3, (330mJ vs 160mJ)
• Two (2) RPM Activated Switch Outputs (compared to the 7AL’s single RAS output)
• Features an adjustable switch for start retard settings, eliminates the need for additional external wiring to the starter solenoid
• Two multi-colored LEDs let you know exactly what is going on (previous boxes feature a single status LED)

Product Details

Ultra 7AL Ignition by MSD®. For racers that need serious spark output, the ULTRA 7AL is the right choice. Offering high voltage with four step retards, three rev limits, and two RPM switch outputs, the new 7AL checks all the boxes! For racers that need serious spark output, the new ULTRA 7AL is the right choice. Offering Industry-Leading Spark Energy Output in a compact, and efficient package. The Ultra 7AL includes four-step retards, three rev limits, and two RPM-activated switch outputs. The ULTRA 7AL also features two different power output settings that can be used for on-the-fly changes which are perfect for drag-and-drive applications! All features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control allows you to set one rev limit for the burnout, another for the staging rpm limit, and a third for top-end engine protection in the event of driveline failure. Four separate stages can be activated independently for nitrous users as well. Plus, two RPM Activated Switch outputs can be used for air shifters, shift lights, or other devices that require a perfectly timed ground trigger! The MSD 7AL also features an adjustable start retard giving you control over the amount of retard pulled out during cranking.
