Vehicle Fitment

This part is universal

Specifications

Brand	MSD®
Emission Code	5
Warranty	Manufacturer's Limited 1 Year Warranty

Features

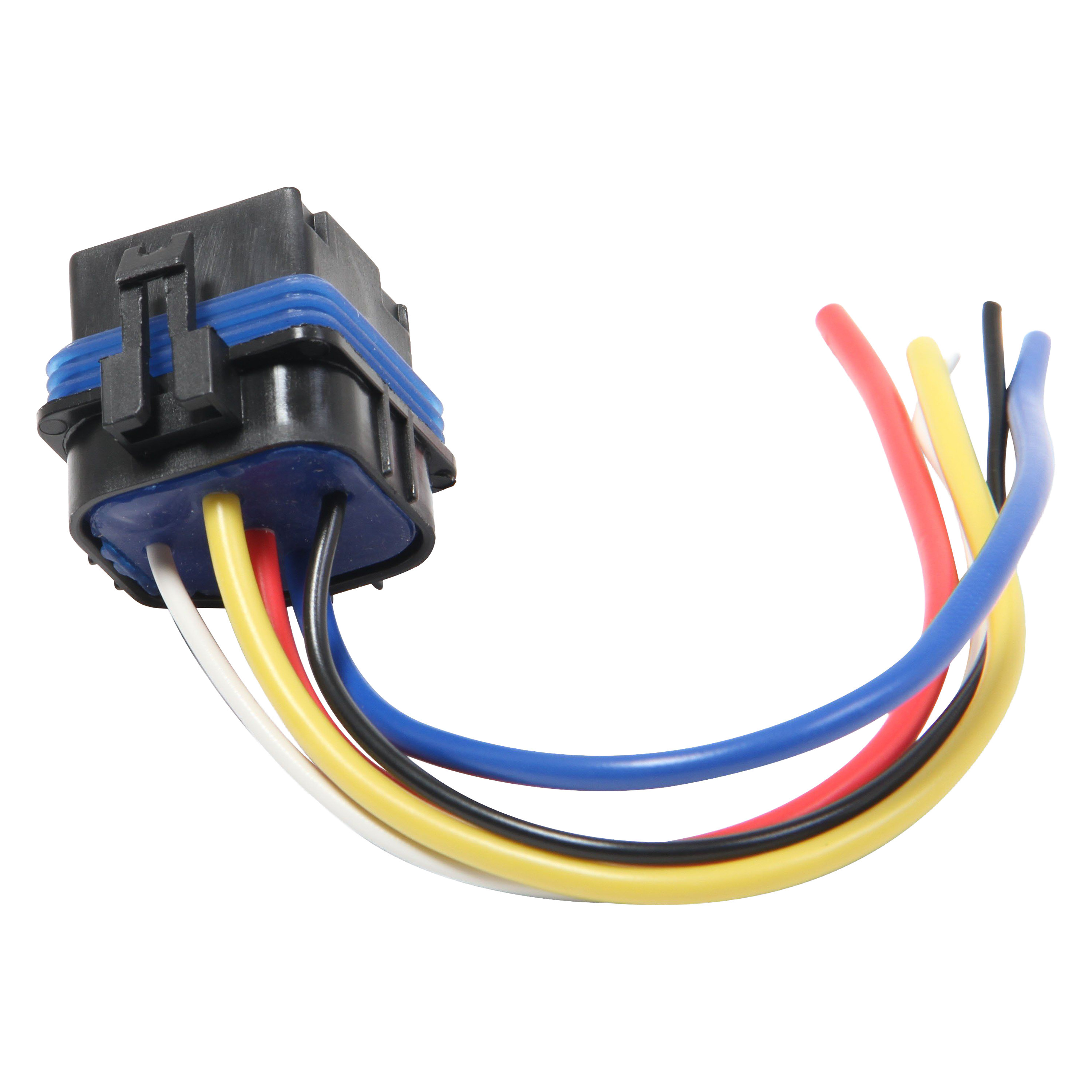

Waterproof relay w/ pigtail harness & sealed connector
40/30Amp – 30 AMP continuous load & 40 AMP momentary
12-Volts DC
Works in normally open or normally closed circuits
Pigtail wires are 7” long
Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed) – (2) 18 gauge wires on black (85 ground) & white (86 +12V)

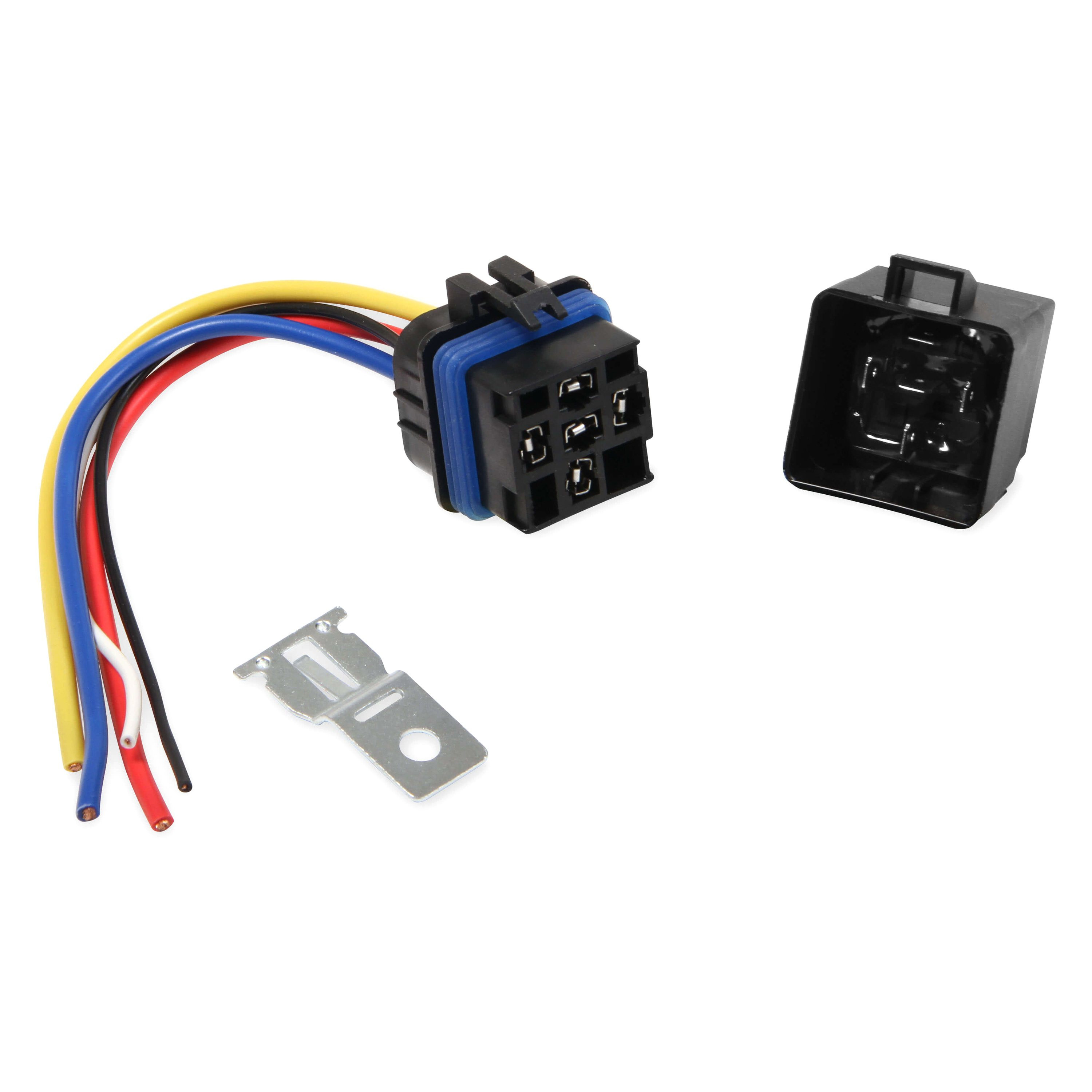

Metal mounting bracket – can be mounted under-hood or just about any other location on vehicle
Ideal for use in: marine, dirt track cars, and off-road trucks & Jeeps

Product Details

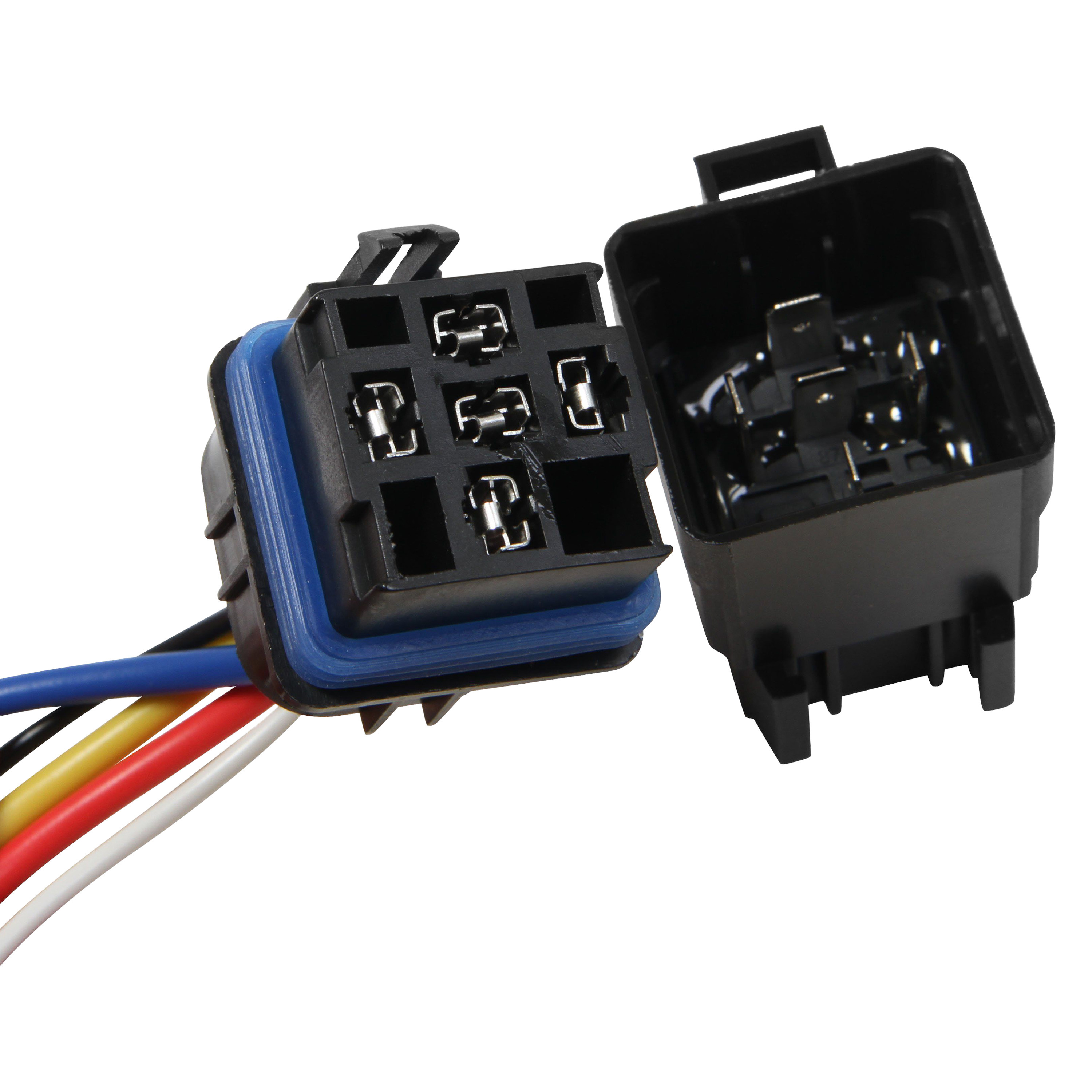

Engine Cooling Fan Motor Relay by MSD®. MSD's waterproof relay are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7" long leads w/ heavy duty 12 & 18 gauge wire. The connector has the wires molded in rubber and a gasket for a leak proof seal.

MSD® - Product Catalog 2015 MSD Authorized Dealer Guide Additional Information About us

Brand:

MSD

Part Number:

89611

UPC:

085132896110

Warranty

Limited 1-Year Warranty

MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
