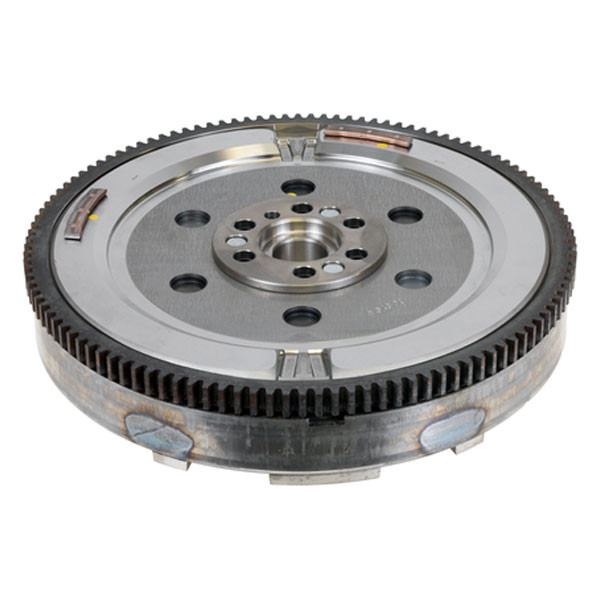

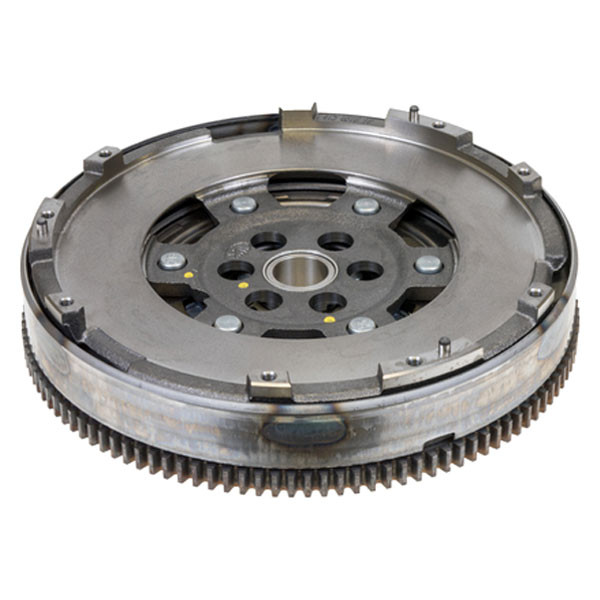

LuK® DMF188 - Dual Mass Flywheel

7 reviews|Item # mpn4652665088
Vehicle Specific
    Select Vehicle
    Replaces Original (OE) Part #:5106172AA, 5106172AB
    Authorized Dealer
    $486.69
    In Stock (13) - Ships within 24 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Dodge

    Specifications

    Ring Gear To Friction Surface
    1.594 inch
    Ring Gear To Friction Surface
    40.5 mm
    Centering diameter / dowel hole
    9.094 inch
    Centering diameter / dowel hole
    231 mm
    Dowel hole diameter
    .197 inch
    Dowel hole diameter
    5 mm
    Dowel Hole Pattern
    5
    Ring Gear Major Dia.
    10.075 inch
    Ring Gear Major Dia.
    255.9 mm
    Crank To Friction Surface
    1.563 inch
    Crank To Friction Surface
    39.7 mm
    Bolt hole PCD crankshaft
    2.323 inch
    Bolt hole PCD crankshaft
    59 mm
    Overall Casting O.D.
    10.134 inch
    Overall Casting O.D.
    257.4 mm
    Torque Capacity DMFW
    13.386 inch
    Torque Capacity DMFW
    340 mm
    Ring Gear Thickness
    .433 inch
    Ring Gear Thickness
    11 mm
    Flywheel Thickness [mm]
    2.327 inch
    Flywheel Thickness [mm]
    59.1 mm
    Bolt hole PCD clutch pres.plte
    9.094 inch
    Bolt hole PCD clutch pres.plte
    231 mm
    Number of teeth, starter ring gear
    118
    Flywheel friction surface outer diameter
    8.504 inch
    Flywheel friction surface outer diameter
    216 mm
    Ring Gear Mounting O.D.
    9.215 inch
    Ring Gear Mounting O.D.
    234.05 mm
    Ring Gear Number
    L-08180-0G11-03
    Cup depth, secondary flywheel
    -.453 inch
    Cup depth, secondary flywheel
    -11.5 mm
    Flywheel Friction Surface Inner diameter
    5.748 inch
    Flywheel Friction Surface Inner diameter
    146 mm
    Crank Hole Dia.
    .669 inch
    Crank Hole Dia.
    17 mm
    I.D. for Pilot
    .953 inch
    I.D. for Pilot
    24.2 mm

    Features

    • Engineered and manufactured to OE specifications
    • All new components - including ring gear and dowel pins
    • Perfectly balanced
    • Precision-machined from premium grade cast iron
    • Superior quality friction surface
    • Excellent heat-absorbing capacity
    • Order from the comfort of your home or office
    • 8 mounting bores
    • With pilot bearing
    • No SVHC present

    Product Details

    Dual Mass Flywheel (DMF188) by LuK®. LuK dual mass flywheels absorb engine vibrations before they are transmitted to the driveline where they can create gear rattle. These units feature a built-in damper designed to isolate engine torque spikes and prevent transmission damage. By design, dual mass flywheels cannot be resurfaced.

    Installation

    LuK® - Installation Instructions

    The flywheel is an integral part of a clutch replacement. In today’s tightly packaged clutch systems, flywheels can easily be machined beyond their usable life – a critical flaw that would not be evident until after the clutch is installed. Improper machining can also cause interference, no release and slipping problems. Pairing your LuK RepSet with a new LuK flywheel is a smart, cost-effective alternative to resurfacing.

    LuK® - ManualLuK® - Installation InstructionsLuK Authorized DealerInstallationAdditional InformationAbout us
    Brand:
    LuK
    Part Number:
    DMF188
    UPC:
    670774377679
    OE Numbers:
    5106172AA, 5106172AB
