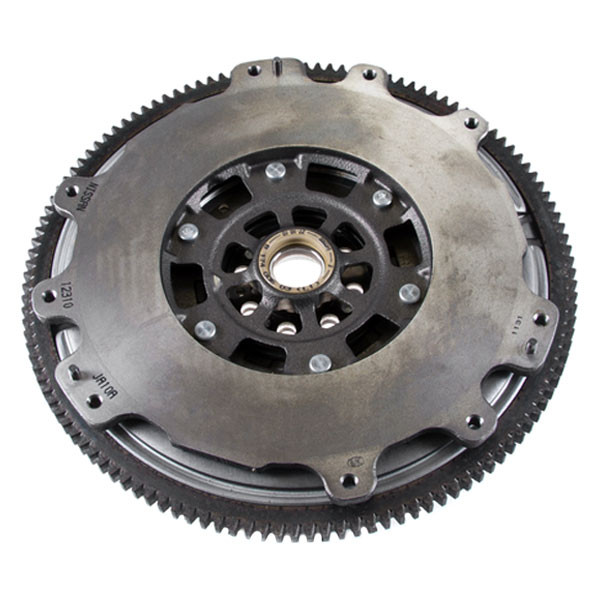

LuK® DMF185 - Dual Mass Flywheel

7 reviews|Item # mpn4652665119
Vehicle Specific
    Select Vehicle
    Replaces Original (OE) Part #:12310JA10A
    Authorized Dealer
    $347.00
    In Stock (2) - Ships within 24 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Nissan

    Specifications

    Crank To Friction Surface
    1.748 inch
    Crank To Friction Surface
    44.4 mm
    Flywheel Friction Surface Inner diameter
    6.083 inch
    Flywheel Friction Surface Inner diameter
    154.5 mm
    Bolt Hole Pattern
    21
    Centering diameter / dowel hole
    11.024 inch
    Centering diameter / dowel hole
    280 mm
    Bolt hole PCD clutch pres.plte
    11.024 inch
    Bolt hole PCD clutch pres.plte
    280 mm
    Ring Gear Mounting O.D.
    11.289 inch
    Ring Gear Mounting O.D.
    286.75 mm
    Ring Gear To Friction Surface
    1.075 inch
    Ring Gear To Friction Surface
    27.3 mm
    I.D. for Pilot
    1.039 inch
    I.D. for Pilot
    26.4 mm
    Number of teeth, starter ring gear
    125
    Dowel hole diameter
    .236 inch
    Dowel hole diameter
    6 mm
    Ring Gear Thickness
    .394 inch
    Ring Gear Thickness
    10 mm
    Flywheel friction surface outer diameter
    9.843 inch
    Flywheel friction surface outer diameter
    250 mm
    Ring Gear Major Dia.
    12.500 inch
    Ring Gear Major Dia.
    317.5 mm
    Flywheel Thickness [mm]
    2.614 inch
    Flywheel Thickness [mm]
    66.4 mm
    Torque Capacity DMFW
    15.354 inch
    Torque Capacity DMFW
    390 mm
    Cup depth, secondary flywheel
    .283 inch
    Cup depth, secondary flywheel
    7.2 mm
    Bolt hole PCD crankshaft
    2.598 inch
    Bolt hole PCD crankshaft
    66 mm
    Dowel Hole Pattern
    5
    Overall Casting O.D.
    12.606 inch
    Overall Casting O.D.
    320.2 mm
    Crank Hole Dia.
    .402 inch
    Crank Hole Dia.
    10.2 mm

    Features

    • Engineered and manufactured to OE specifications
    • All new components - including ring gear and dowel pins
    • Perfectly balanced
    • Precision-machined from premium grade cast iron
    • Superior quality friction surface
    • Excellent heat-absorbing capacity
    • Order from the comfort of your home or office
    • 8 mounting bores
    • With pilot bearing
    • No SVHC present

    Product Details

    Dual Mass Flywheel (DMF185) by LuK®. LuK dual mass flywheels absorb engine vibrations before they are transmitted to the driveline where they can create gear rattle. These units feature a built-in damper designed to isolate engine torque spikes and prevent transmission damage. By design, dual mass flywheels cannot be resurfaced.

    Installation

    LuK® - Installation Instructions

    The flywheel is an integral part of a clutch replacement. In today’s tightly packaged clutch systems, flywheels can easily be machined beyond their usable life – a critical flaw that would not be evident until after the clutch is installed. Improper machining can also cause interference, no release and slipping problems. Pairing your LuK RepSet with a new LuK flywheel is a smart, cost-effective alternative to resurfacing.
