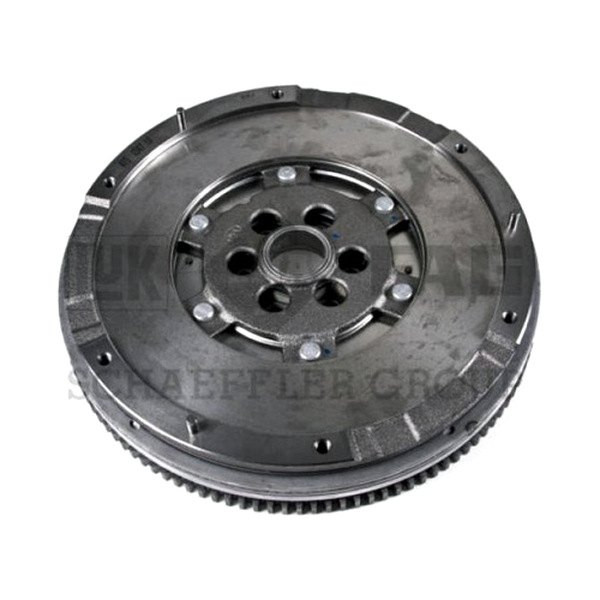

LuK® DMF107 - Dual Mass Flywheel

7 reviews|Item # mpn575204885
Vehicle Specific
    Select Vehicle
    Replaces Original (OE) Part #:06D105266C, 06D105266A
    Authorized Dealer
    $786.19
    In Stock (8) - Ships Tomorrow 06.12.26
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Audi

    Specifications

    Dowel hole diameter
    .236 inch
    Dowel hole diameter
    6 mm
    Bolt hole PCD clutch pres.plte
    10.236 inch
    Bolt hole PCD clutch pres.plte
    260 mm
    Flywheel friction surface outer diameter
    9.055 inch
    Flywheel friction surface outer diameter
    230 mm
    Torque Capacity DMFW
    18.000 inch
    Torque Capacity DMFW
    457.2 mm
    Crank Hole Dia.
    .413 inch
    Crank Hole Dia.
    10.5 mm
    I.D. for Pilot
    1.260 inch
    I.D. for Pilot
    32 mm
    Overall Casting O.D.
    11.685 inch
    Overall Casting O.D.
    296.8 mm
    Ring Gear Thickness
    .394 inch
    Ring Gear Thickness
    10 mm
    Dowel Hole Pattern
    5
    Flywheel Friction Surface Inner diameter
    6.051 inch
    Flywheel Friction Surface Inner diameter
    153.7 mm
    Ring Gear To Friction Surface
    1.835 inch
    Ring Gear To Friction Surface
    46.6 mm
    Ring Gear Mounting O.D.
    10.789 inch
    Ring Gear Mounting O.D.
    274.05 mm
    Cup depth, secondary flywheel
    -.213 inch
    Cup depth, secondary flywheel
    -5.4 mm
    Ring Gear Major Dia.
    11.516 inch
    Ring Gear Major Dia.
    292.5 mm
    Flywheel Thickness [mm]
    2.516 inch
    Flywheel Thickness [mm]
    63.9 mm
    Bolt hole PCD crankshaft
    2.598 inch
    Bolt hole PCD crankshaft
    66 mm
    Number of teeth, starter ring gear
    117
    Crank To Friction Surface
    1.264 inch
    Crank To Friction Surface
    32.1 mm
    Ring Gear Number
    L-09180-0077-06
    Centering diameter / dowel hole
    10.236 inch
    Centering diameter / dowel hole
    260 mm
    Bolt Hole Pattern
    2

    Features

    • Engineered and manufactured to OE specifications
    • All new components - including ring gear and dowel pins
    • Perfectly balanced
    • Precision-machined from premium grade cast iron
    • Superior quality friction surface
    • Excellent heat-absorbing capacity
    • Order from the comfort of your home or office
    • 8 mounting bores
    • With pilot bearing
    • No SVHC present

    Product Details

    Dual Mass Flywheel by LuK®. LuK dual mass flywheels absorb engine vibrations before they are transmitted to the driveline where they can create gear rattle. These units feature a built-in damper designed to isolate engine torque spikes and prevent transmission damage. By design, dual mass flywheels cannot be resurfaced.

    Installation

    LuK® - Installation Instructions

    The flywheel is an integral part of a clutch replacement. In today’s tightly packaged clutch systems, flywheels can easily be machined beyond their usable life – a critical flaw that would not be evident until after the clutch is installed. Improper machining can also cause interference, no release and slipping problems. Pairing your LuK RepSet with a new LuK flywheel is a smart, cost-effective alternative to resurfacing.

    LuK® - ManualLuK® - Installation InstructionsLuK Authorized DealerInstallationAdditional InformationAbout us
    Brand:
    LuK
    Part Number:
    DMF107
    UPC:
    884109827405
    OE Numbers:
    06D105266C, 06D105266A
