LuK® BNDL-927901 - 3-Pc RepSet Clutch Kit

10 reviews|Item # mpn5209041971
Vehicle Specific
    Select Vehicle
    Replaces Original (OE) Part #:F2TZ-7A512-G
    Authorized Dealer
    $325.31
    In Stock - Ships within 24 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Ford

    Specifications

    Input Shaft Diameter
    0 inch
    Input Shaft Diameter
    1" mm
    Clutch Disc Diameter
    10 inch
    Clutch Disc Diameter
    254 mm
    Spring Quantity
    4
    Clutch Diameter
    11.5625 inch
    Clutch Diameter
    293.6875 mm
    Clutch Disc Spline Quantity
    23
    Pressure Plate Type
    T - diaphragm spring
    Kit contents
    Cover Assembly, Clutch Disc, all Necessary Pilots, Accessory Pack , Release Bearing Not included
    Hose Attachment End 1
    Male Quick Disconnect
    Hose Attachment End 2
    Male Quick Disconnect
    Hose/Line Length (In)
    25"
    Hose/Line Material
    Pa12
    Hose/Line Outside Diameter (in)
    0.32"
    Installation Hardware Included
    Yes
    Flange Thickness
    1 inch
    Flange Thickness
    25.4 mm
    Ring Gear Chamfer Side
    Not available
    Bolt hole PCD crankshaft
    1.752 inch
    Bolt hole PCD crankshaft
    44.5 mm
    Dowel Hole Pattern
    5
    Dowel hole diameter
    0.2488 inch
    Dowel hole diameter
    6.32 mm
    Flywheel friction surface outer diameter
    10.9055 inch
    Flywheel friction surface outer diameter
    277 mm
    Overall Casting O.D.
    11.5354 inch
    Overall Casting O.D.
    293 mm
    Ring Gear Major Dia.
    11.6591 inch
    Ring Gear Major Dia.
    296.14 mm
    Flywheel Thickness [mm]
    1.4173 inch
    Flywheel Thickness [mm]
    36 mm
    Ring Gear Number
    326310175
    Crank To Friction Surface
    1.8701 inch
    Crank To Friction Surface
    47.5 mm
    Has Dowel Pins
    with Dowel Pins
    I.D. for Pilot
    1.122 inch
    I.D. for Pilot
    28.5 mm
    Ring Gear Mounting O.D.
    10.5059 inch
    Ring Gear Mounting O.D.
    266.85 mm
    Bolt Hole Pattern
    1
    Centering diameter / dowel hole
    10.9043 inch
    Centering diameter / dowel hole
    276.97 mm
    Ring Gear Chamfer Position @ 6
    00 O´clock: Not available
    Crank Hole Dia.
    0.3976 inch
    Crank Hole Dia.
    10.1 mm
    Bolt hole PCD clutch pres.plte
    10.8252 inch
    Bolt hole PCD clutch pres.plte
    274.96 mm
    Number of teeth, starter ring gear
    138
    Ring Gear Thickness
    0.3646 inch
    Ring Gear Thickness
    9.26 mm
    Flywheel Friction Surface Inner diameter
    6.8898 inch
    Flywheel Friction Surface Inner diameter
    175 mm

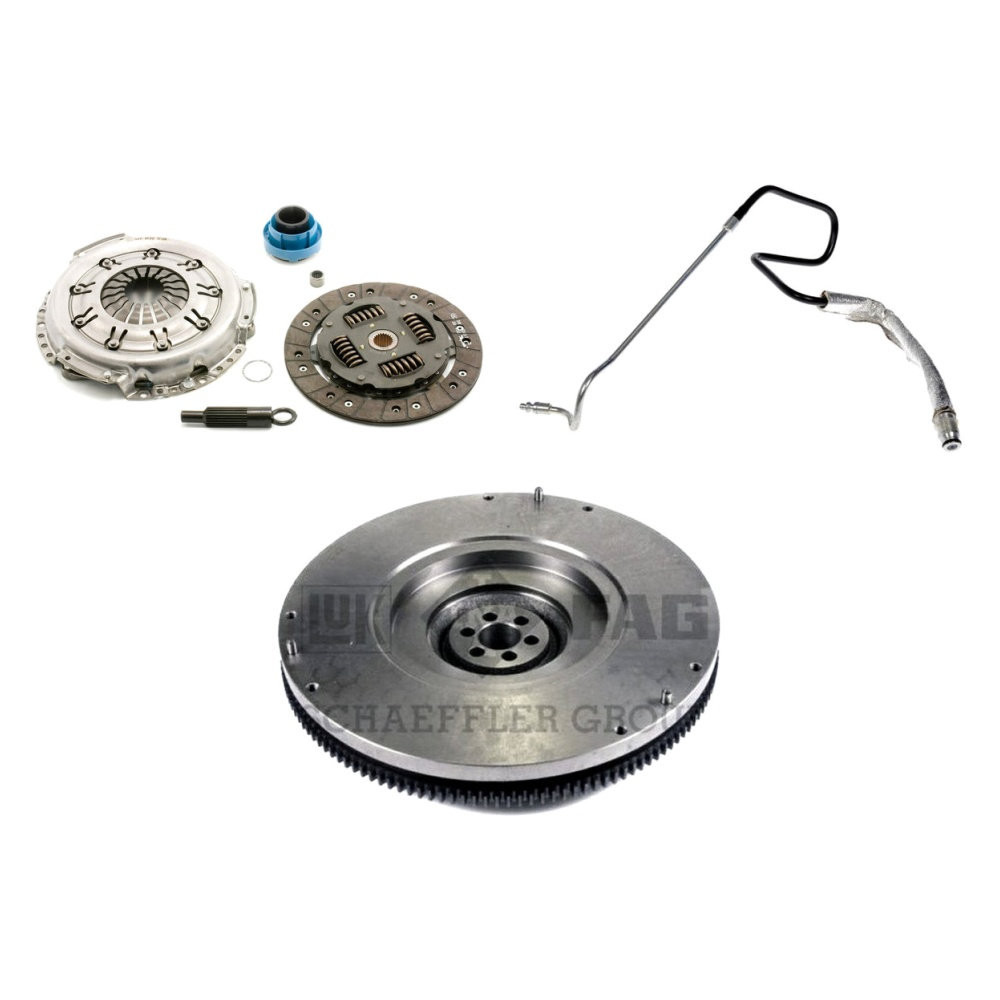

    Includes

    Product MPN Brand QTY
    RepSet™ Clutch Kit 07-096 LuK 1
    Hydraulic Clutch Line 628-238 Dorman 1
    Single Mass Flywheel LFW156 LuK 1

    Product Details

    3-Pc RepSet Clutch Kit by LuK®. This vehicle essentials bundle includes top-rated automotive products selected based on real customer preferences. Ideal for car care and maintenance, each item is chosen to enhance your driving experience and keep your vehicle in peak condition.

    LuK Authorized Dealer
    Brand:
    LuK
    Part Number:
    BNDL-927901
    Alternate MPN:
    BNDL927901
    OE Numbers:
    F2TZ-7A512-G

    Reviews

    (10)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-10 of 10 Reviews
    5 of 5
    LUK
    Met every expectation. Well satisfied with everything I purchased through you. Everything fit and installed perfectly. Thank you
    Posted by Susan (Princeton, NC) / May 05, 2024
    5 of 5
    Awesome
    Since I installed it I haven't had any problems, I am satisfied with this purchase.
    Posted by Humberto (Elmwood Park, IL) / June 24, 20212012 Chevy Cruze
    5 of 5
    Worth It
    No fitting problems, works well, definitely worth the money and easy to deal with and definitely would order from them again.
    Posted by Luciano / May 07, 20212005 Audi S4
    5 of 5
    A+++
    Swapped out OEM clutch with Luk clutch kit. It is day and night difference. The new feel is amazing and shifts are now effortlessly, definetely a must!!!
    Posted by Alyssa (South Ozone Park, NY) / March 24, 20212015 Fiat 500
    5 of 5
    Clutch Kit
    Works good, no issues. Happy with product so far and its contents.
    Posted by Gerard (Rochester, NY) / January 23, 20192011 BMW 3-Series
    5 of 5
    Very Happy With The Products
    Very happy with the product. Highly recommend. Would definitely buy from them again.
    LuK® - RepSet™ Clutch Kit
    Posted by Martin (Newglasgow, NS) / March 23, 20171987 Volkswagen Fox
    5 of 5
    Awesome.
    Great product so far, great customer service.
    Posted by Robert (Springville, TN) / October 21, 20161994 Ford F-350
    5 of 5
    This Clutch Is Perfect
    This clutch is perfect. Would recommend and would buy again. After installation it had a much lighter pedal feel, but after few days it works close to original. Nice clutch at such price.
    Posted by Bryan (San Jose, CA) / July 31, 20152003 Audi A3
    5 of 5
    Great Clutch
    Great clutch at great price. Good materials. All came as described.
    Posted by A (Warren, MI) / July 31, 20152005 Honda Civic
    5 of 5
    As Described
    This product was as described. Clutch pedal becomes softer. I would definitely recommend. Delivery took a little longer then i expected, but it worth.
    Posted by Alain (Lockport, NY) / May 19, 20152004 Mazda 3

    Questions and Answers

    (0)
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
