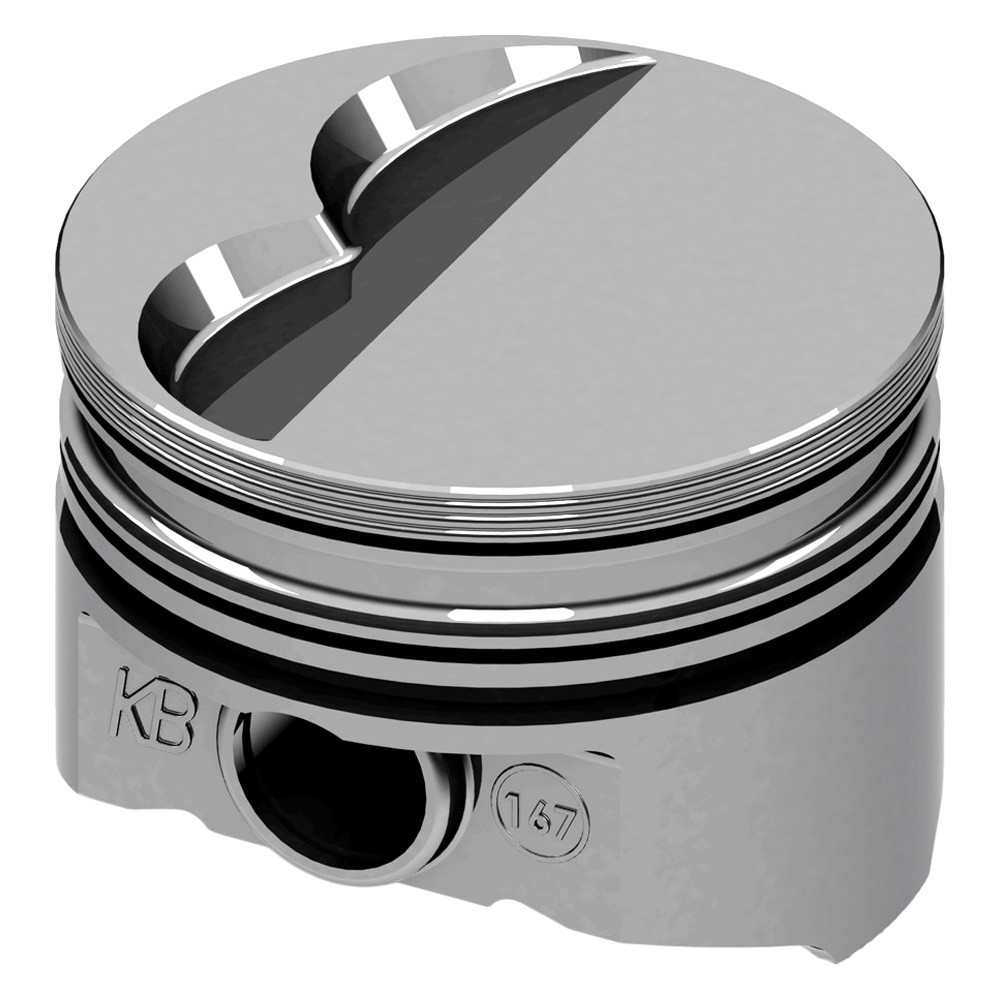

KB Performance® KB167.030 - Signature Series Hypereutectic Flat Top 2V Piston Set with two valve reliefs

0 reviews|Item # mpn4817052427
Missing Fitment Information
Fitment notes:
  • Fitment data unavailable. Compatibility is not guaranteed. Please purchase by part number only.
Notes:
  • Due to the multiple variables possible with any engine combination, all compression ratios listed are approximate. To accurately calculate the static compression ratio of any engine, the following values must be known: Bore diameter, stroke length, rod length, deck height, combustion chamber volume, cylinder head gasket compressed thickness, and cylinder head gasket bore diameter
  • This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME
Authorized Dealer
$468.45
In Stock (2) - Ships Tomorrow 07.06.26
See similar products

Vehicle Fitment

Information is not available

Specifications

Bore Size
3.940"
Bore Size (mm)
100.076 mm
Connecting Rod Length
6.123"
Compression Height
1.810"
Head Volume
+5.00cc
Ext. Valve Depth
0.280"
Ext. Valve Diameter
2.160"
Intake Relief Depth
0.280"
Intake Relief Diameter
2.160"
OE Deck Height
9.578"
Oversize
+5.0 cc
Pin Diameter
0.9842"
Piston Material
Hypereutectic aluminum
Quantity
8 Pieces
Piston Ring Size
5/64" x 5/64" x 3/16"
Stroke
3.310"
Top Land
0.275"
Weight Piston/Pin
526/132
Wrist Pin Style
Press-fit or floating

Features

  • 390 Hypereutectic alloy with 16% Silicon
  • Fully machined crowns and valve reliefs
  • Drilled oil drain backs
  • Full floating wrist pins
  • Triple wound spiral locks
  • Reflective alloy allows 2% power increase
  • Quench dome technology minimizes deterioration
  • Zero deck quench designs

Product Details

Signature Series Hypereutectic Flat Top 2V Piston Set with two valve reliefs by KB Performance®. New high silicon alloys and diamond tooling have give Silv-O-Lite designers the material and equipment for performance breakthroughs in engine design. Silv-O-Lite piston are 100% CNC machined and T-6 heat treated from 16%-18% silcon Hypereutectic alloy. Features include drilled oil returns and pin oil supply, 0.072'' spiral wound retaining ring, 100% diamond turned, compensated high strength ring lands, high top ring location, 360° pressure pin oiling, diamond honed pin hole and lightweight rigid rib skirt design. This premium product is the best way to go for those looking for the highest quality replacement that offers supreme levels of quality, performance and reliability. Designed to provide a perfect fit for a hassle free installation, this reliable product can help you get you vehicle back on the road faster and easier.

Installation

KB Performance® - Signature Series Hypereutectic Flat Top 2V Piston Set Installation Instruction
KB Performance® - Signature Series Hypereutectic Flat Top 2V Piston Set Installation InstructionKB Performance® - CatalogKB Performance Authorized Dealer
Brand:
KB Performance
Part Number:
KB167.030
UPC:
800745050090
Alternate MPN:
KB167030
