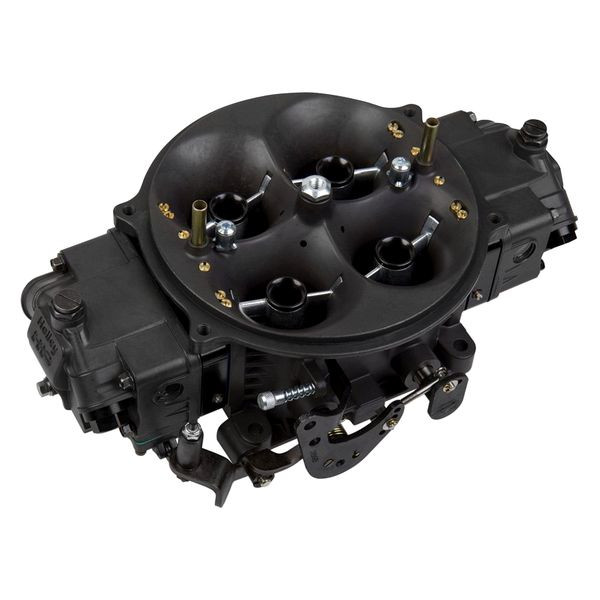

Holley® 0-80908HB - Ultra Dominator Series Carburetor

0 reviews|Item # mpn5233444528

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Notes:

New or modified fuel lines are required (if replacing existing Holley Dominator 4500 series carburetor - previous bowl machining was 7/8-20, Aluminum Ultra Dominator carburetors come assembled with -6AN to SAE 8 port fittings). Center to center fuel inlet measurement is now 11.5"
This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME

Authorized Dealer

$1,694.07

$1,999.95Save $305.88 (15%)

In Stock (4) - Ships in 24 to 48 hrs

Have a Question? Ask a Specialist

800-505-3274Live Chat

Vehicle Fitment

American Motors

Avanti

Bentley

Bricklin

Buick

Cadillac

Checker

Chevy

Chrysler

Cunningham

DeSoto

Dodge

Dual-Ghia

Ford

GMC

International

Jeep

Kurtis

Lincoln

Mazda

Mercury

Nash

Oldsmobile

Packard

Plymouth

Pontiac

Shelby

Studebaker

Stutz

Sunbeam

Specifications

Barrel Quantity	4
Billet Color	Hard Core Gray with Black
Body Color	Hard Core Gray
Body Finish	E-Coated
Booster	Annular Billet Insert
Carburetor Material	Aluminum
Carburetor Use	Professional Race
CFM	1250
Choke	None
Circuit	3
Cubic Feet Per Minute Rating	1250
Emission Code	4
Finish	Hard Core Gray

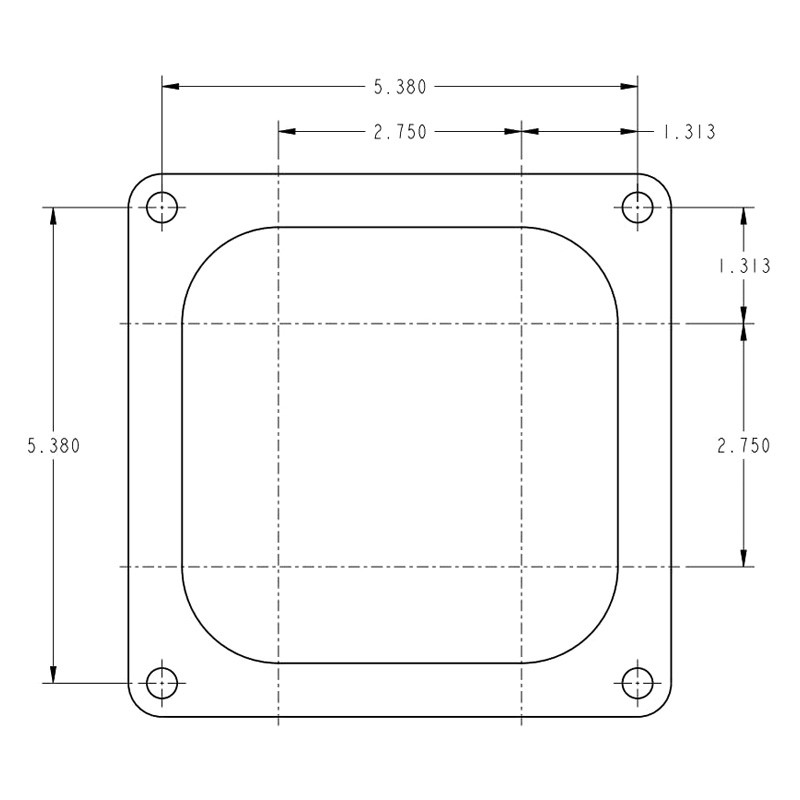

Flange Type	Dominator/4500
Fuel	Gasoline
Fuel Inlet	Dual
High Speed Air Bleed	34
Idle Air Bleed Size	51
Intermediate Air Bleed	70
Linkage Attached	Yes
Marine Approved	No
Marine Use	No
Material	Aluminum
Model	4500
Mounting Hole Quantity	4
Needle and Seat Size	120;120
Primary Jet Diameter	92
Primary Main Jet	92
Primary Power Valve	5.5
Primary Pump Nozzle Size	40
Secondaries	Mechanical
Secondary Main Jet	102
Secondary Pump Nozzle Size	40
Spacer Included	No
Supercharged Application	No
Throttle Bore	2.125"
Venturii Size	1.880"
Height	3.500"
Carburetor Type	Dominator
Circuit	3-Circuit
Secondary Type	Mechanical
Opening Point	5.5" Hg
Booster Type	Annular
Primary Jet Size	92
Secondary Jet Size	102
Throttle Bore Size	2.125"
Venturi_Size	1.880"
Fuel Type	Gasoline
Type	Universal
Billet Metering Block Color	Black
Quantity	1 Piece

Features

All aluminum construction saves 3.8lbs. over original models (28% weight savings)
Hard Core Gray with black anodized billet aluminum metering block and booster inserts
Designed for use on Drag race, Pro Street, or any high horsepower engines
Calibrations optimized for today's larger race engines and new fuels

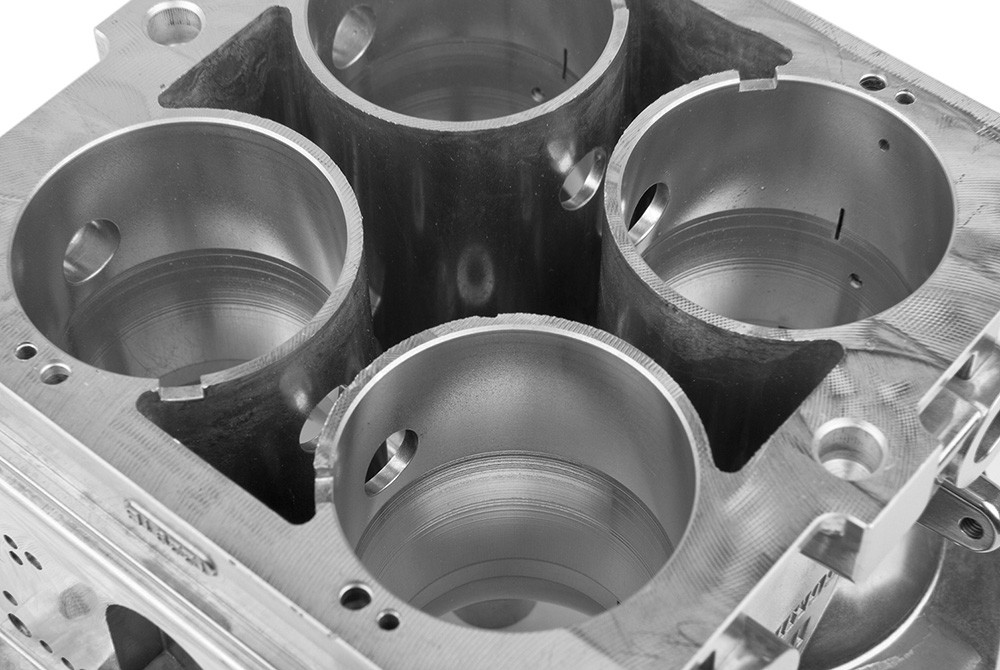

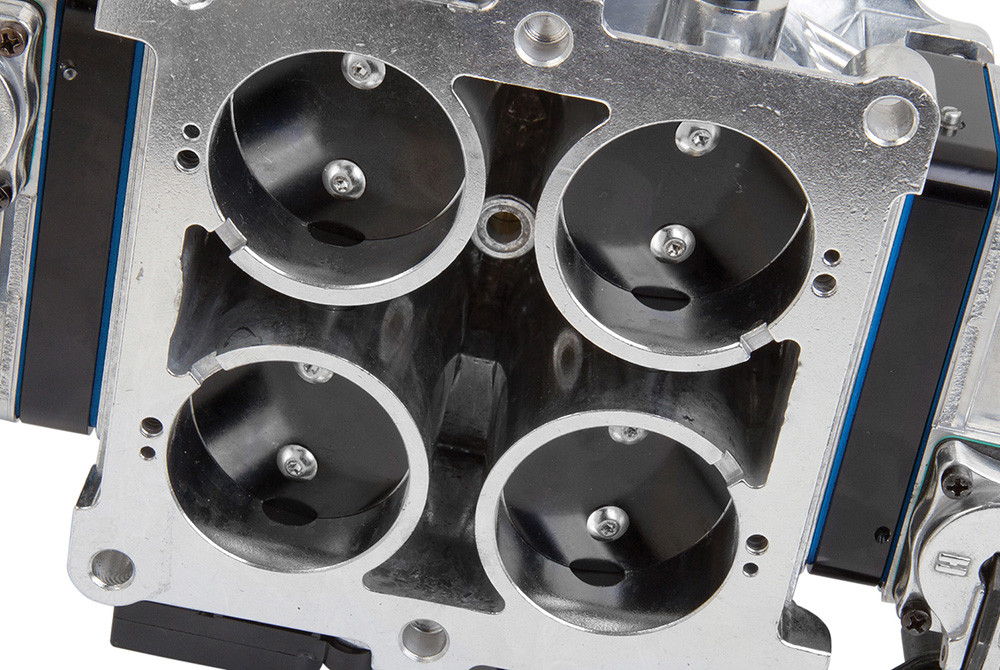

Fully machined from venturii throat to throttle bore for predictable & repeatable performance
Integrated idle bypass valve allows for adjustment of idle while maintaining correct throttle plate to transfer slot relationship

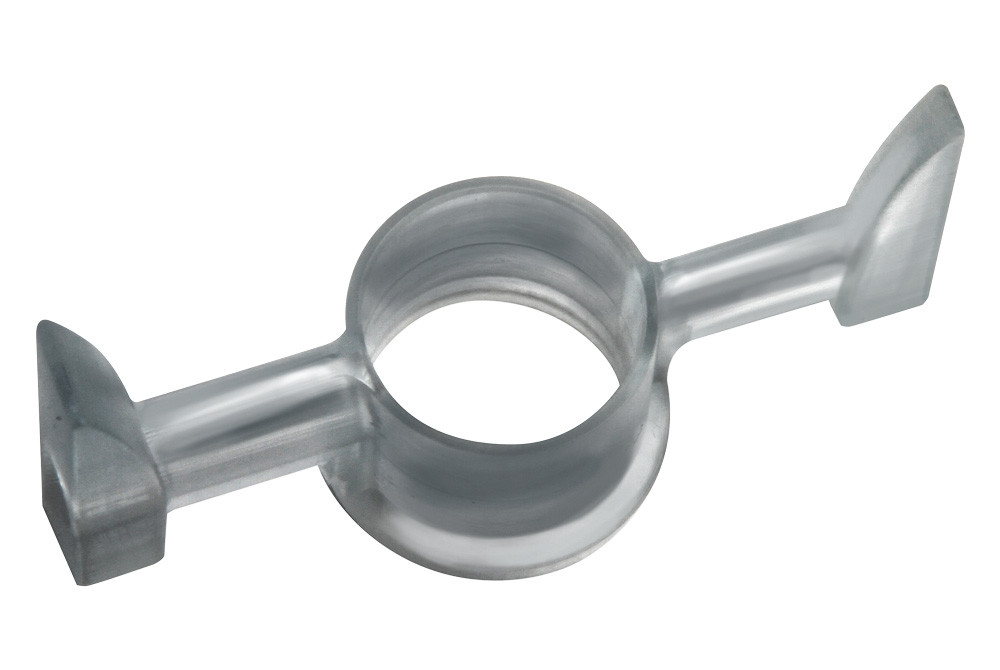

12 hole billet booster inserts for superior atomization and crisp throttle response

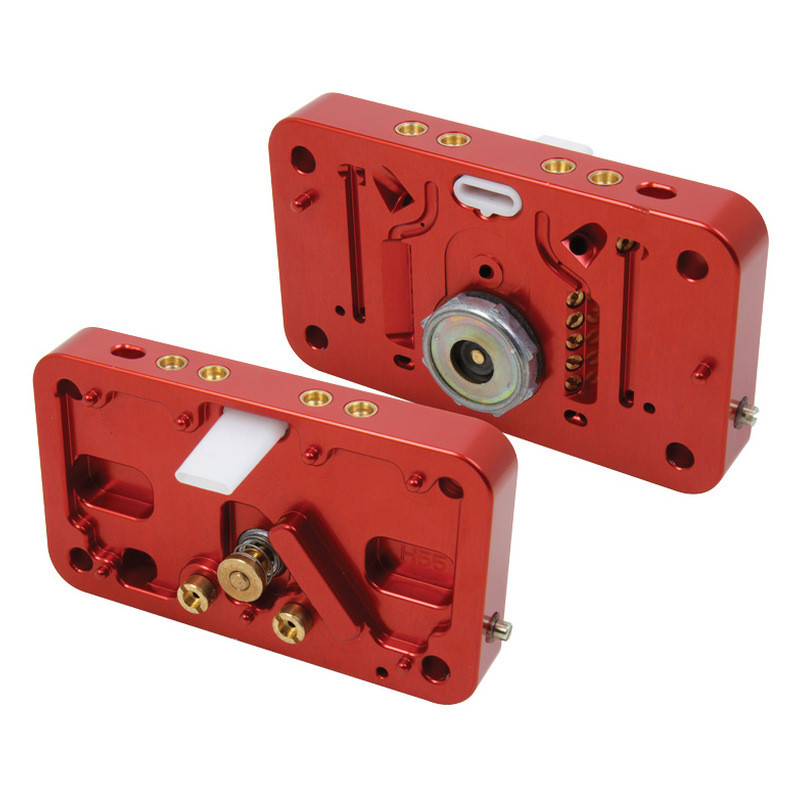

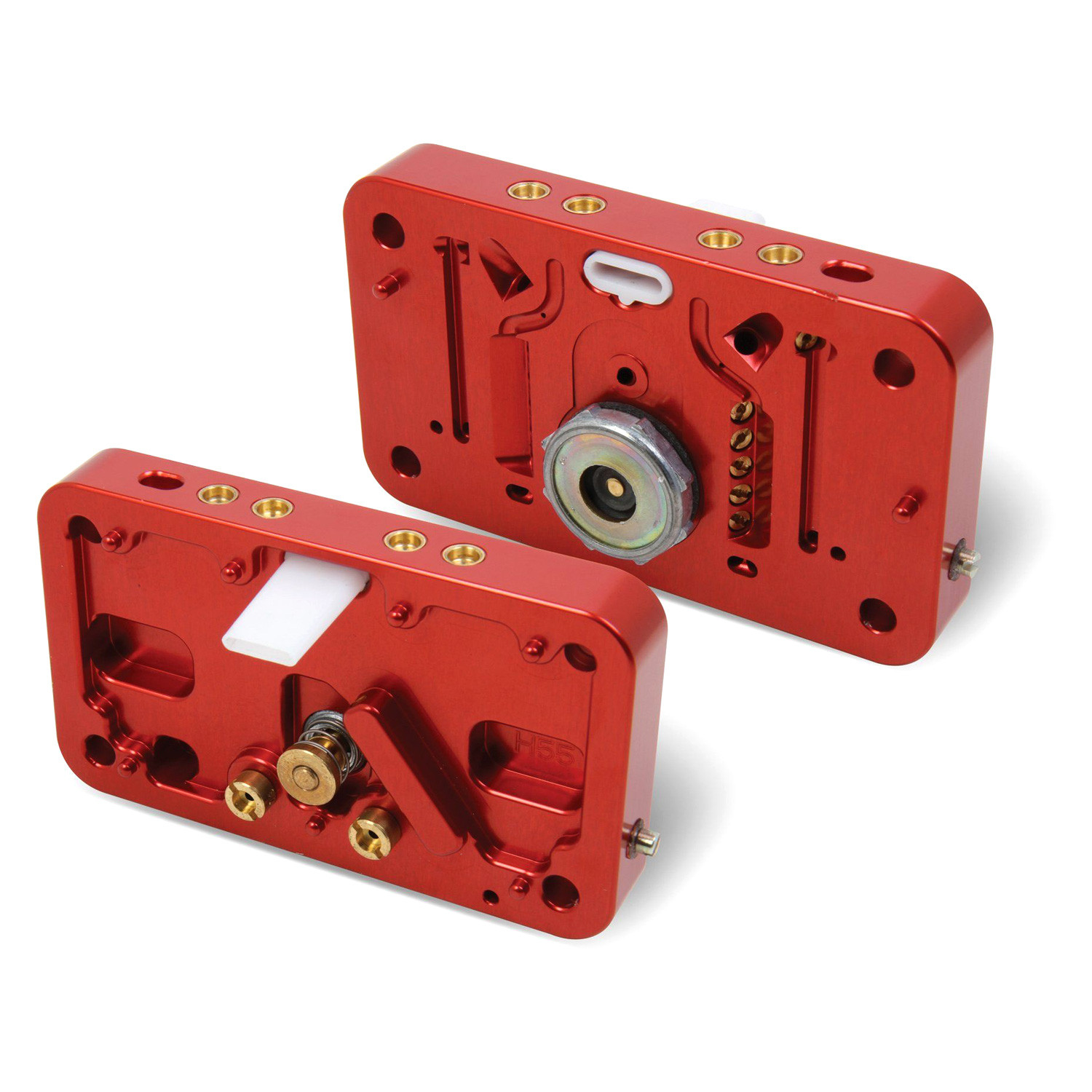

Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)
Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle

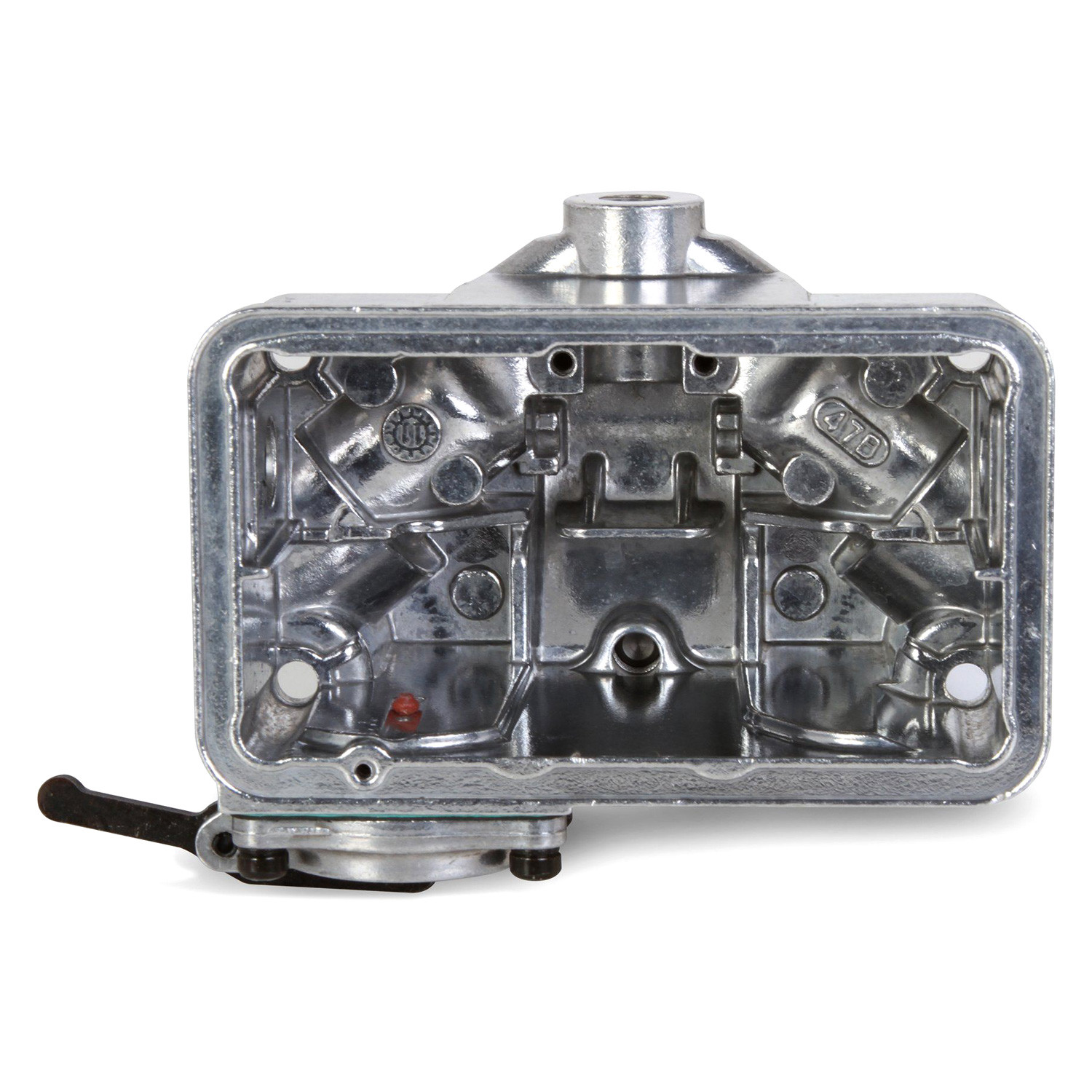

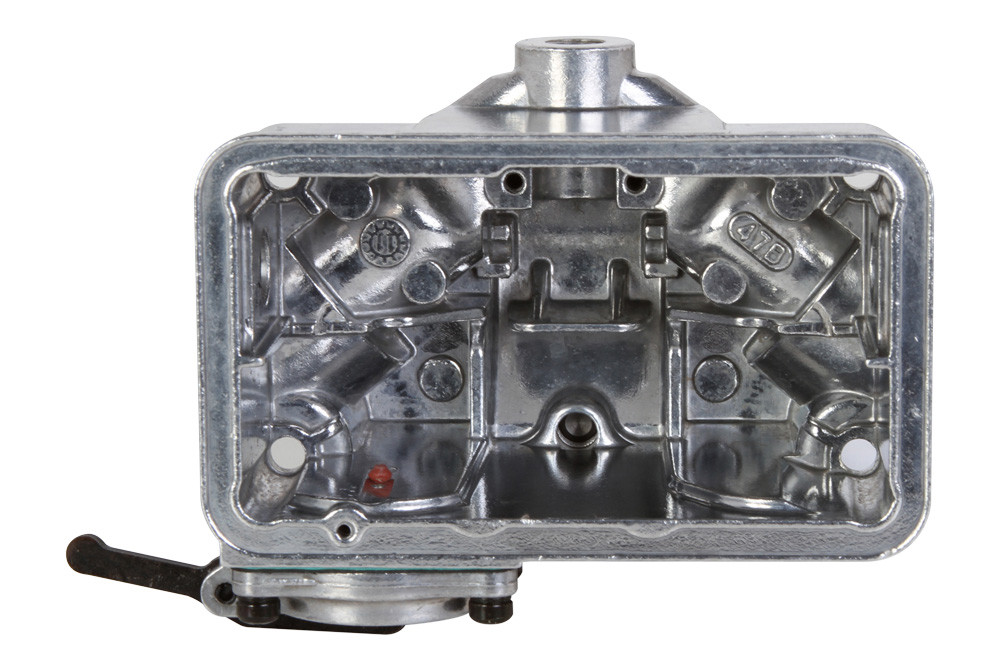

Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling

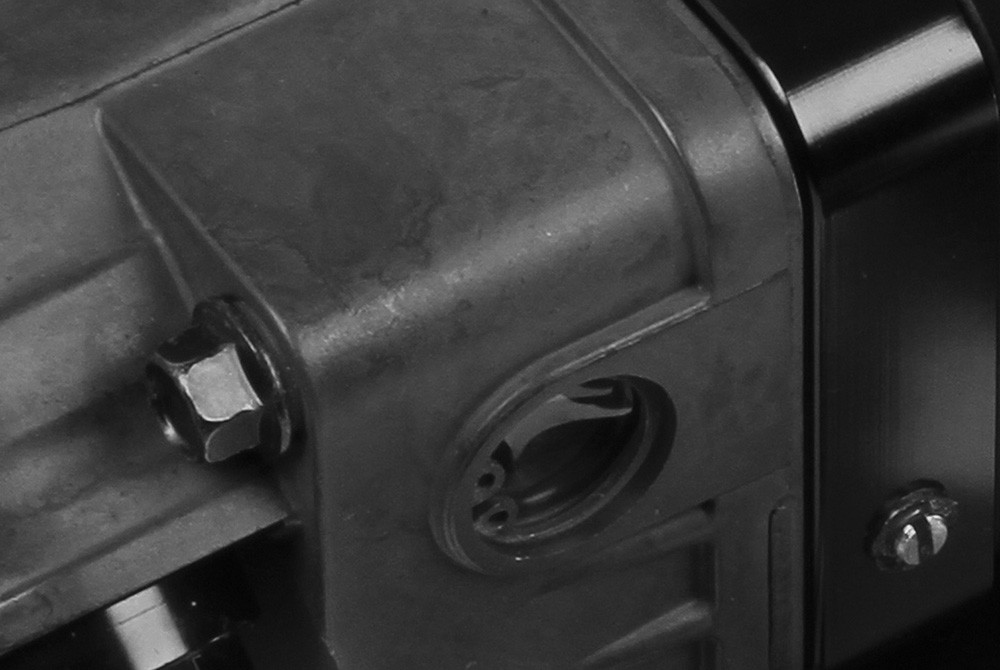

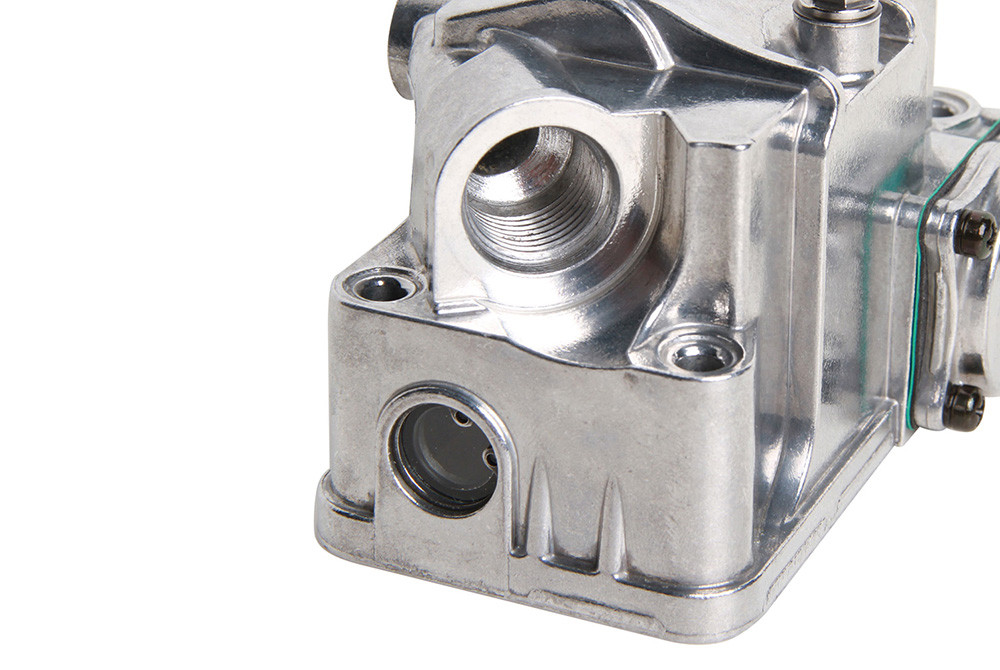

Clear sight windows on both sides of bowls for easy and safe fuel level adjustments

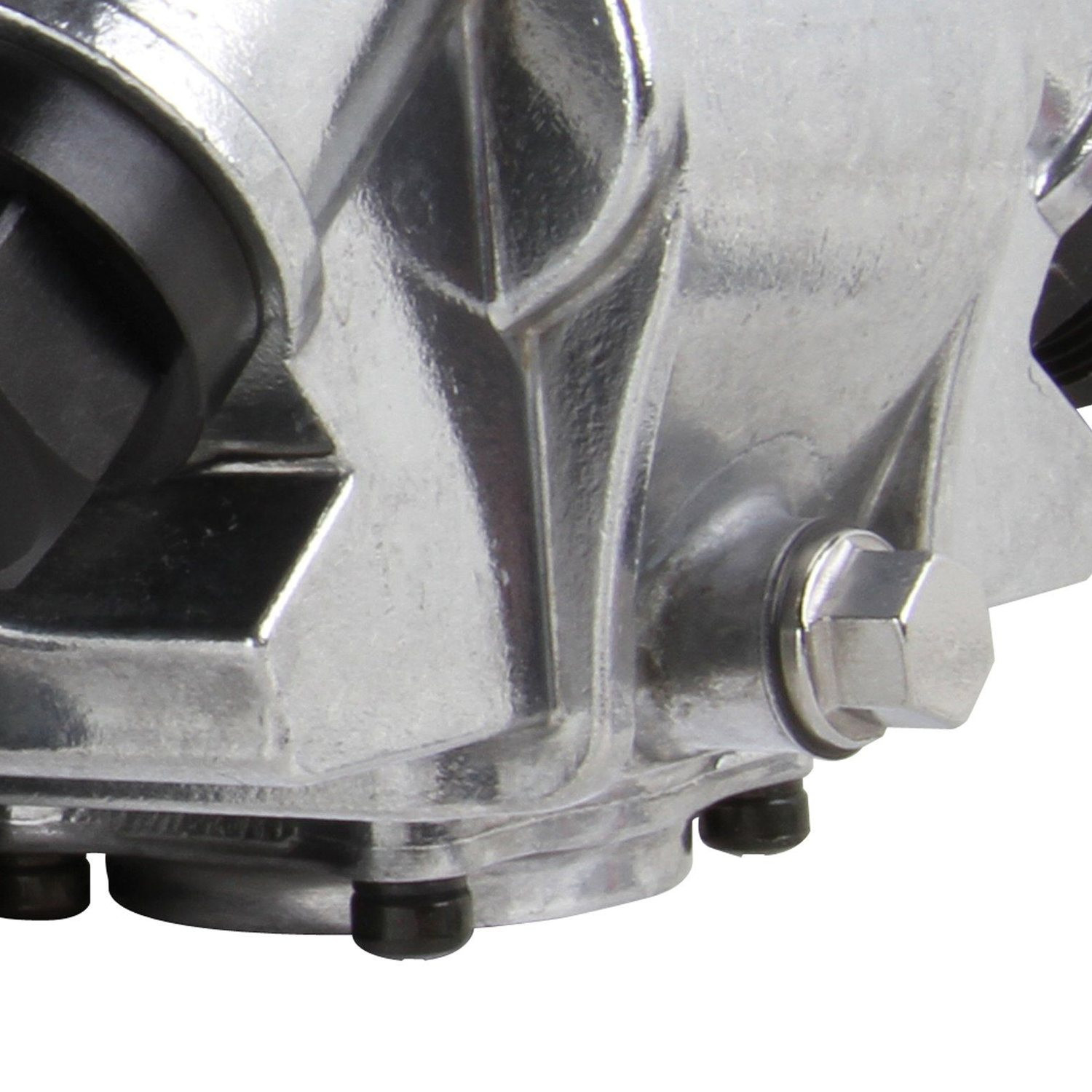

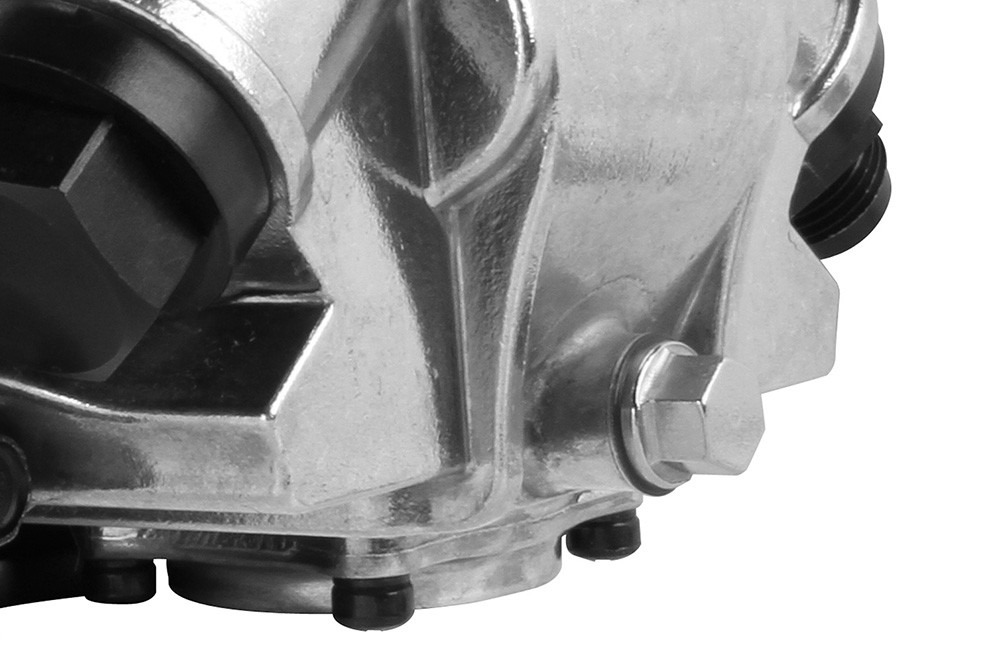

Built in drain plug in front center of bowl provides easy access to empty contents of bowl
-8 (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side

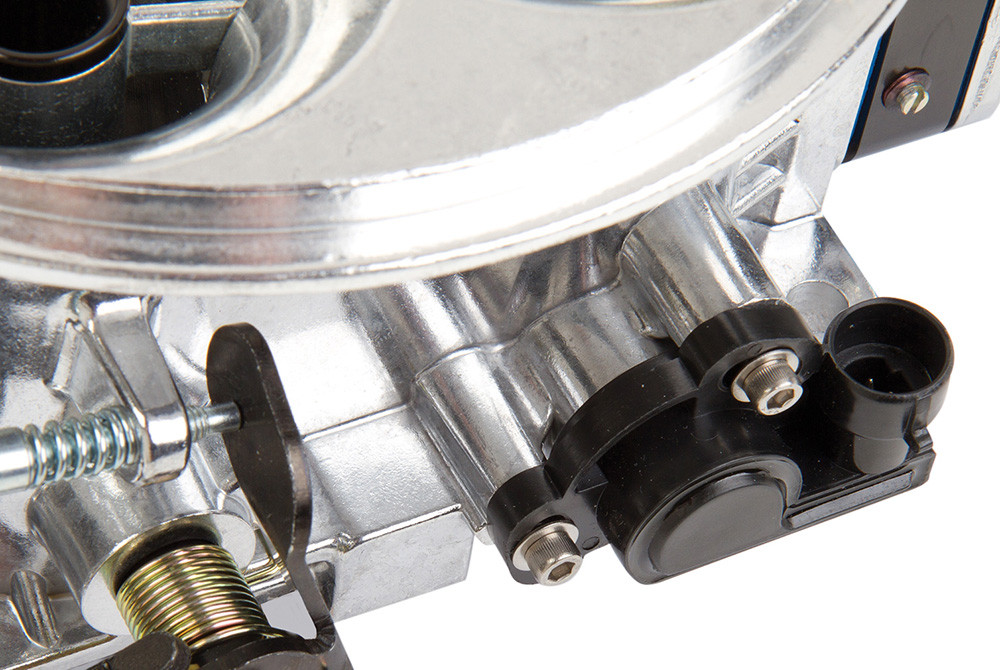

Factory ready TPS mounting points for use with data acquisition systems (Holley TPS P/N 534-214 available)
Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
Contoured hex head squirter screws for streamlined airflow
100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Fully adjustable stainless steel external linkage can be adjusted for 1:1 progressive, or soft progressive throttle activation. No linkage parts under the carburetor

Product Details

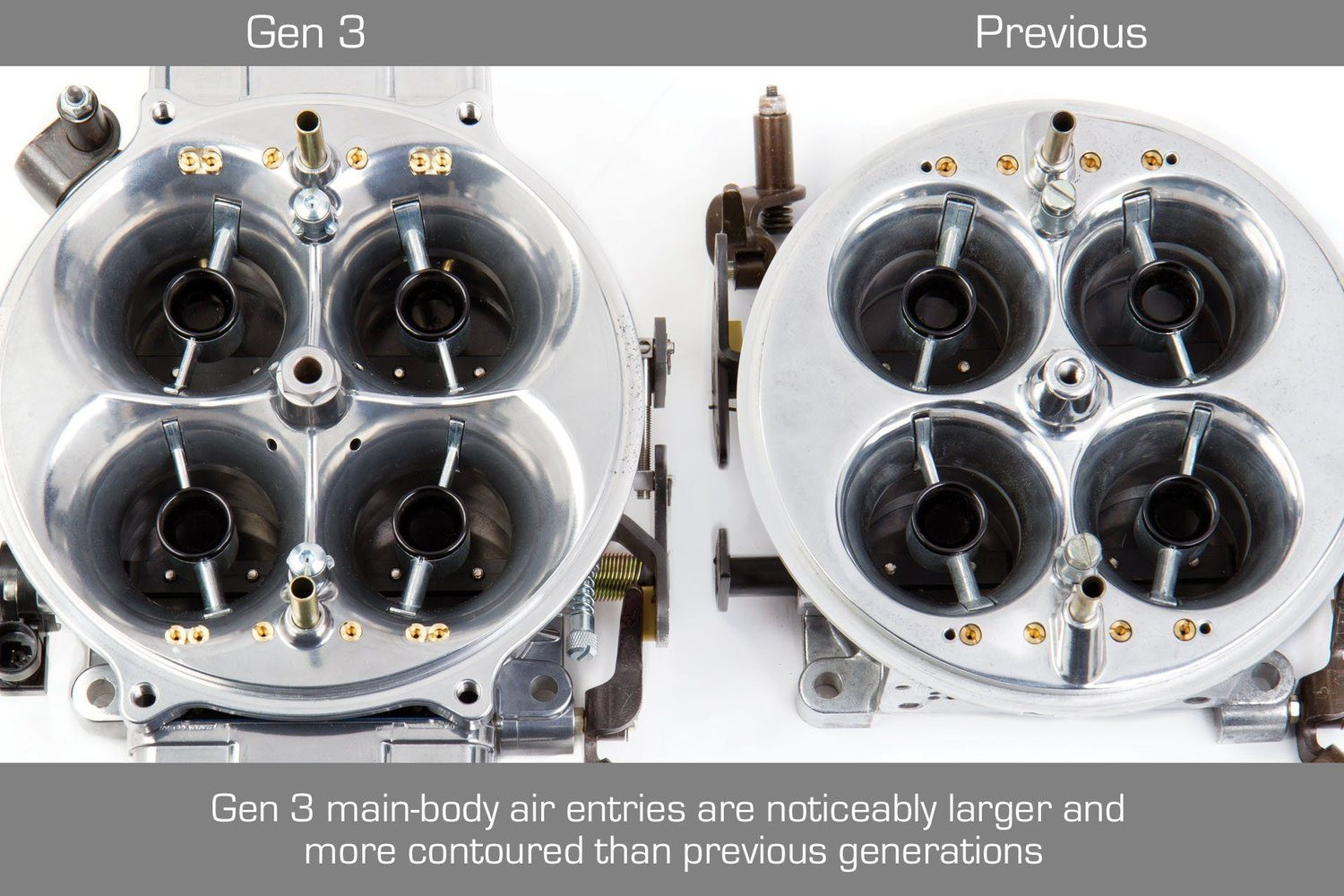

Ultra Dominator Series Carburetor (0-80908HB) by Holley®. The original Dominator took carburetion to another level in 1969 when it was developed for NASCAR® racing. It has been refined over the years and has received its biggest change ever. The Gen 3 Ultra Dominator features a brand new main–body, brand new state–of–the–art calibrations, high volume fuel bowls! The patent pending GEN 3 main–body is 5/16” taller than the previous generation! This new height allowed for larger radius air entries which were optimized using Computational Fluid Dynamics (CFD) software to deliver smoother flow into new fully machined, big bore venturii. The main-body also features an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship as well as an extended air cleaner flange for easy air scoop attachment when using the available air scoop adapter. The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12 hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno and track tested to deliver proven performance!

Installation

Holley® - Ultra Dominator Series Carburetor Installation Instructions

Holley® - Ultra Dominator Series Carburetor Installation Instructions Holley® - Warranty Holley® - Catalogs Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

0-80908HB

UPC:

090127684603

Alternate MPN:

080908HB

Warranty

Holley warrants its products to be free from defects in materials or workmanship for a period of 90 days. The warranty period begins on the date the product is delivered.

Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.

Holley limits the warranty on Metallic Ceramic Coatings to be free from defects in material and workmanship for a period of 90 days from the date of purchase. This limited coating warranty does not apply to any products which have been subjected to adverse conditions, such as high heat encountered during engine break-in or if used during any racing activity.

Holley Performance Products warrants its new marine products to be free from defects in material and workmanship for a period of 90 days from date of purchase. For the safety and protection of persons and property, all United States Coast Guard and other marine product safety installation and use requirements and recommendations must be carefully studied and applied. The above recommendations include, but are not limited to the recommendation that the installation, adjustment, and repair of Holley carburetors or other marine products must be performed only by a trained mechanic having adequate marine fuel system experience, and in strict compliance with the applicable Holley installation, maintenance, and other instructions. Failure to follow such requirements and recommendations will void this Holley Marine Limited Warranty, and Holley disclaims any responsibility and/or liability for accidents resulting from such failure.

Holley® Performance Products warrants its Holley® Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Street Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Holley® Performance Products warrants its Holley® Marine Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Marine Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
