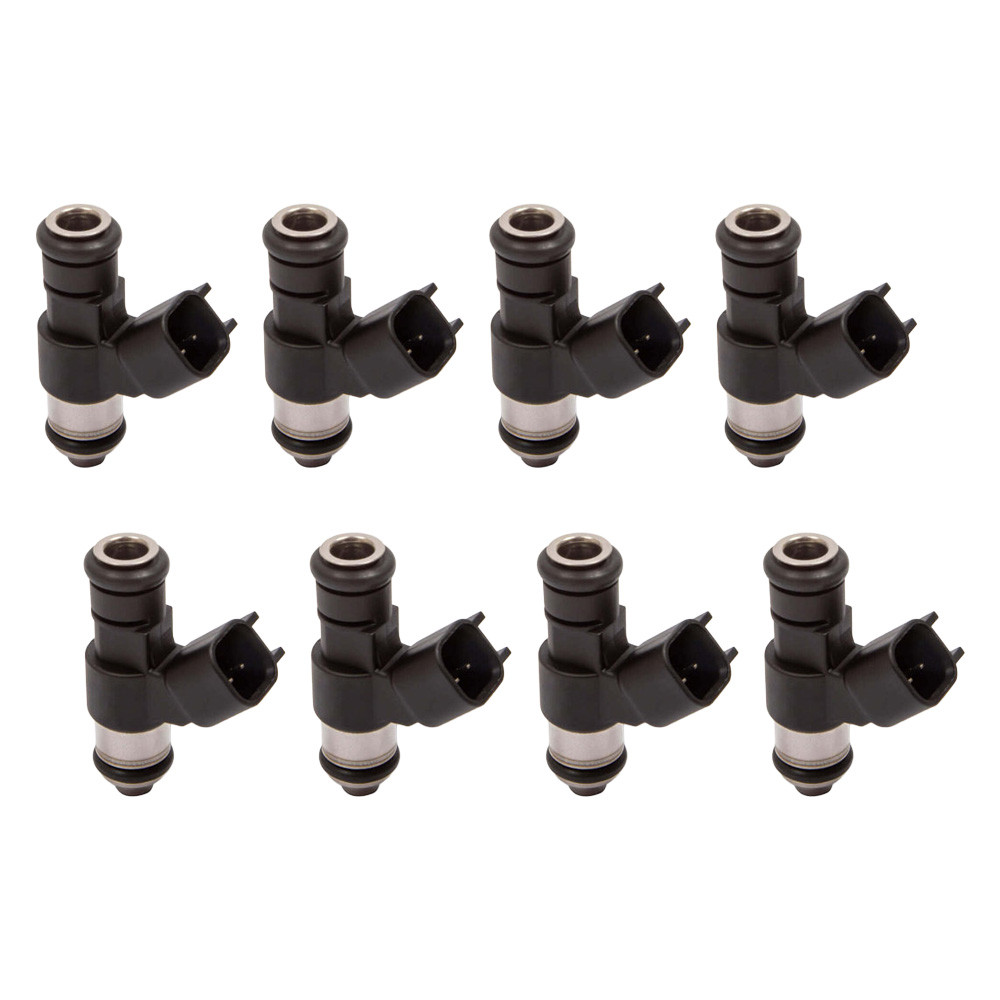

Name: Holley® 522-228XFM - Terminator X Fuel Injectors
Brand: Holley
SKU: mpn5234372315
Price: 999.95 USD
Availability: InStock

Vehicle Fitment

This part is universal

Specifications

Body Diameter	0.65
Body Length	1.85"
Body Style	EV6
Fuel Type	E-85, Gasoline, Methanol
Impedance	High (12.2 Ohm)
O-Ring to O-Ring	1.421
Quantity	8
Rated Injector Flow	220 lb/hr
Terminal Quantity	1

Features

PICO/EV6 style performance injectors
Dynamic Flow Matched within 1%
High impedance for use with saturated drivers
Rated injector flow from 42 lb/hr to 120 lb/hr for a wide array of applications
At 60 PSI base pressure, 220 lb/hr injectors rated at 43 PSI base pressure
40mm o-ring to o-ring length
Injector Off Time provided in Holley EFI software

Product Details

Terminator X Fuel Injectors (522-228XFM) by Holley®. Terminator X fuel injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m), you're sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
