Name: Holley® 553-109 - Stand Alone Digital Dash Kit
Brand: Holley
SKU: mpn5235331156
Price: 1649.95 USD
Availability: InStock

Vehicle Fitment

This part is universal

Specifications

Brand	Holley®
Depth	1"
Emission Code	5
Grade Type	Performance
Height	4.625"
Illuminated	Yes
Maximum Gauge Diameter	Programmable
Minimum Gauge Diameter	Programmable
Mounting Hardware Included	No
Screen Size	7" Diagonal
Screen Type	Resistive touch screen
Width	7.5"

Features

Plug and play to Holley EFI systems via CAN bus (not compatible with Sniper 2)
Weatherproof aluminum housing allowing flexible mounting options (template included)
7” screen with 800 x 480 resolution measuring at 4.625" H x 7.5” W x 1" Depth
Auto brightness and dimming with low glare to the touchscreen to view from any driving angle
10 preconfigured screens you can customize to personal preferences displaying any measurements
Complete customizable display of all EFI parameters including every user configurable input and output available
Numerous gauge and indicator types with limitless customization options
Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual switch panel replacing the need for physical switches in vehicles
Built in warning lights and alarms to keep you alert for any set parameters
Progressive shift light and multiconfiguration light bar
Control and on-screen playback of data logs
Download and save data logs to external USB memory stick or expand internal storage on onboard microSD card
Integrated 3 Axis Accelerometer
Ability to connect to Holley and non-Holley ECU’s

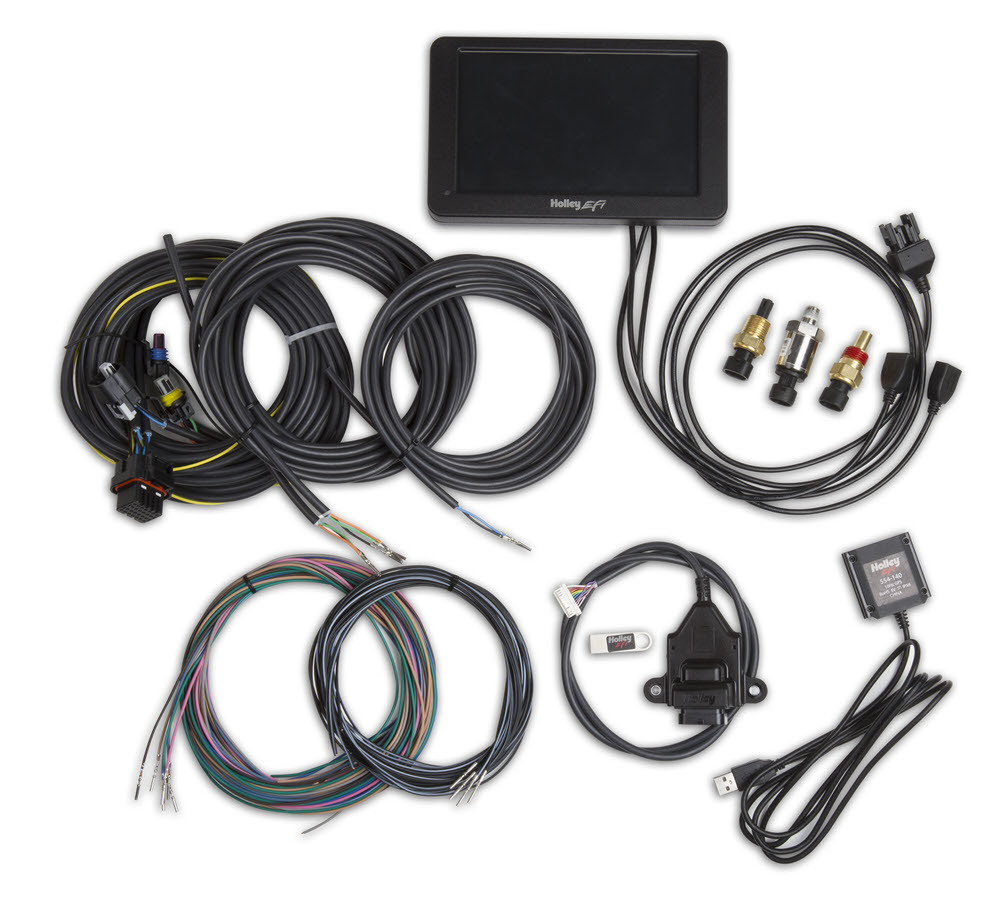

Includes digital dash with input/output adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, coolant temperature sensor, manifold air pressure (MAP) sensor, GPS module

Product Details

Stand Alone Digital Dash Kit by Holley®. Holley Performance Products has been the undisputed leader in fuel systems for over 100 years. Holley's products include carburetors, fuel pumps, fuel injection, intake manifolds, and much more. From start to finish, Holley has the parts to make your dream a reality.

Holley® - Warranty Holley® - Catalog Made In USA Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

553-109

UPC:

090127734377

Alternate MPN:

553109

Warranty

Holley warrants its products to be free from defects in materials or workmanship for a period of 90 days. The warranty period begins on the date the product is delivered.

Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.

Holley limits the warranty on Metallic Ceramic Coatings to be free from defects in material and workmanship for a period of 90 days from the date of purchase. This limited coating warranty does not apply to any products which have been subjected to adverse conditions, such as high heat encountered during engine break-in or if used during any racing activity.

Holley Performance Products warrants its new marine products to be free from defects in material and workmanship for a period of 90 days from date of purchase. For the safety and protection of persons and property, all United States Coast Guard and other marine product safety installation and use requirements and recommendations must be carefully studied and applied. The above recommendations include, but are not limited to the recommendation that the installation, adjustment, and repair of Holley carburetors or other marine products must be performed only by a trained mechanic having adequate marine fuel system experience, and in strict compliance with the applicable Holley installation, maintenance, and other instructions. Failure to follow such requirements and recommendations will void this Holley Marine Limited Warranty, and Holley disclaims any responsibility and/or liability for accidents resulting from such failure.

Holley® Performance Products warrants its Holley® Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Street Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Holley® Performance Products warrants its Holley® Marine Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Marine Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
