Fits Following Engines: 262 CID GM (LS) Small Block Generation V
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 376 CID GM (LS) Small Block Generation IV
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 294 CID GM (LS) Small Block Generation III
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 294 CID GM (LS) Small Block Generation IV
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 325 CID GM (LS) Small Block Generation IV
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 325 CID GM (LS) Small Block Generation V
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 427 CID GM (LS) Small Block Generation IV
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 350 CID GM (LS) Small Block Generation III
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 376 CID GM (LS) Small Block Generation V
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 364 CID GM (LS) Small Block Generation III
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 325 CID GM (LS) Small Block Generation III
Fits LS1, LS2, LS3, LS6 and LS7 engines
Fits Following Engines: 364 CID GM (LS) Small Block Generation IV
Fits LS1, LS2, LS3, LS6 and LS7 engines
Specifications
Baffle Included
Yes
Bolt Pattern
Center Bolt
Breather(s) Included
No
Coil Mounting Studs
Yes, on Baseplate
Coil Options
with Coil Stands
Color
Black
Construction
Die Cast Aluminum
Design Type
2-Piece LS
Emission Code
3
Finish
Black
Gaskets Included
No
Gromment(s) Included
No
Grommets Included
No
Hardware Included
Yes
Height
4.125"
Hold Down Tabs Included
No
Logo
None
Material
Cast Aluminum
Mounting Hardware Included
Yes
Oil Fill
Yes
Oil Fill Cap Included
Yes
Oil Filler Cap Included
Yes
Overall Height
4.125"
Quantity
Pair
Style
Pontiac
Type of Component
Valve Cover
Valvetrain Clearance
.750" lift cam with stock style rocker arms

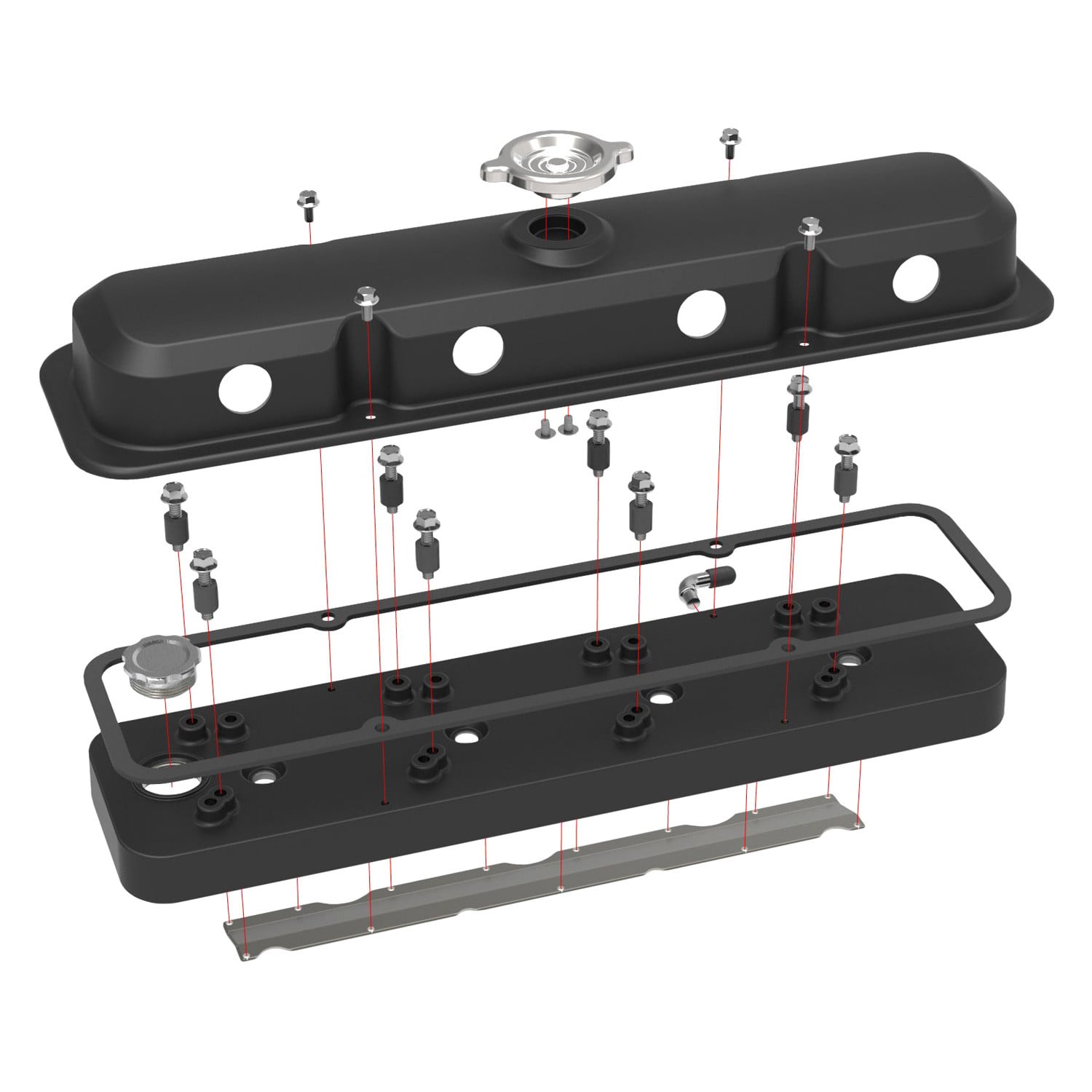

Includes
Valve Covers
Hardware
Billet Oil Fill Cap
Features

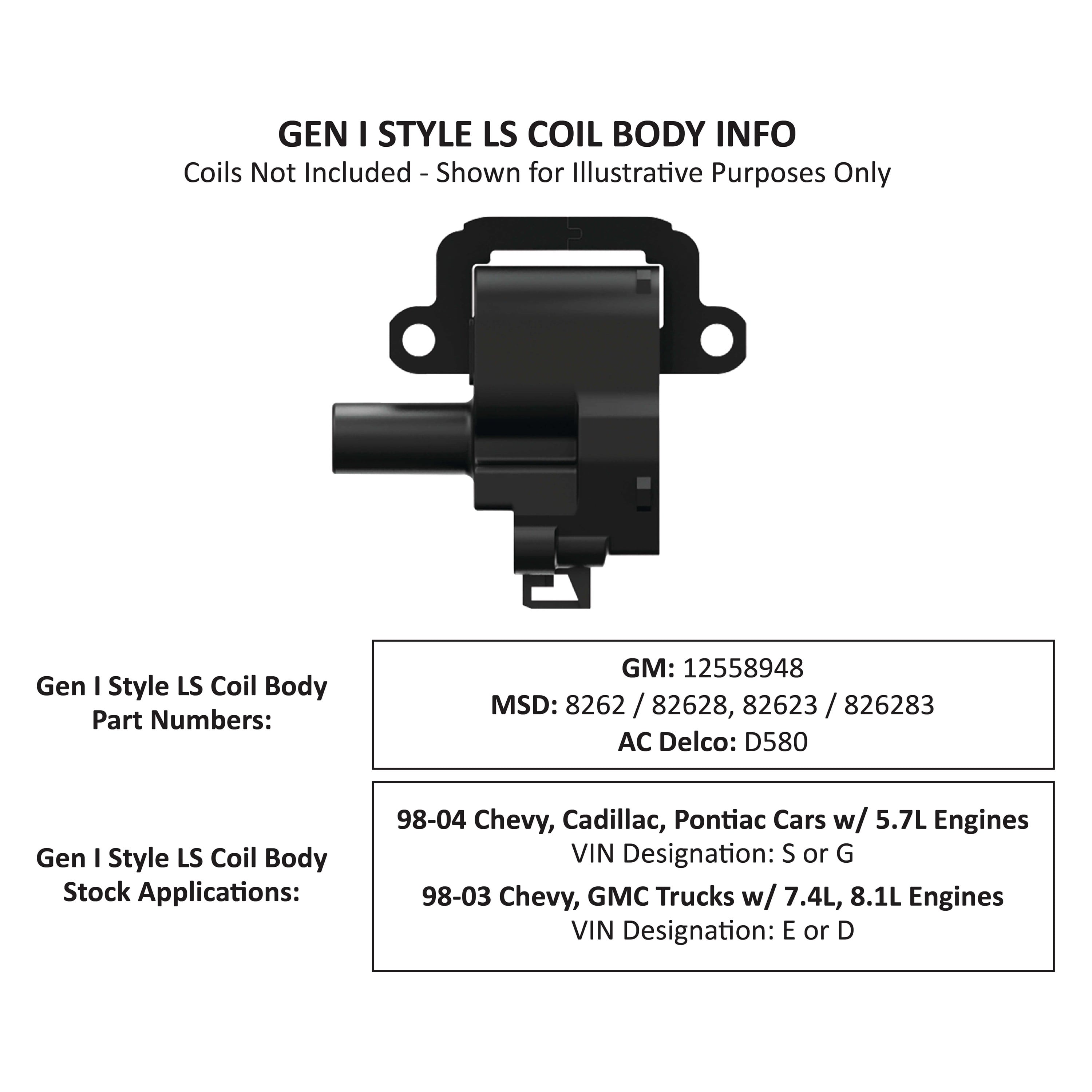

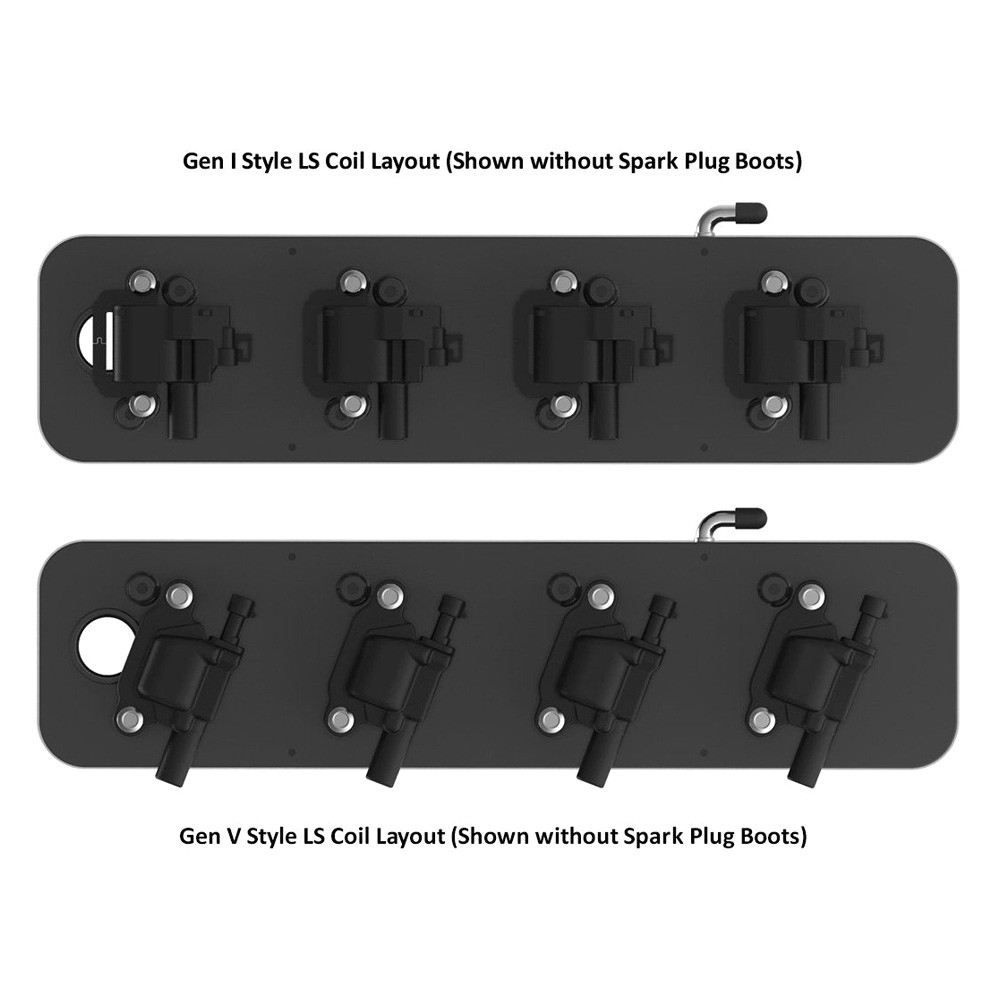

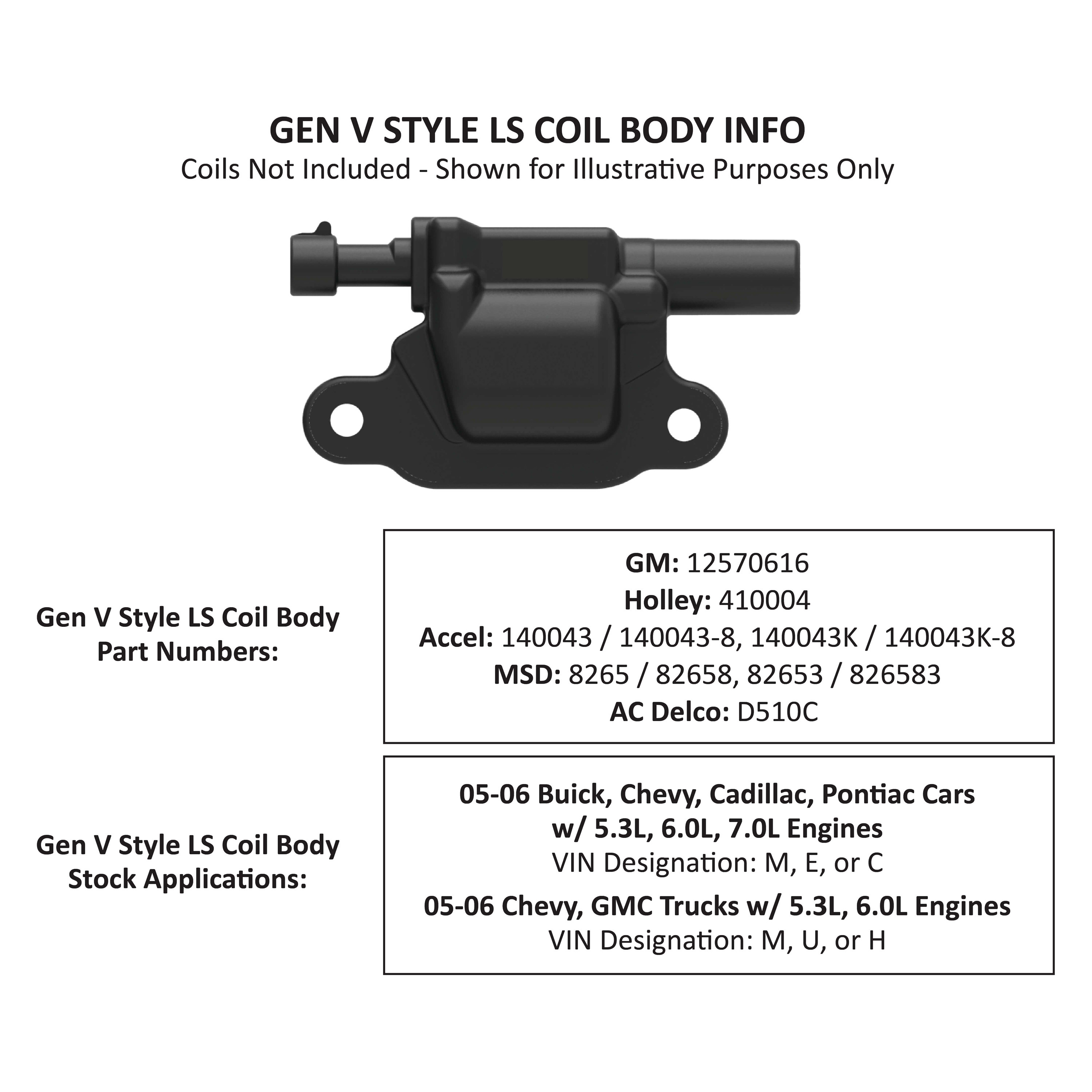

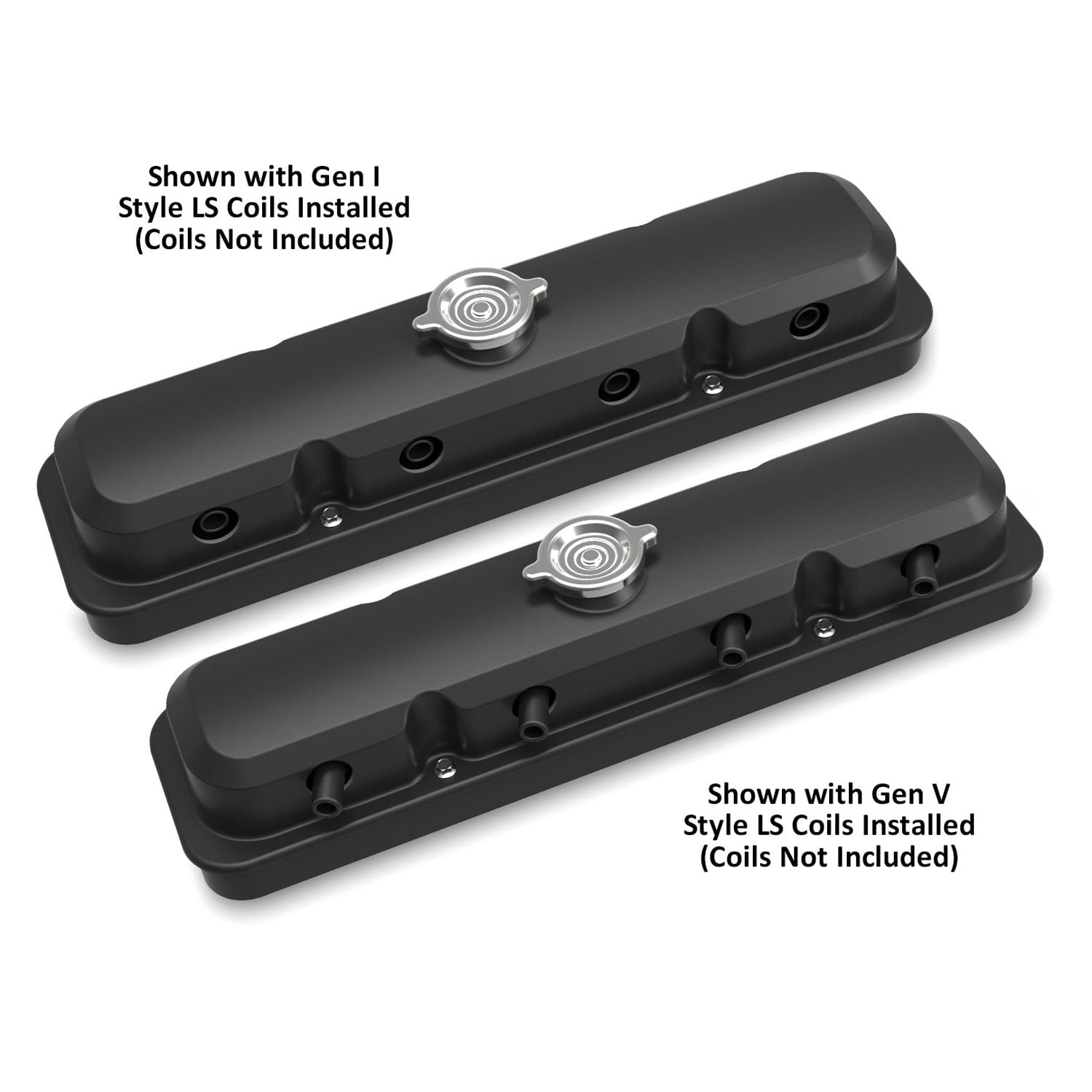

Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies
Retain the performance of factory coil-on-cover ignition without the unsightly styling
Coil cover features vintage Pontiac valve cover styling with a billet aluminum simulated fill cap assembly and cast-in wiring provisions
Base fits LS1, LS2, LS3, LS6 and LS7 engines with clearance for .750” lift cam with stock style rocker arms

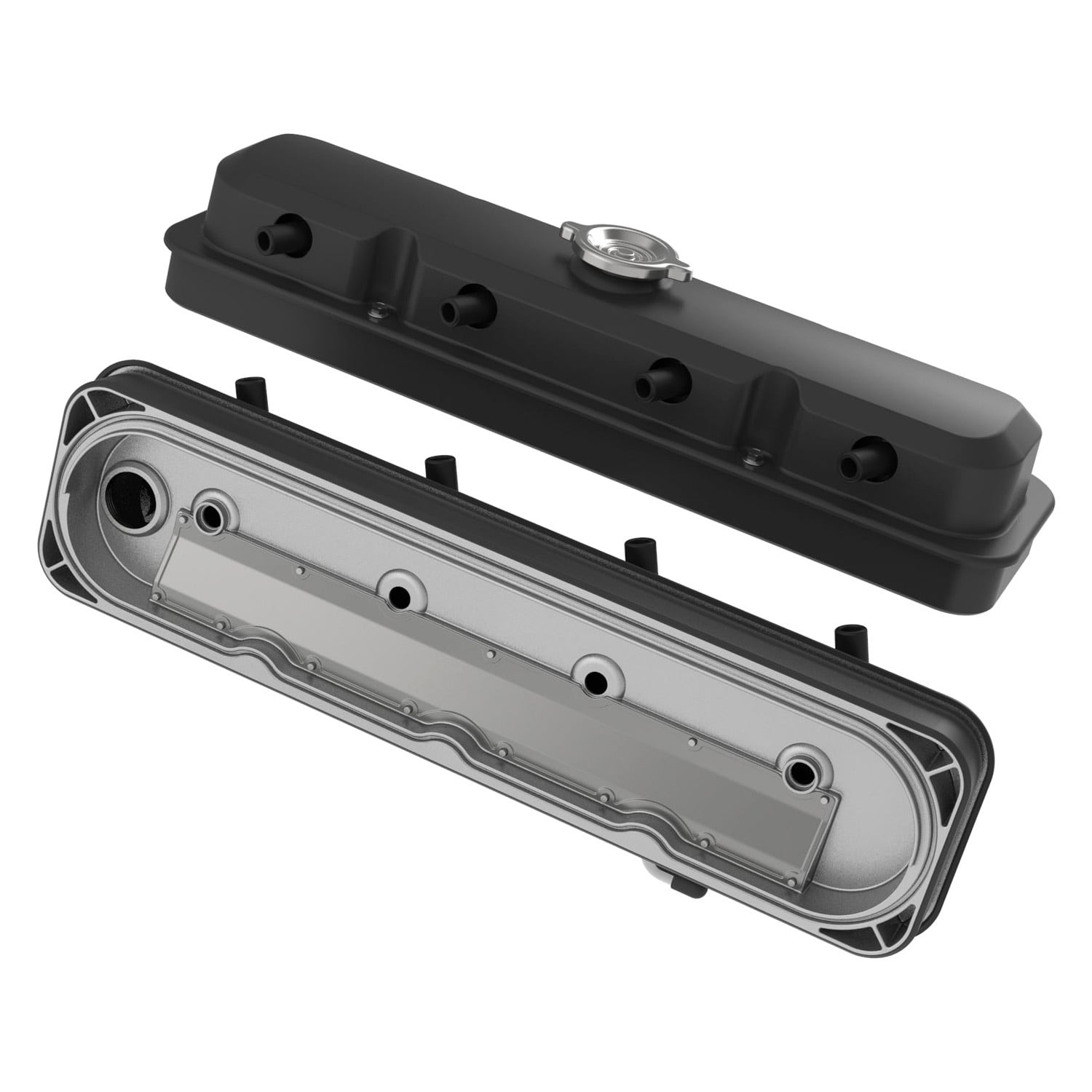

Base features internally baffled ventilation system
No coil relocation, wire harness extensions, or custom spark plug wires required
Product Details

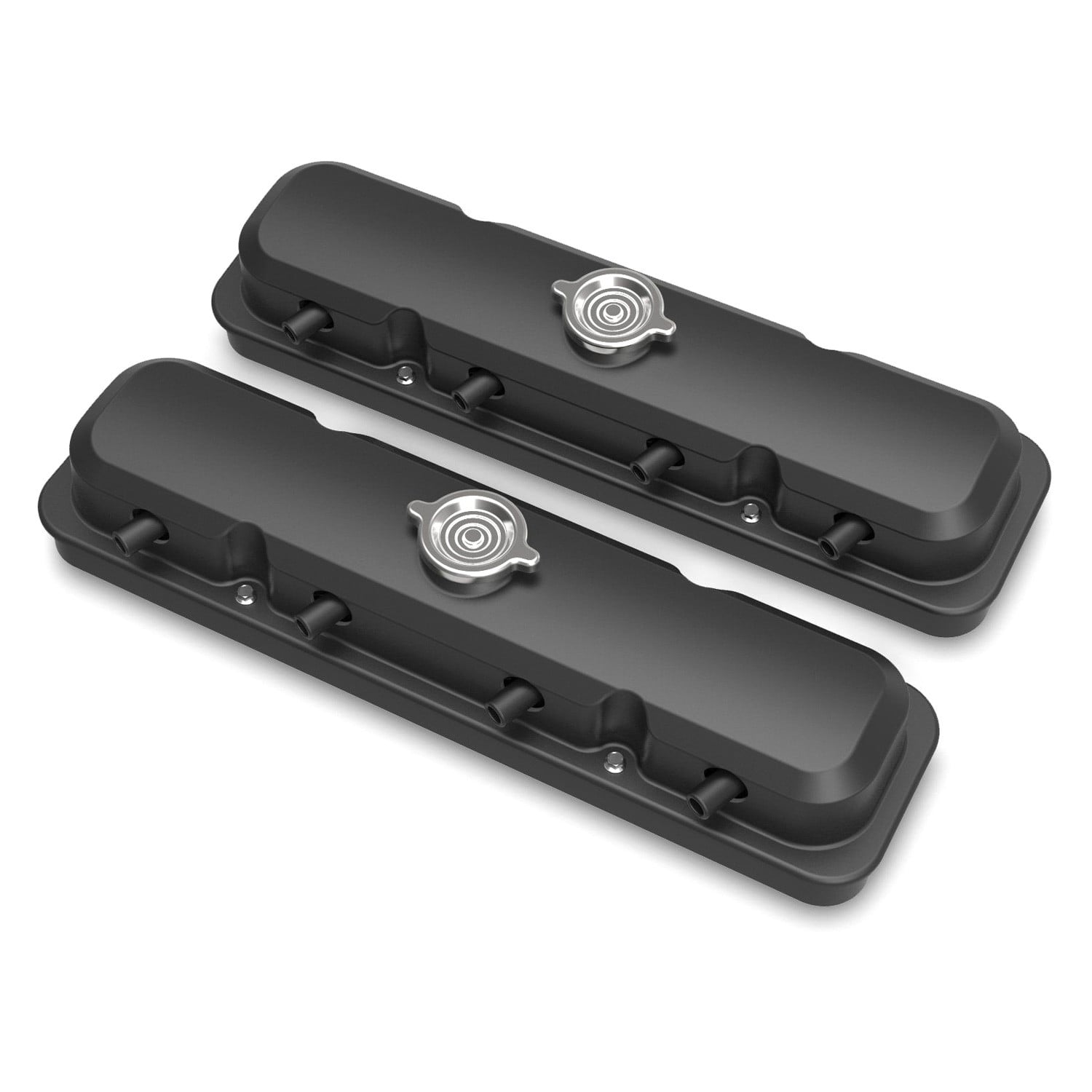

Valve Cover Set with Coil-Mounting Base (GM (LS) Small Block Gen IV) by Holley®. Holley's 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies, and a Pontiac style overcover that hides the unsightly LS coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling. Each modular coil cover features a billet aluminum simulated oil fill cap which helps maintain the original Pontiac styling. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required.
As a tall LS valve cover they have added an additional 0.54” of internal clearance over factory height valve covers, which allows for additional valve train clearance and adds a muscular touch to your engine bay. The Holley Vintage Series valve covers are designed to fit LS1, LS2, LS3, LS6 and LS7 engines. These covers come ready for installation with an OE style baffle and ventilation system, lengthened factory style mounting hardware, and a billet aluminum oil fill cap. (Customers are encouraged to reuse or replace the flange gaskets specific to their application.)
