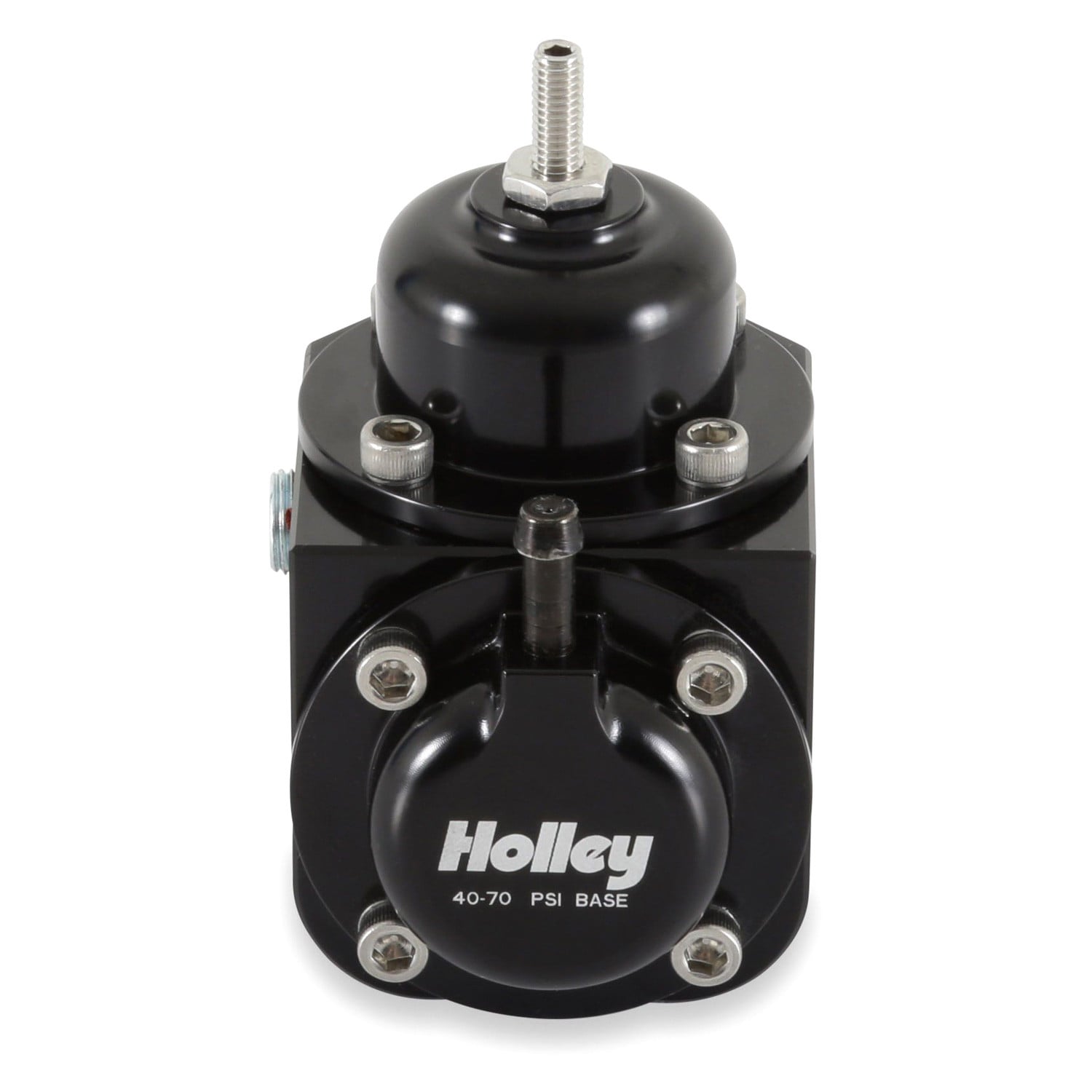

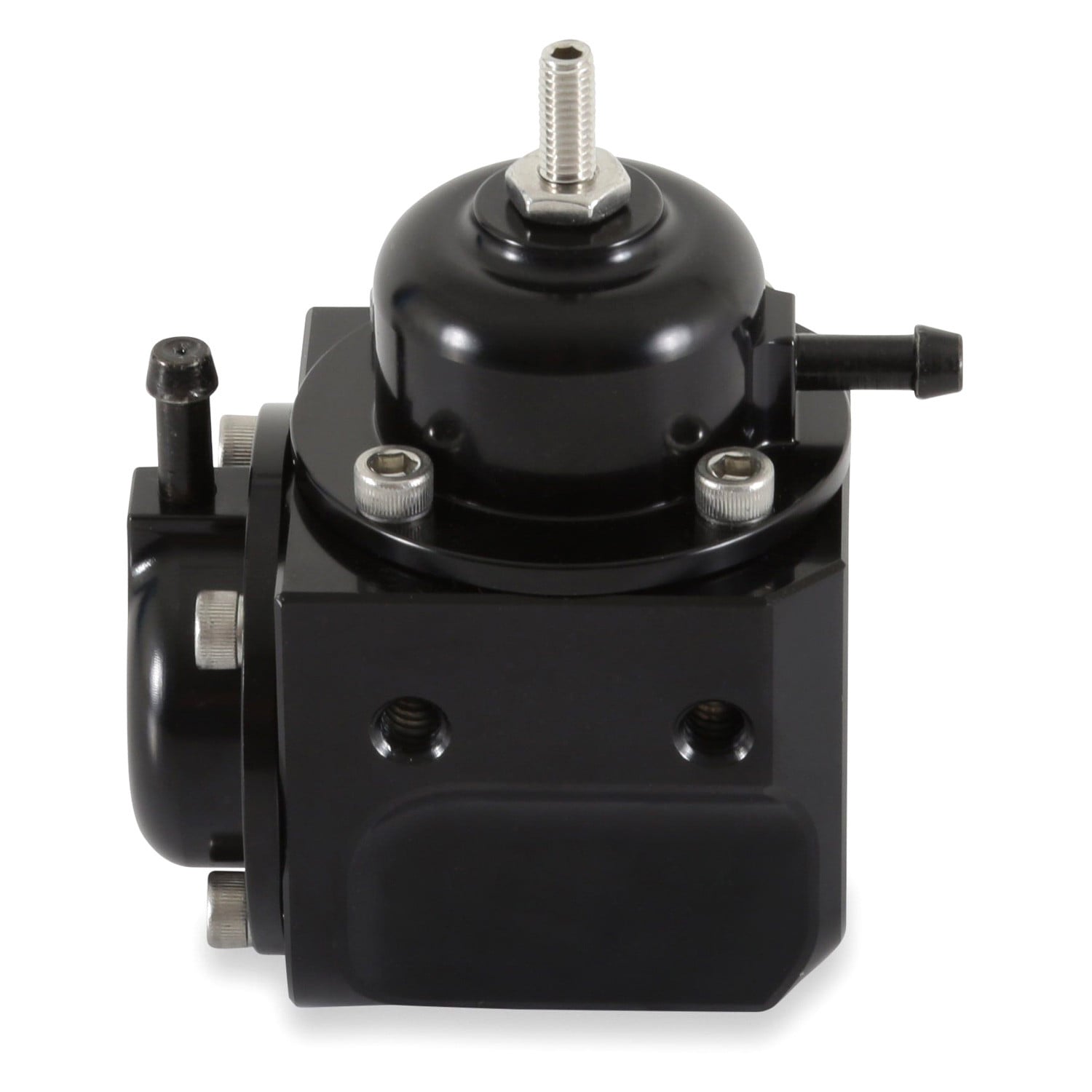

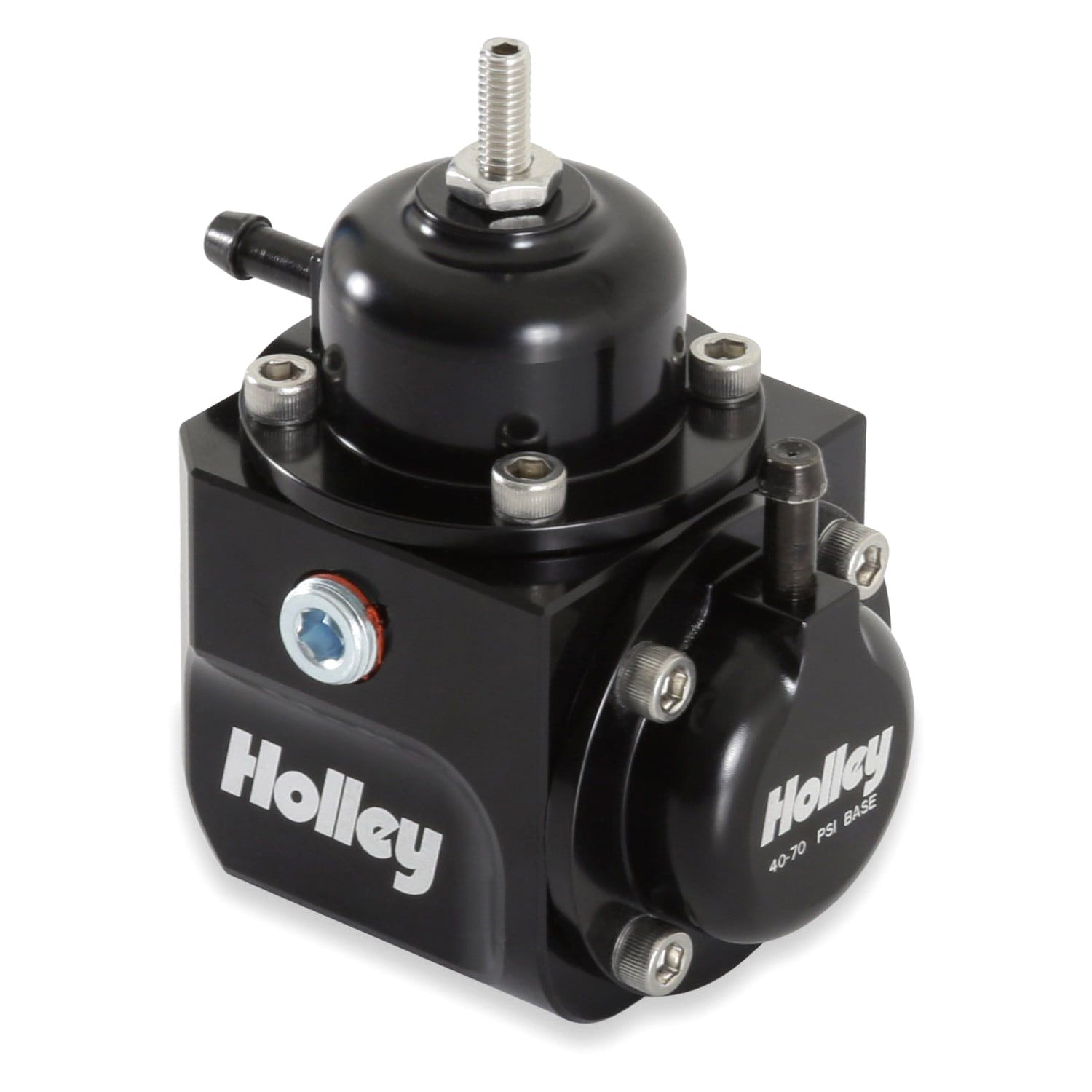

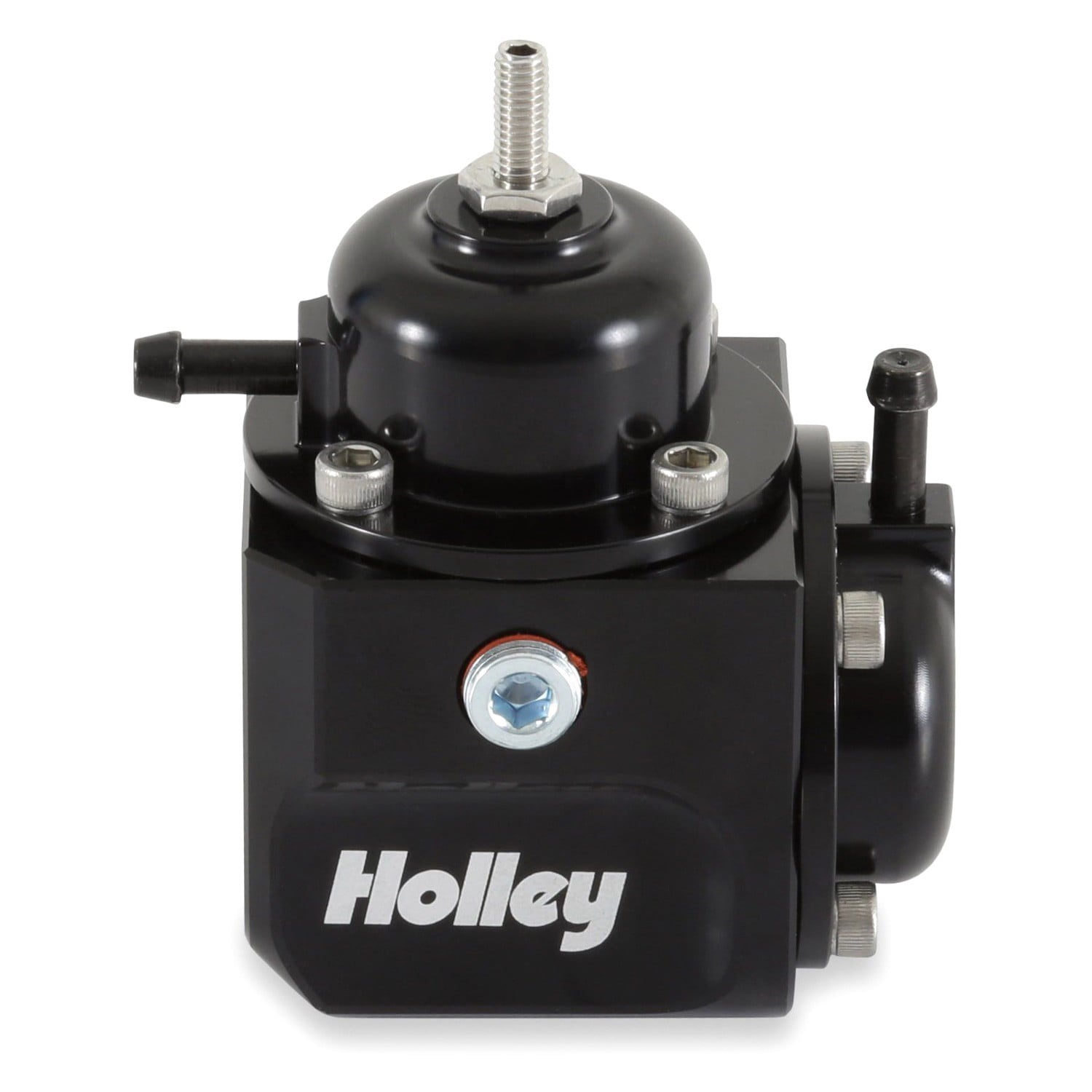

Holley® 12-1000 - Fuel Regulator/Damper

0 reviews|Item # mpn5180247991

Universal Fit

Not Vehicle Specific

Notes:

This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME.

Authorized Dealer

$340.95

In Stock (6) - Ships in 24 to 48 hrs

Have a Question? Ask a Specialist

888-577-6964Live Chat

Vehicle Fitment

This part is universal

Specifications

Adjustable	Yes
Emission Code	3
Finish	Anodized Black
Fuel Type	Gasoline / Ethanol / Methanol / E85
Gauge Included	No

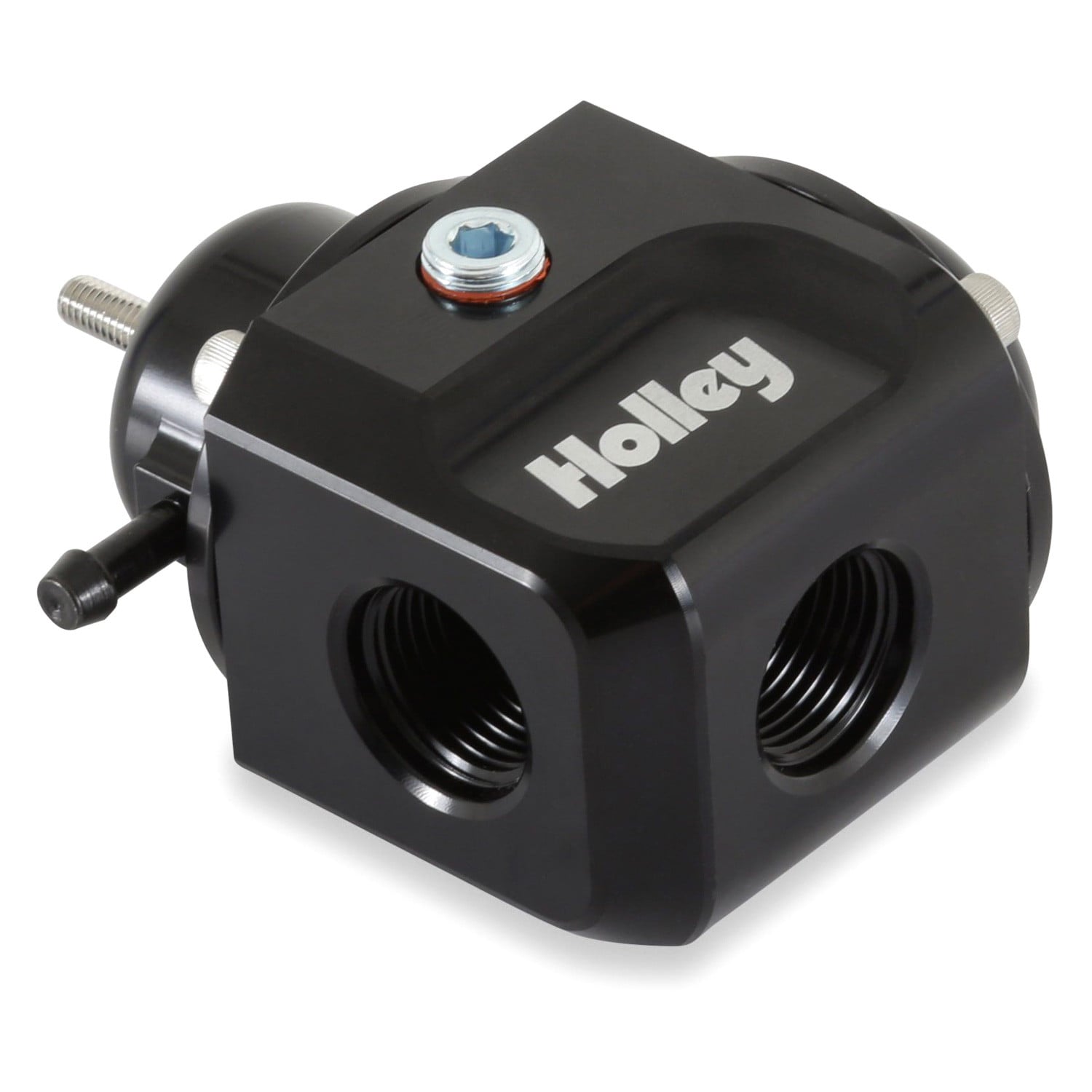

Inlet/Outlet Size	3/4-16 Female O-Ring (AN 8)
Inlet Gender	Female
Inlet Port Diameter	8 AN ORB
Inlet Port Quantity	1
Inlet Type	8 AN ORB
Maximum Pressure	70 PSI
Minimum Pressure	40 PSI
Mounting Bracket Included	Yes
Mounting Type	Inline
Outlet Gender	Female
Outlet Port Diameter	8 AN ORB
Outlet Port Quantity	1
Outlet Type	8 AN ORB
Port Quantity	2
Pressure Range	40-70 PSI
Style	Billet Aluminum
Vacuum Port Quantity	2

Features

Engineered to stabilize pressure pulsations caused by the injectors opening
Ideal for applications with large fuel injectors and high volume fuel pumps
Compatible with any fuel
Full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm

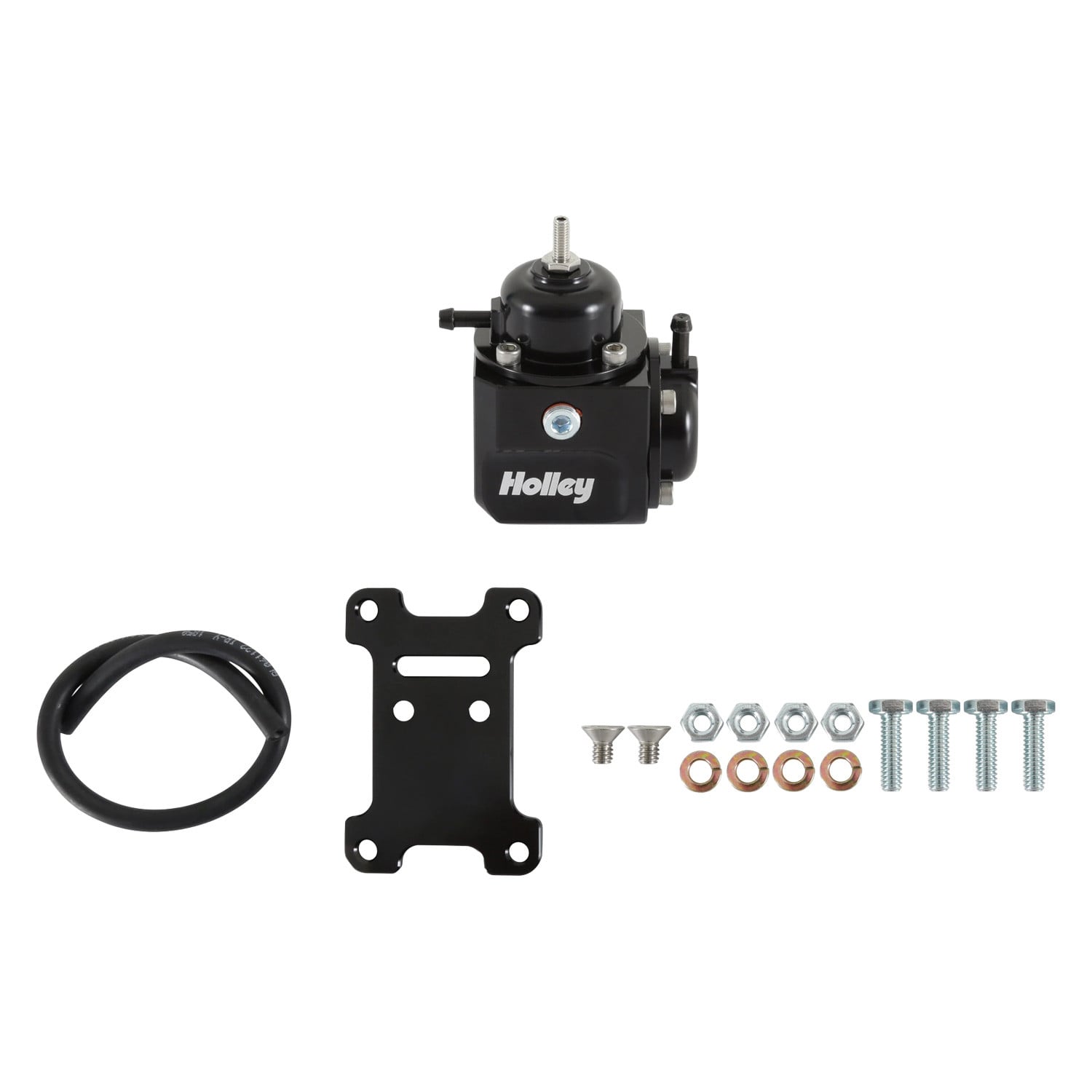

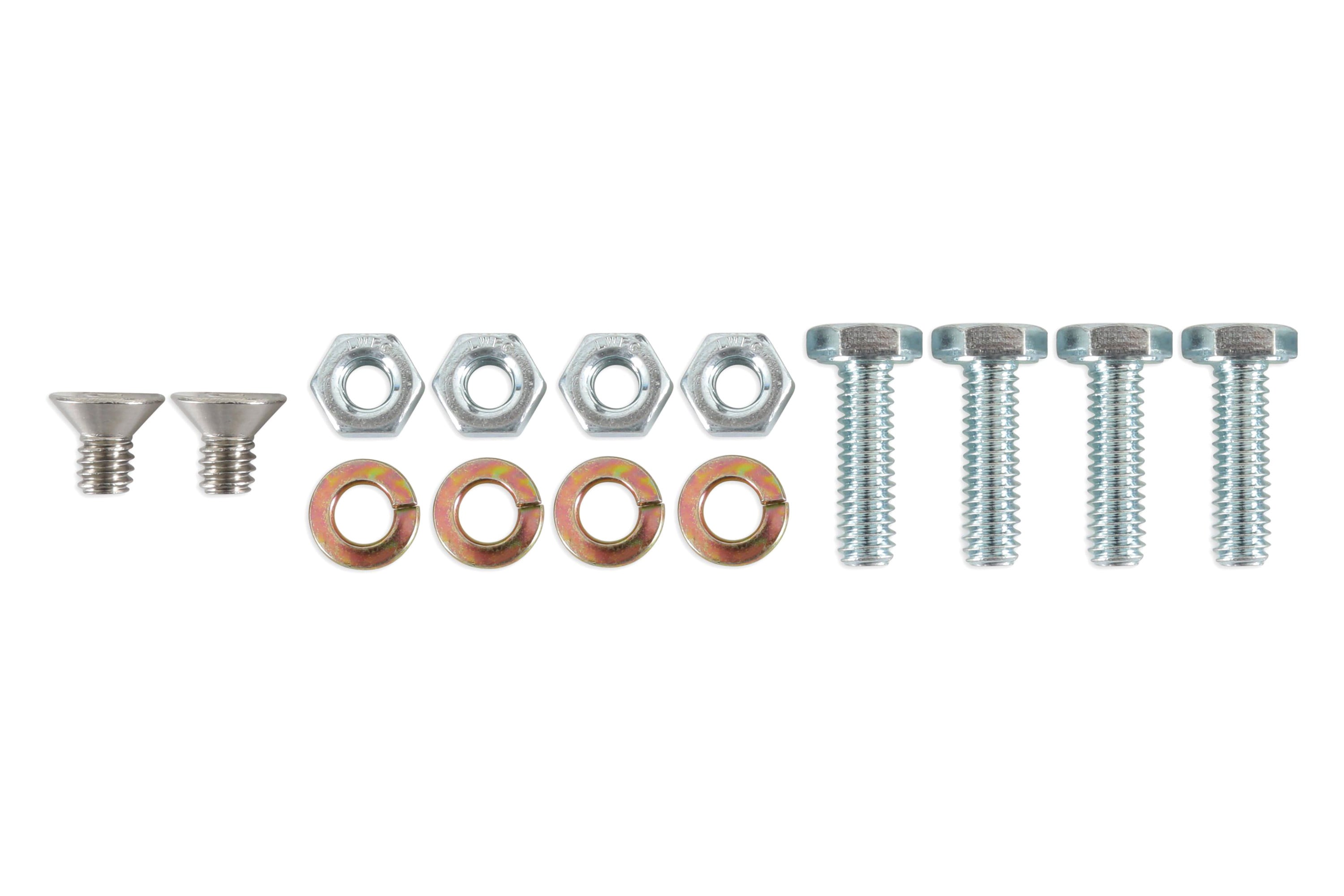

Fittings included for damper/regulator’s and direct mount dampers
1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer

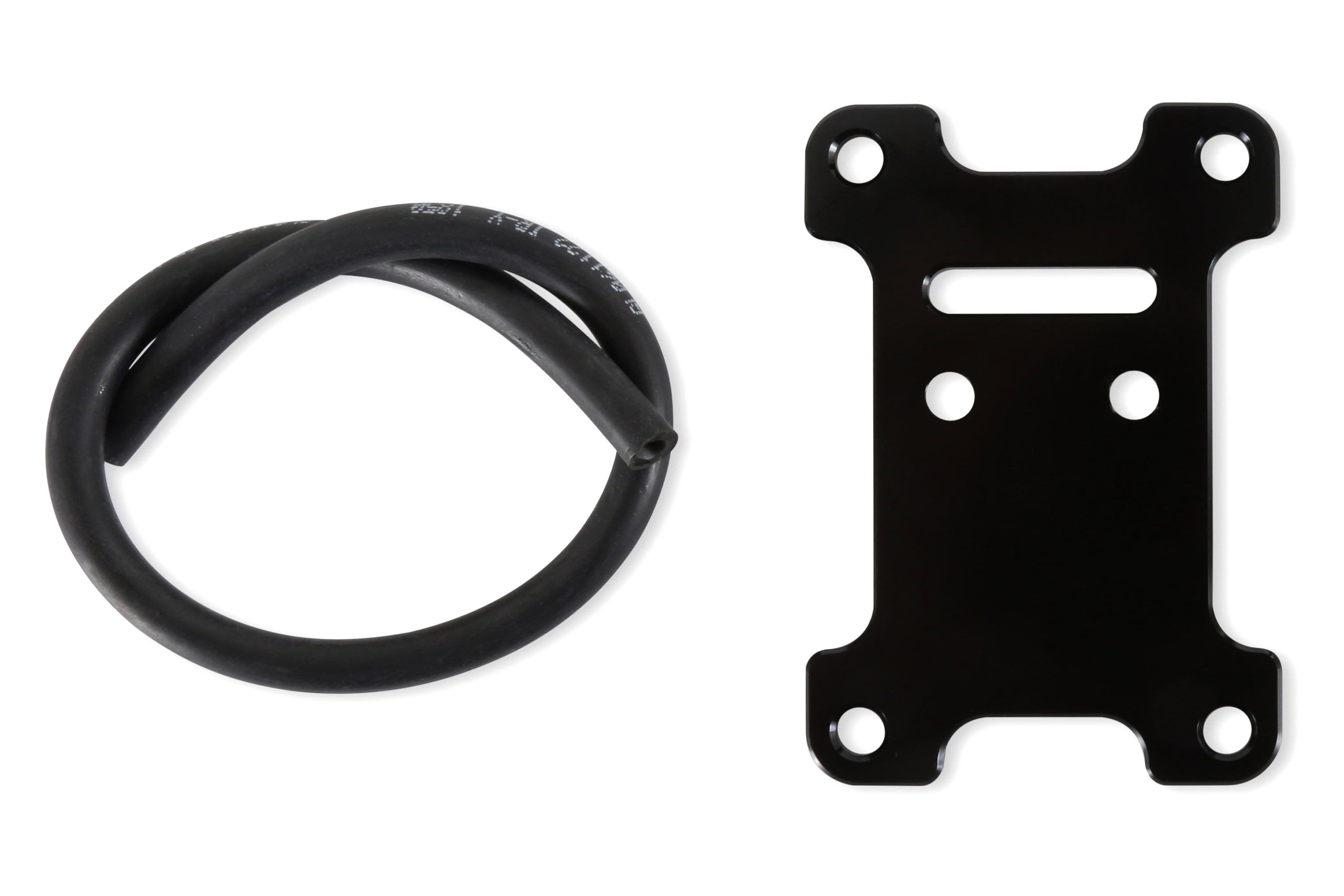

Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
Assembled and tested in the USA

Product Details

Fuel Regulator/Damper by Holley®. Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine
