Name: Holley® 12-363 - Fuel Pump Module System
Brand: Holley
SKU: mpn5180248738
Price: 562.95 USD
Availability: InStock
Rating: 4 (1 reviews)

Vehicle Fitment

Chevy

Pontiac

Specifications

Average Flow Rating	450 LPH
Connector Color	Gray
Connector Gender	Female
Connector Quantity	1
Emission Code	5
Finish	Anodized Black
Free Flow GPH	118
Free Flow LPH	450
Fuel Filter Included	Yes
Fuel Sending Unit Included	Yes
Fuel System	EFI
Fuel Type	Gasoline/E85 Compatible
Gasket Or Seal Included	Yes
Gasket Or Seal Material	Rubber
Height	Standard
Housing Material	Aluminum
In Tank or External	In Tank
Inlet Quantity	One
Inlet Size	6 AN ORB
Inlet Type	6 AN ORB
Internal Or External Strainer	External
Lock Ring Included	No
Material	Billet Alluminum 6061-T6
Maximum Pressure	60 PSI
Mounting Hardware Included	Yes
Negative Ground	Yes
Outlet Quantity	1
Outlet Size	6 AN ORB
Outlet Type	6 AN ORB
Pump Type	Electric
Regulator Included	No
Resistance Ohms Empty	33 Ohms
Resistance Ohms Full	240 Ohms
Single Or Dual Pump	Single
Voltage	12 VDC
Wire Quantity	4

Features

Designed to deliver trouble-free, consistent performance
Right for your vehicle and lifestyle
Made from high-quality materials for ultimate durability
Manufactured to meet or exceed strict quality requirements

Product Details

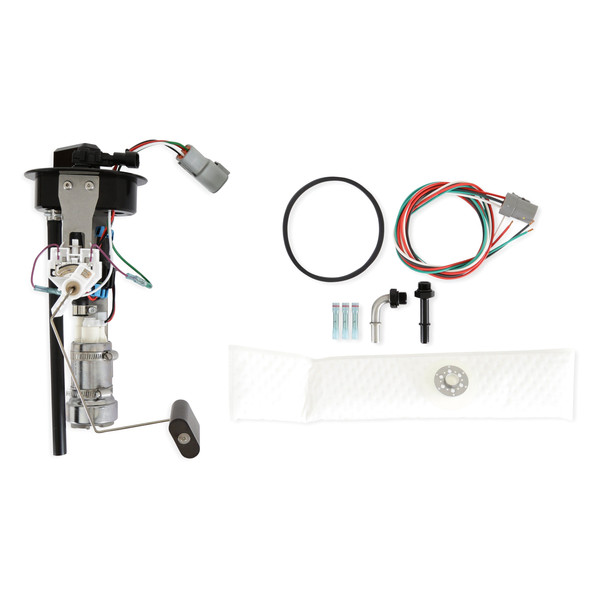

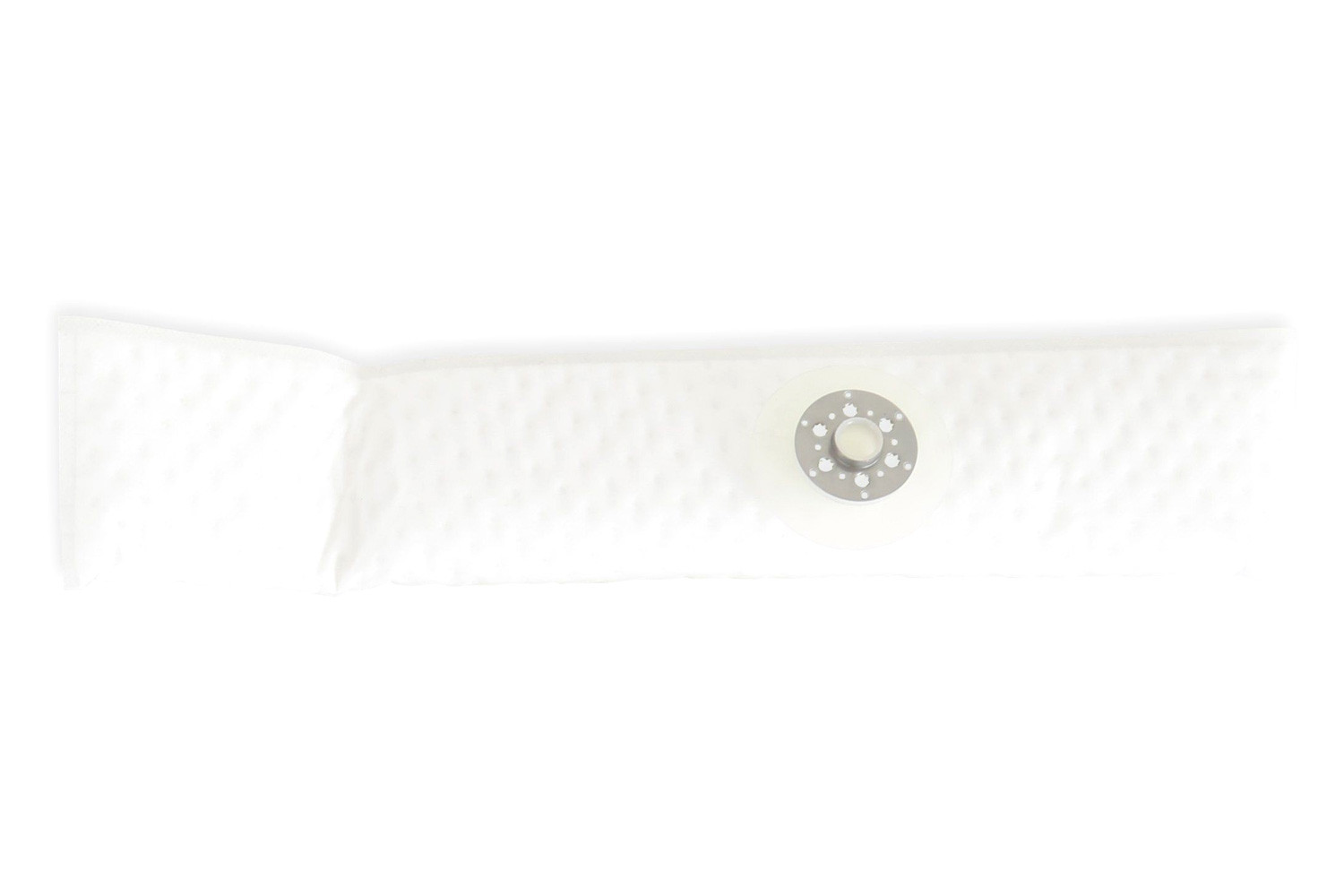

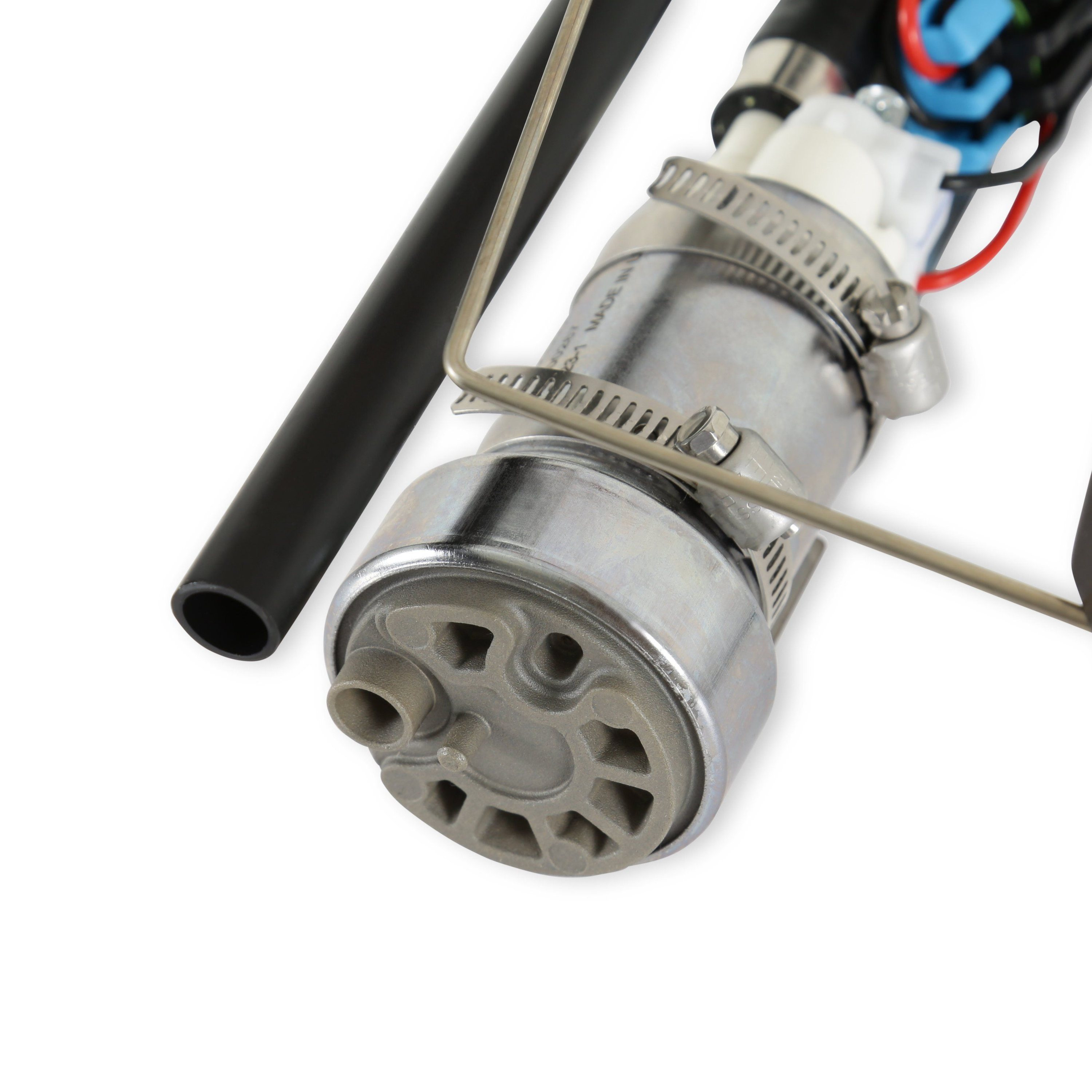

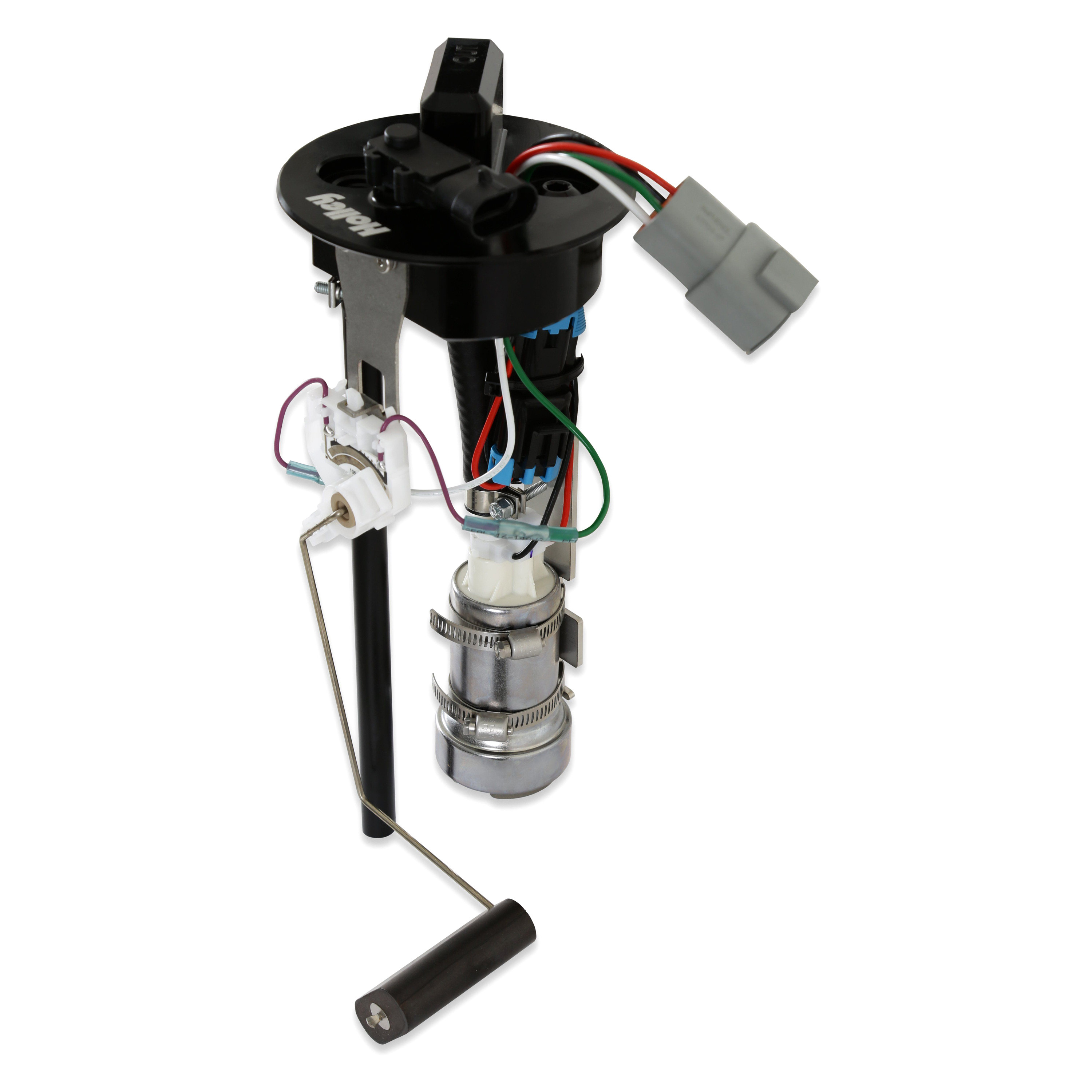

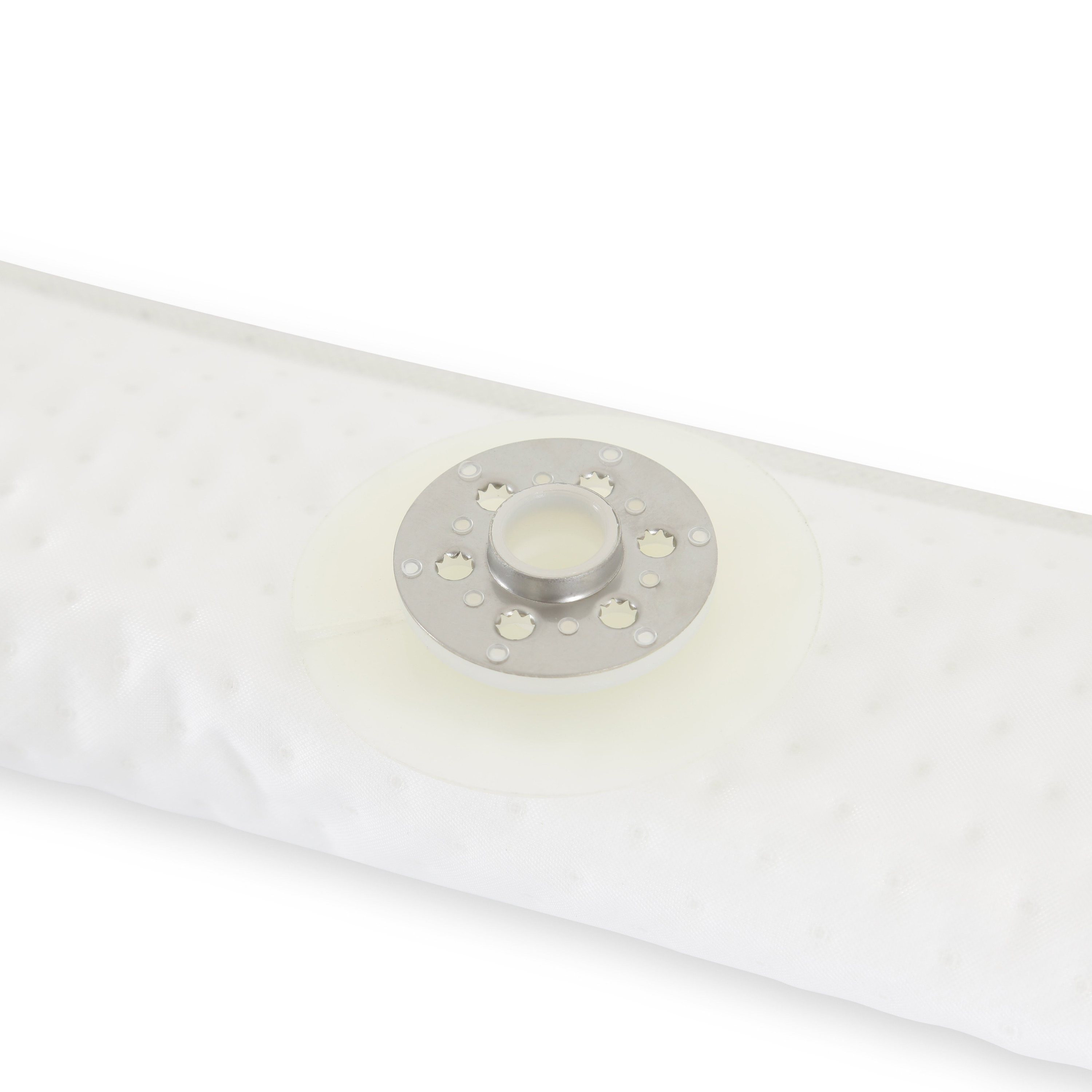

Fuel Pump Module System (12-363) by Holley®. Update the fuel system in your Dodge truck with a high performance in-tank EFI fuel pump module. These fuel modules fit inside the factory tank & feature a billet aluminum flange, HydraMat®, fuel sending unit, and high performance pump. Choose from 255 or 450 LPH (liters per hour) fuel flow & return style or returnless design. The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat® is the solution!
