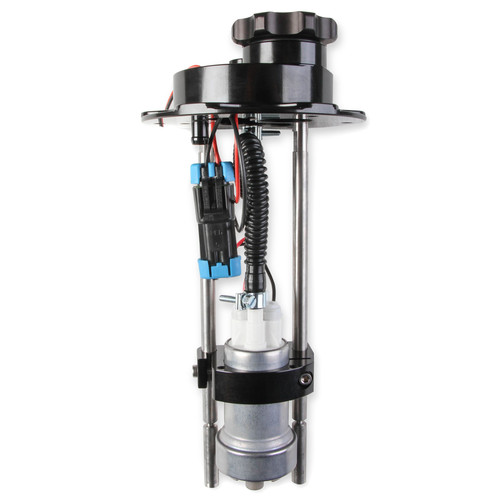

Name: Holley® - Fuel Pump Assembly
Brand: Holley
SKU: mpn5233444841
Price: 675.95 USD
Availability: InStock

Vehicle Fitment

This part is universal

Specifications

Average Current Draw	16.9 68
Average Flow Rating	450 LPH
Connector Color	Black
Connector Gender	Male
Connector Quantity	1
Emission Code	5
Flange Style	6 Bolt
Free Flow GPH	118
Free Flow LPH	450
Fuel Filter Included	Yes
Fuel Sending Unit Included	No
Fuel Type	E85, Gasoline
Gasket Or Seal Included	Yes
Gasket Or Seal Material	Cork
Height	Adjustable
Housing Material	Aluminum
In Tank or External	In Tank
Inlet Quantity	One
Inlet Size	8 AN
Inlet Type	8 AN ORB
Internal Or External Strainer	External
Lock Ring Included	Yes
Max PSI	87
Maximum Pressure	60 PS
Mounting Hardware Included	Yes
Negative Ground	Yes
Outlet Quantity	1
Outlet Size	10 AN
Outlet Type	10 AN ORB
Pump Type	Electric
Regulator Included	No
Single Or Dual Pump	Single
Voltage	12 2H
Wire Harness Included	Yes
Wire Quantity	2
Fuel Pump	Single Electric 400 LPH
Flow Rate	729 lb/hr
Pressure	87 PSI
Fuel Type	E-85
Type	6-Bolt Flange
Pump Type Location	In-Tank
Inlet and Outlet Size	-8 AN, -10 AN
Quantity	1 Piece

Includes

(1) Fuel Pump Hanger Assembly
(1) Gasket
(1) Mounting Ring
Mounting Screws
Plastic Washers
(2) Zip Ties
(1) Fuel Pump Sock

Features

Triple Chrome Plated Housings
Traditional Look Open Element Style
Low Restriction Paper Filter

Product Details

Fuel Pump Assembly (12-141) by Holley®. Designed utilizing the latest technology, this product by Holley features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.

Installation

Holley® - Fuel Pump Assembly Installation Instructions

Holley® - Fuel Pump Assembly Installation Instructions Holley® - Catalogs Holley® - Warranty Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

12-141

UPC:

090127029602

Alternate MPN:

12141

Warranty

Holley warrants its products to be free from defects in materials or workmanship for a period of 90 days. The warranty period begins on the date the product is delivered.

Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.

Holley limits the warranty on Metallic Ceramic Coatings to be free from defects in material and workmanship for a period of 90 days from the date of purchase. This limited coating warranty does not apply to any products which have been subjected to adverse conditions, such as high heat encountered during engine break-in or if used during any racing activity.

Holley Performance Products warrants its new marine products to be free from defects in material and workmanship for a period of 90 days from date of purchase. For the safety and protection of persons and property, all United States Coast Guard and other marine product safety installation and use requirements and recommendations must be carefully studied and applied. The above recommendations include, but are not limited to the recommendation that the installation, adjustment, and repair of Holley carburetors or other marine products must be performed only by a trained mechanic having adequate marine fuel system experience, and in strict compliance with the applicable Holley installation, maintenance, and other instructions. Failure to follow such requirements and recommendations will void this Holley Marine Limited Warranty, and Holley disclaims any responsibility and/or liability for accidents resulting from such failure.

Holley® Performance Products warrants its Holley® Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Street Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Holley® Performance Products warrants its Holley® Marine Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Marine Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
