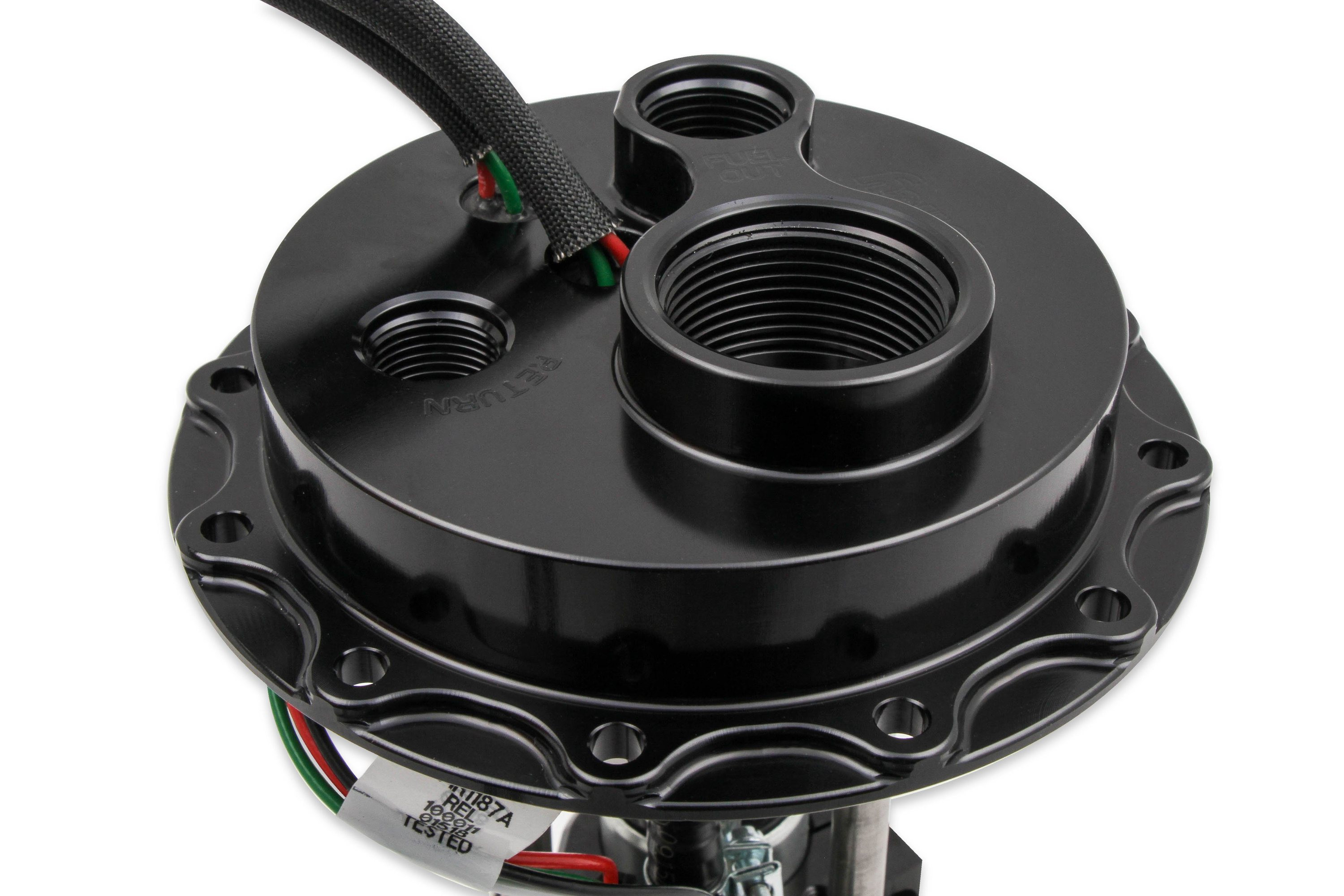

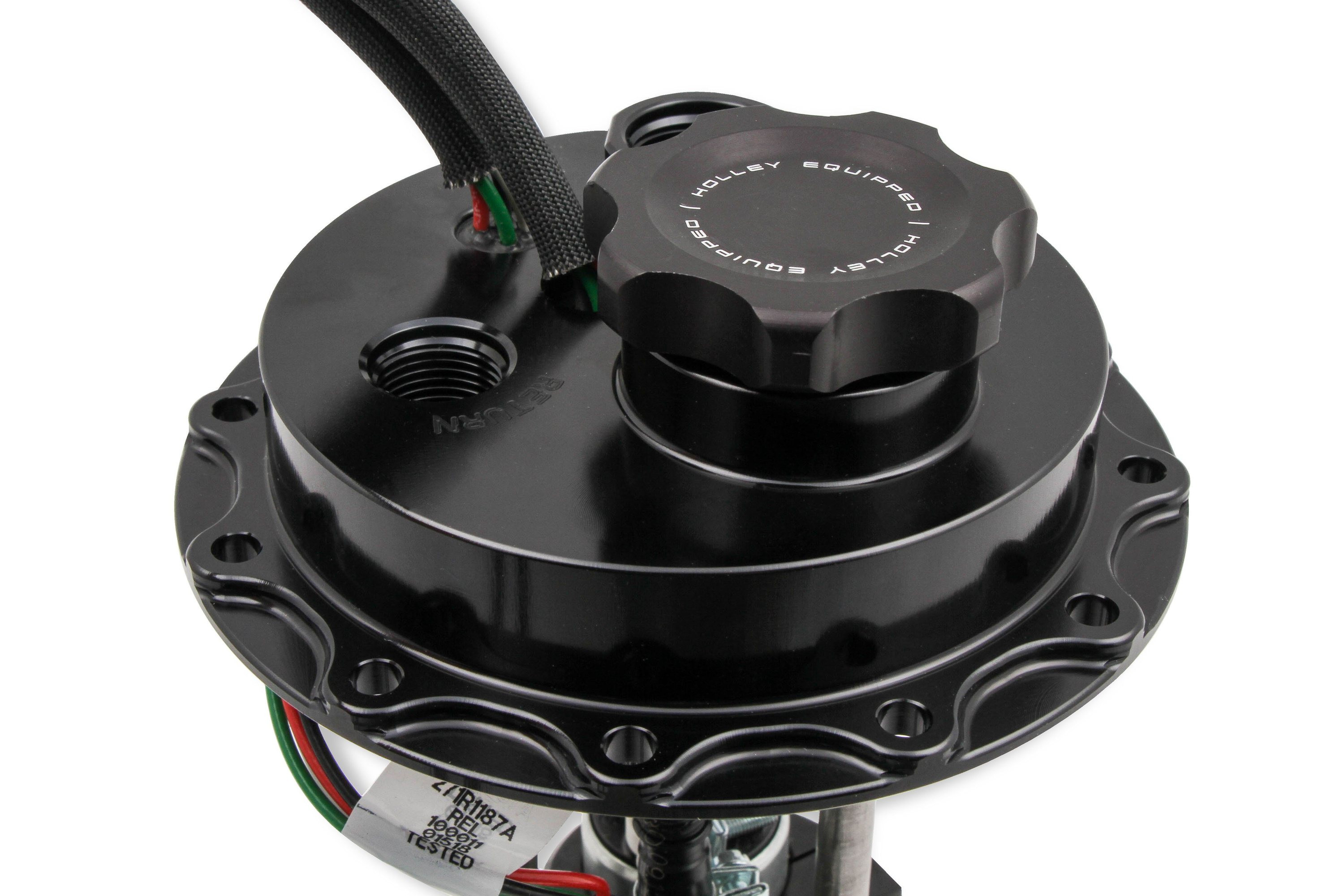

Holley® 12-148 - Fuel Cell EFI Pump Module Assembly 12 Bolt Flange with VR Series Brushless Fuel Pump

Name: Holley® 12-148 - Fuel Cell EFI Pump Module Assembly 12 Bolt Flange with VR Series Brushless Fuel Pump
Brand: Holley
SKU: mpn5245693780
Price: 1599.95 USD
Availability: InStock

0 reviews|Item # mpn5245693780

Universal Fit

Fitment notes:

Not Vehicle Specific

Notes:

Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event
These pumps are not for use on aircraft of any type
These pumps do not have an internal bypass. A bypass style regulator and return line are required

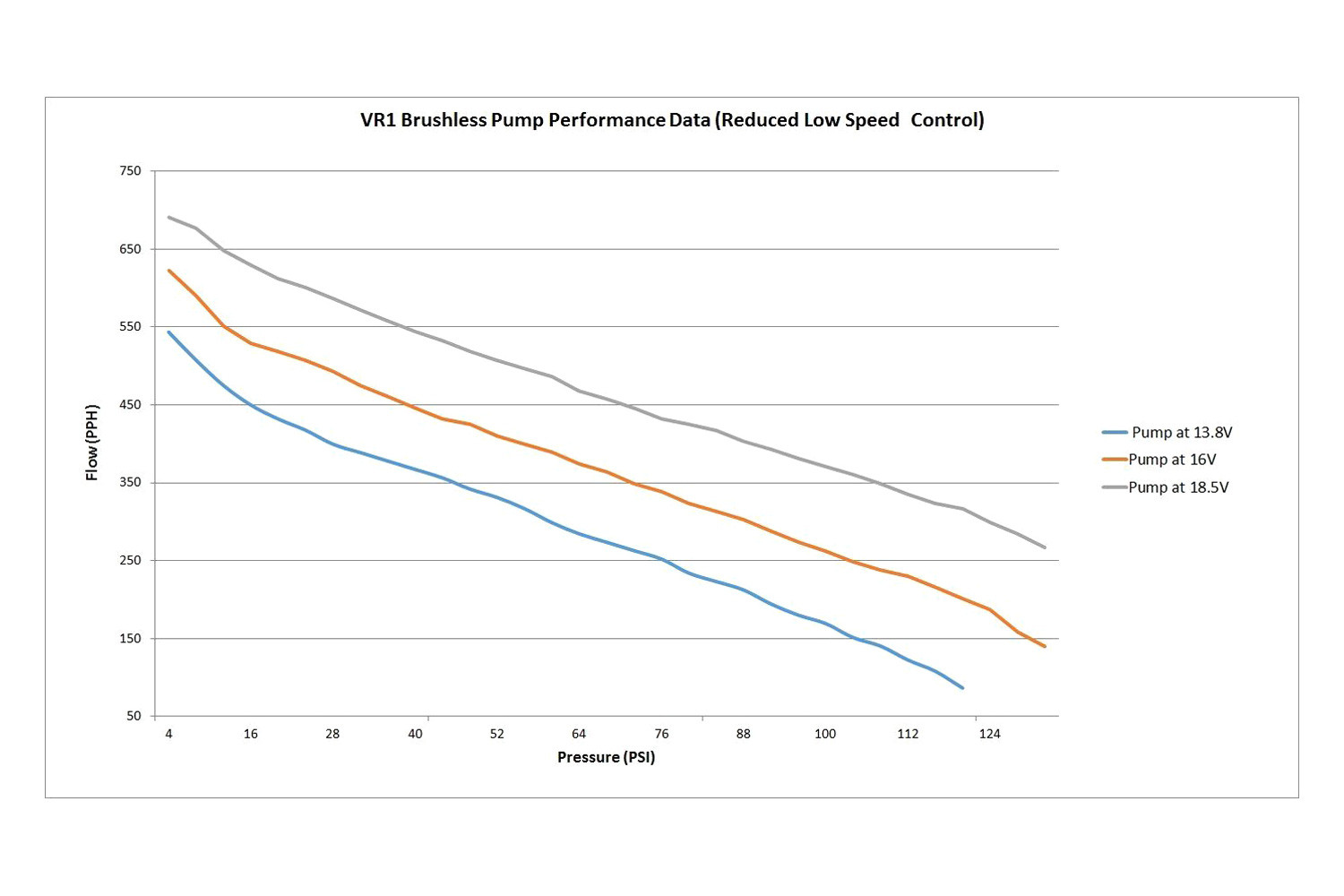

HP estimates are based on gasoline. Estimates calculated at 18.5V and at .5 BSFC NA and .65 BSFC FI. Individual systems will vary based on fuel system design, regulator type, fuel cell location, launch G’s, etc
Proper fuel system engineering is critical for maximum performance
This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL

Authorized Dealer

$1,599.95

In Stock (2) - Ships in 24 to 48 hrs

See similar products

Have a Question? Ask a Specialist

800-505-3274Live Chat

Vehicle Fitment

This part is universal

Specifications

Connector Color	Gray
Emission Code	5
Flange Style	12 Bolt
Free Flow GPH	170
Free Flow LPH	644
Fuel Filter Included	Yes
Fuel Sending Unit Included	No
Fuel System	Carbureted, EFI
Fuel System	EFI
Fuel Type	E85, Gasoline, Gas, Methanol
Gasket Or Seal Included	Yes
Gasket Or Seal Material	Cork
Height	Adjustable
Housing Material	Aluminum
In Tank or External	In Tank
Inlet Quantity	One
Inlet Size	8 AN O-Ring
Inlet Type	8 AN ORB
Internal Or External Strainer	External
Lock Ring Included	Yes
Material	Aluminum
Maximum Pressure	130 PSI
Mounting Hardware Included	Yes
Negative Ground	Yes
Outlet Quantity	1
Outlet Size	10 AN O-ring
Outlet Type	10 AN ORB
Pump Body Color	Black
Pump Type	Electric
Regulator Included	No
Single Or Dual Pump	Single
Voltage	12-18.5 VDC

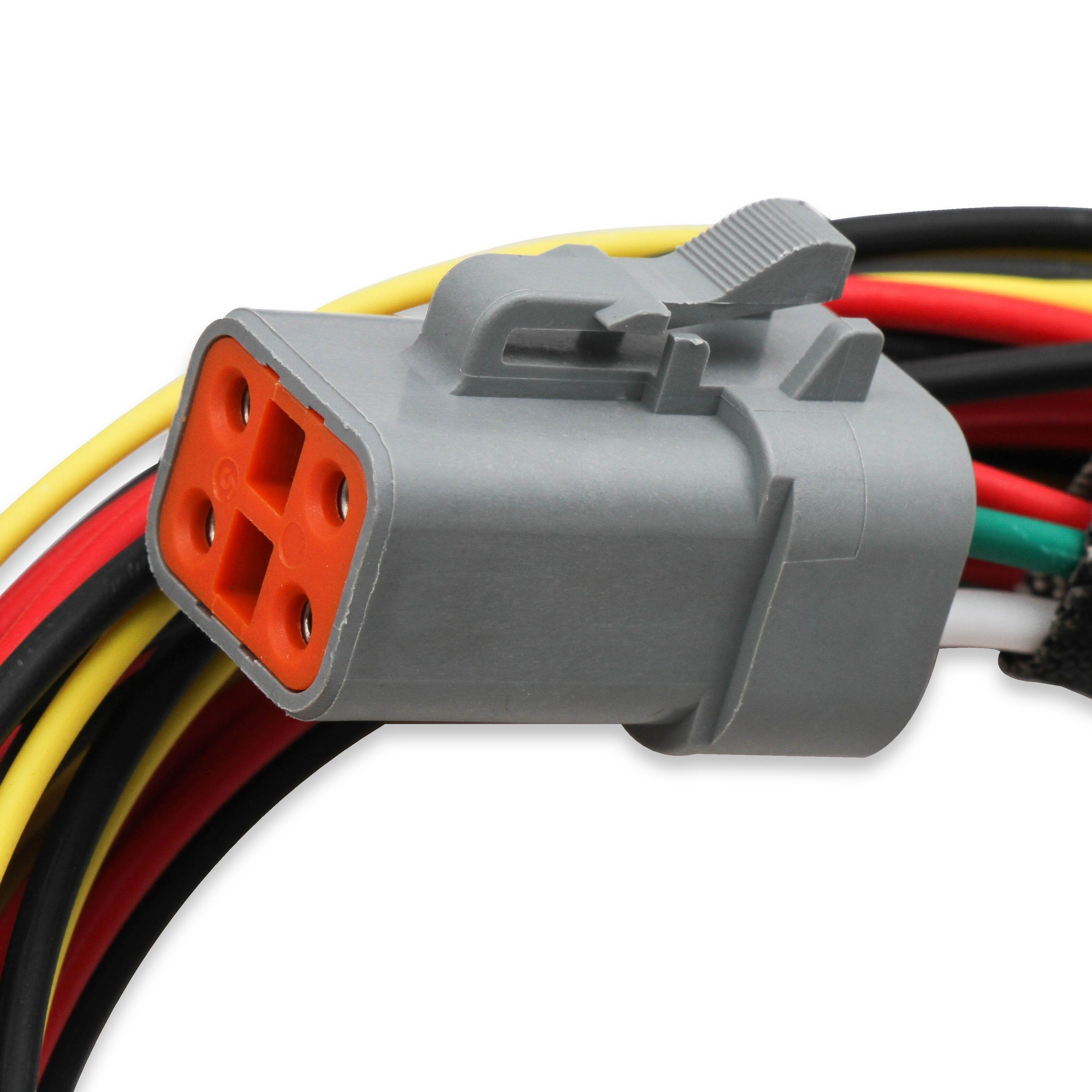

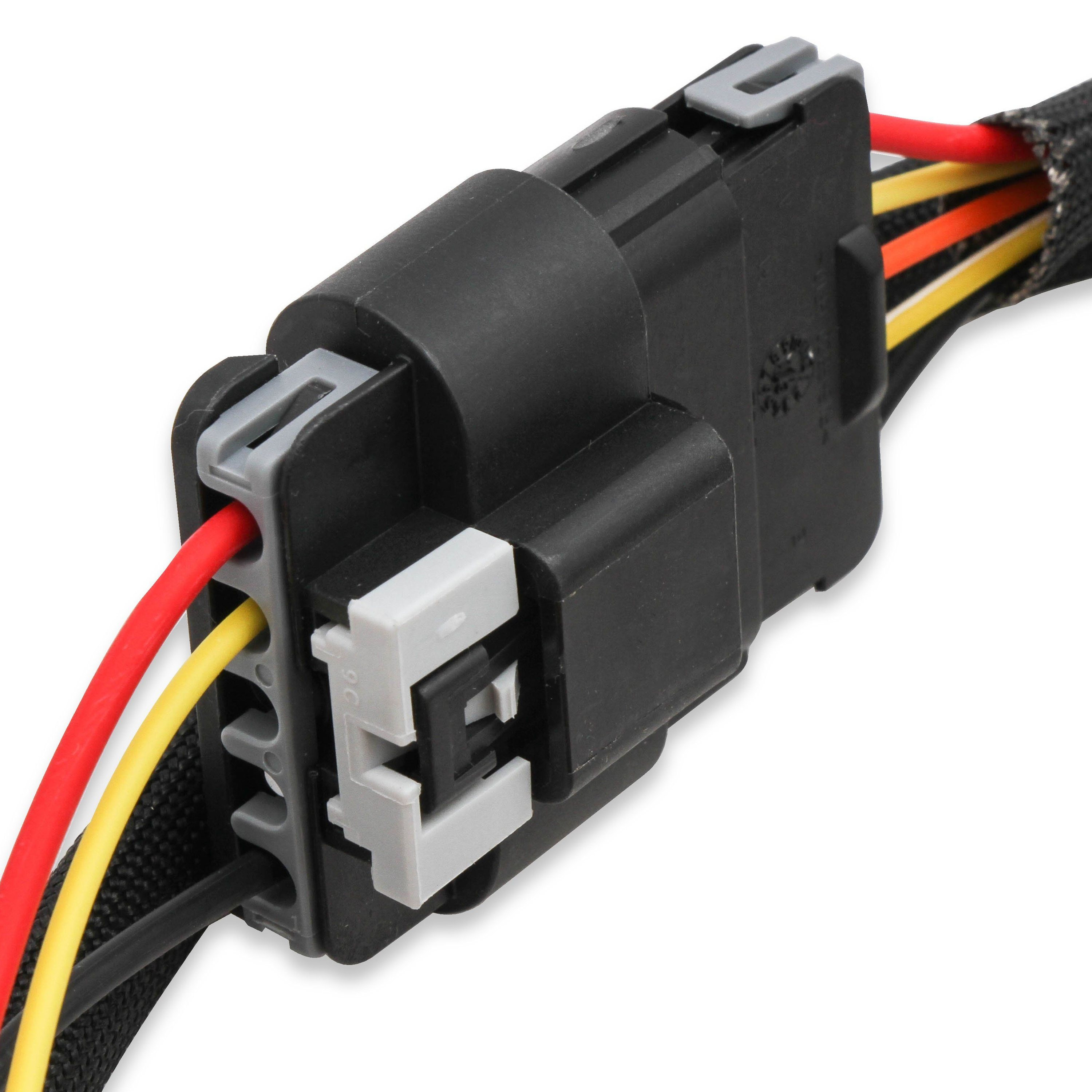

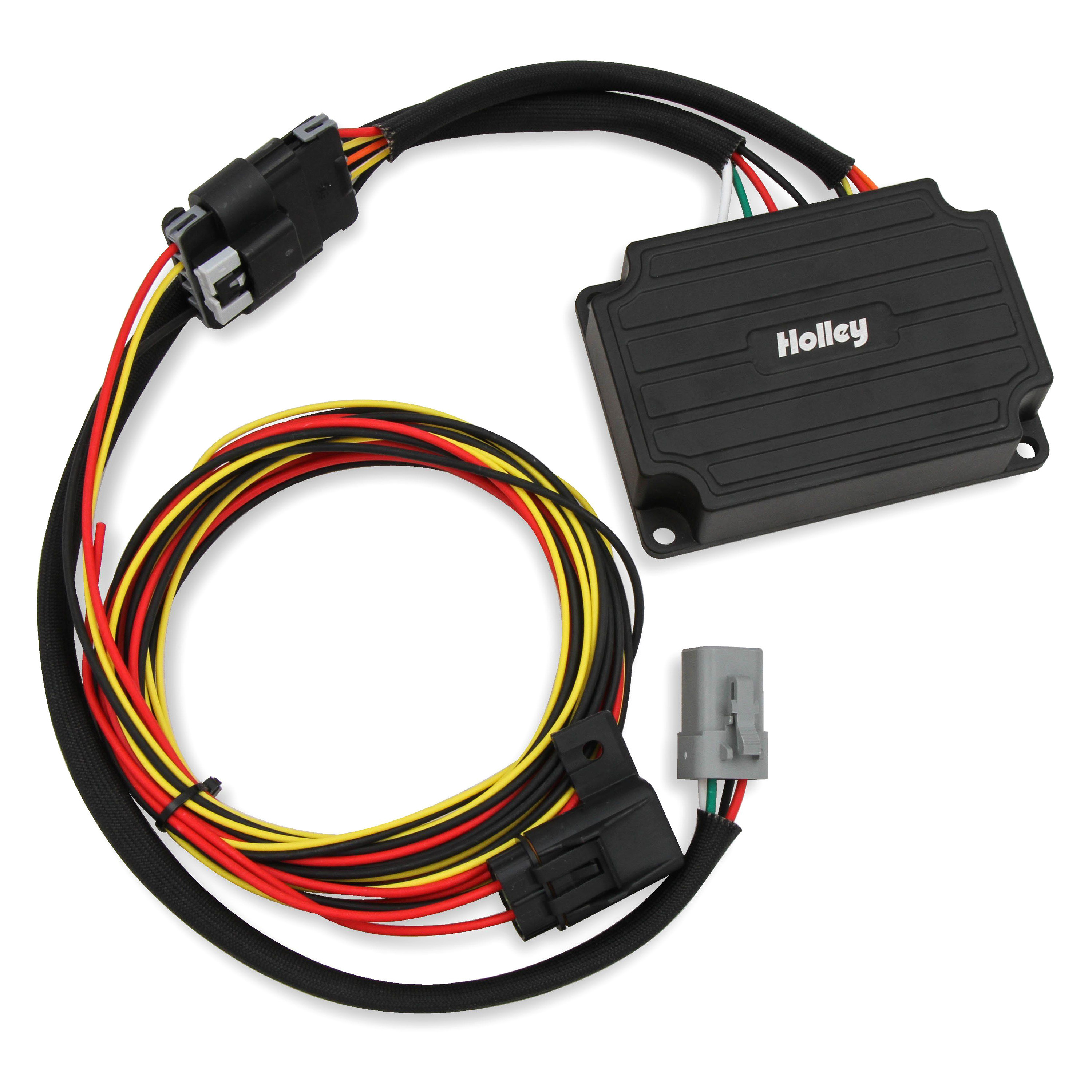

Wire Harness Included	Yes
Fuel Pump	Single VR Series Brushless
Flow Rate	1050 lb/hr
Pressure	130 PSI
Fuel Type	Gasoline, E85 and Methanol
Type	12-Bolt Flange
Pump Type Location	In-Tank
Inlet and Outlet Size	-8 AN O-ring, -10 AN O-ring
Quantity	1 Piece

Includes

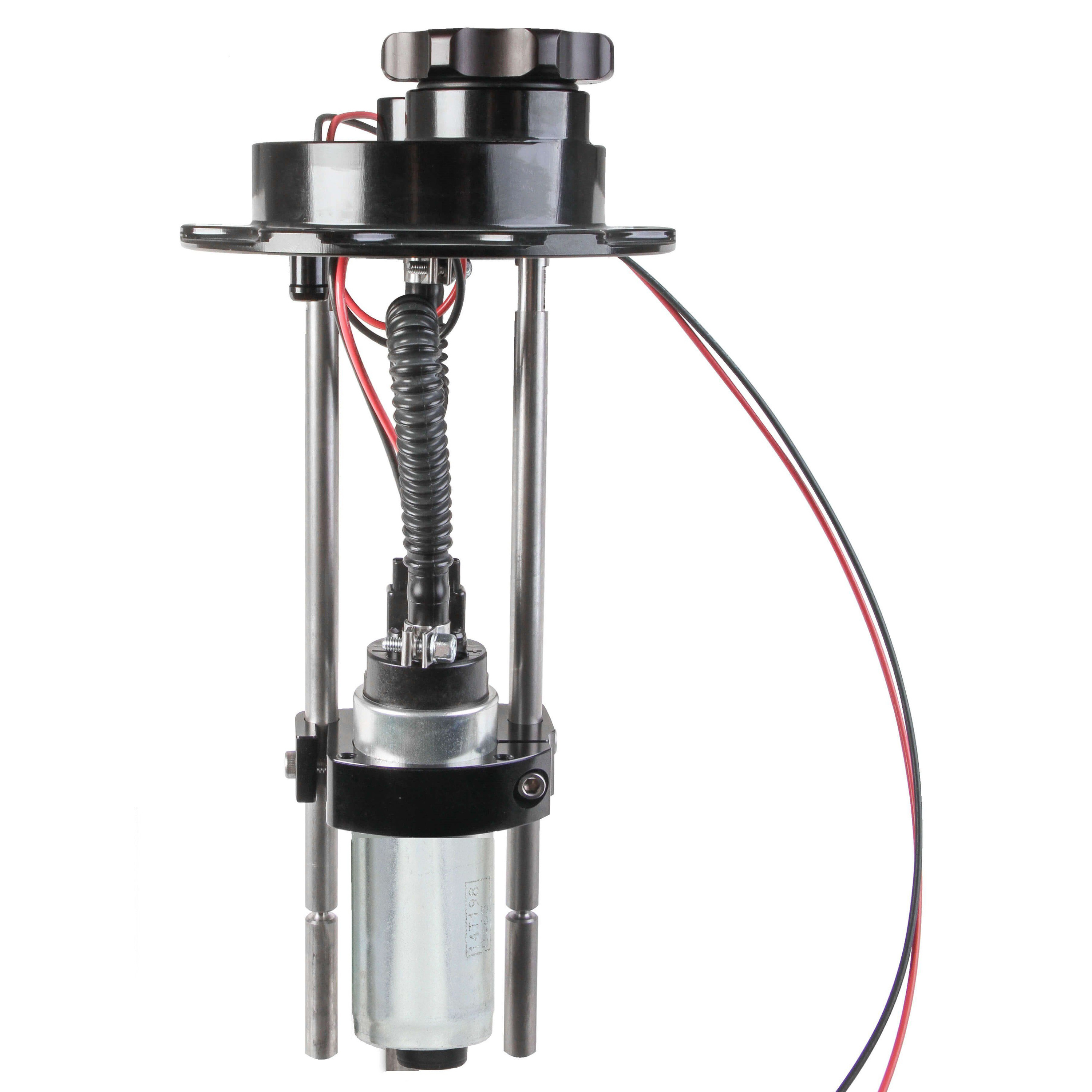

(1) Fuel Pump Hanger Assembly

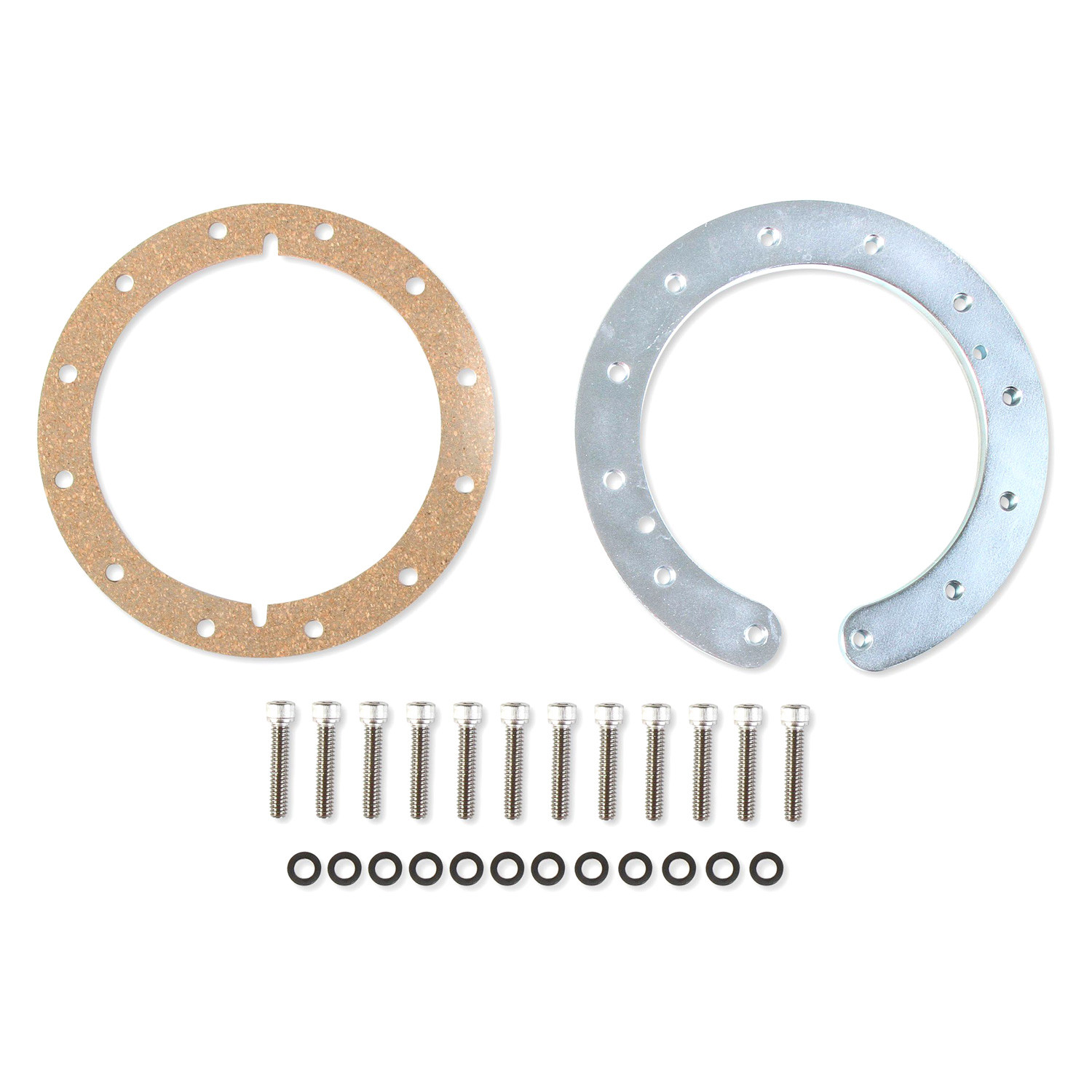

(1) Gasket
(1) Mounting Ring
Mounting Screws
Plastic Washers
(2) Zip Ties

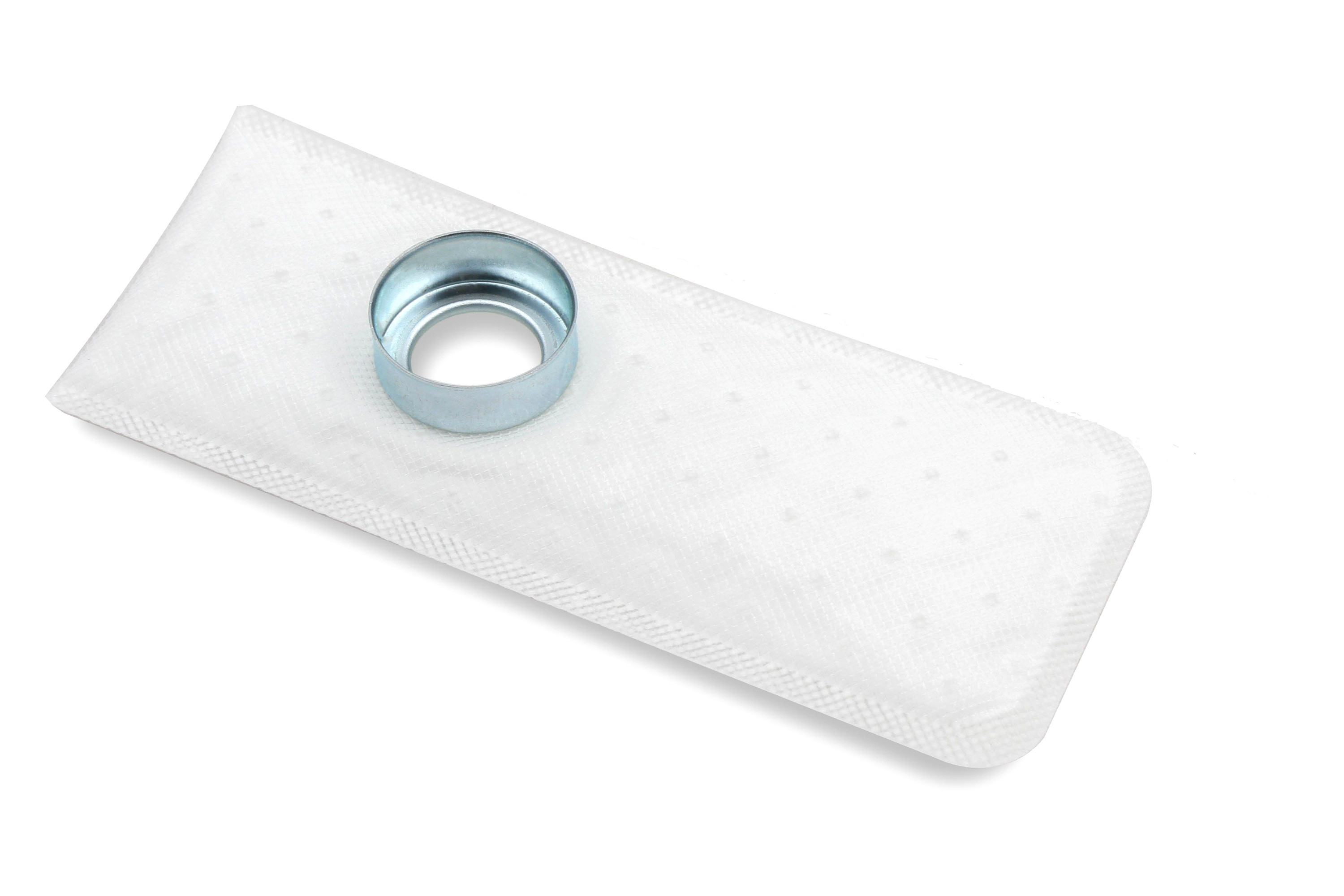

(1) Fuel Pump Sock

Features

High quality at an affordable price
Expertly made from premium materials
Built to match your exact requirements

Product Details

Fuel Cell EFI Pump Module Assembly 12 Bolt Flange with VR Series Brushless Fuel Pump by Holley®. This product is made of high-quality materials to serve you for years to come. Designed using state-of-the-art technology and with customers in mind. It will meet your needs and deliver great quality at an affordable cost.

Installation

Holley® - Fuel Cell EFI Pump Module Assembly 12 Bolt Flange with VR Series Brushless Fuel Pump Installation Instructions

Holley® - Fuel Cell EFI Pump Module Assembly 12 Bolt Flange with VR Series Brushless Fuel Pump Installation Instructions Holley® - Warranty Holley® - Catalogs Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

12-148

UPC:

090127029671

Alternate MPN:

12148
