Holley® 556-116 - EFI™ Crank Trigger Kit

Name: Holley® 556-116 - EFI™ Crank Trigger Kit
Brand: Holley
SKU: mpn5232877754
Price: 767.95 USD
Availability: InStock

0 reviews|Item # mpn5232877754

Vehicle Specific

Notes:

This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME.

Authorized Dealer

$767.95

In Stock (8) - Ships in 24 to 48 hrs

See similar products

Have a Question? Ask a Specialist

888-577-6964Live Chat

Vehicle Fitment

Avanti

Buick

Checker

Chevy

Excalibur

GMC

Oldsmobile

Pontiac

Stutz

Specifications

Crank Trigger Wheel Included	Yes
Adjustable	Yes
Quantity of teeth	36-1
Spark Series Duration	45° Crankshaft Rotation
Diameter	8.000”
Crankshaft Wheel Material	Steel
Bracket Material	Billet Aluminum
Balancer	7.250"
Finish	Black Anodized

Includes

Crank Trigger Wheel
M12X1mm Threads Hall Effect Sensor
Custom 3 Wire
Ferrous Target And Hardware

Features

Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring

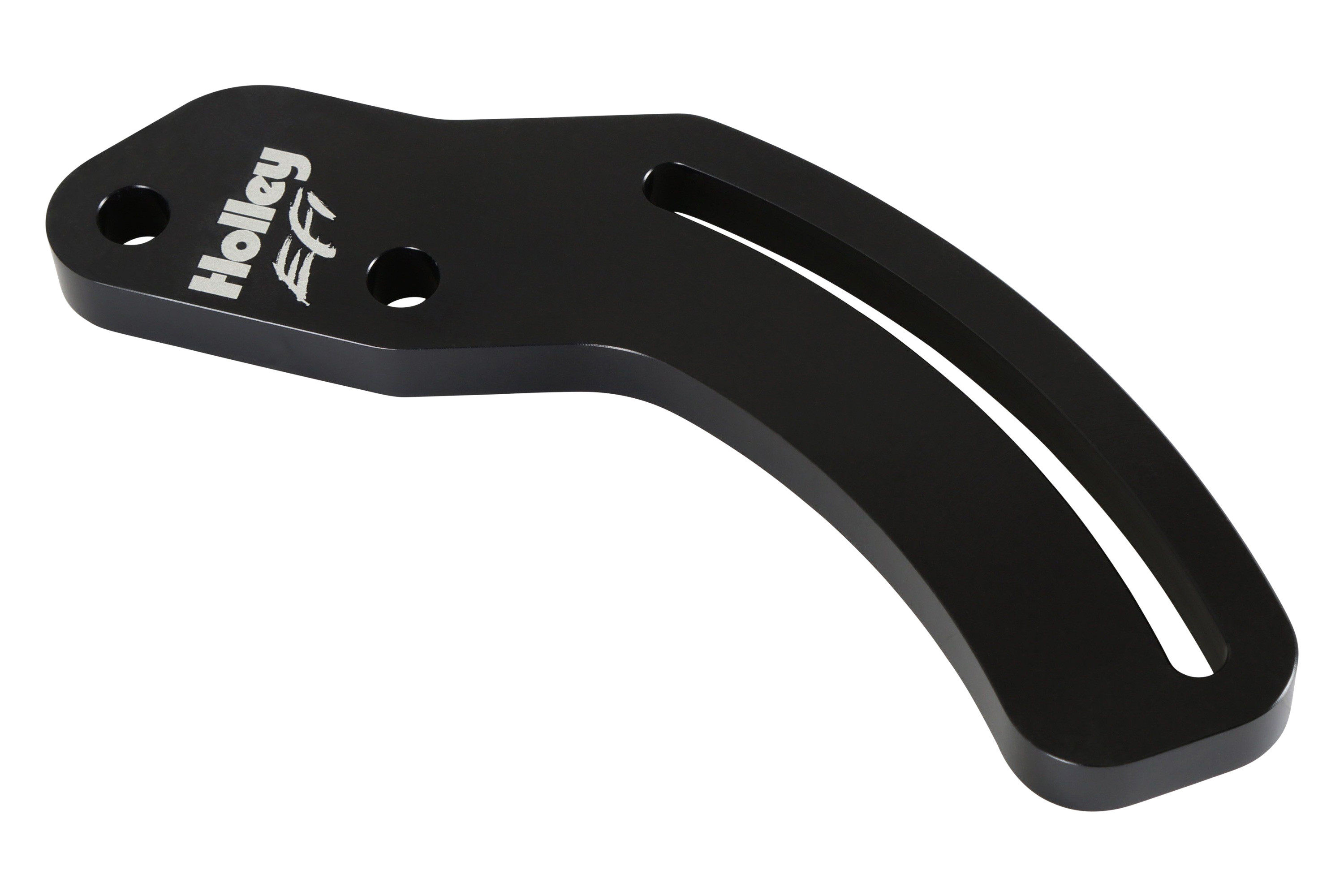

All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped" black anodized finish & Laser etched Holley EFI logo

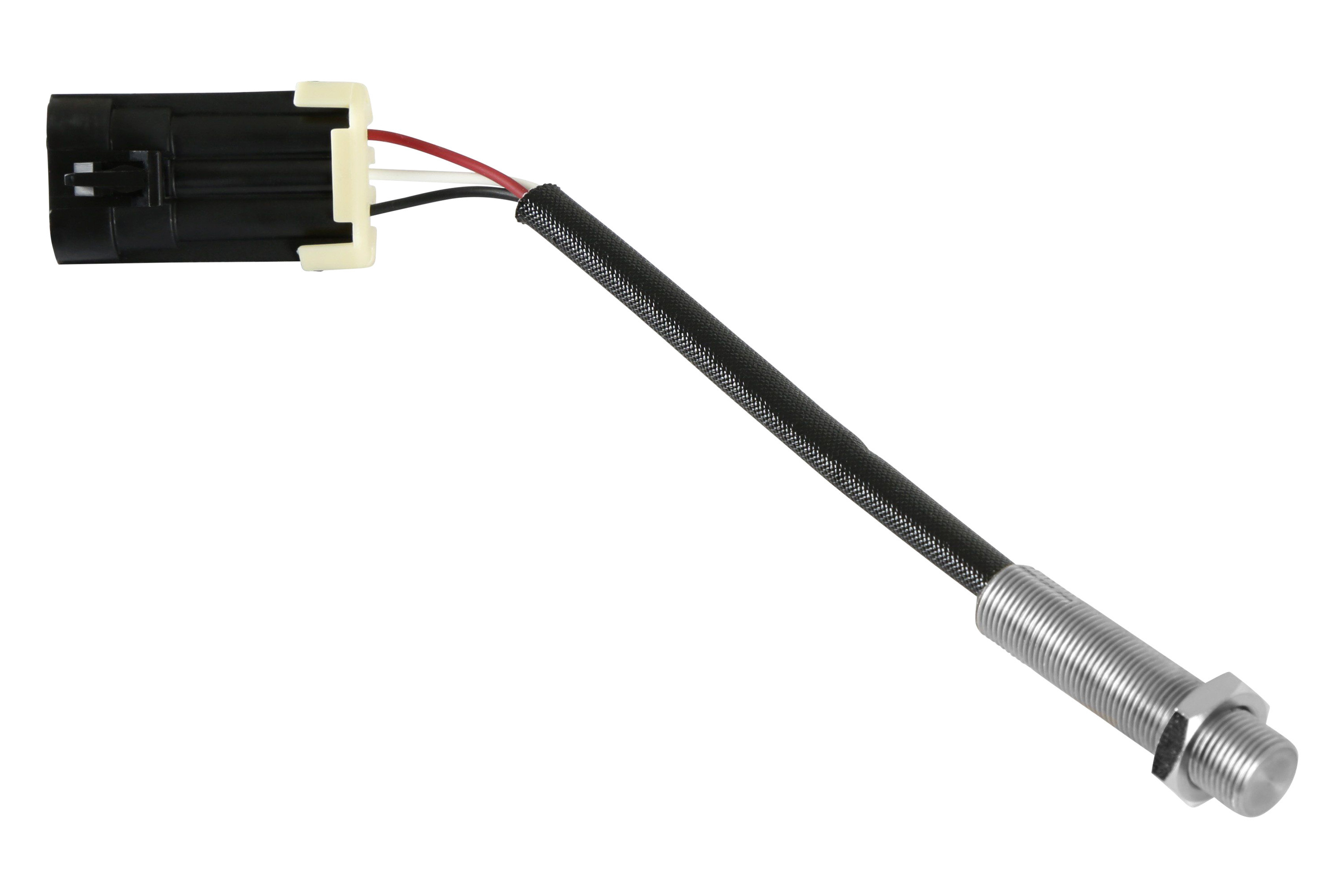

Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
All Grade 8 & Mil. Spec mounting hardware

Product Details

EFI™ Crank Trigger Kit (556-116) by Holley®. Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD “style" Crank trigger. It is designed for use on early model small block Chevy applications using a standard ATI or Fluidamper “style" balancer up to 7-1/4" in diameter. Holley Performance Products has been the undisputed leader in fuel systems for over 100 years. Holley's products include carburetors, fuel pumps, fuel injection, intake manifolds, and much more. From start to finish, Holley has the parts to make your dream a reality.
