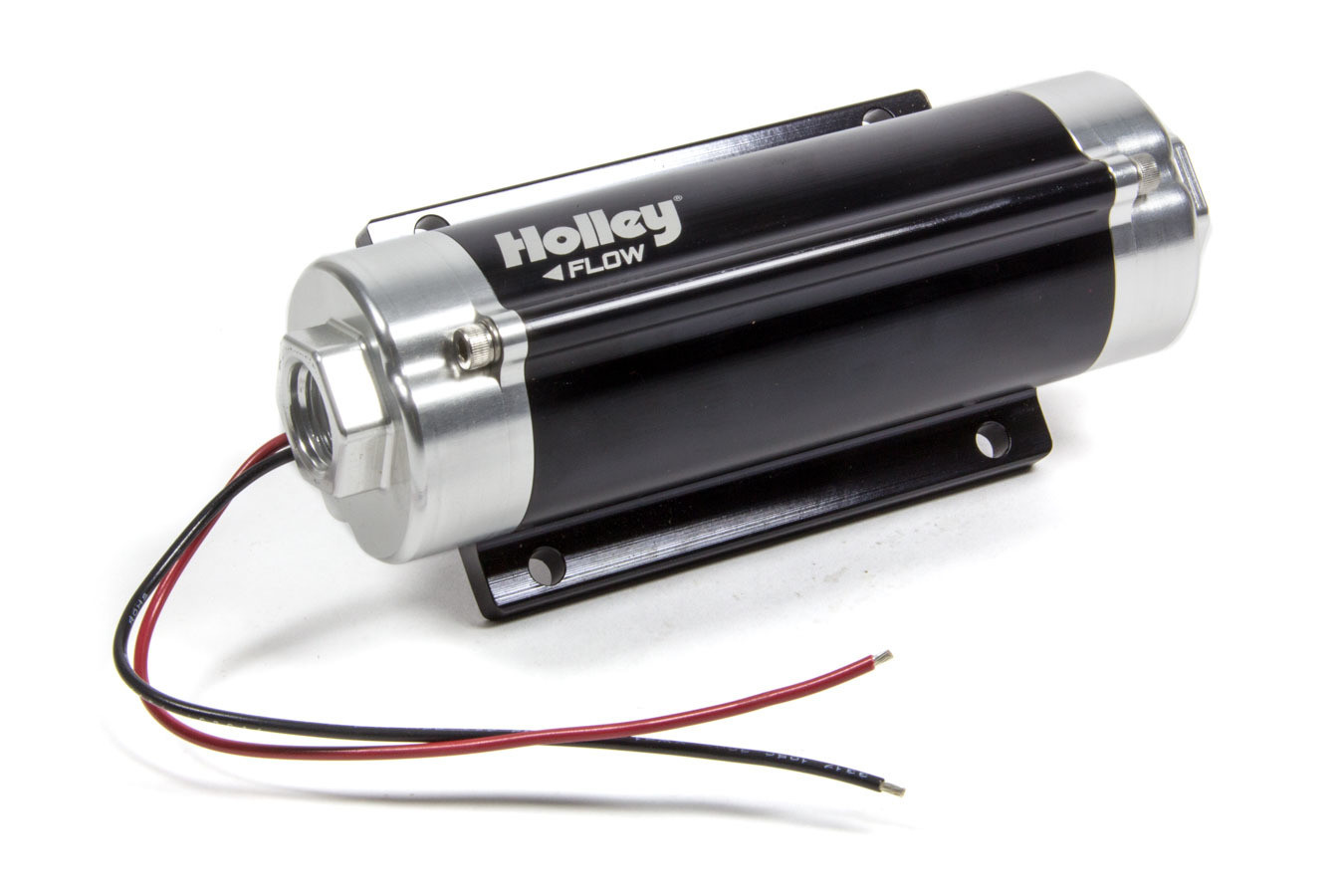

Name: Holley® 12-800 - Carbureted External Fuel Pump
Brand: Holley
SKU: mpn5233445083
Price: 499.95 USD
Availability: InStock

Vehicle Fitment

This part is universal

Compatible with Pump or Race gas
Will not work with E-85 or Diesel.

Specifications

Emission Code	5
Forced Induction HP - 43PSI	600
Forced Induction HP - 60PSI	530
Forced Induction HP - 8PSI	720
Free Flow GPH	80
Fuel Delivery Type	Carburetor, Fuel Injection
Fuel Sending Unit Included	No
Fuel System	Carbureted, EFI
Fuel System	EFI
Fuel Type	Gasoline
Gasket Or Seal Included	No
GPH - 43PSI	63
GPH - 60PSI	57
GPH - 8PSI	80
Inlet Fitting Thread Size	7/8-14"
Inlet Size	10 AN O-Ring - 7/8-14 SAE
Inlet Type	10 AN ORB
Internal Or External	Internal External
LPH - 43PSI	238
LPH - 60PSI	215
LPH - 8PSI	295
Material	Aluminum
Maximum Amperage Draw	14 A
Maximum Flow Rating	80 gph
Maximum Pressure	80 PSI
Naturally Aspirated HP - 43PSI	800
Naturally Aspirated HP - 60PSI	690
Naturally Aspirated HP - 8PSI	900
Negative Ground	Yes
Outlet Fitting Thread Size	3/4-16"
Outlet Quantity	1
Outlet Size	8 AN O-Ring - 3/4-16 SAE
Outlet Type	8 AN ORB
Pump Body Color	Black Anodized
Regulator Included	No
Voltage	12-18.5 VDC
Wire Quantity	2
Fuel Pump	Electric
Flow Rate	492 lb/hr
Pressure	80 PSI
Pump Type Location	External
Inlet and Outlet Size	-10 AN O-ring, -8 AN O-ring
Quantity	1 Piece

Features

Billet aluminum construction for durability & good looks
-10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
Excellent for use with carbureted or EFI applications
Fully submersible in-tank for custom applications, space savings and less plumbing
Compatible with 12v to 18.5v systems for street or race use
Compact (7.5" long x 3" wide x 2.75" tall) for easy installation on frame rails or other tight areas
Proven durability beyond 3,000 hours in gasoline
Weighs only 3.1 lbs.
14 AMP maximum amp draw

Product Details

Carbureted External Fuel Pump (12-800) by Holley®. Designed utilizing the latest technology, this product by Holley features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.

Installation

Holley® - Carbureted External Fuel Pump Installation Instructions

Holley® - Carbureted External Fuel Pump Installation Instructions Holley® - Carbureted External Fuel Pump Information Holley® - Warranty Holley® - Catalogs Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

12-800

UPC:

090127712788

Alternate MPN:

12800

Warranty

Holley warrants its products to be free from defects in materials or workmanship for a period of 90 days. The warranty period begins on the date the product is delivered.

Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.

Holley limits the warranty on Metallic Ceramic Coatings to be free from defects in material and workmanship for a period of 90 days from the date of purchase. This limited coating warranty does not apply to any products which have been subjected to adverse conditions, such as high heat encountered during engine break-in or if used during any racing activity.

Holley Performance Products warrants its new marine products to be free from defects in material and workmanship for a period of 90 days from date of purchase. For the safety and protection of persons and property, all United States Coast Guard and other marine product safety installation and use requirements and recommendations must be carefully studied and applied. The above recommendations include, but are not limited to the recommendation that the installation, adjustment, and repair of Holley carburetors or other marine products must be performed only by a trained mechanic having adequate marine fuel system experience, and in strict compliance with the applicable Holley installation, maintenance, and other instructions. Failure to follow such requirements and recommendations will void this Holley Marine Limited Warranty, and Holley disclaims any responsibility and/or liability for accidents resulting from such failure.

Holley® Performance Products warrants its Holley® Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Street Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Holley® Performance Products warrants its Holley® Marine Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Marine Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
