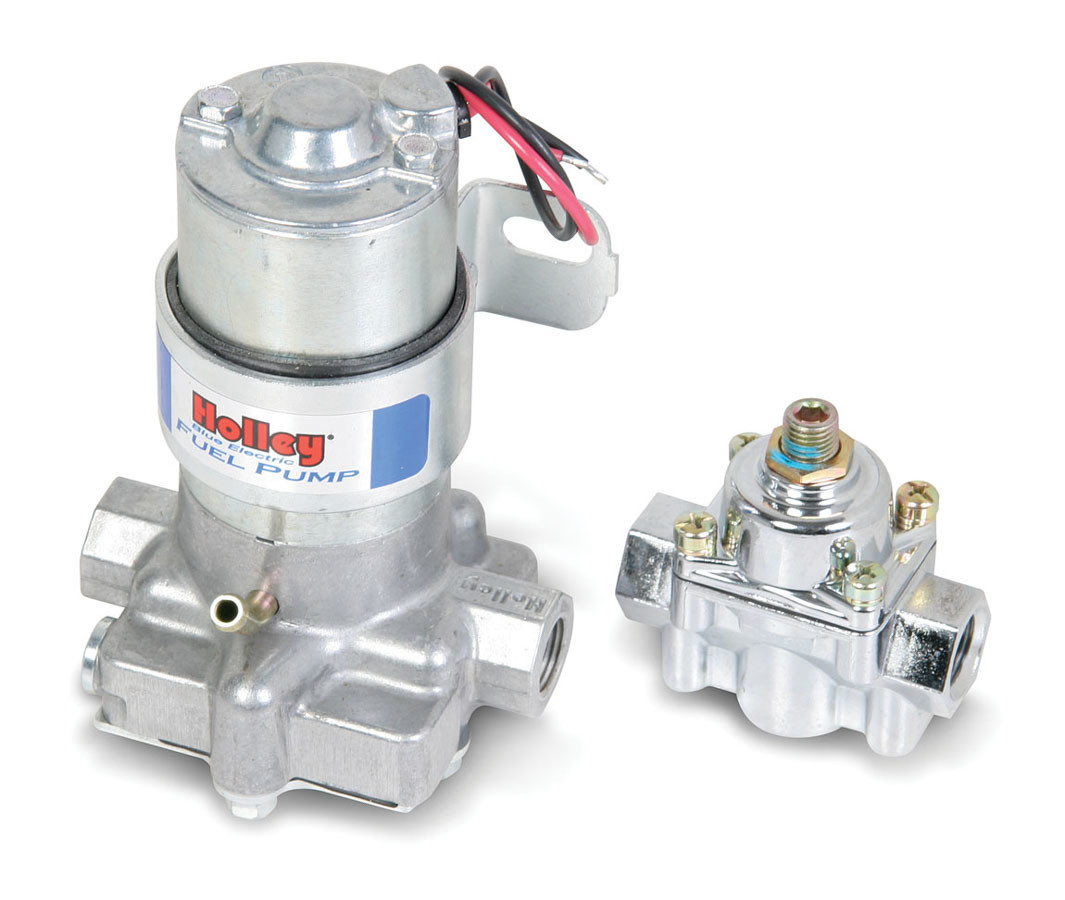

Name: Holley® 712-802-1 - Blue™ External Fuel Pump
Brand: Holley
SKU: mpn5235331083
Price: 337.23 USD
Availability: InStock

Vehicle Fitment

This part is universal

Specifications

Brand	Holley®
Series	Blue™
Material	Aluminum
Bracket Color	Silver
Emission Code	5
Free Flow GPH	110
Free Flow LPH	416
Fuel Delivery Type	Carburetor
Fuel Pump Type	Electric
Fuel Sending Unit Included	No
Fuel System	Carbureted
Fuel Type	Gasoline
Gasket Or Seal Included	No
Grade Type	Performance
Inlet Fitting Thread Size	3/8 IN
Inlet Size	3/8 inch NPT
Inlet Type	NPT
Internal Or External	External
Maximum Amperage Draw	3 68
Maximum Flow Rating	110 GPH
Maximum Pressure	14 PS
Motor Finish	Silver
Negative Ground	Yes
Outlet Fitting Thread Size	3/8 IN
Outlet Quantity	1
Outlet Size	3/8 inch NPT
Outlet Type	NPT
Pump Body Color	Silver
Regulator Included	Yes
Universal Or Specific Fit	Universal
Voltage	12 2H
Warranty	Manufacturer's Limited 90 Day Warranty
Wire Quantity	2

Features

Tumble polished billet look
Lower housing casting designed for enhanced fuel flow and quiet operation
Motor draws only 3 amps current
7 1/2 amp fuse recommended
Improved design for street/strip applications
Not designed to be used on aircraft of any type.
Distinctive “Blue” logo
Flows 110 GPH (free flow)
Flows 88 GPH at 9 psi
maximum pressure is 14 psi
Includes P/N 12-803 fuel pressure regulator
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 psi)
Rotor/vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs
Includes mounting bracket
Repair kits are readily available
Can be serviced from the pump end
Not compatible with alcohol or methanol fuels
Use of safety shut-off switch, P/N 12-810, strongly recommended
Not designed or recommended for use with fuel injection systems
Meets U.S. Coast Guard regulations
Includes Fuel/vapor tube

Product Details

Blue™ External Fuel Pump by Holley®. Material: Aluminum. Designed utilizing the latest technology, this product by Holley features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.

Holley® - Warranty Holley® - Catalogs Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

712-802-1

UPC:

090127484326

Alternate MPN:

7128021

Warranty

Holley warrants its products to be free from defects in materials or workmanship for a period of 90 days. The warranty period begins on the date the product is delivered.

Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.

Holley limits the warranty on Metallic Ceramic Coatings to be free from defects in material and workmanship for a period of 90 days from the date of purchase. This limited coating warranty does not apply to any products which have been subjected to adverse conditions, such as high heat encountered during engine break-in or if used during any racing activity.

Holley Performance Products warrants its new marine products to be free from defects in material and workmanship for a period of 90 days from date of purchase. For the safety and protection of persons and property, all United States Coast Guard and other marine product safety installation and use requirements and recommendations must be carefully studied and applied. The above recommendations include, but are not limited to the recommendation that the installation, adjustment, and repair of Holley carburetors or other marine products must be performed only by a trained mechanic having adequate marine fuel system experience, and in strict compliance with the applicable Holley installation, maintenance, and other instructions. Failure to follow such requirements and recommendations will void this Holley Marine Limited Warranty, and Holley disclaims any responsibility and/or liability for accidents resulting from such failure.

Holley® Performance Products warrants its Holley® Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Street Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Holley® Performance Products warrants its Holley® Marine Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Marine Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
