Vehicle Fitment
Ford
Specifications
| Front Lift Height | |
|---|---|
| Adjustable Mounting Bracket Included | |
| Adjustable Valving | |
| Body Diameter (in.) | |
| Bushing Color | |
| Bushing Material | |
| Coilover Kit Position | |
| Coilover Springs Included | |
| Crossmember Included | |
| Gas Charged | |
| Hardware Included | |
| Internal Design | |
| Quantity | |
| Shocks Included | |
| Spring Finish | |
| Suspension Height Adjustment | |
| Welding Required | |
| Shock Absorber Internal Design | |
| Shock Absorber Type | |
| Shock Absorber Damping Type | |
| Shock Absorber Adjustment Type | |
| Shock Absorber Compressed Height | |
| Shock Absorber Extended Height | |
| Shock Absorber Lower Mount Type | |
| Shock Absorber Upper Mount Type | |
| Finish | |
| Material |
Includes
- (2) Front Coilovers
- Installation Instructions
Features
- 3.0" Hard anodized aluminum
- Hard anodized, CNC-machined 6061-T6 billet aluminum
- Specific for Gen 2 Raptor to maximize performance and comfort
- Redundant sealing pack system, main seal
- JM92 Advanced Suspension Fluid
- 7/8" 17-4 H900 hard chrome plated stainless steel
- Spherical, PFTE-lined, heat-treated steel
- Heat treated steel spherical heim mounting
- NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
- 3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
- Hard anodized 6061-T6 billet aluminum high flow race piston
- Dual Speed Compression (DSC) adjuster
- Ride-height/spring preload ring
Product Details

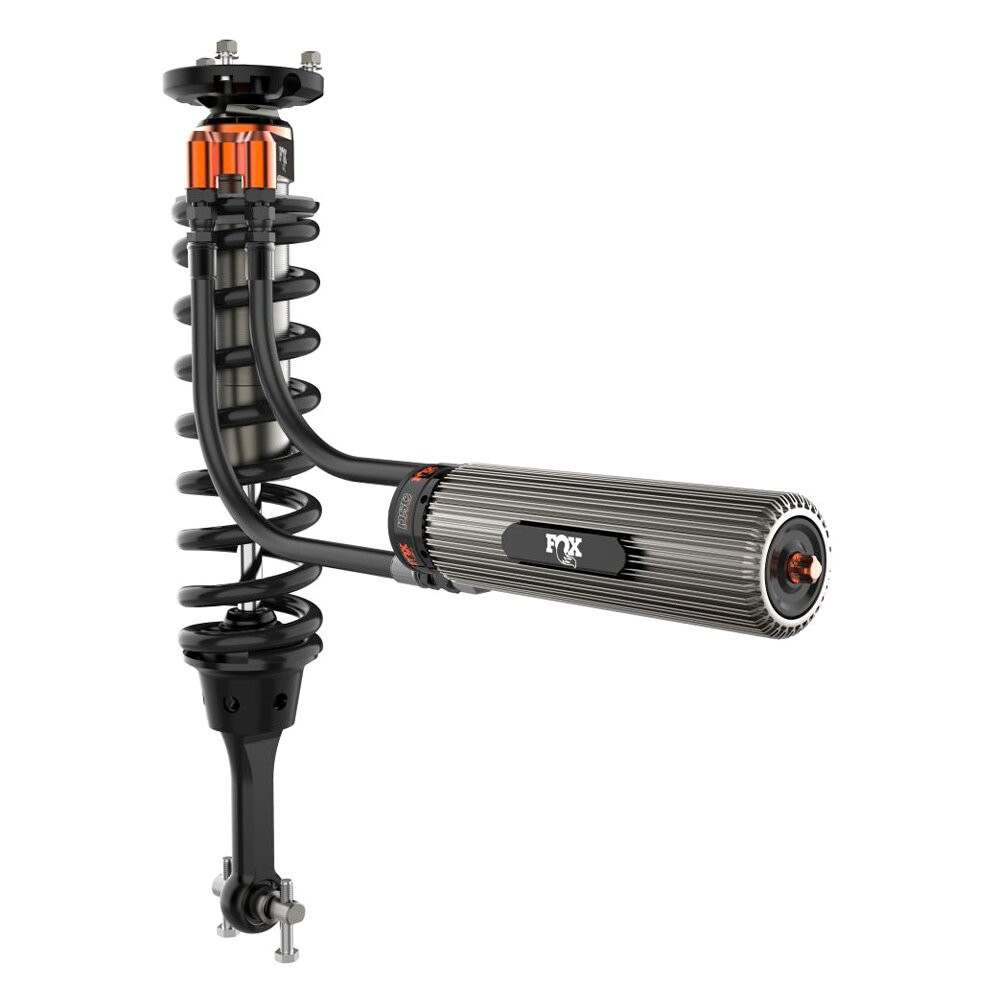

3.0 Factory Race Series Front Lift Coilovers with 2.5" Front Lift Height by Fox®. Quantity: 2 per Pack. Take your Gen 2 Raptor to the next level with this Factory Race Series front upgrade kit, designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir. This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.
FOX patented Internal Bypass technology offers position sensitive damping that adapts to any terrain on and off the road, providing a plush, predictable ride everywhere you go.
To improve cooling efficiency, the all-new recirculating reservoir bridge utilizes dual, unidirectional checked ports and hoses to force fluid circulation through the new, aluminum finned remote reservoir, greatly increasing cooling efficiency when compared to a conventional reservoir.
To further improve cooling, the all-new finned aluminum reservoir facilitates heat dissipation through its extruded fins, which act as heat sinks and provide additional cooling surface area.
Dual Speed Compression (DSC) adjusters provide added tuning for control and comfort for on-road use while offering more aggressive damping for use off-road. The DSC adjuster allows separate adjustment of both high and low-speed compression by hand to maximize small bump compliance and comfort while maintaining the extra damping required for more substantial impacts. The Factory Race Series 3.0 Coil-Over Internal Bypass DSC's can be set to match the Gen 2 Raptor's stock ride quality and add the ability to increase compression damping by up to 50%.
