Features
- Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum body
- Replaceable Delrin® strike pad
- Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance shaft
- Heavy-duty powdered steel piston
- Tunable, velocity sensitive deburred valve shims
- Redundant sealing pack system, main seal, wiper seal, scraper seal
- JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Product Details

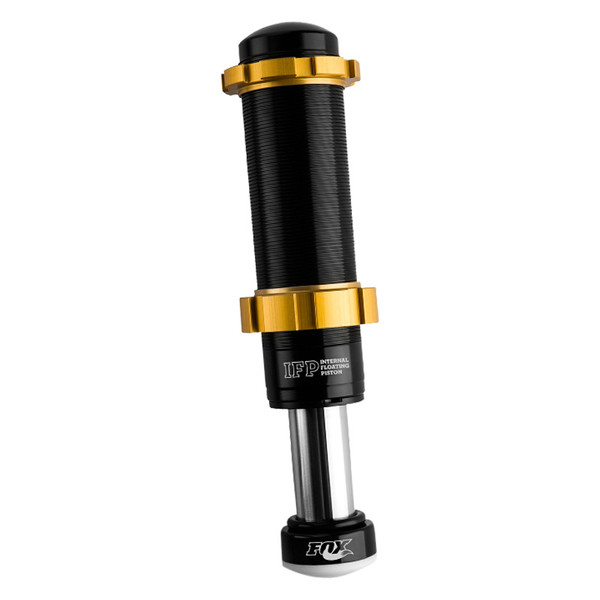

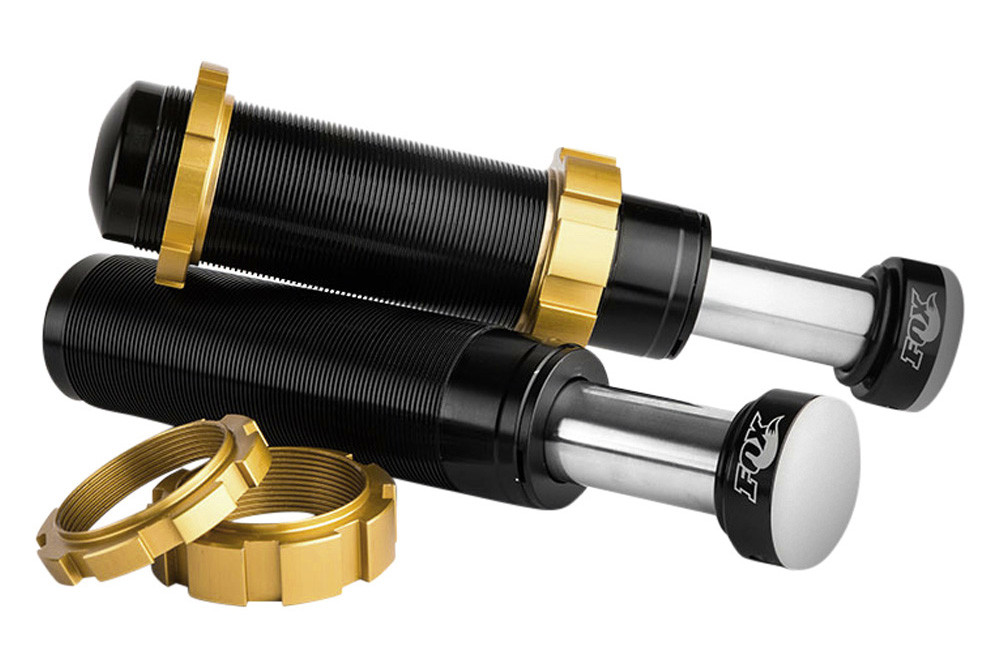

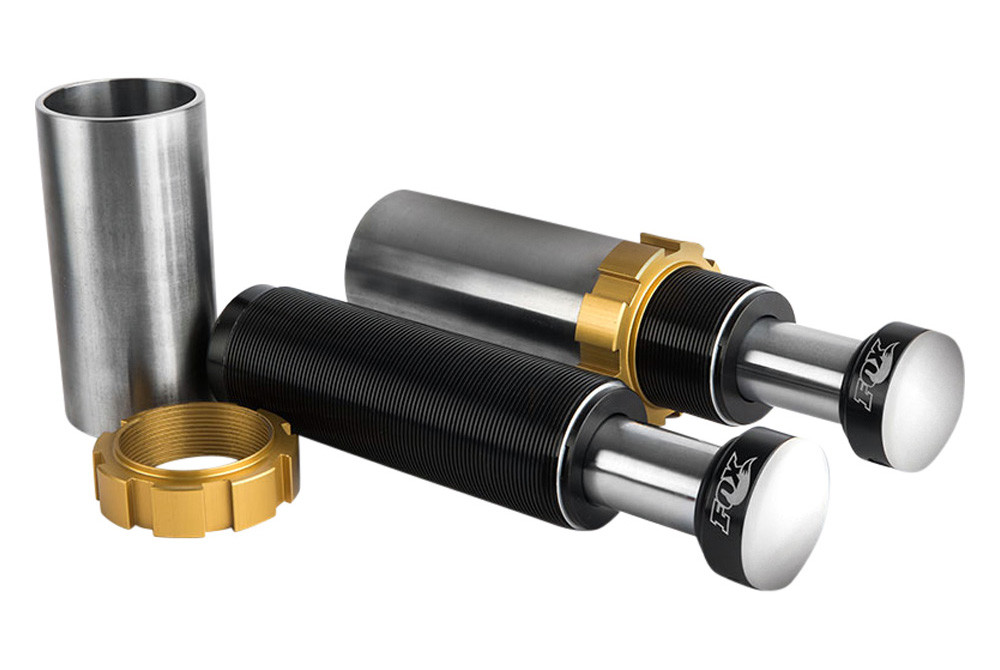

2.0 Factory Series IFP Bump Stops by Fox®. Offroad Factory Series bump stops were developed with top offroad racing teams to provide precise control of the last few inches of suspension travel. By applying Fox race-proven damping technology in a purpose-built, stand-alone component you can use every bit of suspension travel without harsh bottoming. The built-in FOX Air Valve (FAV) allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.

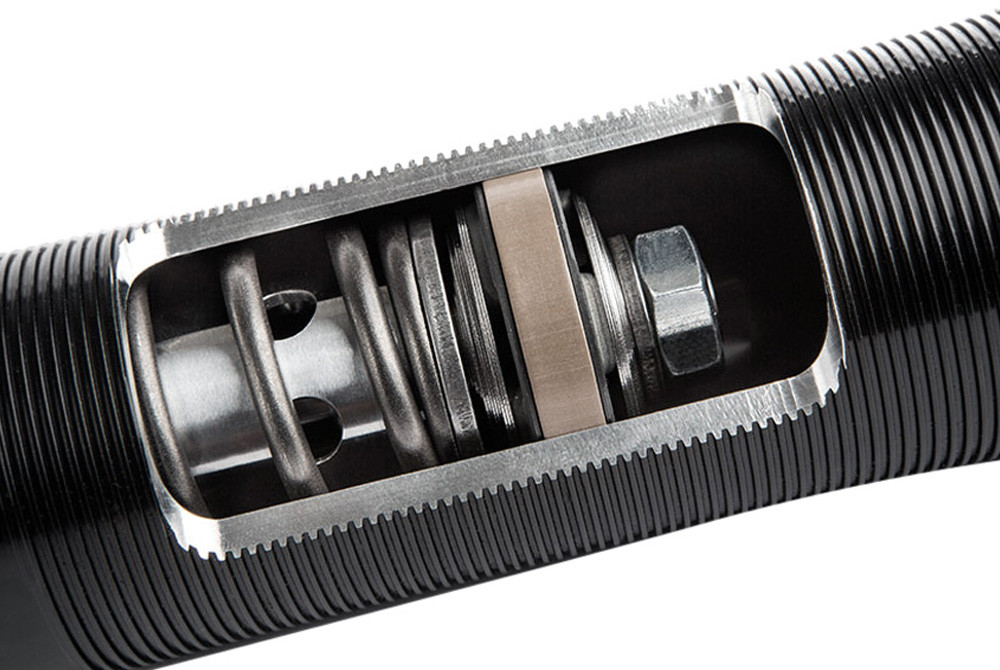

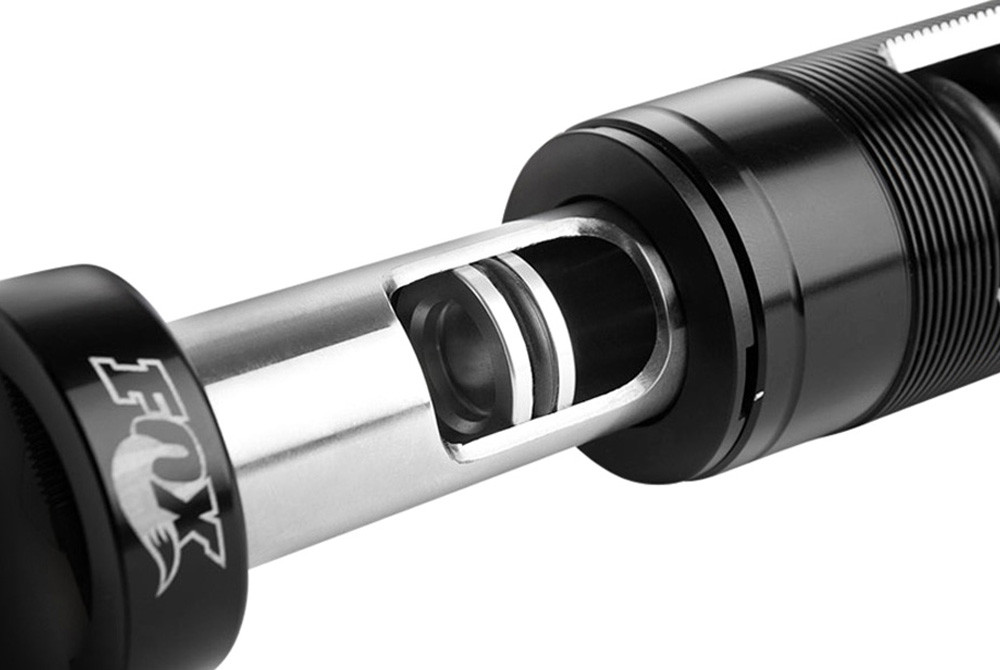

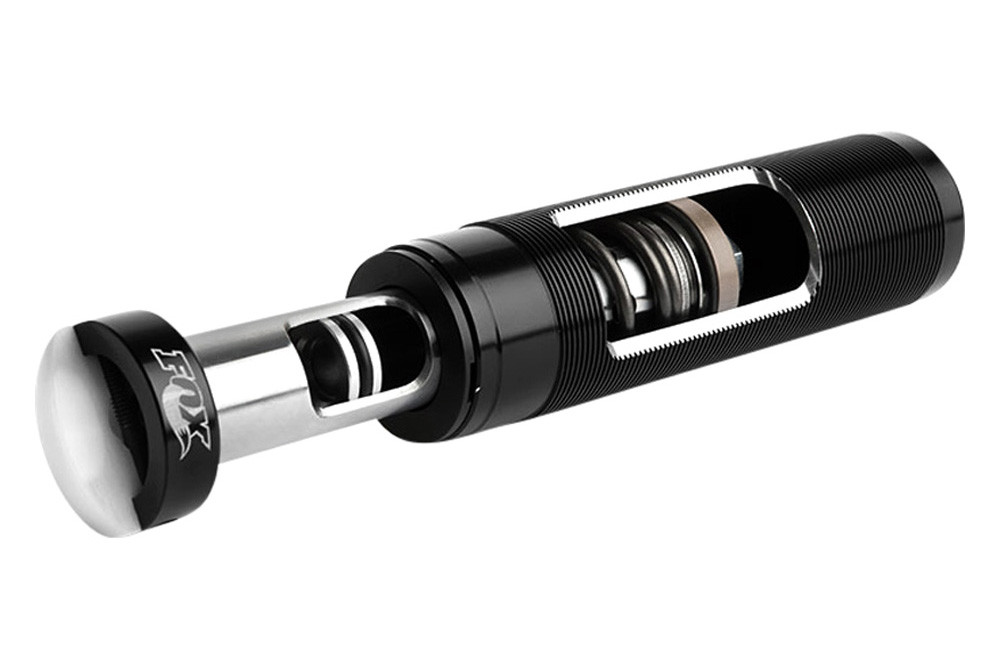

Inspired by it's off-road racing predecessors, the new Factory Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel. The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad. Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.
