Name: Enginetech® BNDL-938855 - 6-Pc Camshaft Kit
Brand: Enginetech
SKU: mpn5209040441
Price: 477.62 USD
Availability: InStock
Rating: 3 (2 reviews)

Vehicle Fitment

Dodge

Jeep

Specifications

Intake Duration at 0.050 In Lift	205°
Exhaust Duration at 0.050 In Lift	196°
Additional Volume Over Stock Percentage	25%
Height	92.18 mm
Mounting Hole Diameter	9.52 mm
Width	148.58 mm
Height	3.62"
Mounting Hole Diameter	0.375"
Width	5.84"
Drive Type	Drive Shaft
Grade Type	Regular
Oil Pump Pressure Type	Standard Pressure
Oil Pump Type	Gear
Oil Pump Volume Type	High Volume
Mounting Hole Quantity	2
Housing Material	Cast Iron
Type	Standard
Material	A-Series Aluminum Bearings
Package Alert	Full set
Part Material	A-Series Aluminum
Set Type	Main Set
Sizes	Standard-1-10-20-30
Size	Standard
Housing Bore Max	2.2507"
Housing Bore Max	57.168
Housing Bore Min	2.2500"
Housing Bore Min	57.150
Material	Overplated Copper-Lead Alloy
Oil Clearance Max	0.0029"
Oil Clearance Max	0.074
Oil Clearance Min	0.0005"
Oil Clearance Min	0.013
Overall Length Max	0.8480"
Overall Length Max	21.540
Part Material	Steel Backed Overplated Bronze Alloy
Set Type	Rod Set
Sizes	Standard-1-10-20-30-40-50
Standard Shaft Max	2.1250"
Standard Shaft Max	53.975
Standard Shaft Min	2.1240"
Standard Shaft Min	53.950
Wall Thickness Max	0.0624"
Wall thickness Max	1.585

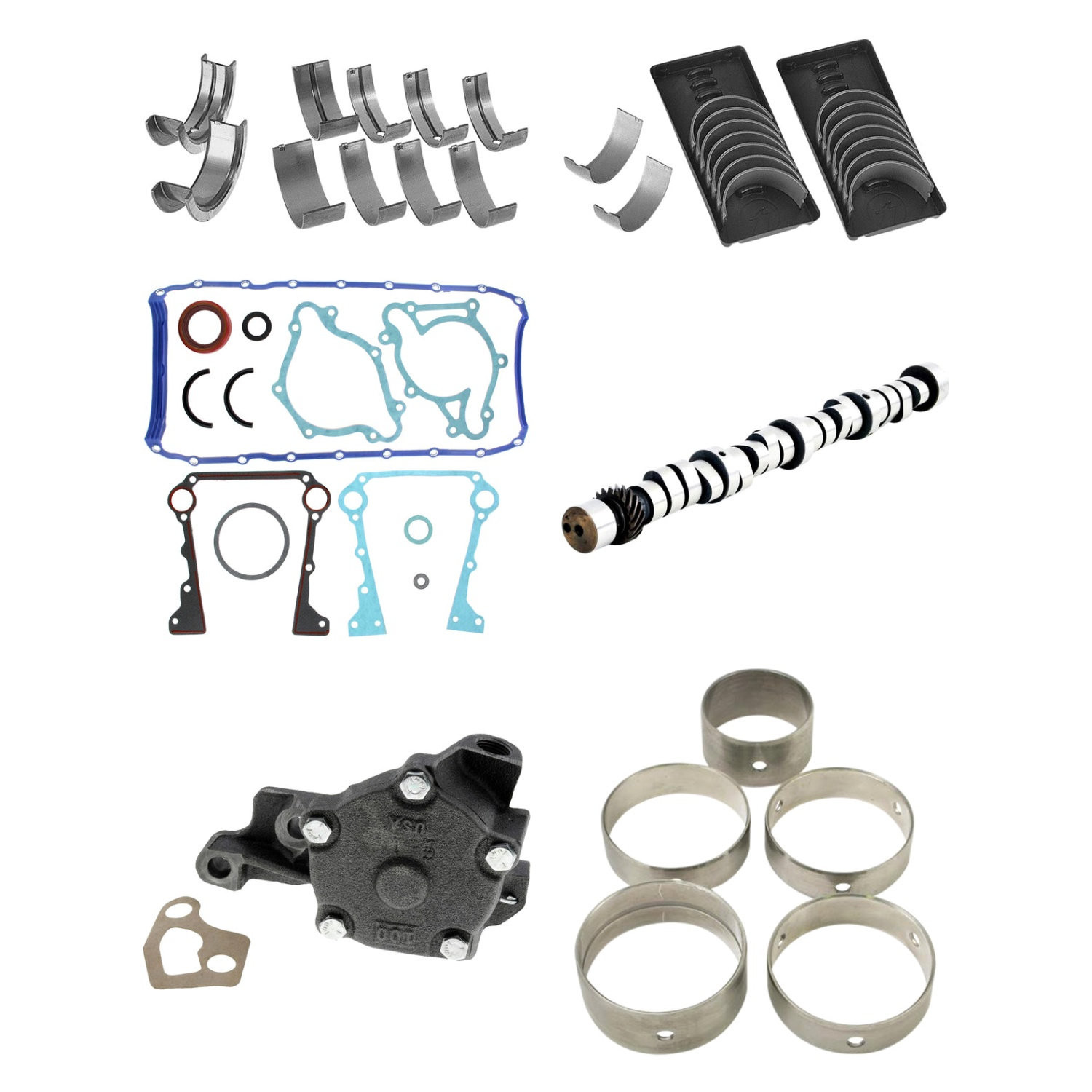

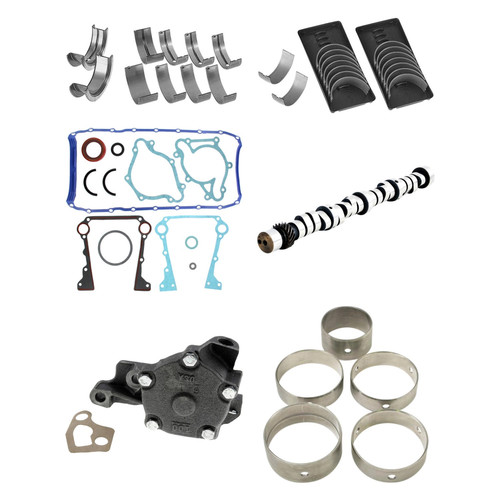

Includes

Product	MPN	Brand	QTY
Stage S Hydraulic Camshaft	ES1558	Enginetech	1
High Volume Oil Pump	M-72HV	Melling	1
High Performance Camshaft Bearing Set	PDP-25	Dura-Bond	1
A-Series Aluminum Crankshaft Main Bearing Set	4999MA	Sealed Power	1
Connecting Rod Bearing Set	8-2130CP	Sealed Power	1
Engine Conversion Gasket Set	ACS2060	Apex Auto	1

Product Details

6-Pc Camshaft Kit by Enginetech®. This vehicle essentials bundle includes top-rated automotive products selected based on real customer preferences. Ideal for car care and maintenance, each item is chosen to enhance your driving experience and keep your vehicle in peak condition.

Enginetech® - Catalogs Enginetech Authorized Dealer

Brand:

Enginetech

Part Number:

BNDL-938855

Alternate MPN:

BNDL938855

Warranty

Enginetech will replace any product found to be defective in material or workmanship. This policy continues for the life of the engine as long as the parts are professionally installed. This warranty is limited to the replacement of a defective product only.

Due to the nature of high performance and racing applications, installation or use of any Enginetech product in a high performance engine or any vehicle used for racing purposes will void warranty.

Enginetech will not be liable for claims regarding labor, consequential damages, or any claimed loss other than replacement of defective product.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More

Reviews

(2)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-2 of 2 Reviews

Sort by

3 of 5

You Get What You Pay for.

I posted this yesterday and I think it was deleted. After trying for over a month to find a camshaft for my engine I found this. I am not a novice nor an expert, I have done my share of engine builds over the years and have never had a camshaft or any component fail within a short period of time. This part changed that. Although I used the proper installation lube and break in oil and followed all procedures for break in this cam failed after only 30 miles. In researching my choices there were many articles about the cheaper camshafts failing soon after installation no matter how much care was used in installation. So I believe the issue is not limited to this particular brand. So, if you decide to go the less expensive way out be prepared for failure.

Enginetech® ES1102R - Stage 1 Hydraulic Camshaft

Posted by Patrick (Hollidaysburg, PA) / March 28, 20221974 Ford F-100

3 of 5

You Get What You Pay for.

After trying for over a month to find a camshaft for my engine I found this. I am not a novice nor an expert, I have done my share of engine builds over the years and have never had a camshaft or any component fail within a short period of time. This part changed that. Although I used the proper installation lube and break in oil and followed all procedures for break in this cam failed after only 30 miles. In researching my choices there were many articles about the cheaper camshafts failing soon after installation no matter how much care was used in installation. So I believe the issue is not limited to this particular brand. So, if you decide to go the less expensive way out be prepared for failure.

Enginetech® ES1102R - Stage 1 Hydraulic Camshaft

Posted by Patrick (Hollidaysburg, PA) / March 28, 20221974 Ford F-100
